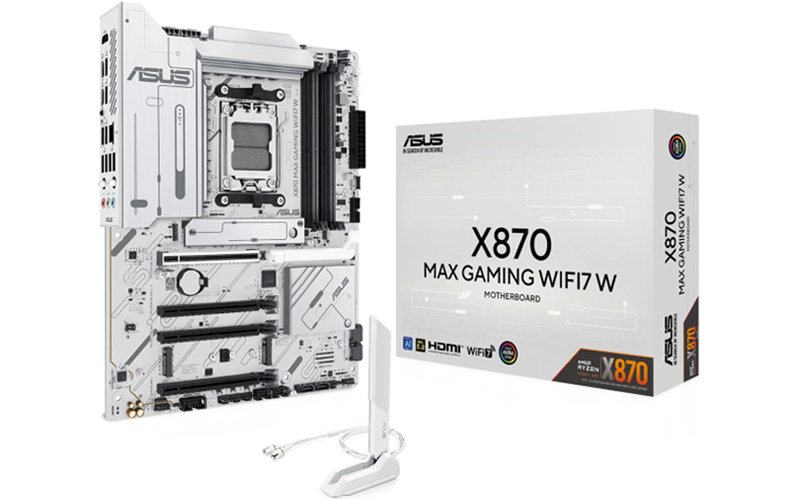

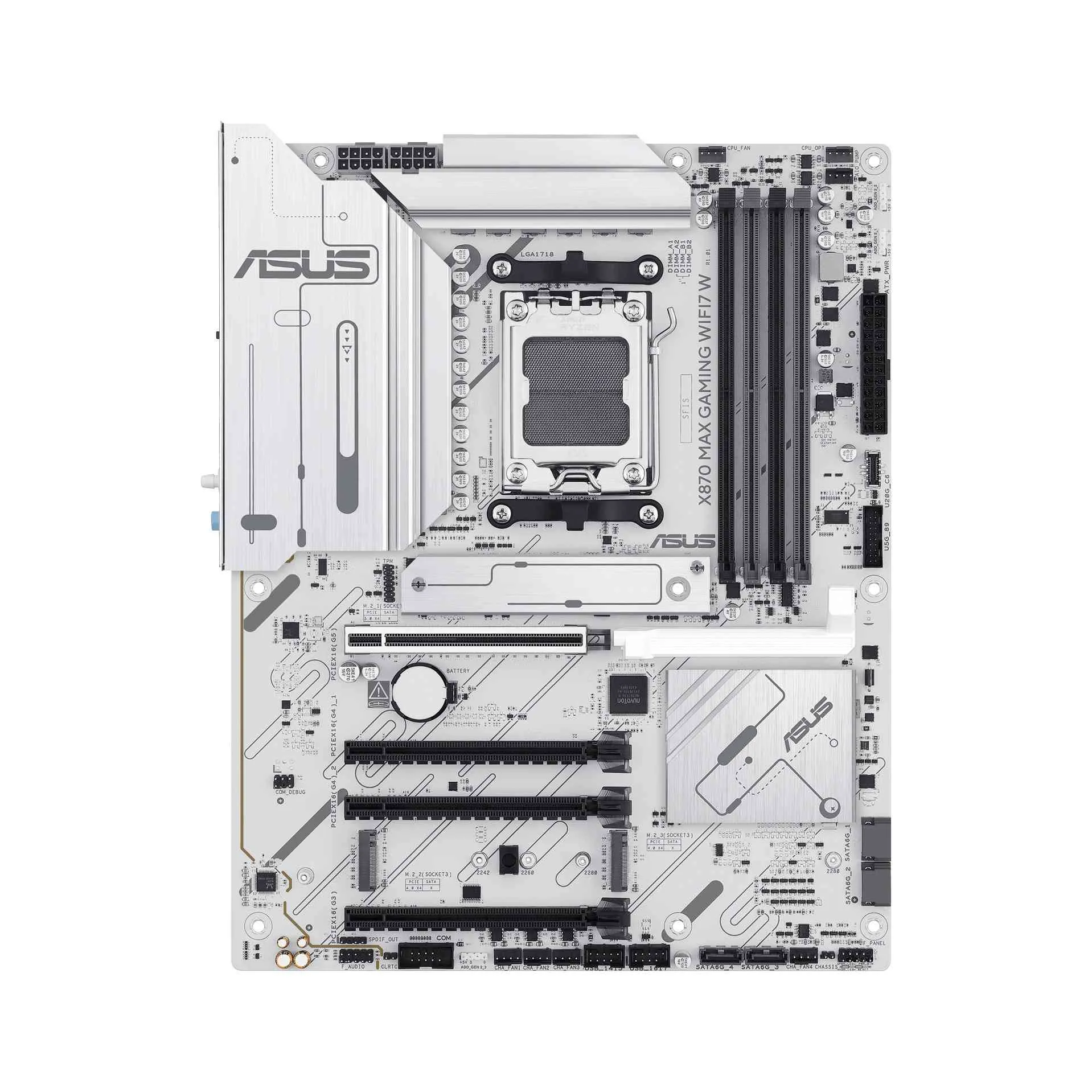

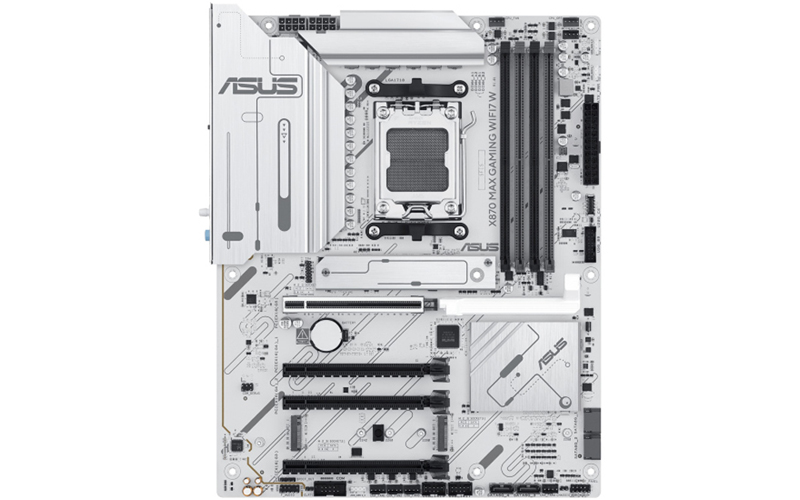

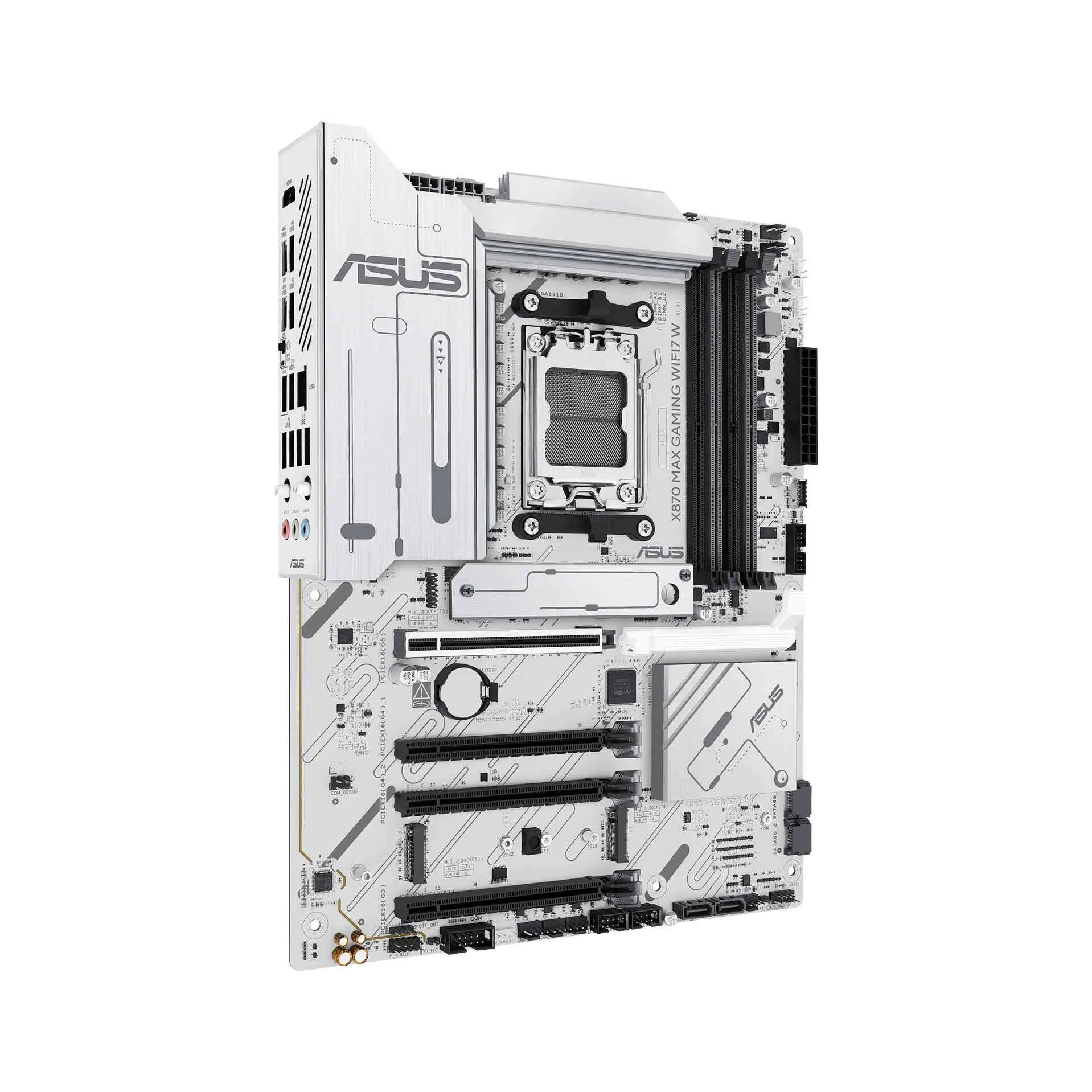

Asus X870 Max Gaming Wifi7 W AMD Ryzen PCIe 5.0 Ready Gaming MotherBoard - White

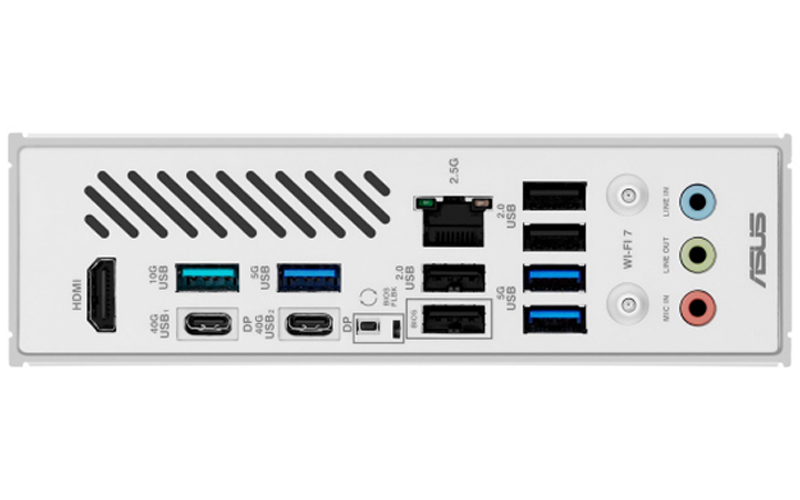

Model No : Asus X870 Max Gaming Wifi7 W AMD Ryzen PCIe 5.0 Ready Gaming MotherBoard - White Part No : 90MB1LZ0-M0EAY0 Chipset : AMD X870 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* LAN : 1 x Realtek 2.5Gb EthernetASUS LANGuard Wireless Communication module : Wi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.Bluetooth® v5.4**** Wi-Fi features may vary depending on the operating system.For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Graphics : 1 x HDMI™ port**2 x USB4® (40Gbps) ports support USB Type-C® display outputs**** Graphics specifications may vary between CPU types.** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.*** VGA resolution support depends on processors' or graphic cards' resolution. Memroy : 4 x DIMM slots, max. 256GB, DDR5Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series ProcessorsECC and Non-ECC, Un-buffered DIMM*Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP) Storage Compatibility : Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**AMD X870 ChipsetM.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports Back Panel I/O Ports : 2 x USB4® (40Gbps) ports (2 x USB Type-C®)1 x USB 10Gbps port (1 x Type-A)3 x USB 5Gbps ports (3 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x HDMI™ port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ button USB Ports : Rear USB (Total 10 ports)2 x USB4® (40Gbps) ports (2 x USB Type-C®)1 x USB 10Gbps port (1 x Type-A)3 x USB 5Gbps ports (3 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 20Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A Expansion Slots : AMD Ryzen™ 9000 & 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot (supports x16 mode)AMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**AMD X870 Chipset2 x PCIe 4.0 x16 slots (support x1 mode)1 x PCIe 3.0 x16 slot (supports x1 mode)*** Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorsStorage Related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 20Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable RGB Gen 2 headers1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel header RAID Support : AMD RAIDXpert2 Technology*Ryzen™ 9000 Series Processors: RAID 0/1/5/10Ryzen™ 8000 Series Processors: RAID 0/1Ryzen™ 7000 Series Processors: RAID 0/1/10* Specifications vary by CPU types. Special Features : ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- LANGuard- Overvoltage protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- PCIe Slot Q-Release- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Flexible M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCool- Pre-mounted I/O shield- SafeSlotAura Sync- Addressable RGB Gen 2 headers I/O Controller : iTE® I/O Controller Chip H/W Monitoring : Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.Noise detection BIOS : 256 Mb Flash ROM, UEFI AMI BIOS Accessories : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x M.2 rubber package1 x Screw package for M.2 SSDDocumentation1 x Quick start guide Warranty : 1 Year ( As per Manufacturer Policy )
