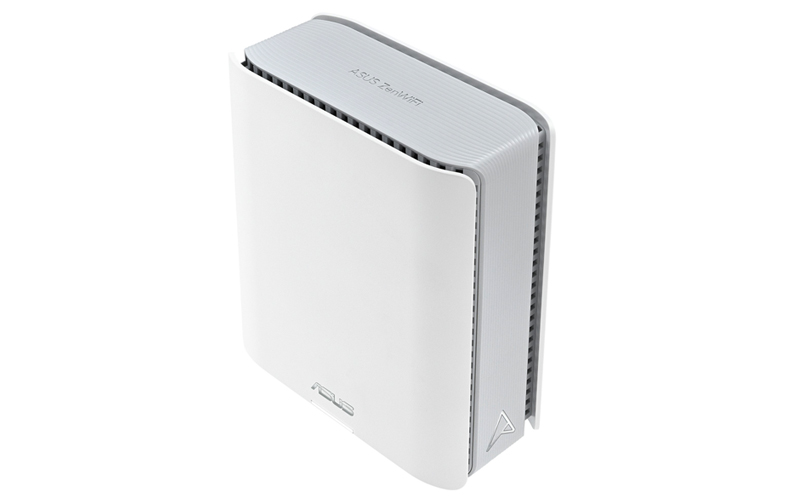

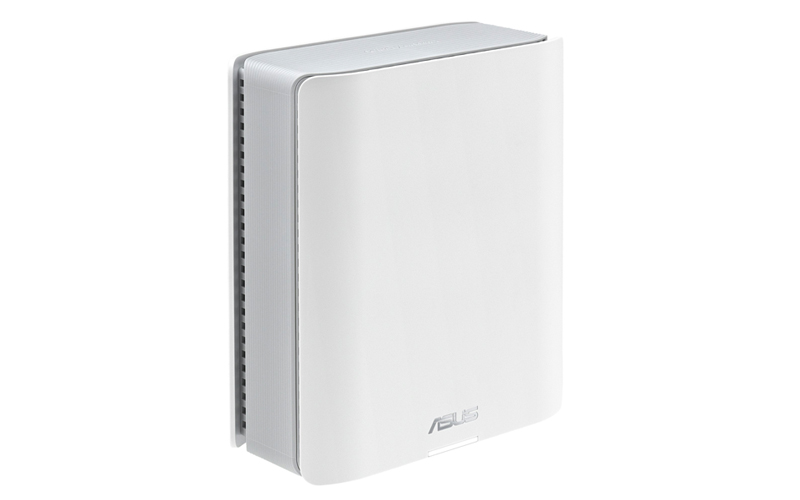

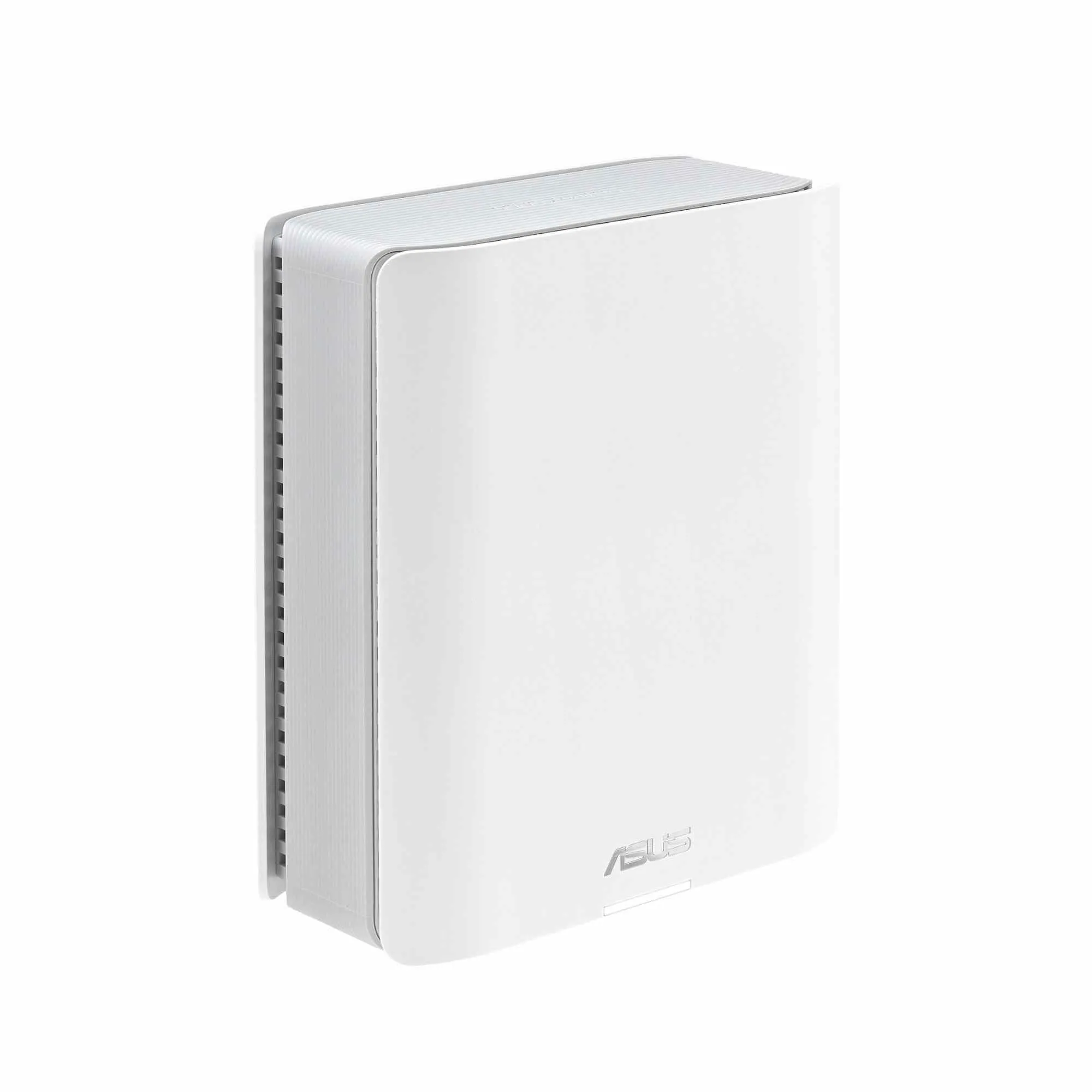

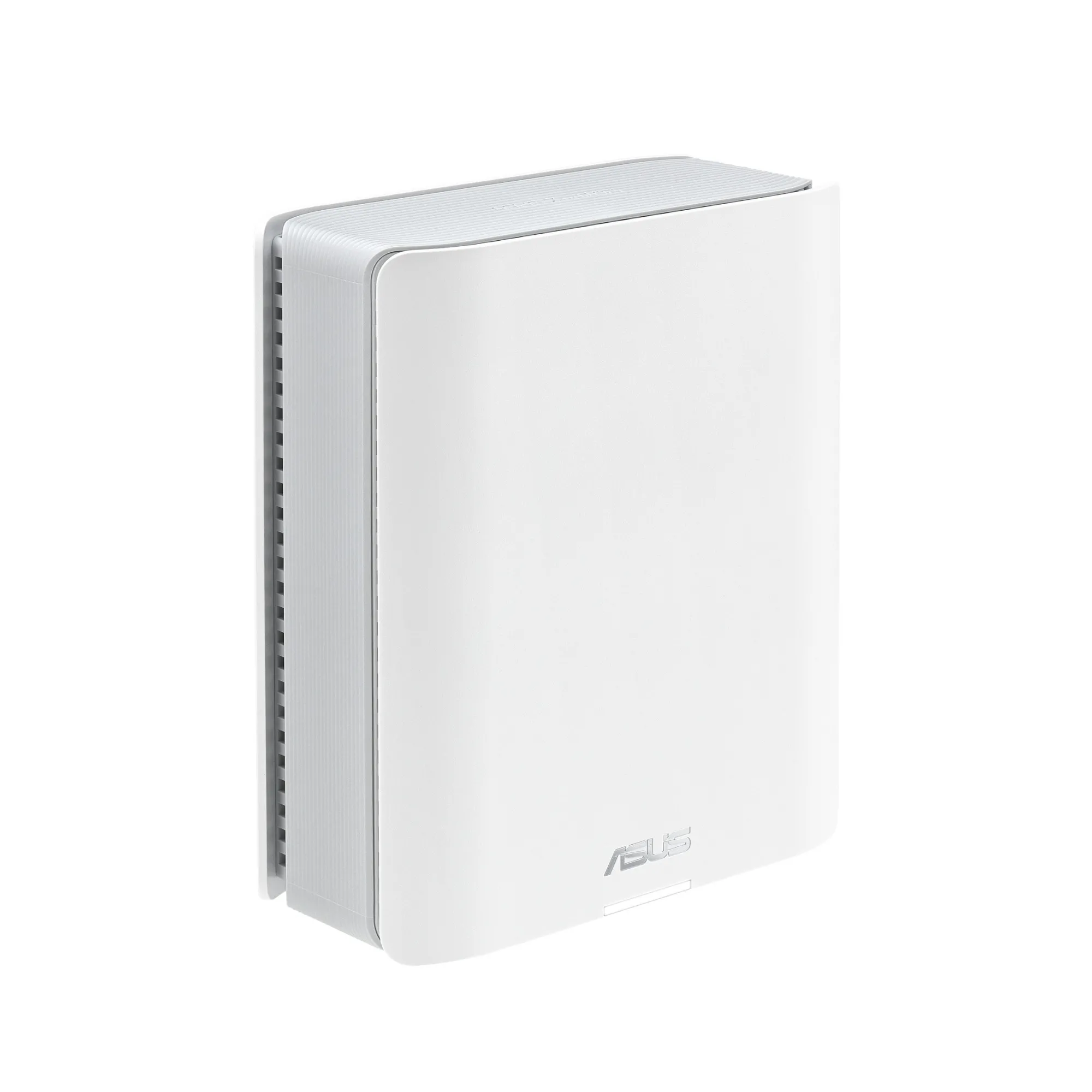

Asus ZenWiFi BT8 WIFI7 Tri-Band BE14000 Smart Home Mesh Extendable Router - White

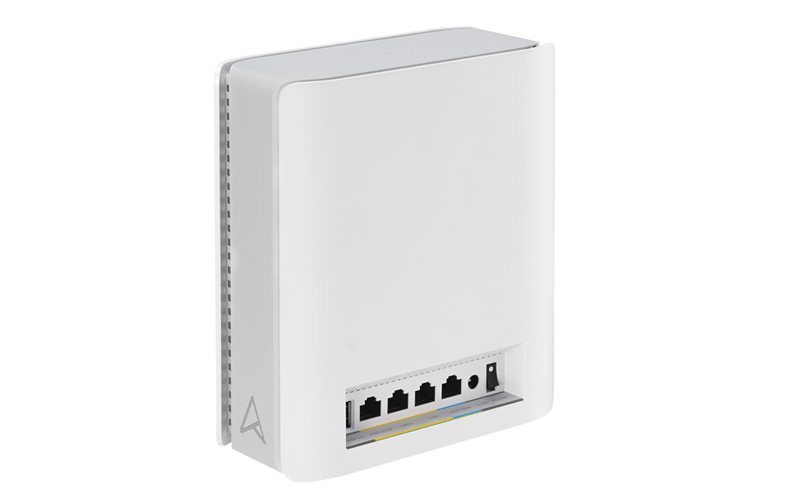

Model No : Asus ZenWiFi BT8 WIFI7 Tri-Band BE14000 Smart Home Mesh Extendable Router - White Part No : 90IG0930-MO3B40 Wireless Standard : Wi-Fi 7 (IEEE 802.11be) Network Bands : Tri-band: 2.4 GHz, 5 GHz, 6 GHz Maximum Theoretical Throughput : Up to ~14 Gbps total combined across bands Band Speeds : • 2.4 GHz: up to approx. 688 Mbps • 5 GHz: up to approx. 4,323 Mbps • 6 GHz: up to approx. 8,643 Mbps Streams (per band) : • 2.4 GHz: 2×2 • 5 GHz: 3×3 • 6 GHz: 3×3 Multi-Link Operation (MLO) : Yes — supports combining or switching between bands for high throughput/backhaul Mesh Technology : Smart AiMesh (ASUS mesh system) Coverage Area (2-pack) : Up to approx. 5,900 sq ft (varies with environment) Ports (each node) : • One 2.5 Gbps RJ-45 WAN/LAN port • One 2.5 Gbps RJ-45 LAN port • Two 1 Gbps RJ-45 LAN ports • One USB-A 3.x port (for storage / tethering) Other Features : • 4K-QAM support (higher modulation efficiency) • Built-in IoT / Smart Home network support • Mobile tethering support (4G/5G) • Full mesh node units (identical hardware) Processor / Memory / Storage : 1 GB RAM, 128 MB Flash (varies by region) Physical Size (each unit) : Approx. 187 mm × 159 mm × 72 mm (varies) System Compatibility : Works with typical home/office wired + wireless devices, supports WAN internet link, wired LAN backhaul or wireless mesh backhaul Security & Software Features : • Advanced parental controls • Guest network support • Network security suite built-in • AiMesh control via app/web interface Power / Input : 100-240 V AC input (region dependent) Typical Use Case : Whole-home mesh Wi-Fi for large spaces, high device density, high-speed internet and multi-gig wired backhaul scenarios Warranty : 1 Year ( As per Manufacturer Policy )
