ColorFul BATTLE-AX Intel B760M-K D5 V20 Motherboard

Modern DDR5 Gaming Motherboard for Intel Platforms

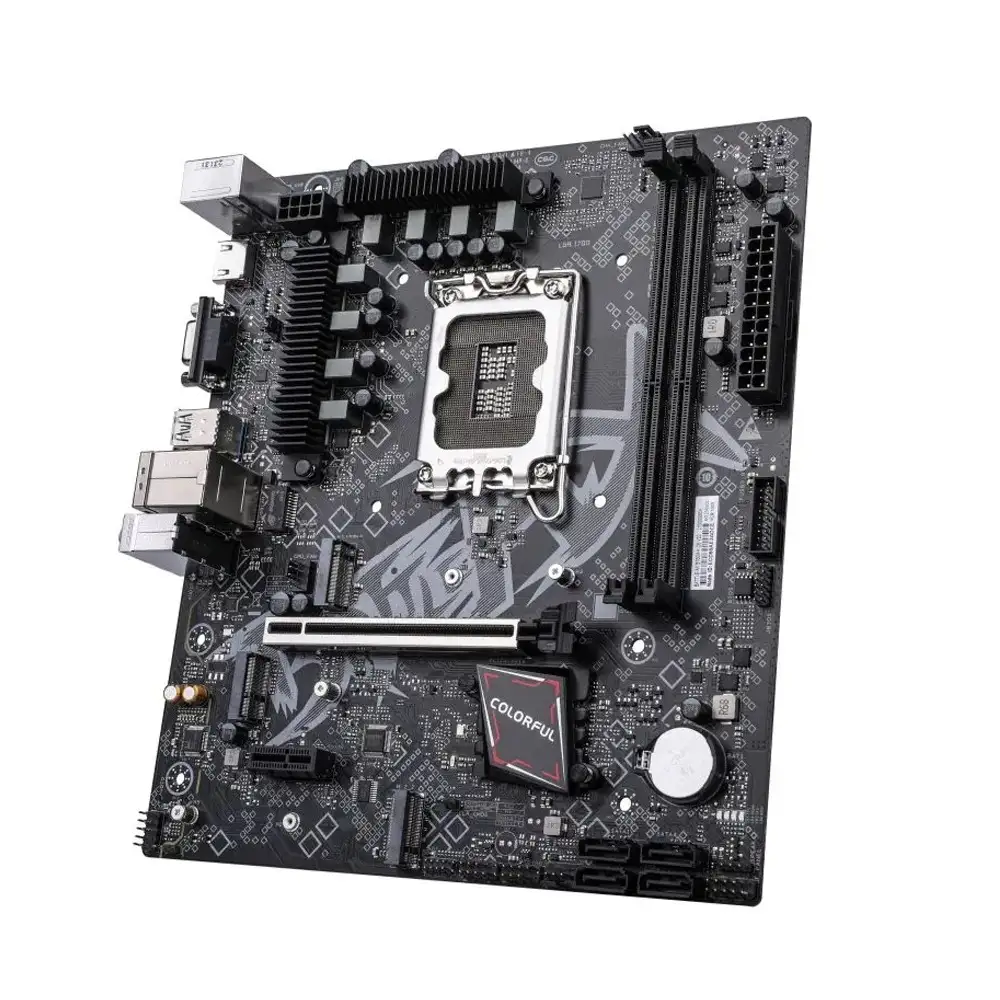

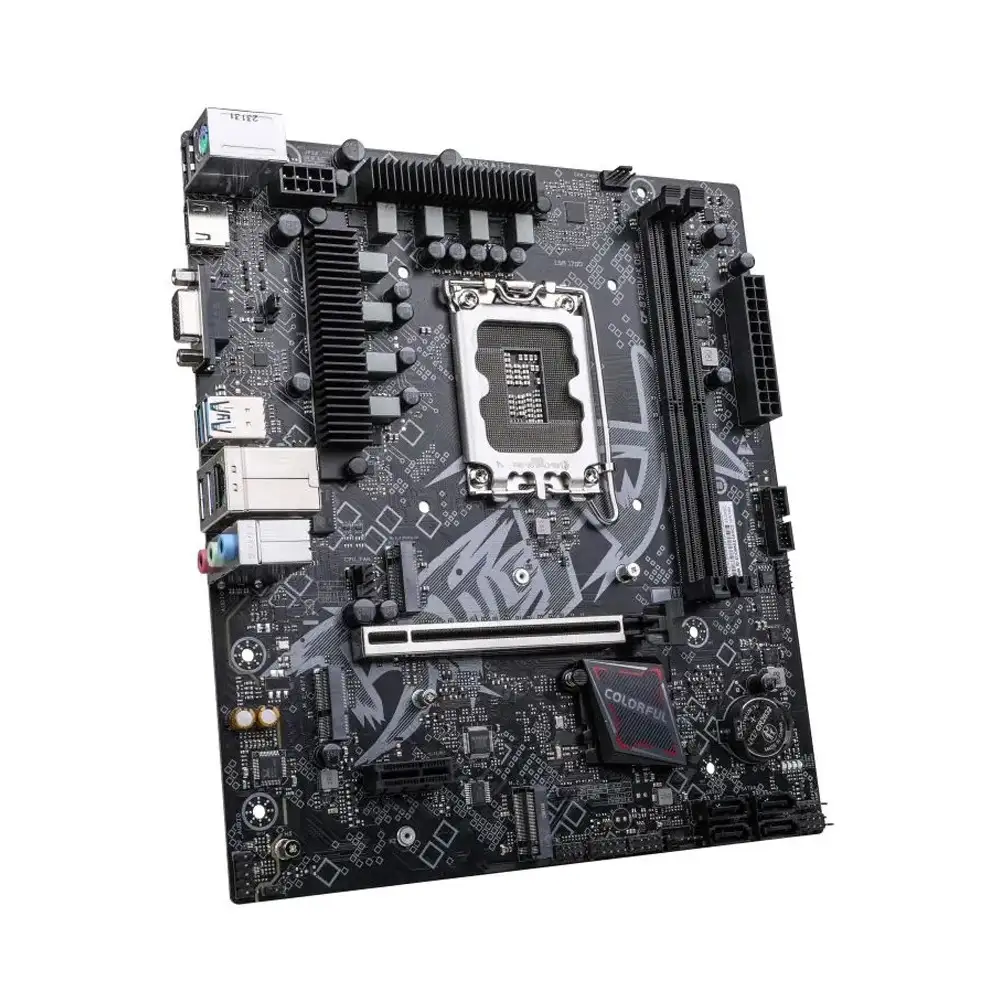

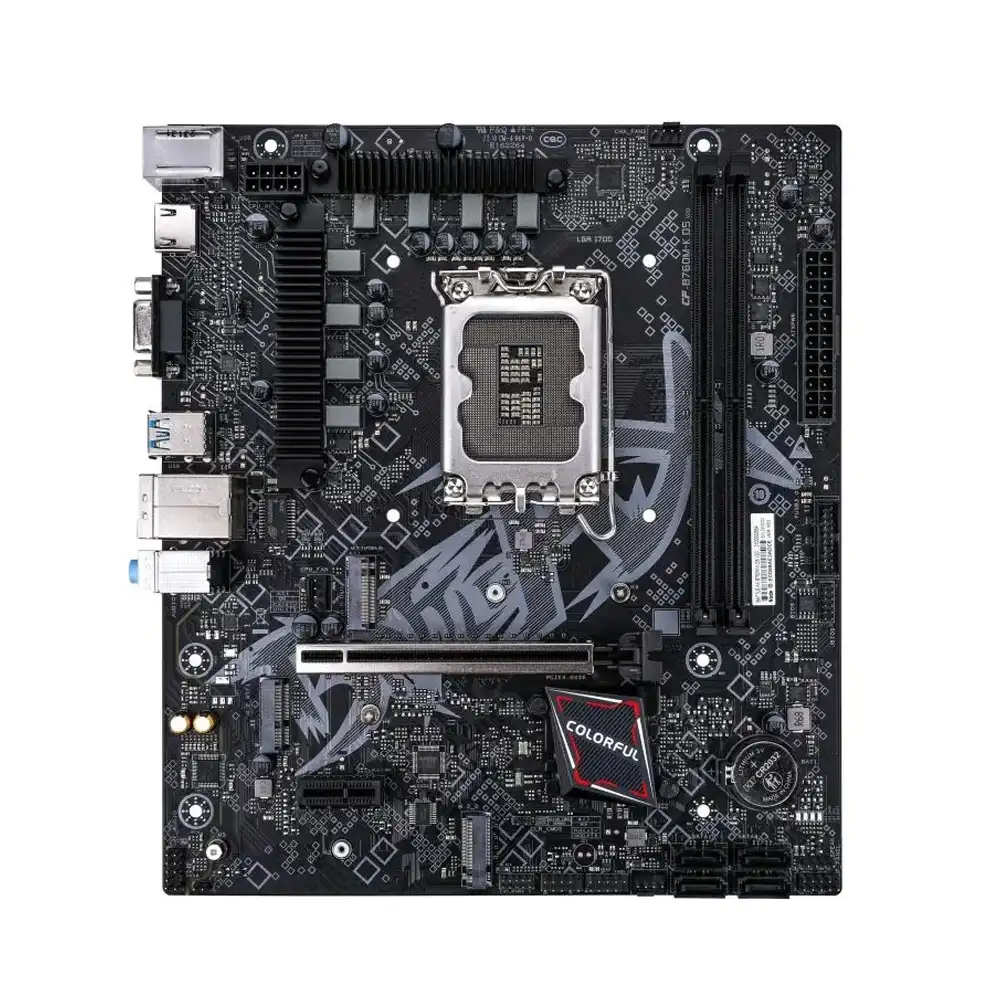

The Colorful BATTLE-AX B760M-K D5 V20 is a micro-ATX motherboard designed for gamers and PC builders who want reliable performance with support for Intel’s 12th, 13th, and 14th Generation processors. Built on the Intel B760 chipset and LGA1700 socket, it offers an excellent balance of affordability, DDR5 memory support, and upgrade flexibility. Its compact form factor makes it ideal for mainstream gaming systems and productivity-focused builds.

High-Speed DDR5 Memory and Dual M.2 Storage

This motherboard supports dual-channel DDR5 memory with overclocking speeds up to 7200MHz (OC), delivering increased bandwidth and improved responsiveness for gaming and multitasking. It also features two PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs, significantly reducing boot and load times. Intel XMP support simplifies memory tuning, allowing compatible RAM kits to run at their rated speeds with minimal configuration.

Essential Connectivity and Reliable Design

The B760M-K D5 V20 includes a PCIe 4.0 x16 slot for modern graphics cards, four SATA 6Gb/s ports, Gigabit LAN, and HDMI 2.0 plus VGA display outputs for versatile monitor compatibility. An onboard M.2 Key-E slot allows optional Wi-Fi module installation, giving users the flexibility to add wireless networking later. Colorful also incorporates multiple protection technologies and extensive factory testing to enhance long-term stability and dependable daily operation.

Key Specifications

• Product Name: Colorful BATTLE-AX Intel B760M-K D5 V20 Motherboard

• Chipset: Intel B760

• CPU Socket: LGA1700

• Processor Support: Intel Core 12th / 13th / 14th Generation, Pentium, and Celeron

• Form Factor: Micro-ATX (236 × 207 mm)

• Memory Support: 2 × DDR5 DIMM Slots

• Maximum Memory Capacity: Up to 96GB

• Memory Speed: DDR5-4800 to DDR5-7200 (OC)

• Graphics Slot: 1 × PCIe 4.0 x16

• Additional Slot: 1 × PCIe x1

• Storage: 2 × PCIe 4.0 x4 M.2 Slots, 4 × SATA 6Gb/s

• Networking: Realtek Gigabit LAN

• Wireless Expansion: M.2 Key-E Slot for Optional Wi-Fi Module (2230)

• Display Outputs: HDMI 2.0 (up to 4K 60Hz) and VGA

• Audio: Realtek ALC897 5.1-Channel HD Audio

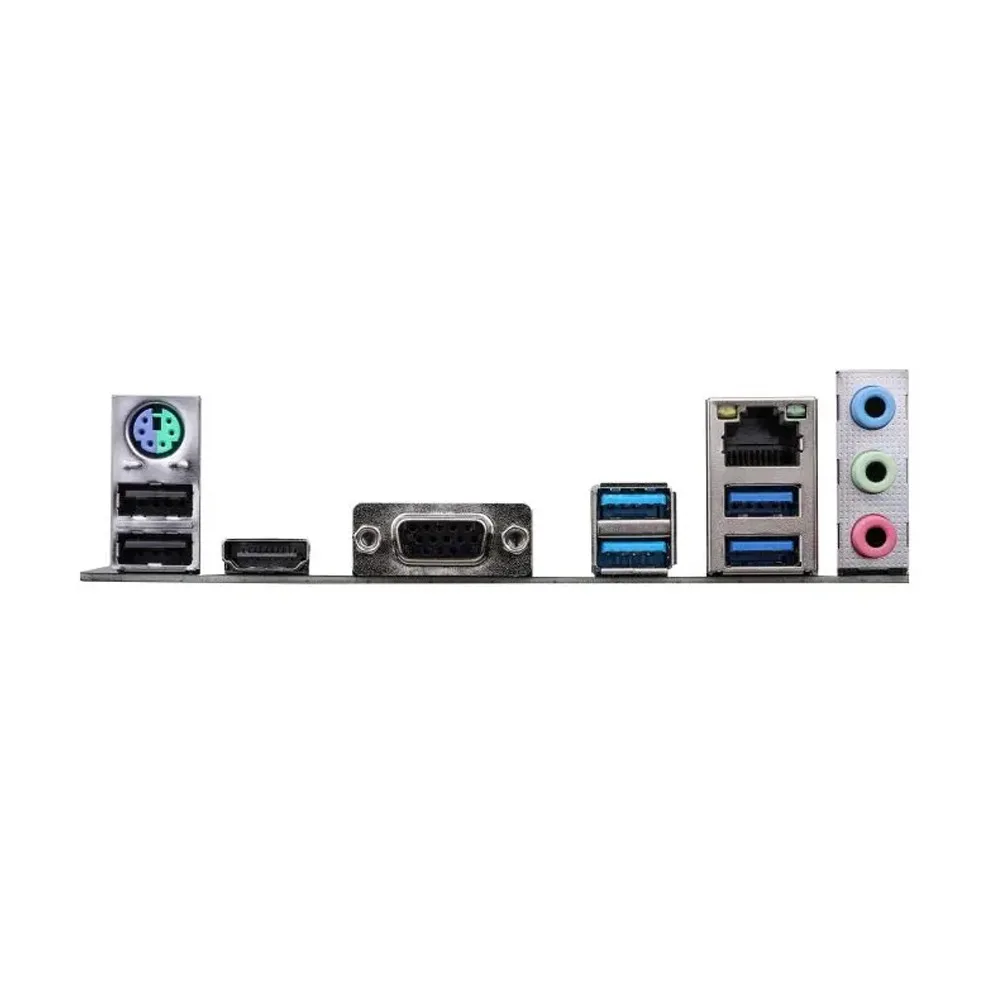

• Rear USB Ports: 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0

• Special Features: Intel XMP Support, RAID 0/1/5/10, Multi-Layer Protection Design

• Usage: Gaming, Productivity, and Mainstream DDR5 PC Builds
