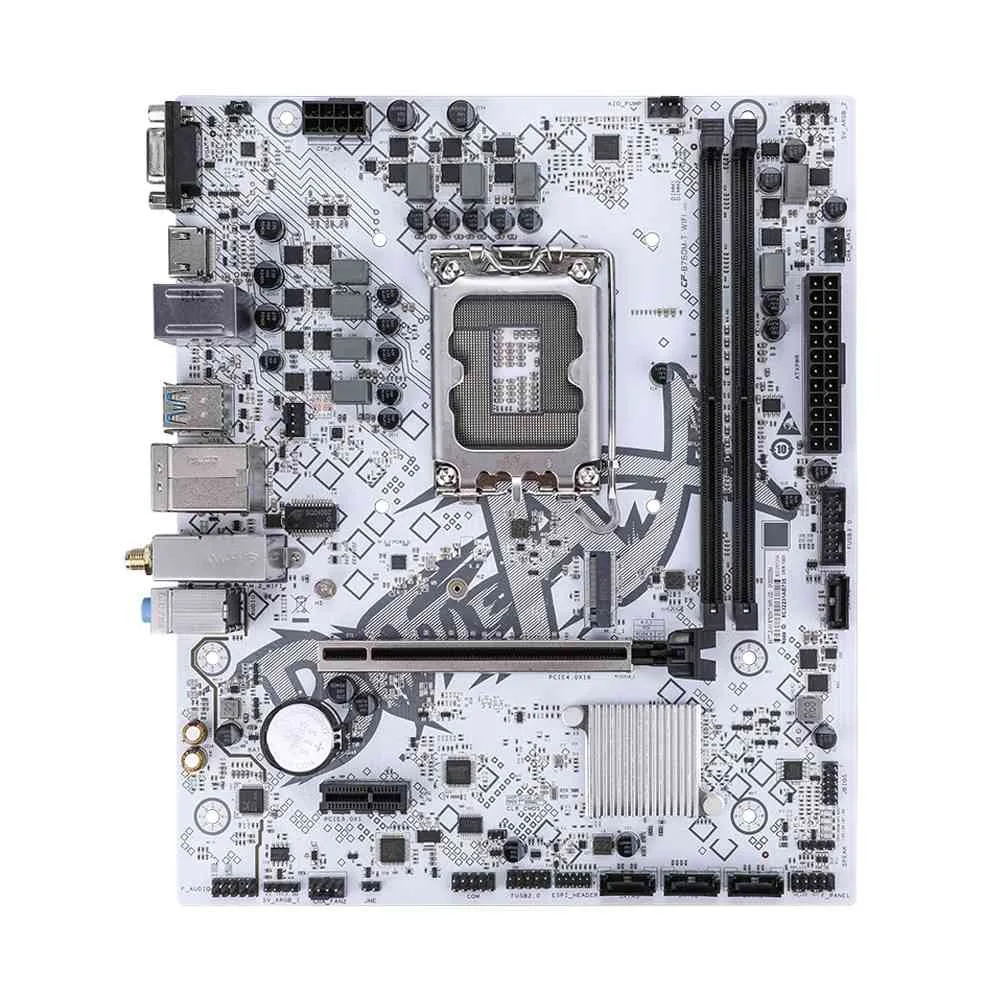

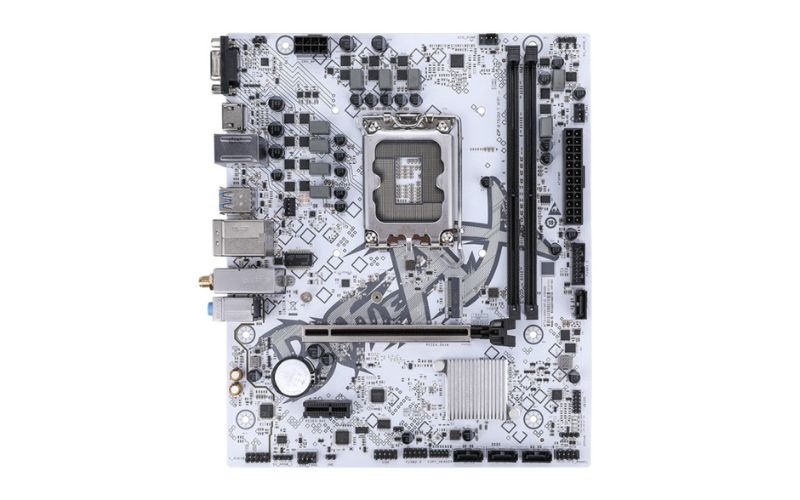

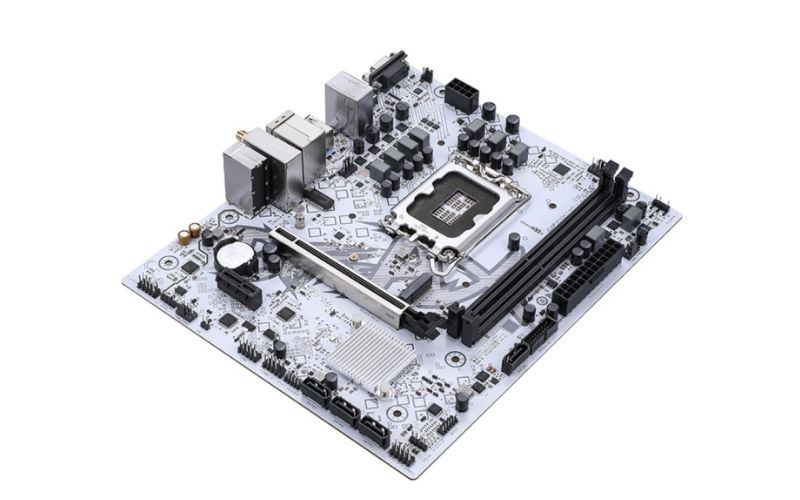

Colorful BATTLE-AX Intel B760M-T WIFI V21A DDR4 Motherboard

Compact Versatility for Intel Builds

The Colorful BATTLE-AX B760M-T WIFI V21A is a specialized Micro-ATX motherboard designed to maximize value without sacrificing modern features. It provides a stable and efficient platform for 12th, 13th, and 14th Generation Intel Core processors. By utilizing the cost-effective DDR4 memory standard, this board is an excellent choice for budget-conscious gamers and system integrators who want to build a powerful, compact PC while reusing or saving on memory costs.

Modern Connectivity and Future-Proofing

Despite its compact size, the V21A revision brings significant upgrades to the expansion department, featuring a PCIe 5.0 x16 slot. This allows users to install the latest high-end graphics cards with massive bandwidth overhead for future upgrades. For networking, it is equipped with built-in Wi-Fi 6 and Bluetooth 5.2, providing a clean, cable-free setup. The inclusion of high-speed PCIe 4.0 M.2 support ensures that your operating system and games load nearly instantly when paired with a modern NVMe SSD.

Durable Design with Smart Controls

The BATTLE-AX series is engineered with "Six Protection Technologies," which include safeguards against overvoltage, humidity, and high temperatures. Its aesthetic is tailored for modern builds, often featuring a sleek white or silver themed PCB that stands out in tempered glass cases. To help personalize your rig, it provides dual 5V 3-pin ARGB headers, which can be easily synchronized with other components through the iGame Center software, allowing you to control your system's lighting and fan speeds from a single interface.

Key Specifications

• CPU Socket: Intel LGA 1700 (Supports 12th, 13th, & 14th Gen)

• Chipset: Intel B760

• Form Factor: Micro-ATX (225mm x 190mm)

• Memory Support: 2x DDR4 DIMM (Up to 64GB, 4400+ MHz OC)

• Expansion Slots:

  • 1x PCIe 5.0 x16 Slot (Primary)

  • 1x PCIe 4.0 x1 Slot

• Storage Interface:

  • 1x M.2 Slot (PCIe 4.0 x4, CPU Channel)

  • 4x SATA 6Gb/s Ports (Supports RAID 0, 1, 5, 10)

• Networking: Gigabit LAN + Wi-Fi 6 & Bluetooth 5.2

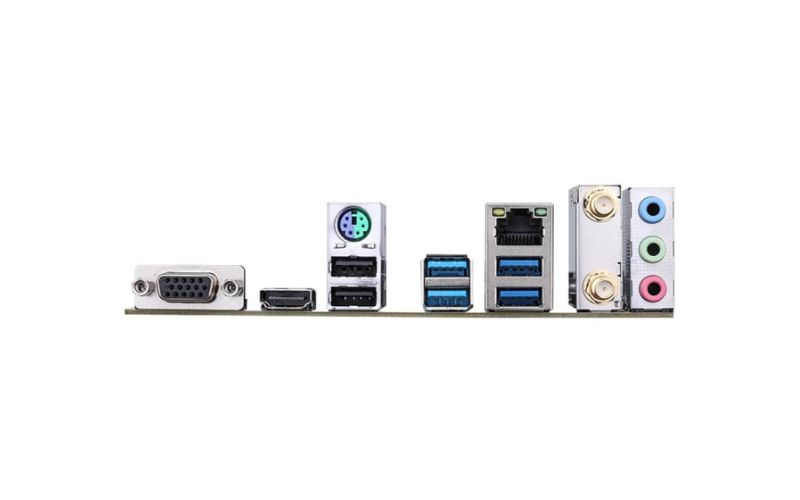

• Display Outputs: 1x HDMI 2.0 (4K 60Hz), 1x VGA

• Rear USB: 4x USB 3.2 Gen 1 (Type-A), 2x USB 2.0

• Audio: Realtek ALC897 (5.1-Channel High Definition)

• Lighting: 2x 5V 3-Pin ARGB Headers
