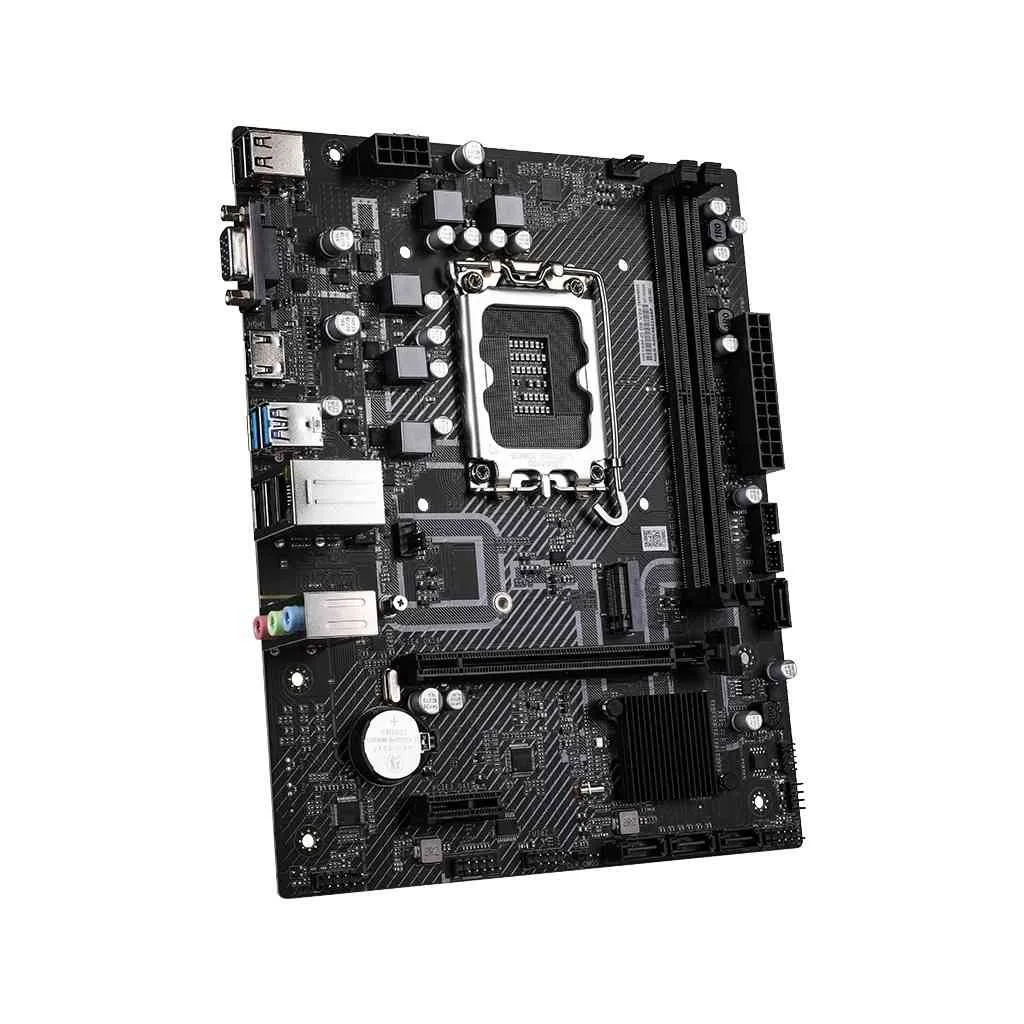

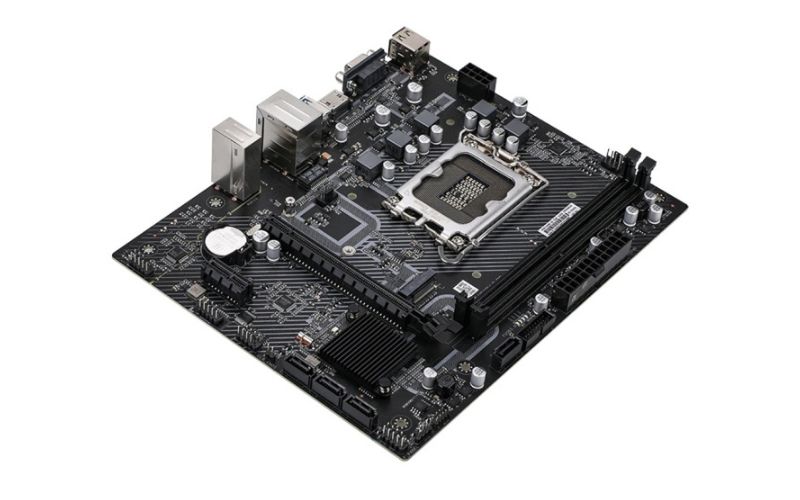

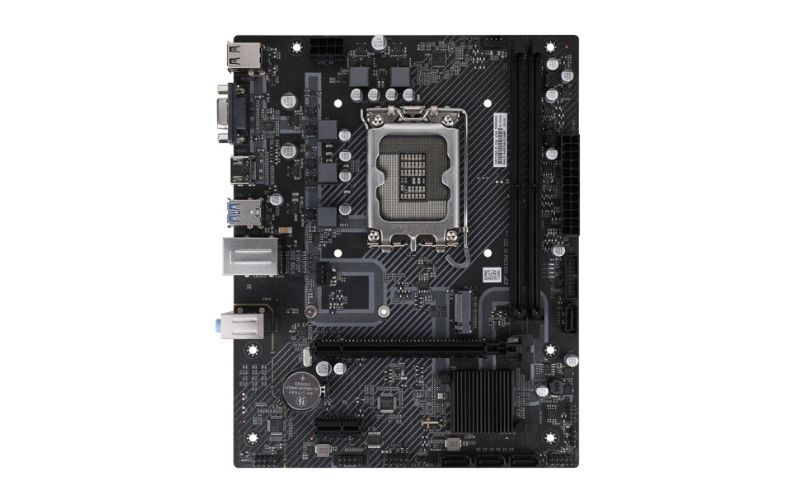

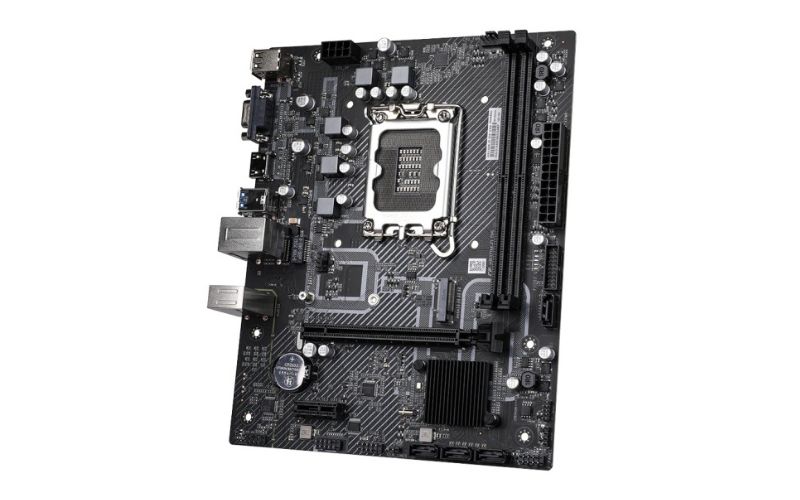

Colorful Intel H610M-D D5 V20 DDR5 Motherboard

High-Efficiency Entry for the DDR5 Era

The Colorful Intel H610M-D D5 V20 is a streamlined Micro-ATX motherboard designed to bridge the gap between affordability and modern performance. By leveraging the Intel H610 chipset, it provides a stable and cost-effective foundation for 12th, 13th, and 14th Generation Intel Core processors. The "V20" designation signifies its specialized support for DDR5 memory, allowing budget-conscious builders to access the increased bandwidth and improved power efficiency of the latest RAM standard.

Optimized Power and Stability

Engineered for reliability, this board features a reinforced power delivery system that utilizes high-quality solid capacitors. These "Black Gold" components are designed to withstand higher temperatures and provide a more consistent current to the CPU, which is crucial for maintaining system stability during multitasking or long work sessions. Additionally, the PCB is built with moisture-resistant materials to protect the circuitry from environmental wear, ensuring a longer lifespan for your hardware.

Versatile Storage and Expansion

Despite its compact size, the H610M-D D5 V20 offers a balanced selection of modern high-speed interfaces. It includes a PCIe 4.0 x16 slot, ensuring that modern dedicated graphics cards can operate at their full potential without bottlenecking. For storage, the onboard M.2 slot supports NVMe SSDs, providing a massive speed boost over traditional hard drives. The inclusion of both HDMI and VGA ports makes it exceptionally versatile, allowing it to fit seamlessly into modern home setups or legacy office environments.

Key Specifications

• Chipset: Intel H610.

• CPU Support:Intel LGA 1700 (14th, 13th, and 12th Gen Processors).

• Memory: 2 x DDR5 Slots (Supports Dual Channel, up to 5600MHz/4800MHz depending on CPU).

• Expansion Slots: 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x1 Slot.

• Storage: 1 x M.2 Slot (Supports PCIe Gen3 x4 SSDs), 4 x SATA 3.0 (6Gb/s) Ports.

• Networking: Realtek Gigabit Ethernet (1000M).

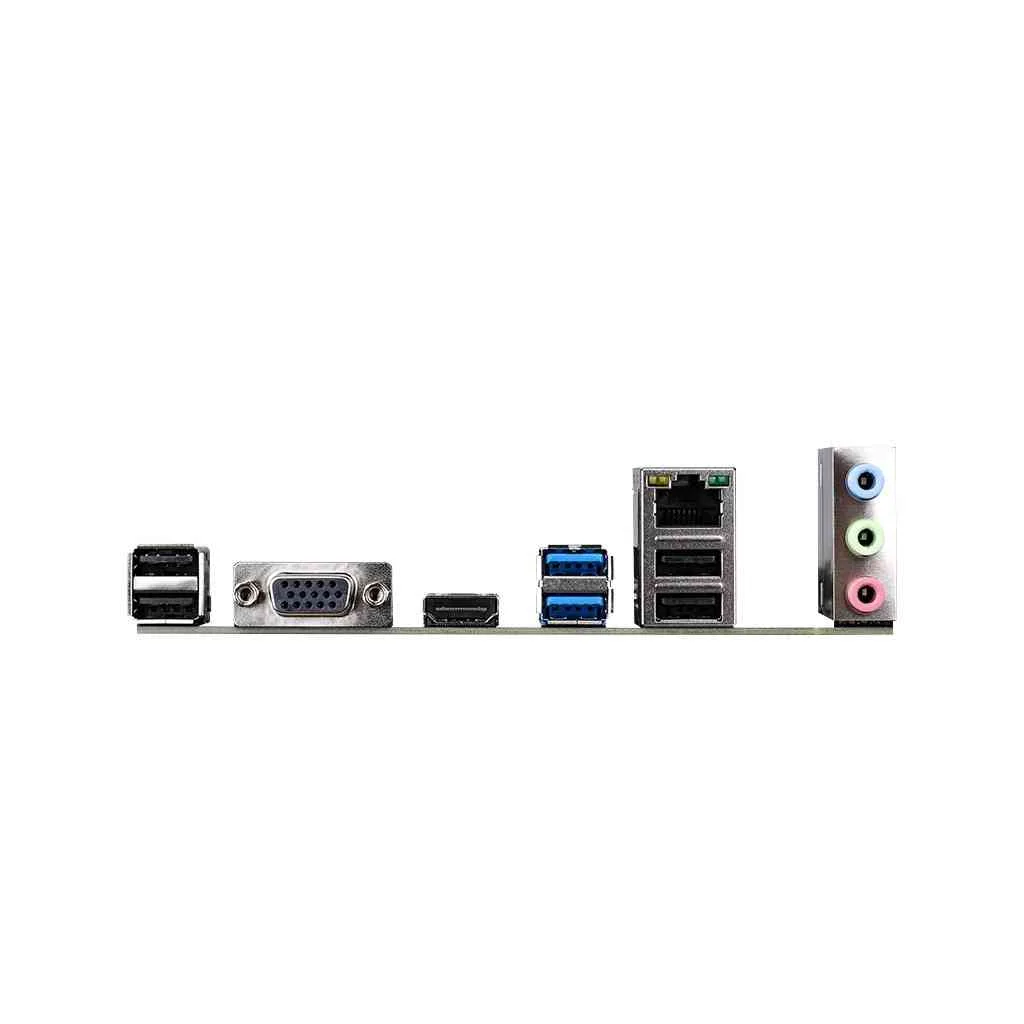

• Display Output: 1 x HDMI Port, 1 x VGA Port.

• Audio: 6-Channel High Definition Audio Coder.

• USB Ports: 4 x USB 3.2 Gen 1 (2 Rear, 2 Header), 6 x USB 2.0 (2 Rear, 4 Header).

• Form Factor: Micro-ATX (225mm x 194mm).
