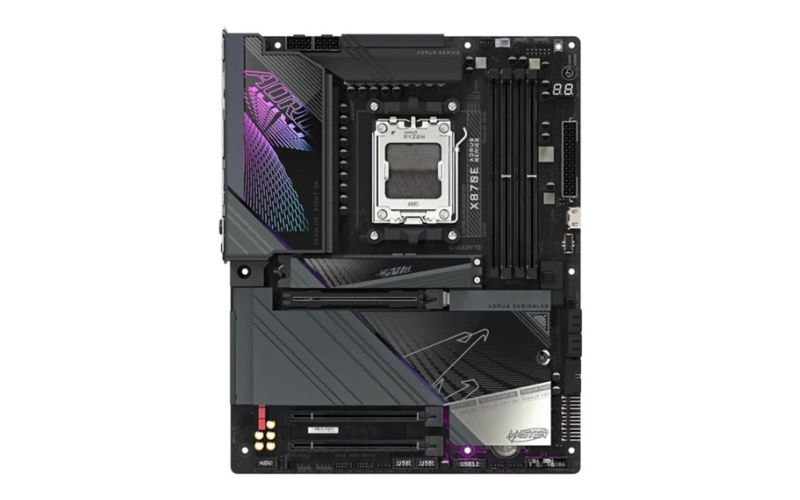

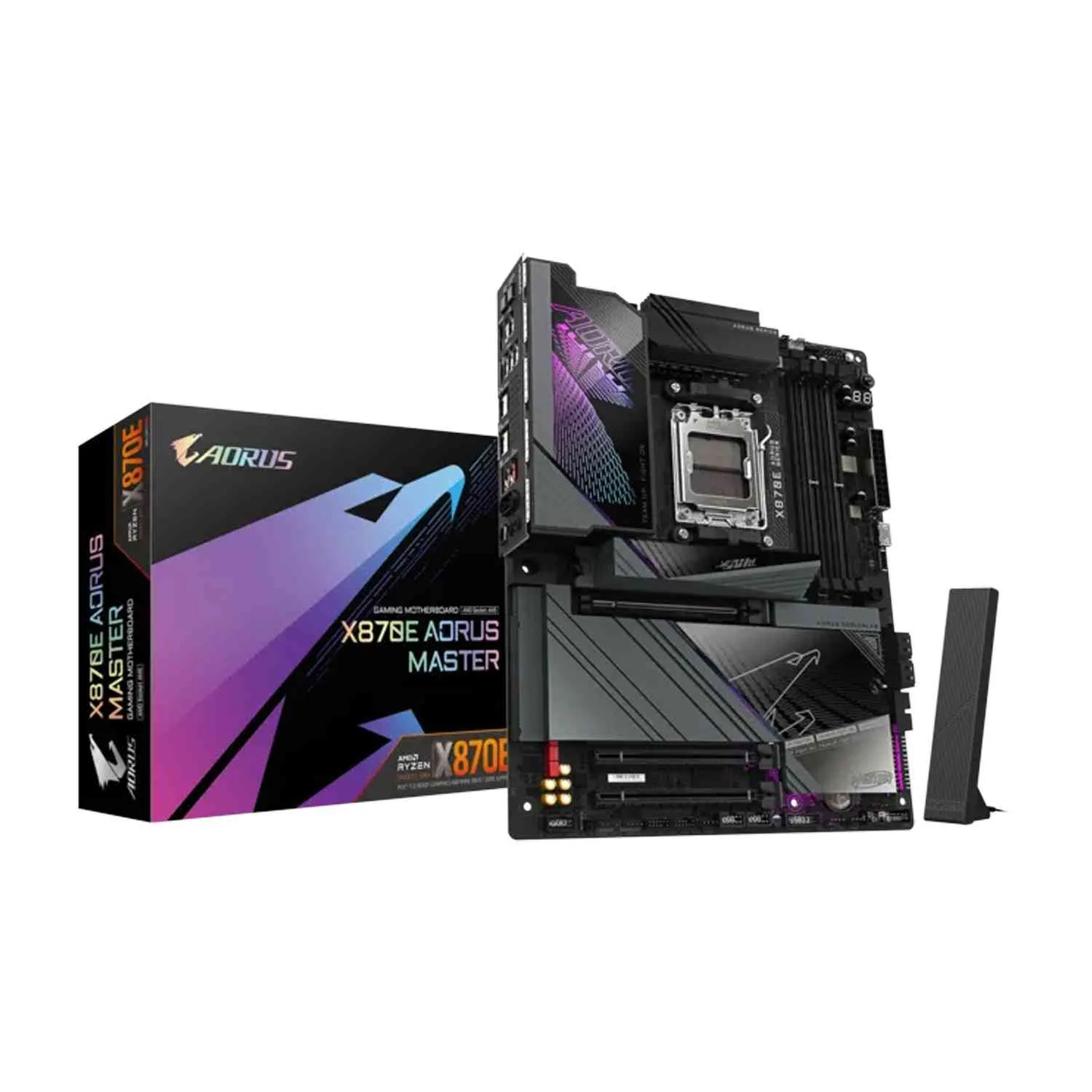

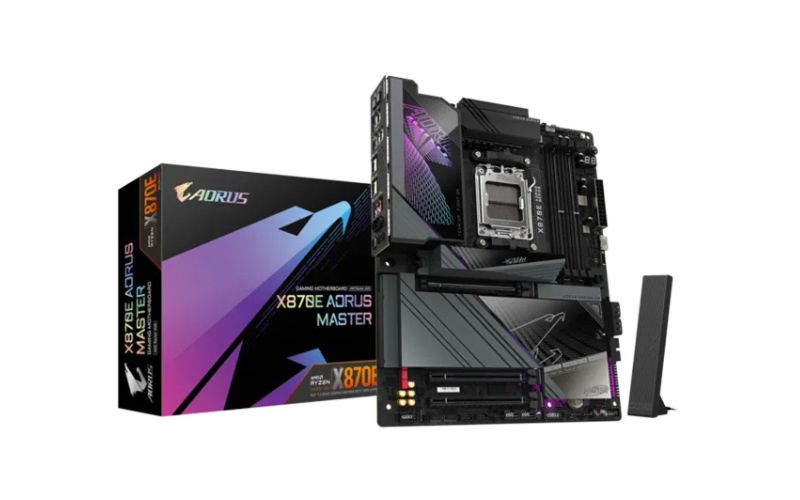

Gigabyte AMD X870E AORUS MASTER X3D DDR5 Gaming Motherboard

Ultimate Performance for AMD Ryzen

The Gigabyte X870E AORUS MASTER X3D is a flagship AM5 motherboard engineered to extract every ounce of performance from the latest AMD Ryzen processors. It features the revolutionary X3D Turbo Mode 2.0, an AI-powered optimization tool that dynamically tunes system parameters to maximize the gaming potential of X3D CPUs, offering a significant performance uplift. To handle extreme overclocking and high-power flagship chips, it is equipped with a robust 18+2+2 Twin Digital VRM design with 110A Smart Power Stages, ensuring rock-solid stability even under the heaviest workloads.

Next-Gen Connectivity and Speed

Built on the premium X870E chipset, this motherboard offers cutting-edge data transfer and future-proof networking. It comes standard with dual USB4 Type-C ports supporting up to 40Gb/s speeds and DisplayPort Alt Mode. Gamers and power users will benefit from a high-performance networking stack featuring both 10GbE and 5GbE Ethernet, alongside integrated Wi-Fi 7 technology with an ultra-high gain antenna. This configuration ensures ultra-low latency gaming and lightning-fast file transfers across both wired and wireless connections.

Premium Thermal Design and DIY Ease

The AORUS MASTER X3D prioritizes system longevity with its Advanced Thermal Armor, utilizing direct-touch heatpipes and 12 W/mk thermal pads to keep power delivery components cool. It features massive M.2 Thermal Guards to prevent thermal throttling on high-speed Gen5 SSDs. For builders, the board includes a suite of DIY-friendly innovations, such as the M.2 EZ-Latch and PCIe EZ-Latch Plus Duo for tool-free component installation, alongside a "DriverBIOS" that pre-installs essential drivers to get your system online immediately.

Key Specifications

• Socket: AMD AM5 (Supports Ryzen 9000, 8000, and 7000 Series)

• Chipset: AMD X870E

• Memory: 4x DDR5 DIMM, Dual Channel (Supports up to 256GB and 9000MT/s OC)

• Power Design: 18+2+2 Phases Twin Digital VRM (110A Smart Power Stage)

• Expansion Slots: 1x PCIe 5.0 x16 (UD Slot X), 1x PCIe 5.0 x8, 1x PCIe 4.0 x4

• Storage: 5x M.2 Slots (2x PCIe 5.0 x4, 3x PCIe 4.0 x4), 2x SATA 6Gb/s

• Networking: 10GbE LAN + 5GbE LAN, Wi-Fi 7 (320MHz), Bluetooth 5.4

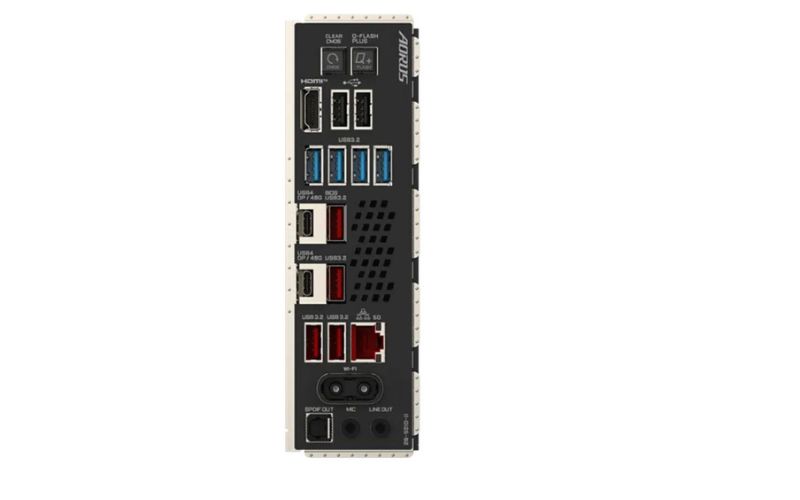

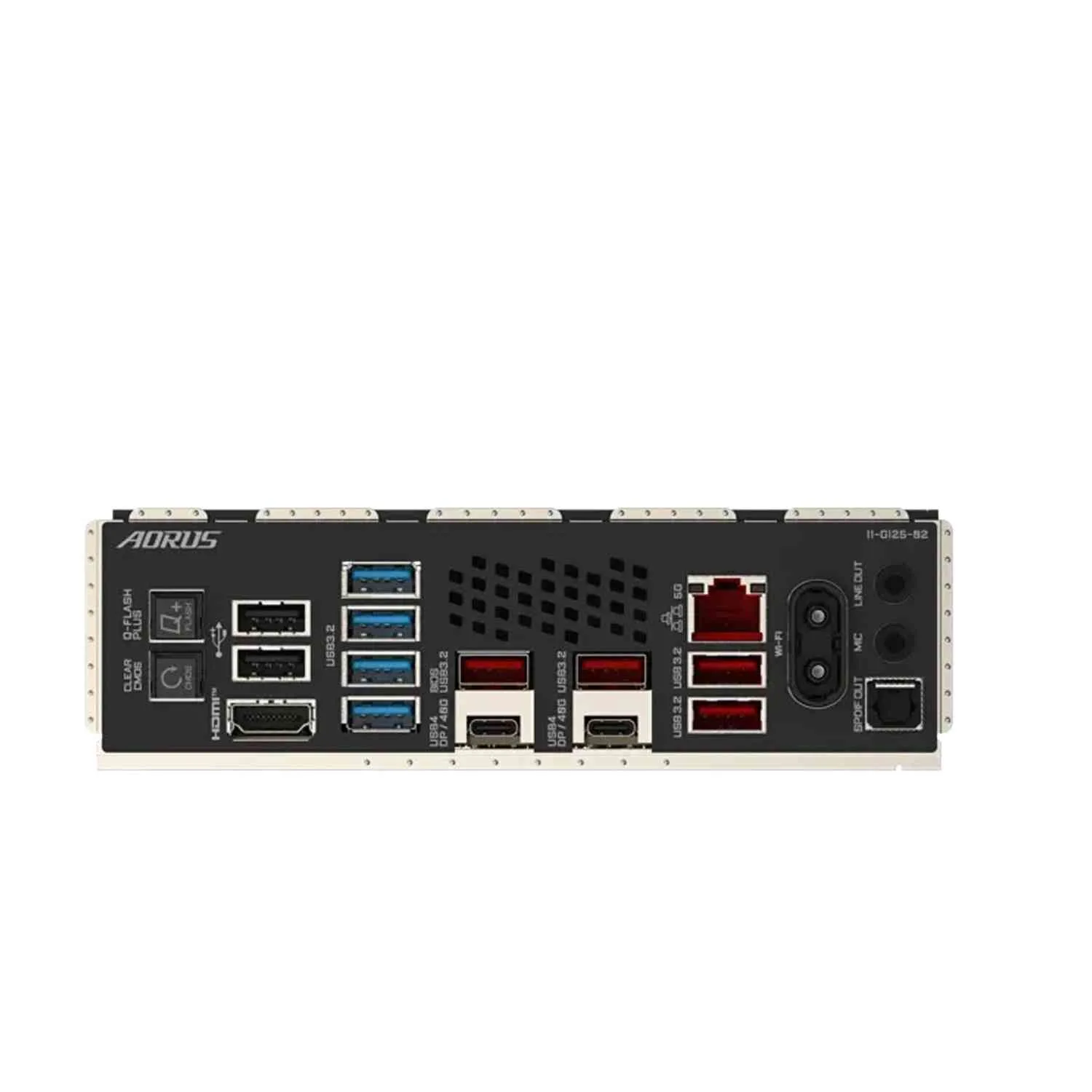

• USB Ports: 2x USB4 (40Gb/s), 1x USB 3.2 Gen 2x2 Type-C (Front 65W PD), 7x USB 3.2 Gen 2 Type-A

• Audio: Realtek ALC1220 Codec + ESS ES9118 DAC

• Form Factor: ATX
