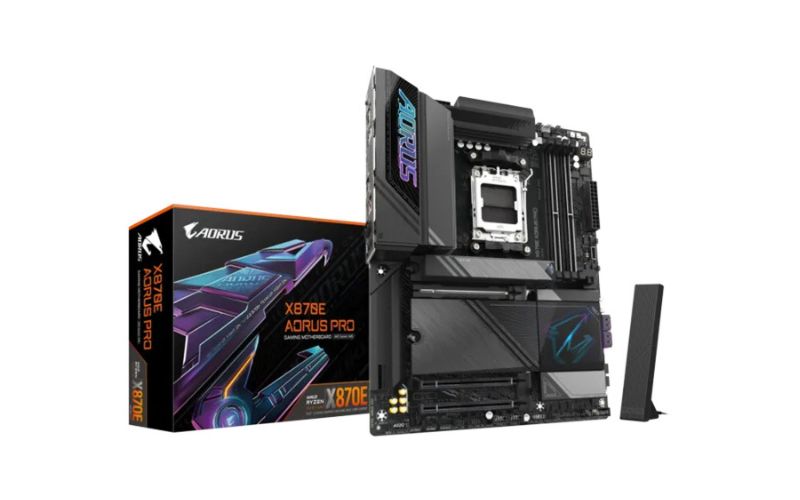

Gigabyte AMD X870E A PRO X DDR5 Gaming Motherboard

High-Performance AMD AM5 Foundation

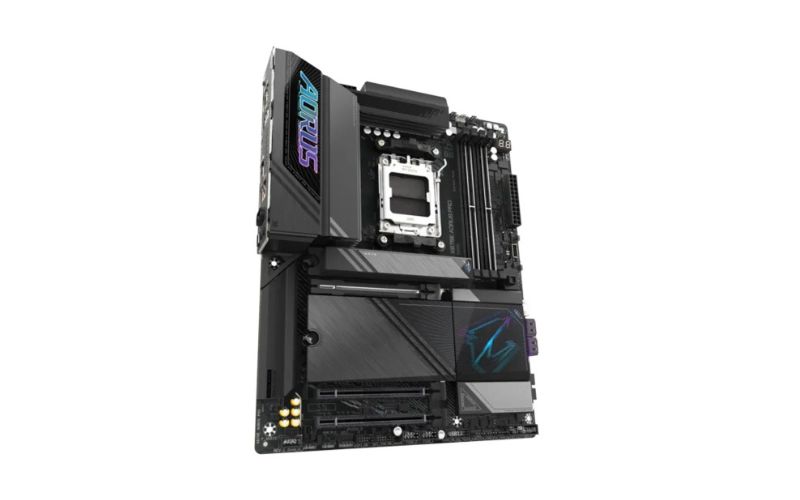

The Gigabyte X870E AORUS PRO is a premium ATX motherboard designed to maximize the potential of AMD Ryzen 9000, 8000, and 7000 series processors. Built on the flagship X870E chipset, it features a sophisticated 16+2+2 Twin Digital VRM design with 80A Smart Power Stages, providing exceptionally stable power delivery for high-end gaming and multi-threaded creative workloads. Its 6-layer server-grade PCB and reinforced construction ensure long-term durability and signal integrity, making it a robust choice for enthusiasts looking to build a future-proof system.

Cutting-Edge Connectivity and Speed

This motherboard X870E AORUS PRO is equipped with the latest industry standards for data transfer and networking. It features dual USB4 Type-C ports capable of reaching speeds up to 40Gb/s, alongside support for DisplayPort Alt Mode for high-resolution displays. Gamers will benefit from Wi-Fi 7 technology, which utilizes the 320MHz channel for ultra-fast wireless speeds, and a 2.5GbE LAN port for a stable, low-latency wired connection. With three PCIe 5.0 M.2 slots, users can leverage the fastest NVMe storage available to drastically reduce boot times and loading screens.

Intuitive DIY-Friendly Design

Gigabyte has streamlined the building process with its EZ-Latch innovations, featuring tool-free mechanisms for installing M.2 SSDs and quick-release buttons for removing large graphics cards. The thermal solution is equally advanced, utilizing VRM Thermal Armor Advanced and dedicated M.2 Thermal Guards to keep high-performance components cool under pressure. For easy troubleshooting and customization, the board includes onboard power and reset buttons, an EZ-Debug zone, and a unique Sensor Panel Link for connecting internal monitoring screens without cluttering the case.

Key Specifications

• Socket: AMD AM5 (Supports Ryzen 9000, 8000, & 7000 Series)

• Chipset: AMD X870E

• Memory Support: 4x DDR5 DIMM (Up to 256GB, Supports 8000+ MT/s OC)

• Power Design: 16+2+2 Phases Twin Digital VRM (80A Smart Power Stage)

• Expansion Slots: 1x PCIe 5.0 x16 (UD Slot X), 1x PCIe 4.0 x4, 1x PCIe 3.0 x4

• Storage Interface: 3x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s

• Networking: 2.5GbE LAN, Wi-Fi 7 (802.11be), Bluetooth 5.3/5.4

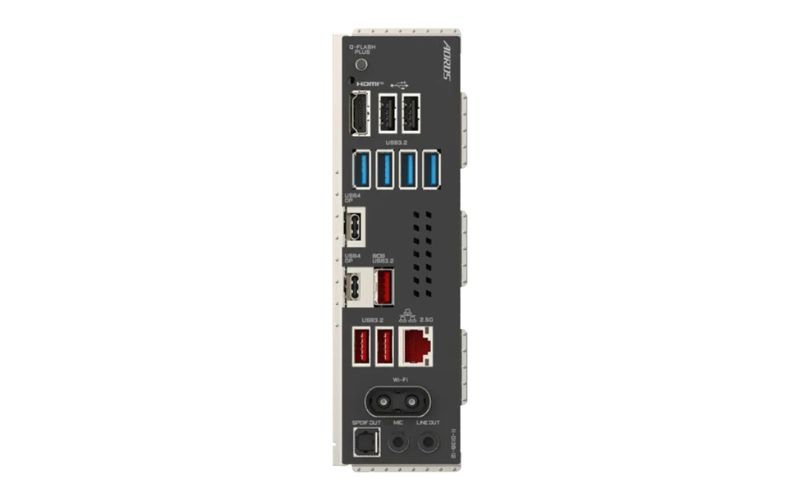

• Rear I/O Ports: 2x USB4 (40Gb/s), 3x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 1x HDMI 2.1

• Audio: Realtek ALC1220 Codec (7.1 Channel High Definition Audio)

• Form Factor: ATX (30.5cm x 24.4cm)
