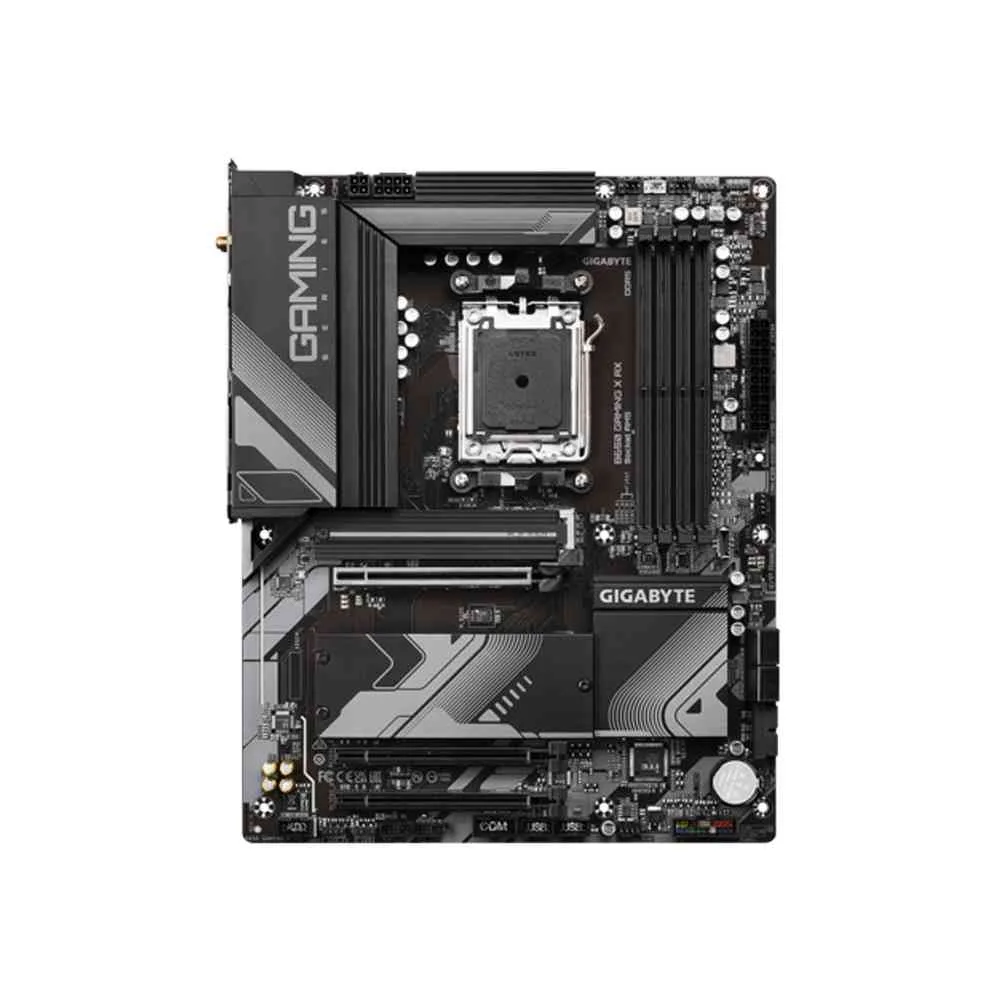

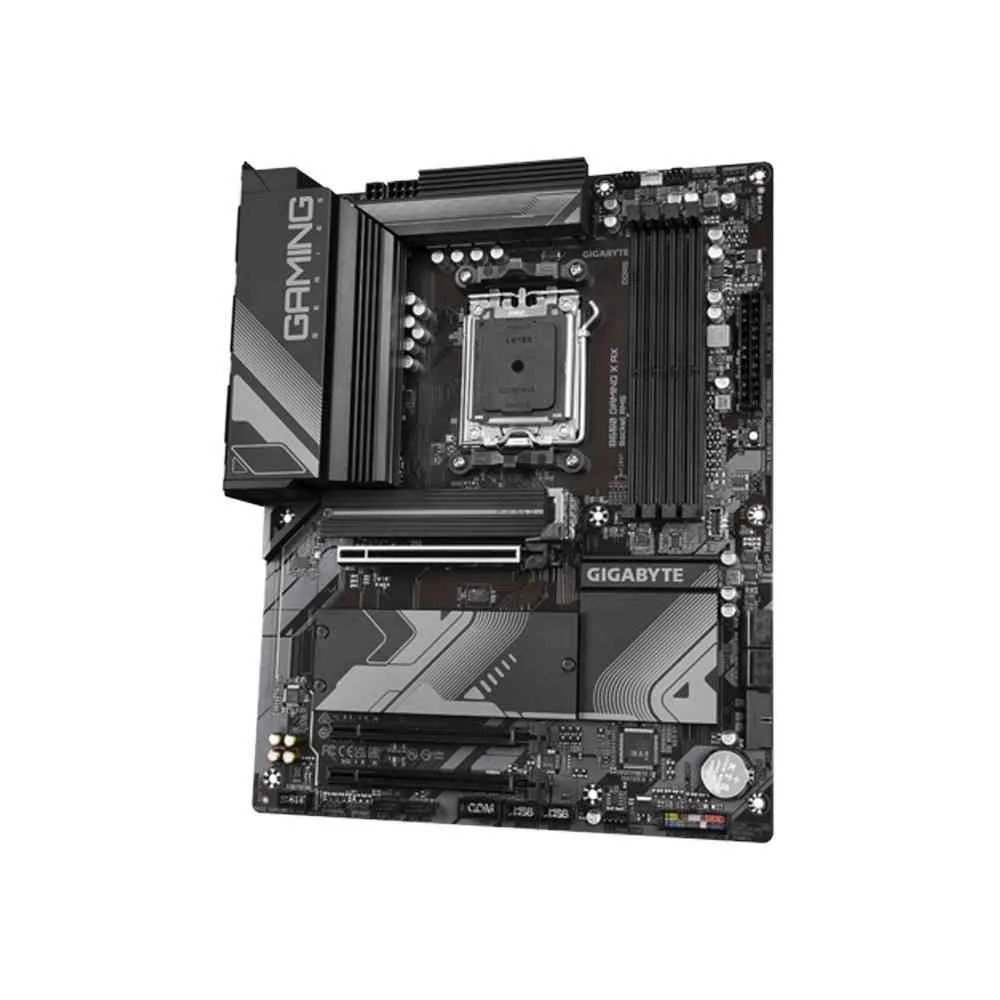

GIGABYTE B650 Gaming X AX DDR5 AMD Ryzen Socket AM5 DDR5 Gaming MotherBoard

Key Specifications

• Model NoGIGABYTE B650 Gaming X AX DDR5 AMD Ryzen Socket AM5 DDR5 Gaming MotherBoard
• Part NoB650 GAMING X AXChipsetAMD B650Form FactorATXSocket
• CompatibilityAMD Socket AM5, support for: AMD Ryzen™ 7000 Series
• ProcessorsWireless & BluetoothAMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0/PCB rev. 1.2)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateIntel® Wi-Fi 6E AX210 (For PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateLANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)MemroySupport for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
• Memory Profile (XMP) memory modulesOnboard
• GraphicsIntegrated
• Graphics
• Processor:1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.
• Compatibility1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:AMD Ryzen™ 7000 Series
• Processors support PCIe 4.0 x4/x2 SSDs (PCB rev. 1.0/1.1)AMD Ryzen™ 7000 Series
• Processors support PCIe 5.0 x4/x2 SSDs (PCB rev. 1.2)1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:AMD Ryzen™ 7000 Series
• Processors support PCIe 4.0 x4/x2 SSDsChipset:1 x M.2 connector (Socket 3, M key, type 25110/22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devicesBack Panel I/O Ports2 x SMA antenna connectors (2T2R)1 x Q-Flash Plus button1 x DisplayPort1 x HDMI port1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red)3 x USB 3.2 Gen 1 ports3 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacksUSB Ports Front (Support )CPU:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red) on the back panel1 x USB 3.2 Gen 1 port on the back panelCPU + USB 2.0 Hub:3 x USB 2.0/1.1 ports on the back panelChipset:1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports available through the internal USB headersExpansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 7000 Series
• Processors support PCIe 4.0 x16 modeChipset:2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)AudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Internal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header2 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x reset button1 x reset jumper1 x Clear CMOS jumperSpecial FeaturesAMD Socket AM5：Supports AMD Ryzen™ 7000 Series
• ProcessorsUnparalleled Performance：Direct 8+2+1 Phases Digital VRM SolutionDual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP
