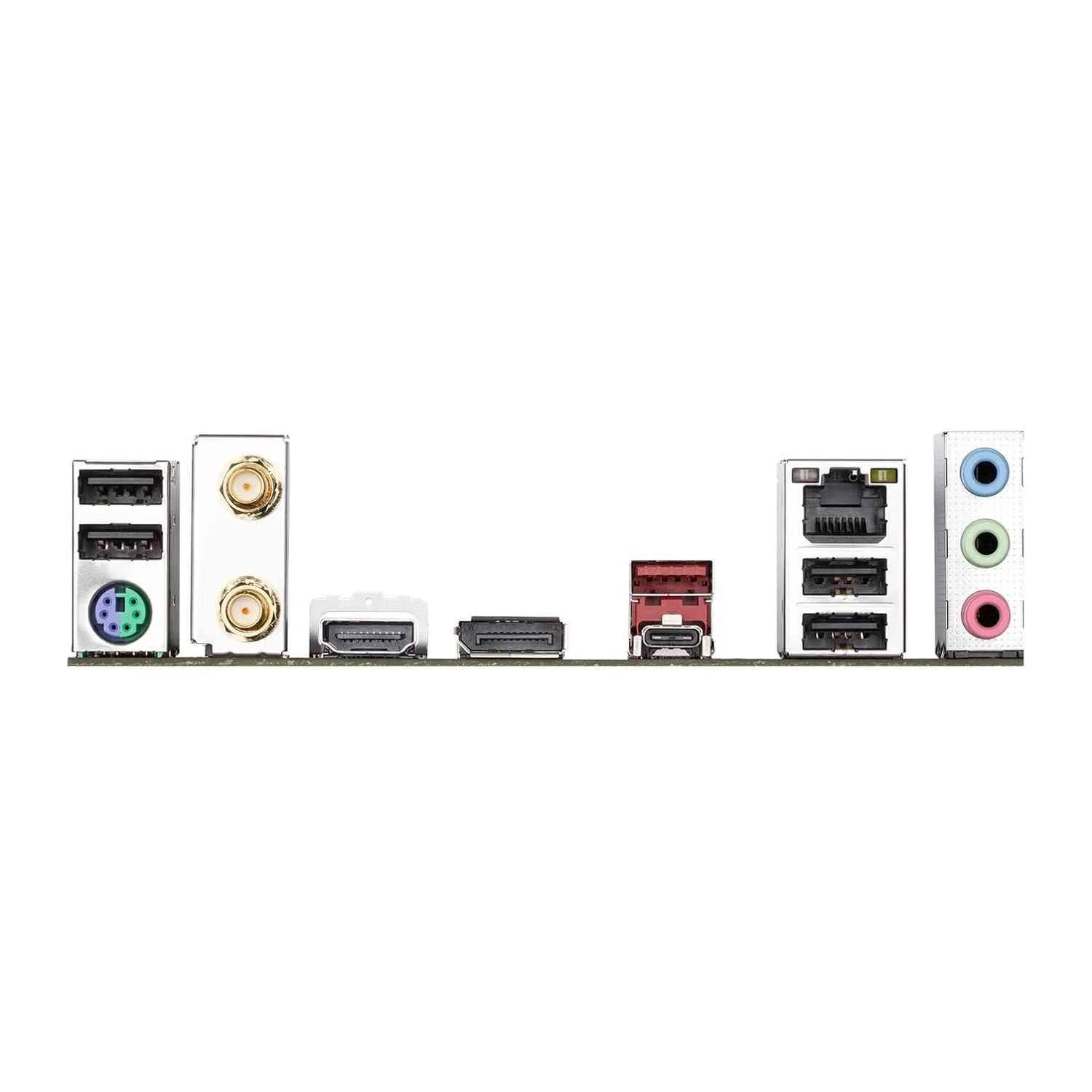

GigaByte Intel B760 DS3H AX V2 WIFI DDR5 MotherBoard

Model No : GigaByte Intel B760 DS3H AX V2 WIFI DDR5 MotherBoard Part No : B760 DS3H AX V2 Chipset : Intel® B760 Express Chipset Form Factor : ATX Form Factor; 30.5cm x 24.4cm Socket Compatibility : LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU LAN : Realtek® GbE LAN chip (1 Gbps/100 Mbps) Wireless : Realtek® Wi-Fi 6 RTL8851BEWIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 80MHz wireless standard(Actual data rate may vary depending on environment and equipment.) Graphics : Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3 Memroy : Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules Storage Compatibility : CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Back Panel I/O Ports : 1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (1T1R)1 x USB Type-C® port, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 2.0/1.1 ports1 x HDMI port1 x DisplayPort1 x RJ-45 port3 x audio jacks USB Ports : Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header1 x USB 3.2 Gen 2 Type-A port (red) on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header4 x USB 2.0/1.1 ports on the back panelChipset+2 USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headers Expansion Slots : CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_3~PCIEX1_5) Audio : Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out Internal I/O Connectors : 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumper Special Features : Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus I/O Controller : iTE® I/O Controller Chip H/W Monitoring : Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS : 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Warranty : 1 Year ( As per Manufacturer Policy )
