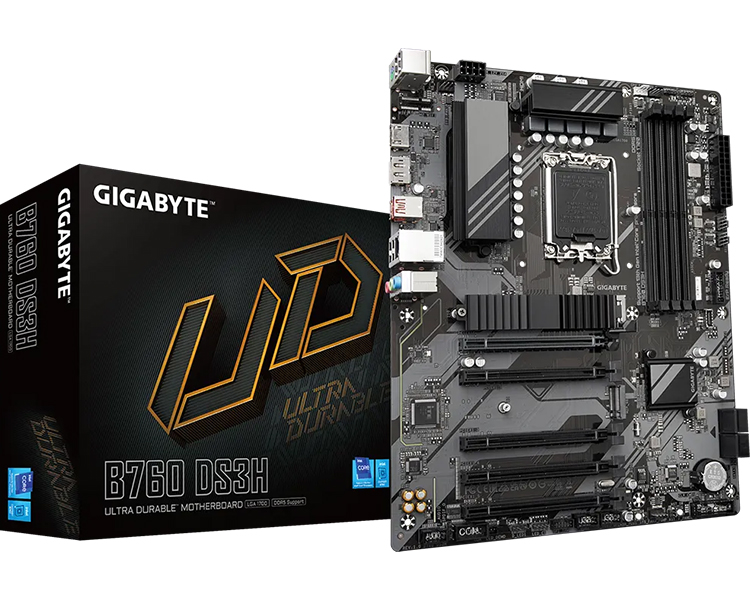

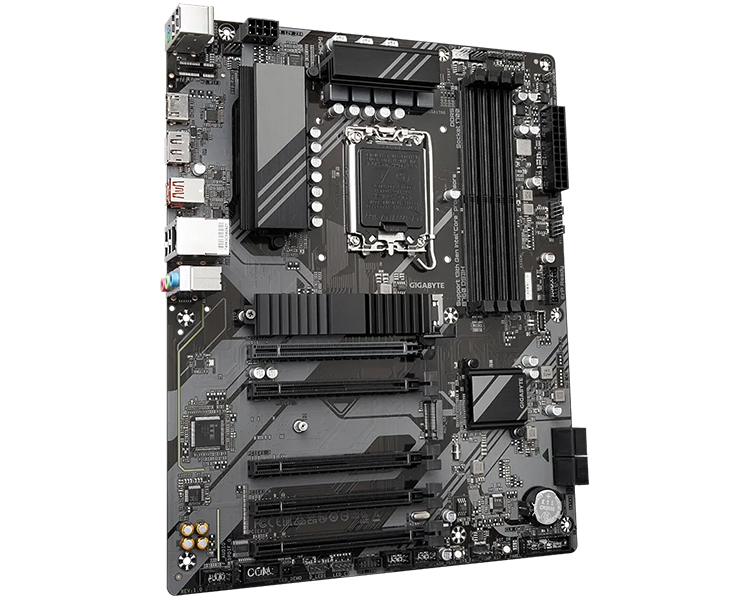

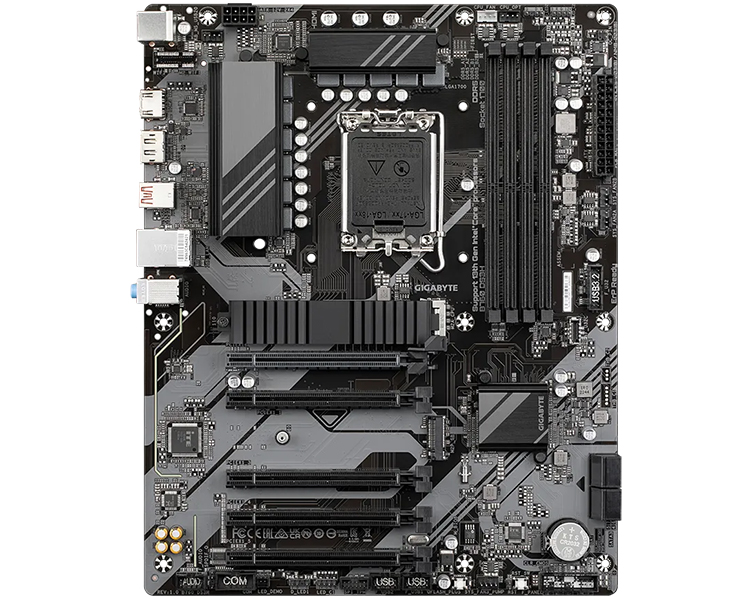

GigaByte Intel B760 DS3H DDR5 Ultra Durable MotherBoard

GigaByte B760 DS3H DDR5

• Supports Intel^® Core™ 14th/ 13th /12th processors
• Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution
• Dual Channel DDR5：4*DIMMs XMP Memory Module Support
• Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks：GbE LAN
• Extended Connectivity：Rear USB-C^® 20Gb/s, DP, HDMI
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

PERFORMANCE

• UNPARALLELED PERFORMANCE
  With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
• 8+2+1 Phases Hybrid Digital VRM Design
  8+2+1 Phases Low RDS(on) MOSFETs
  Premium Choke and Capacitors to improve transient response and minimize oscillation
• PCIe 4.0 Design
  GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

  • PCIe 4.0 M.2 Slot
  • PCIe 4.0 x16 Slot
• DDR5 Overclocking Up to 7600 and Beyond*
  GIGABYTE is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard
• GIGABYTE PerfDrive
  PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.

PERSONALIZATION

• Friendly User Interface
  The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
• My Favorites
  Add constantly used items into the favorite menu for quick access.
• Storage Information
  Show all kinds of storage information including SATA, PCIE and M.2 interface.
• Changelog
  List all changes before saving and exiting bios. Quickly review overall settings modification.
• Intuitive Load Line Curve
  Clearly show each loadline calibration setting in an intuitive curve graph.
• PCIe EZ-Latch
  Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
• Multi-Key
  A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
• RGB Switch
  Turn off all lighting effect on motherboard.
• Direct-To-BIOS
  Boot into BIOS menu directly without pressing any keyboard button.
• Safe Mode
  Boot into BIOS safe mode to change specific option without losing other BIOS settings.
• High-End Audio Capacitors
  GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
• Audio Noise Guard
  GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Connectivity

USB:

• Chipset:
  • 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support
  • 1 x USB Type-C^® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 4 x USB 2.0/1.1 ports on the back panel
• Chipset+2 USB 2.0 Hubs:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers

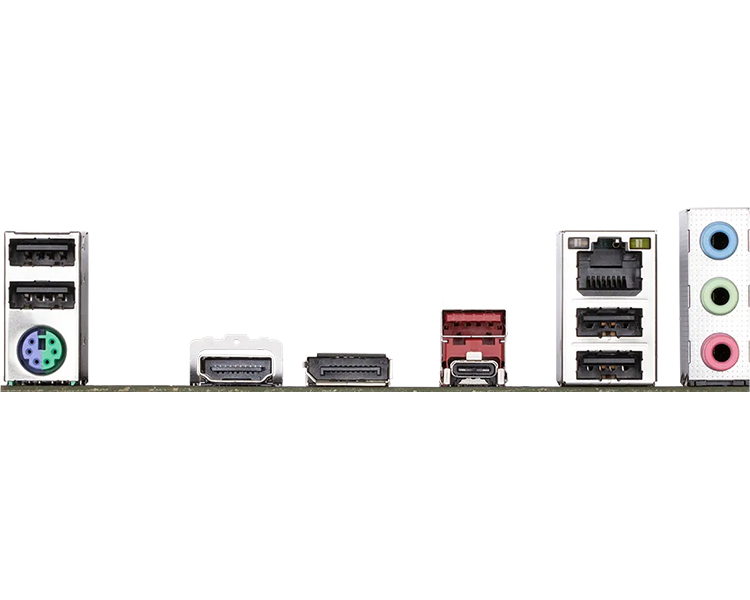

Back Panel I/O Ports:

• 1 x PS/2 keyboard/mouse port
• 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 4 x USB 2.0/1.1 ports
• 1 x HDMI port
• 1 x DisplayPort
• 1 x RJ-45 port
• 3 x audio jacks
