GigaByte Intel B760 DS3H WIFI6E DDR5 GEN5 MotherBoard

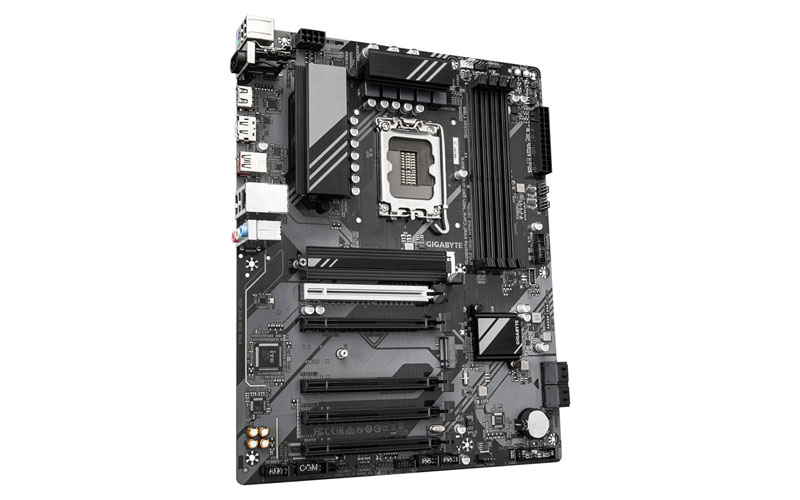

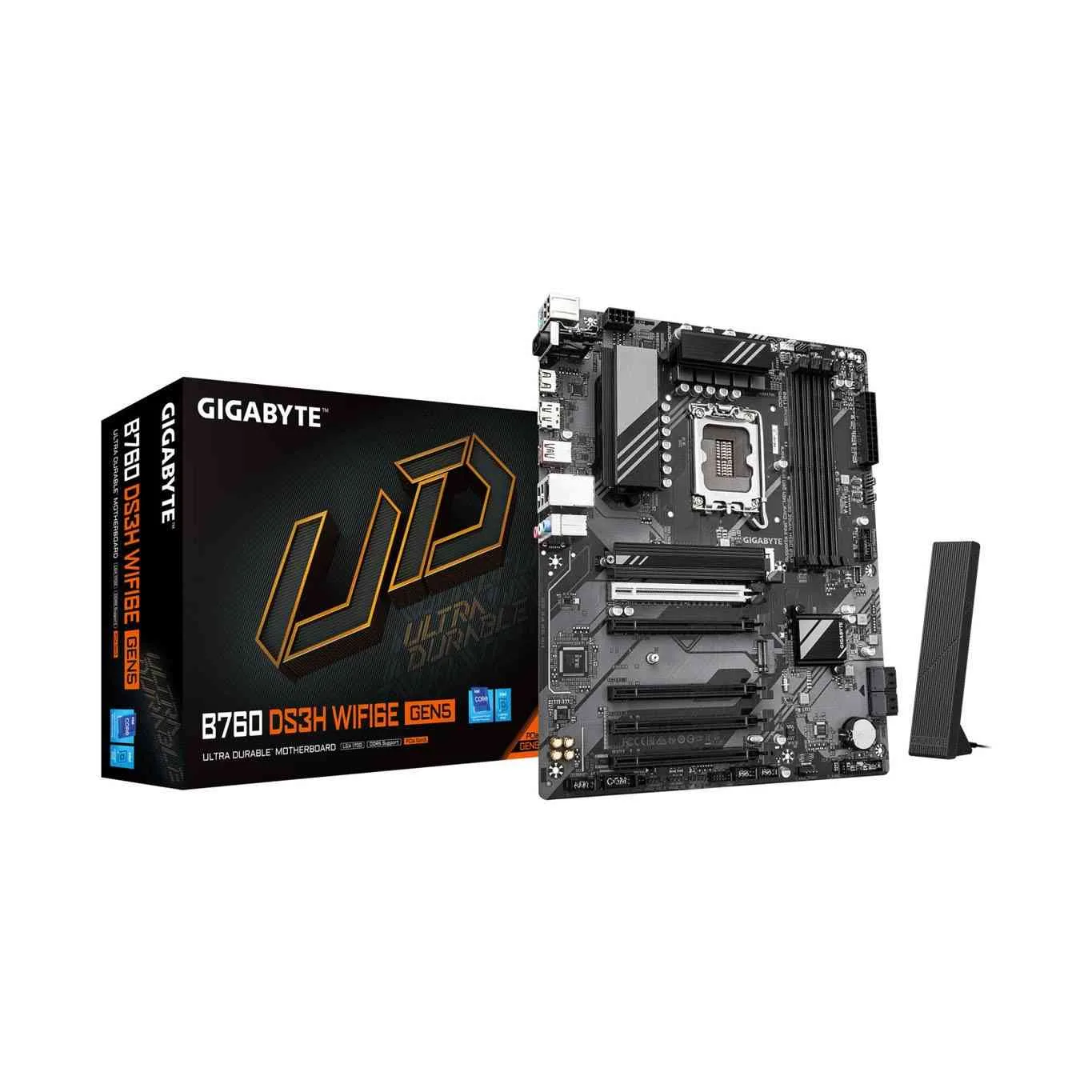

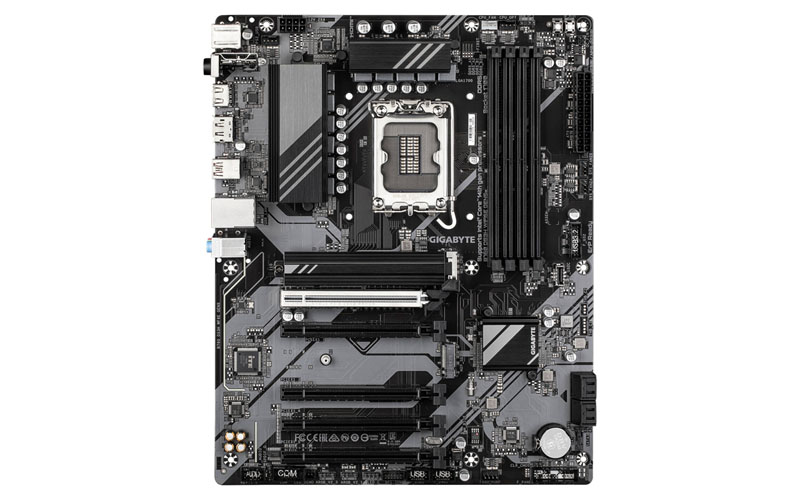

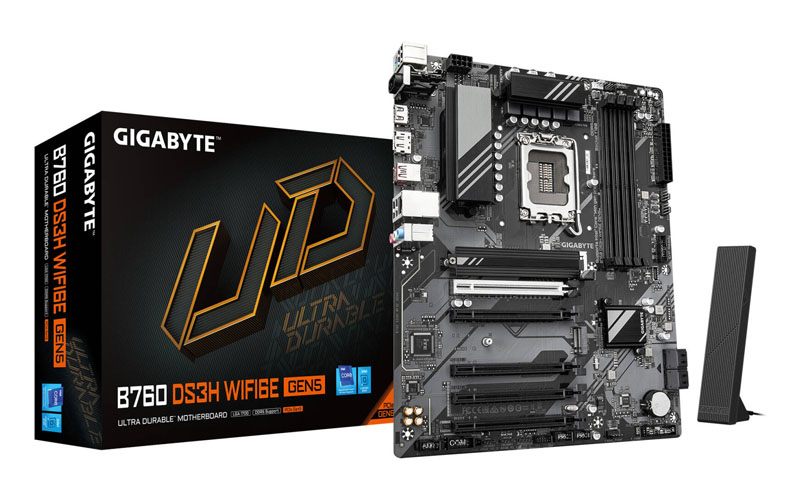

GIGABYTE B760 DS3H WIFI6E GEN5 – Powerful ATX Platform for Intel 12th/13th/14th-Gen Builds

The GIGABYTE B760 DS3H WIFI6E GEN5 is a feature-rich ATX motherboard engineered for modern gaming and productivity systems. With support for Intel LGA 1700 socket CPUs (12th, 13th and 14th generations), PCIe 5.0 graphics support, DDR5 memory and built-in WiFi 6E + Bluetooth 5.3, it offers a robust foundation for both high-end gaming rigs and future-ready builds.

Key Specifications

Socket: Intel LGA 1700 — supports 12th, 13th and 14th Gen Intel Core, Pentium Gold & Celeron

Chipset: Intel B760 Express

Memory: 4 × DDR5 DIMM slots, up to ~256 GB (dual-channel)

Expansion Slots: 1 × PCIe 5.0 x16, plus PCIe 3.0 x1 slots

Storage: 2 × M.2 (PCIe 4.0 x4) + multiple SATA 6 Gb/s ports

Networking: WiFi 6E + Bluetooth 5.3; high-speed wired LAN

Rear I/O & Connectivity: USB-C (Gen 2x2), USB-A, HDMI/DisplayPort output (dependent on CPU iGPU), WiFi antenna connectors

Form Factor: ATX (30.5 × 24.4 cm approx)

Build Features: Hybrid 8+2+1 VRM, reinforced PCIe slot, M.2 thermal guard, RGB headers

Performance & Compatibility

At its heart, the board supports Intel Core processors up to the 14th generation, delivering full compatibility via the LGA 1700 socket. The B760 chipset unlocks enhanced memory features: 4 DIMM slots for DDR5 RAM, enabling dual-channel configurations up to 256 GB (depending on specific modules) and support for XMP profiles. With a dedicated PCIe 5.0 x16 slot ready for next-gen graphics cards, the B760 DS3H GEN5 ensures long-term upgrade headroom.

Storage, Expansion & Connectivity

This motherboard features dual M.2 slots (both supporting PCIe 4.0 x4) for ultra-fast NVMe SSDs and multiple SATA 6 Gb/s ports for additional storage. Networking is strong: onboard WiFi 6E (2.4/5/6 GHz) and Bluetooth 5.3 deliver high-speed wireless connectivity, while a high-quality wired LAN option ensures low-latency performance. The rear I/O includes a USB-C port with high data speeds, plus multiple USB and display outputs suited for varied setups. Built-in audio, Hi-Fi grade capacitors and isolated audio circuitry enhance sound clarity for gaming, streaming or media consumption.

Build Quality & Design Features

GIGABYTE applies its Ultra Durable™ design philosophy here—featuring a robust 8+2+1-phase VRM configuration (hybrid power-design) to deliver stable power for demanding CPUs, especially under load or overclocking. The PCB is reinforced for PCIe 5.0 compatibility and strengthened motherboard slots protect against heavy GPUs. Cooling features include dedicated thermal armor for the VRM, M.2 thermal guards and high-quality heatsinks, making this board reliable for sustained performance

Ideal Use & Upgrade Path

Whether you are building a high-refresh gaming PC, creative workstation or general-purpose system with future upgrades in mind, the B760 DS3H WIFI6E GEN5 provides an excellent balance of features and performance. Its support for modern memory, fastest storage options, next-gen PCIe slot and wireless connectivity makes it a versatile choice for builders who value longevity and flexibility.

Why Choose the B760 DS3H WIFI6E GEN5

If you’re looking for a motherboard that balances performance, modern connectivity and future readiness without going into ultra-premium cost tiers, this board is a smart pick. It handles current high-end CPUs, supports fast DDR5 RAM and NVMe drives, provides next-gen PCIe and WiFi 6E features—and presents a strong platform for both gaming and productivity alike.
