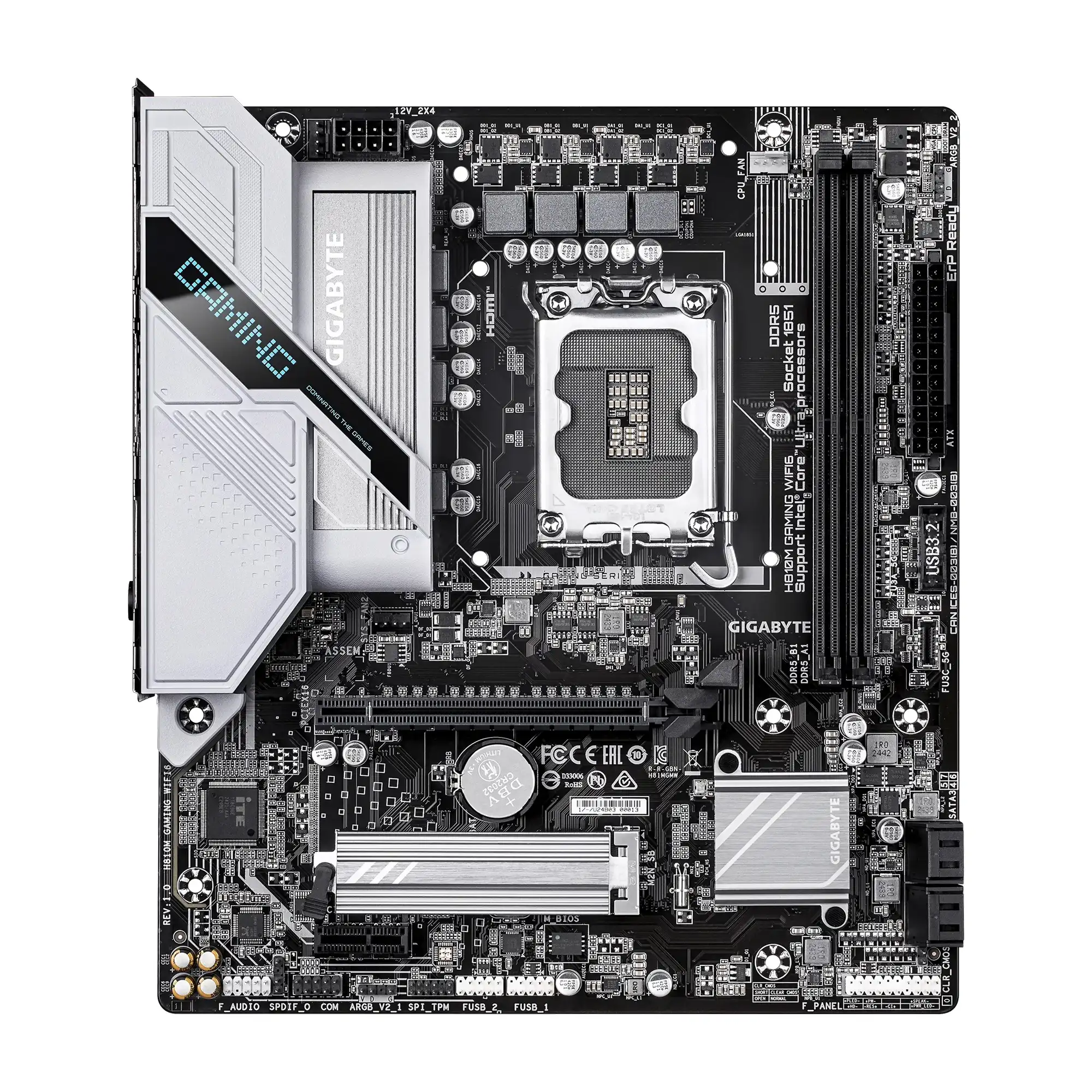

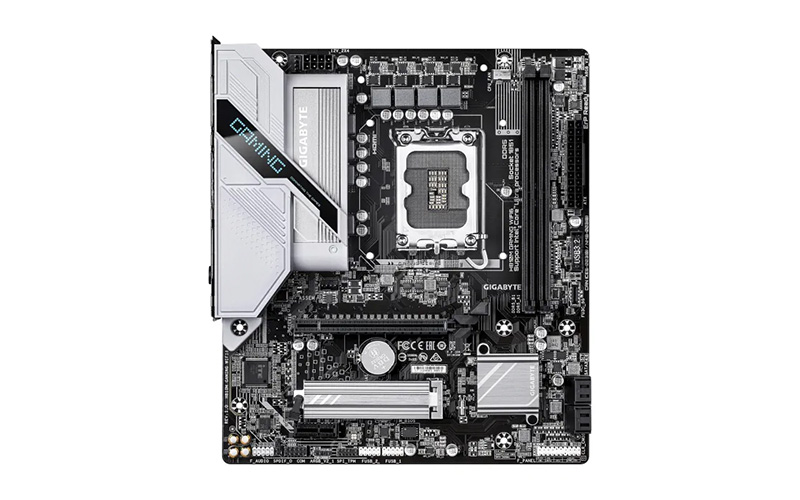

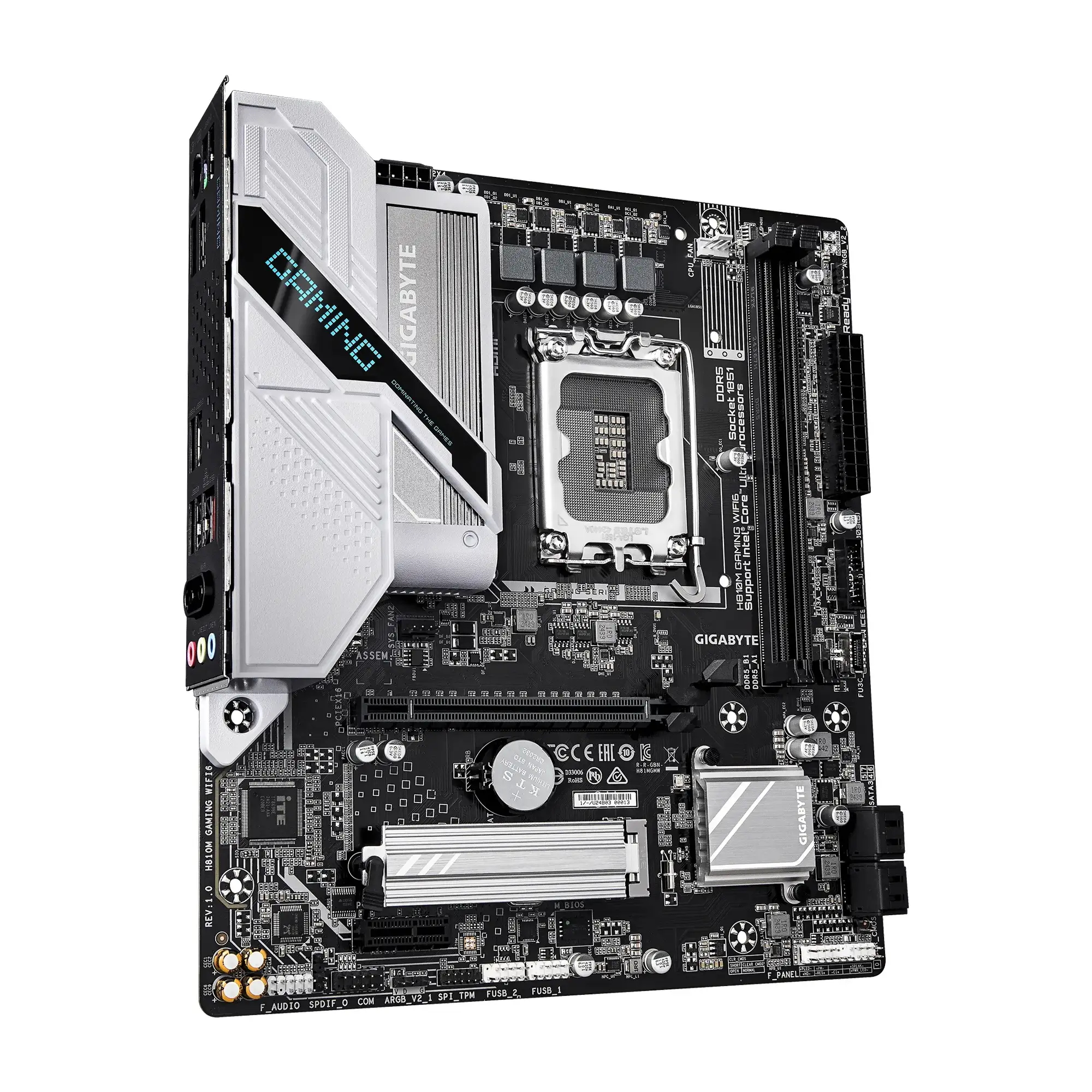

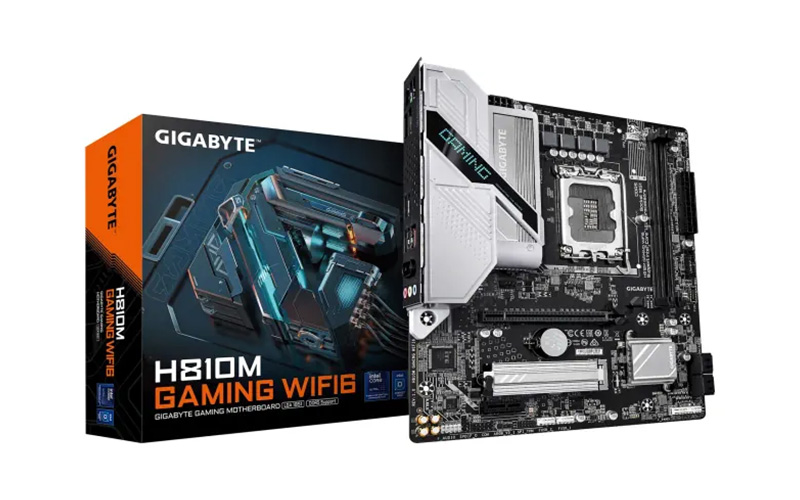

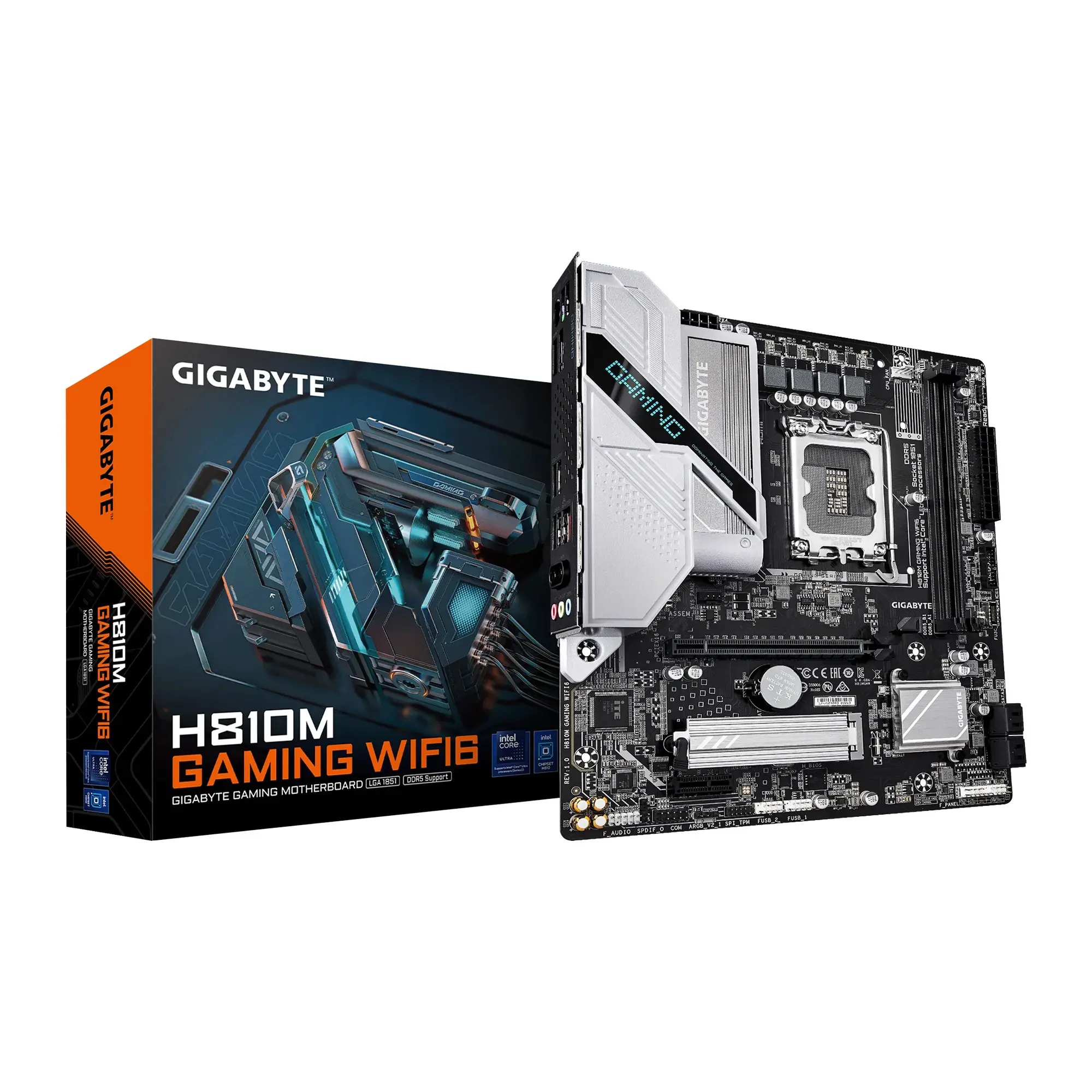

GigaByte Intel B810M Gaming WIFI6 DDR5 Motherboard

Next-Generation DDR5 Platform for Modern Intel CPUs

The Gigabyte Gaming Motherboard Intel B810M Gaming WiFi6 DDR5 Motherboard is built to support the latest Intel Core Ultra processors using the LGA1851 socket, offering a future-ready platform for gaming and productivity systems. It utilizes the Intel H810 chipset and supports DDR5 memory with speeds up to 6400 MT/s, delivering faster data bandwidth and improved system responsiveness compared to previous generations.

Reliable Performance with Efficient Thermal Design

This motherboard features a solid power delivery system with durable components designed for stable everyday performance. Integrated VRM thermal protection and M.2 thermal guards help maintain optimal temperatures during operation. With support for PCIe 4.0 graphics and storage, it ensures smooth performance for modern GPUs and high-speed SSDs, making it suitable for mid-range gaming builds and office setups.

Advanced Connectivity with Wi-Fi 6 and 2.5GbE LAN

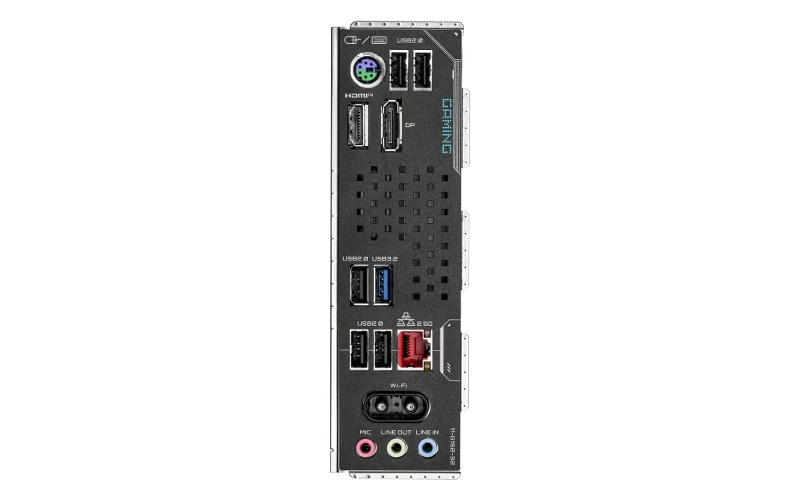

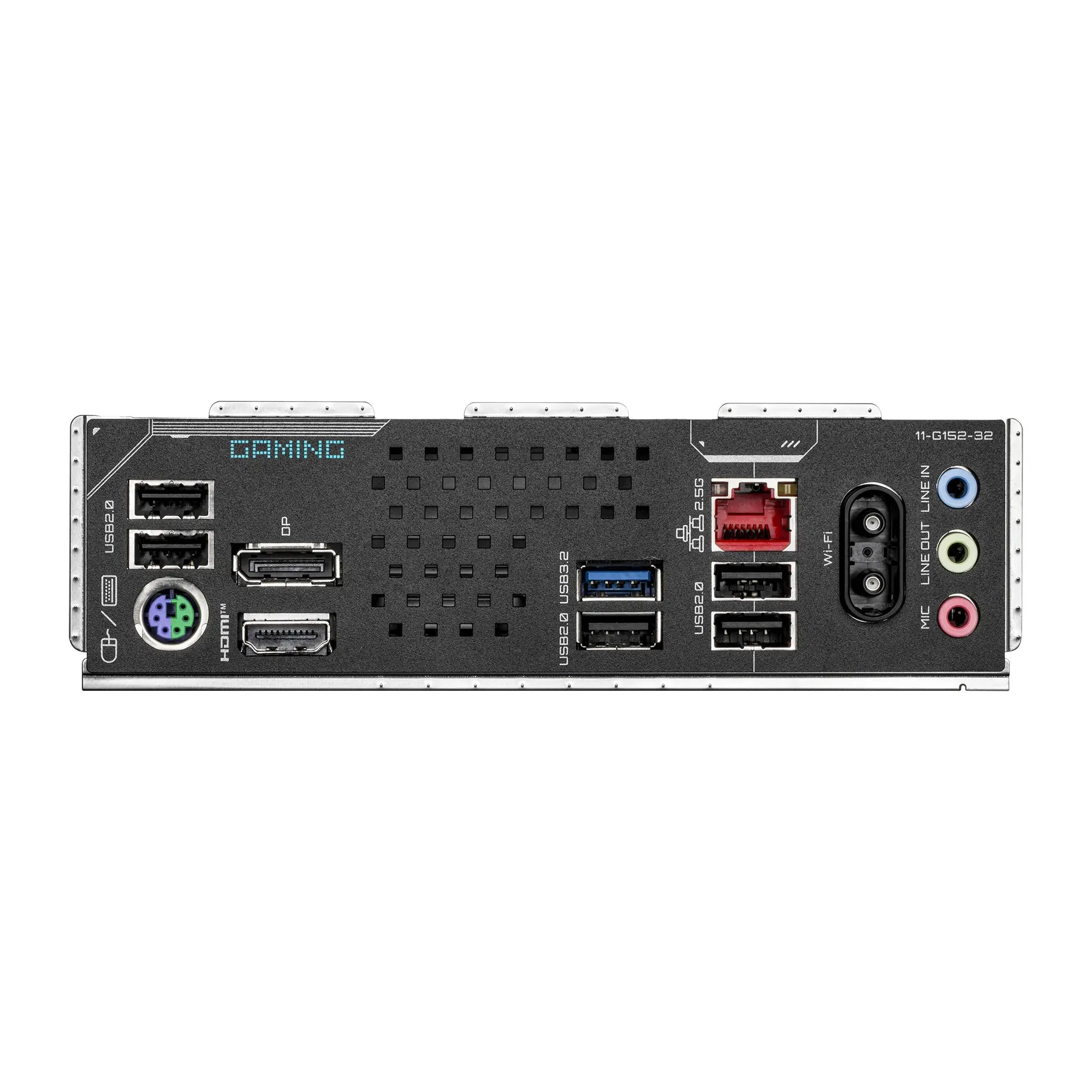

Equipped with built-in Wi-Fi 6 and Bluetooth support, the board provides fast and stable wireless connectivity for gaming and streaming. It also includes a 2.5GbE LAN port for high-speed wired networking. Multiple USB ports, HDMI and DisplayPort outputs, and internal headers offer flexible connectivity options for peripherals and displays, making it a well-rounded solution for modern PC builds.

Key Specifications

• Chipset: Intel H810

• CPU Socket: LGA1851 (Intel Core Ultra Series support)

• Memory: 2 × DDR5 DIMM, up to 128GB (up to ~6400 MT/s)

• Expansion Slots:

  • 1 × PCIe 4.0 x16

  • 1 × PCIe 3.0 x1

• Storage:

  • 1 × M.2 PCIe 4.0 x4

  • 4 × SATA 6Gb/s

• Networking: 2.5GbE LAN + Wi-Fi 6 + Bluetooth

• Video Outputs: HDMI 2.1, DisplayPort 2.1

• USB Ports: USB 3.2 Gen 1, USB 2.0, internal USB-C header

• Audio: Realtek HD Audio (7.1-channel)

• Form Factor: Micro-ATX

• Special Features: Q-Flash, Smart Fan control, RGB headers

• OS Support: Windows 10 / 11
