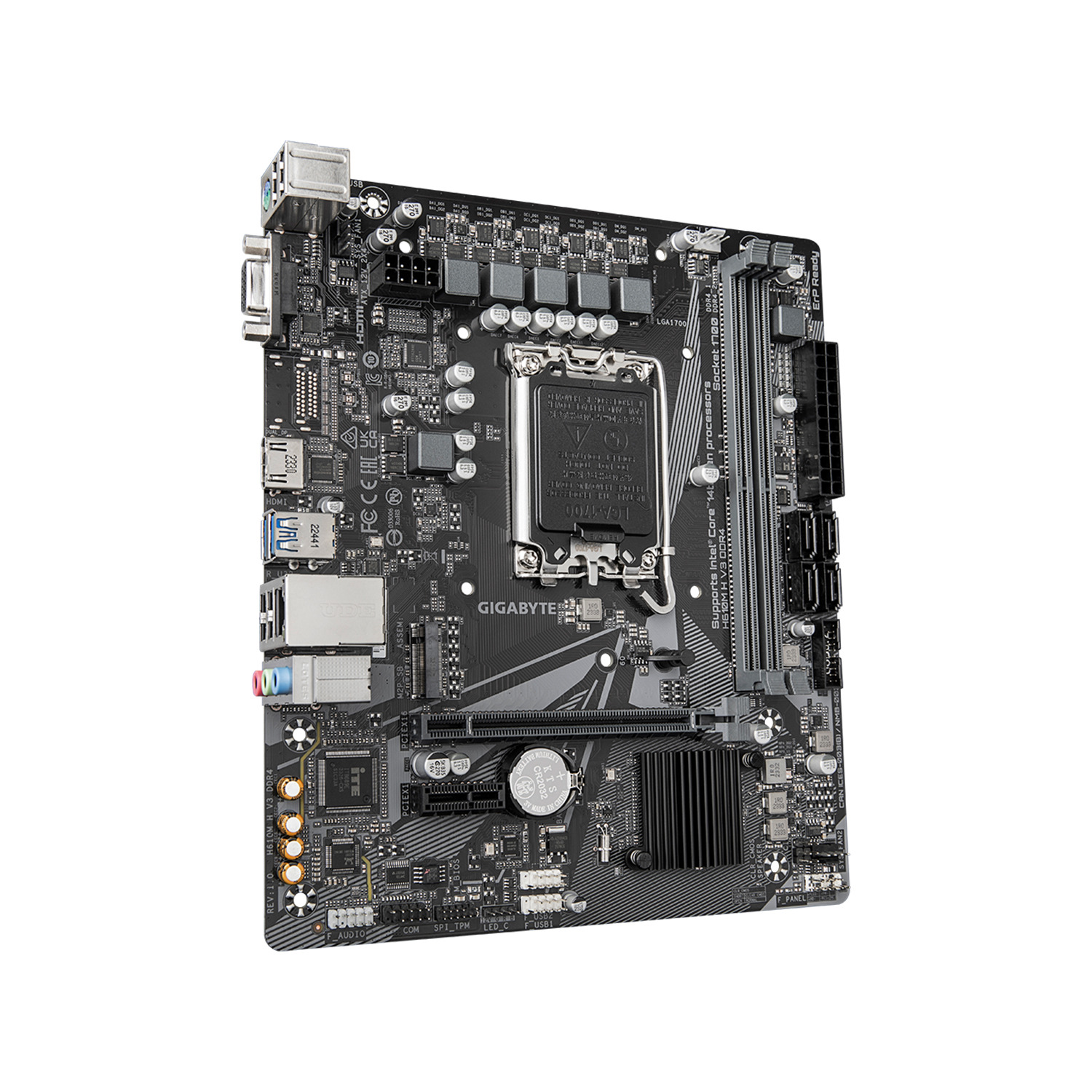

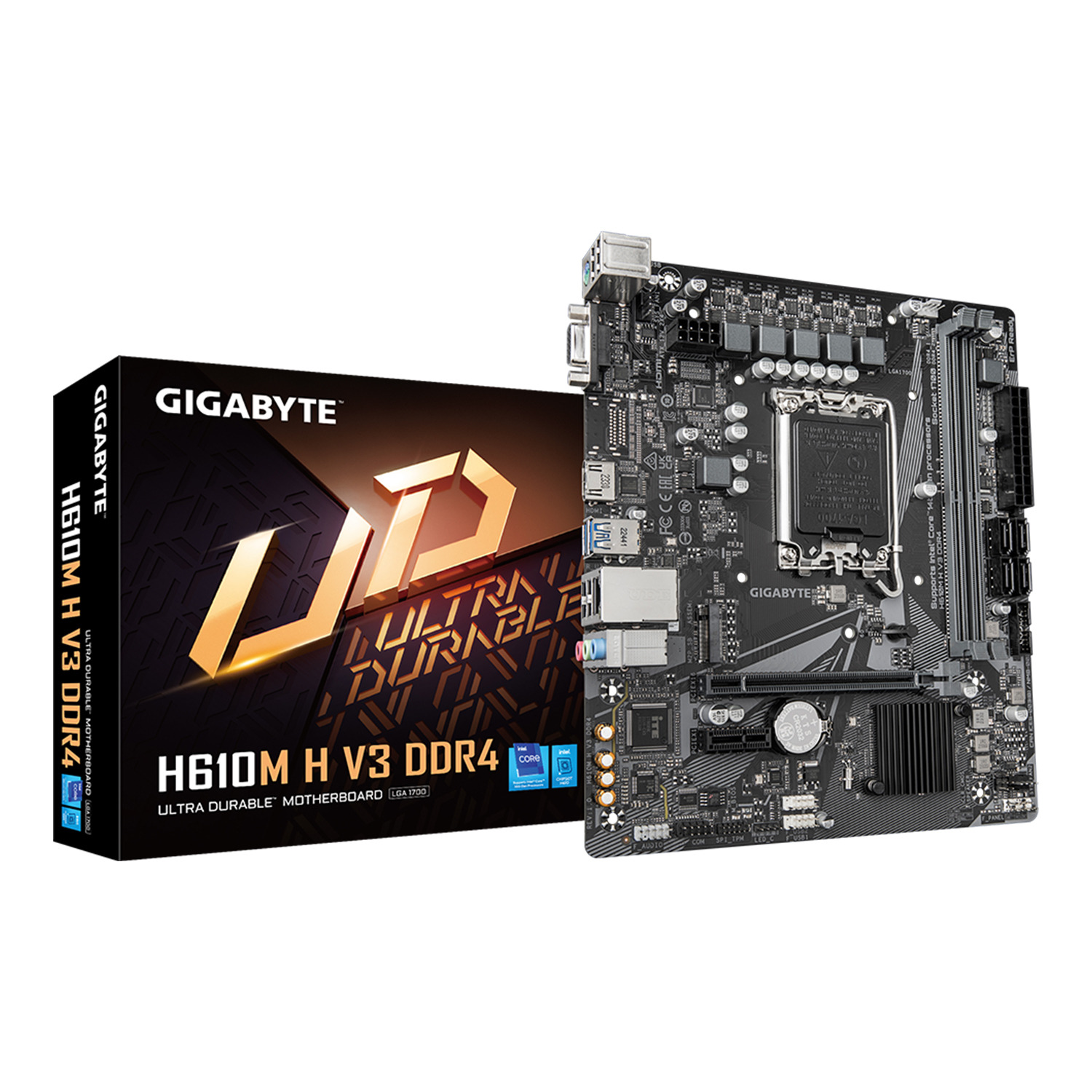

GigaByte Intel H610M H V3 DDR4 MotherBoard

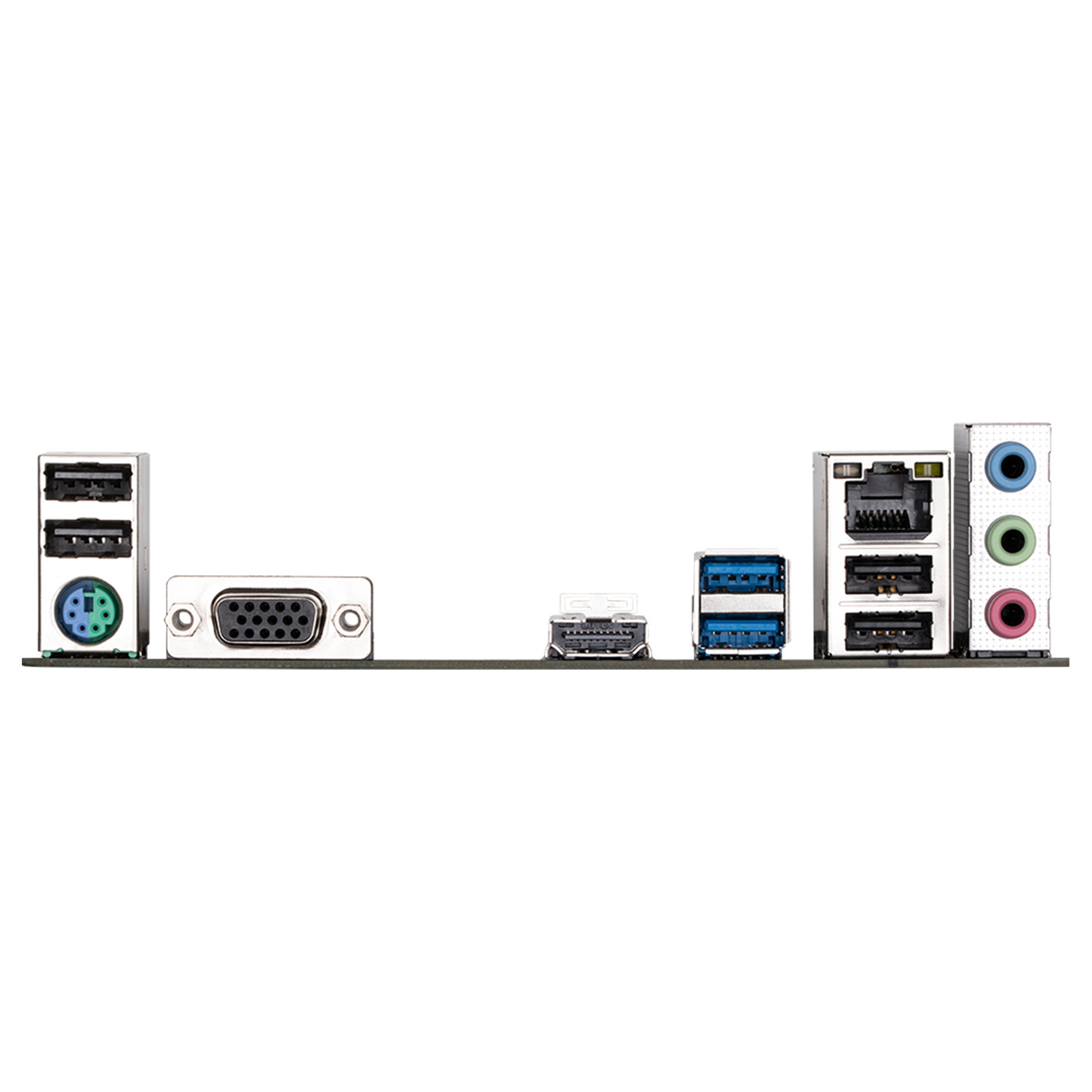

Model No : GigaByte Intel H610M H V3 DDR4 MotherBoard Part No : H610M H V3 DDR4 Chipset : Intel® H610 Express Chipset Form Factor : Micro ATX Form Factor; 22.3cm x 19.3cm Socket Compatibility : LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU LAN : Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) Graphics : Integrated Graphics Processor-Intel® HD Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) Memroy : Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules Storage Compatibility : Chipset:- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSDsupport)- 4 x SATA 6Gb/s connectors Back Panel I/O Ports : 1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks USB Ports : Chipset:- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers Expansion Slots : CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Audio : Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Internal I/O Connectors : 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x speaker header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Clear CMOS jumper1 x chassis intrusion header Special Features : Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS- EasyTune- Smart Backup- System Information ViewerSupport for Q-Flash I/O Controller : iTE® I/O Controller Chip H/W Monitoring : Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install. BIOS : 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Warranty : 1 Year ( As per Manufacturer Policy )
