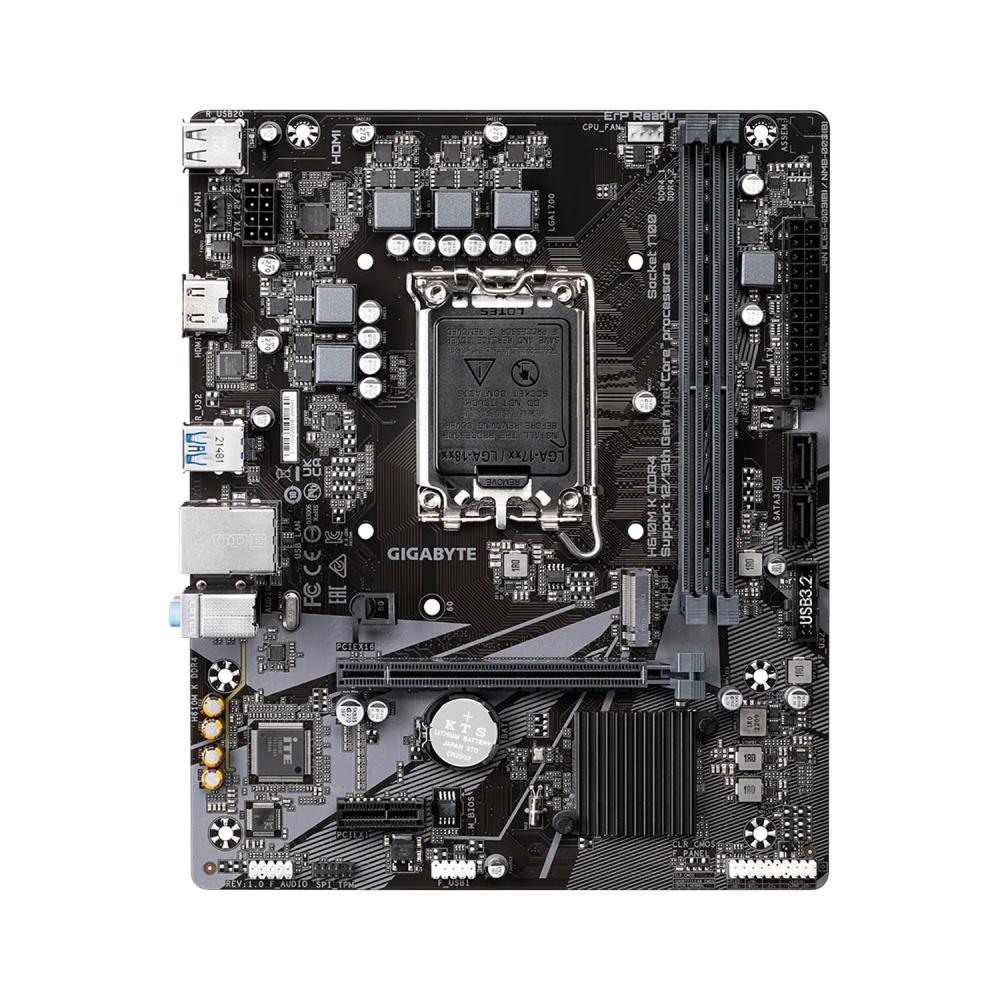

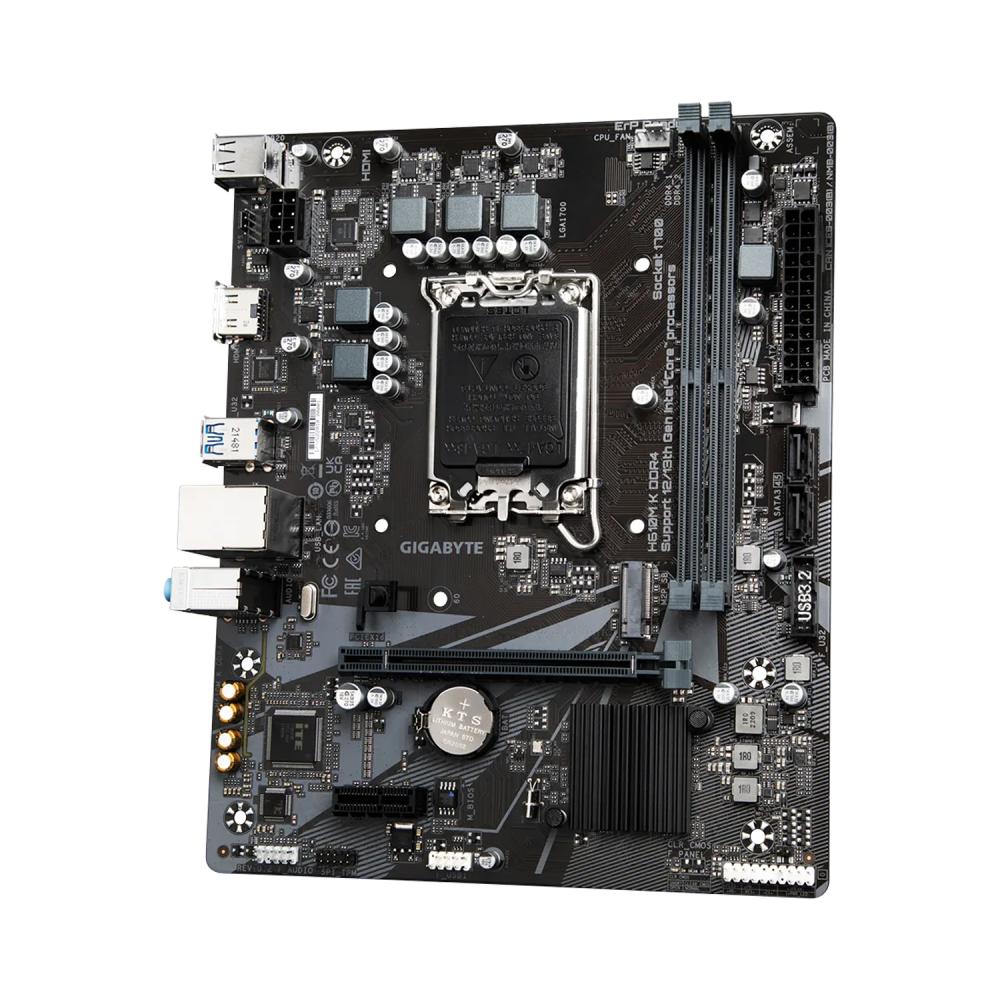

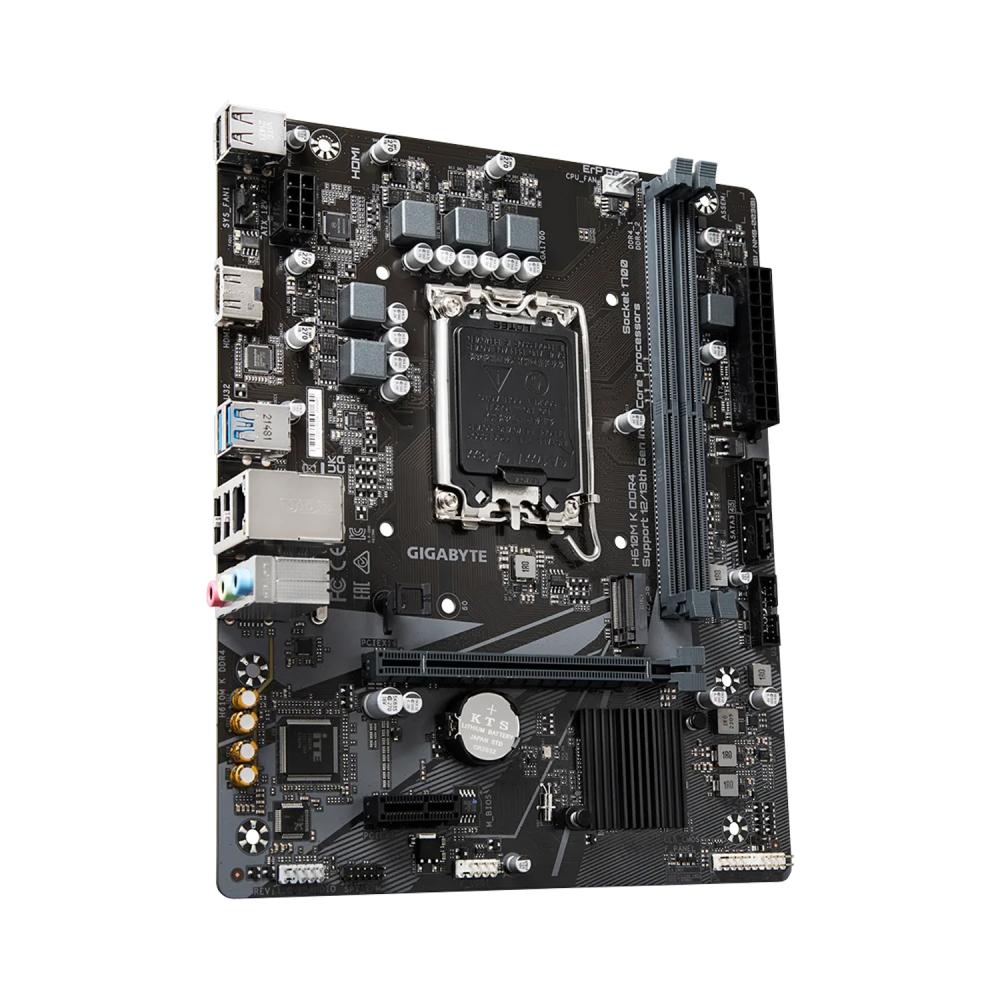

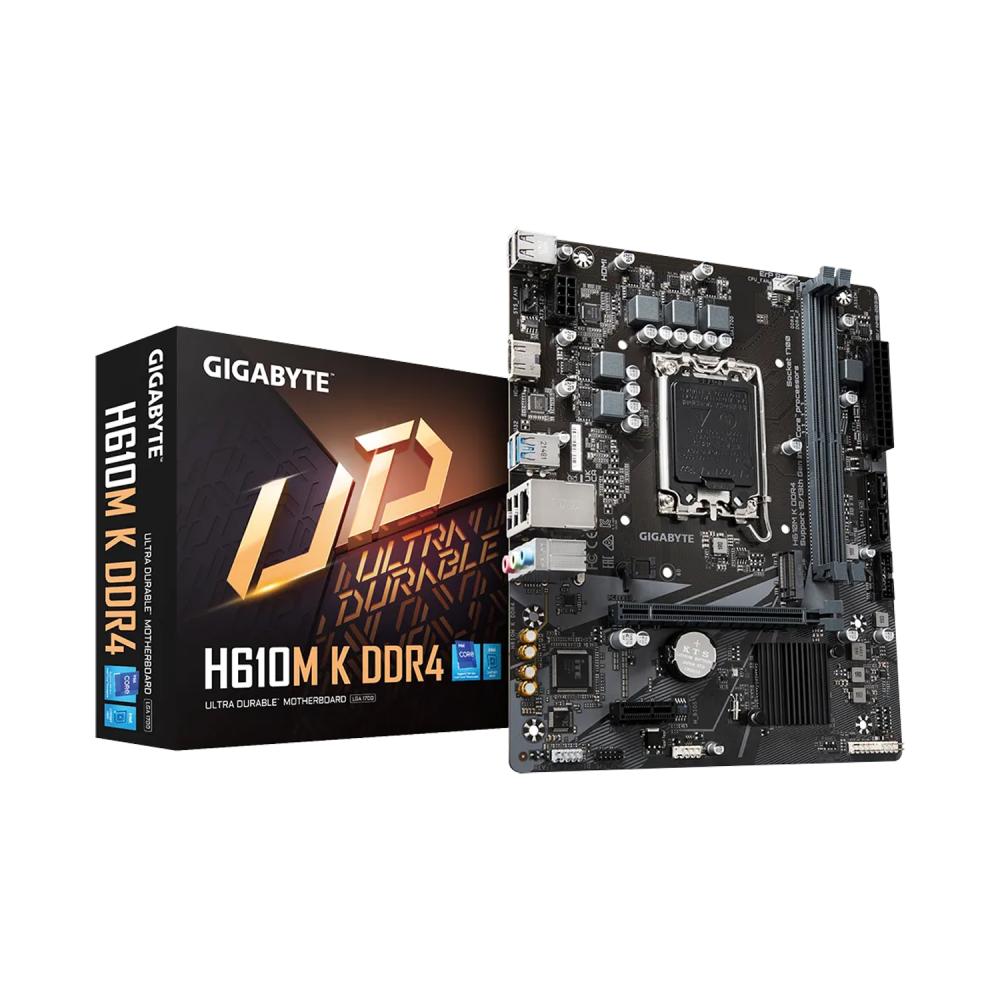

GigaByte Intel H610M K V2 DDR4 Micro-ATX MotherBoard

GigaByte H610M K DDR4 (rev. 1.0)

PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

• Supports Intel^® Core™ 14th/ 13th /12th processors

• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​

• GbE LAN with Bandwidth Management​

• NVMe PCIe 3.0 x4 M.2​

• High Quality Audio Capacitors and Audio Noise Guard​

• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​

• GIGABYTE APP Center, Simple and Easy Use​

• Anti-Sulfur Resistors Design​

PERFORMANCE

• 3+1+1 Phases Hybrid Power Design
  • 50A Low RDS(on) MOSFETs
  • PCIe 4.0 Ready PCB
• Single 32GB Support
  The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
• Smart Fan 6
  Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
• High Current Support
  Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control
  Up to 7 temperature/fan speed control points for precise fan curve
• Dual Curve Mode
  Slope/Stair dual mode for different user scenario
• Fan Stop
  Fan can stop completely below users' specified temperature point
• Hybrid Cores Optimization
  With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

ULTRA DURABLE

• Solid Pin Power Connectors
  H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
• Solid Pin Power connector advantages

  • Larger contact area for electricity
  • More metal quantity to sustain higher power and generated heat
  • Ultra durable and longer lifespan
• START SULFURIZATION PROTECTION
  Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
• BIOS
  The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
• APP CENTER
  GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
• EasyTune™
  GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
• System Information Viewer
  GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Connectivity

• GbE LAN with Bandwidth Management
  GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
• NVMe PCIe Gen3 x4 M.2 Connector
  GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
• High-End Audio Capacitors
  GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
• Audio Noise Guard
  GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
• Back Panel I/O Ports:
  • 1 x HDMI port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
