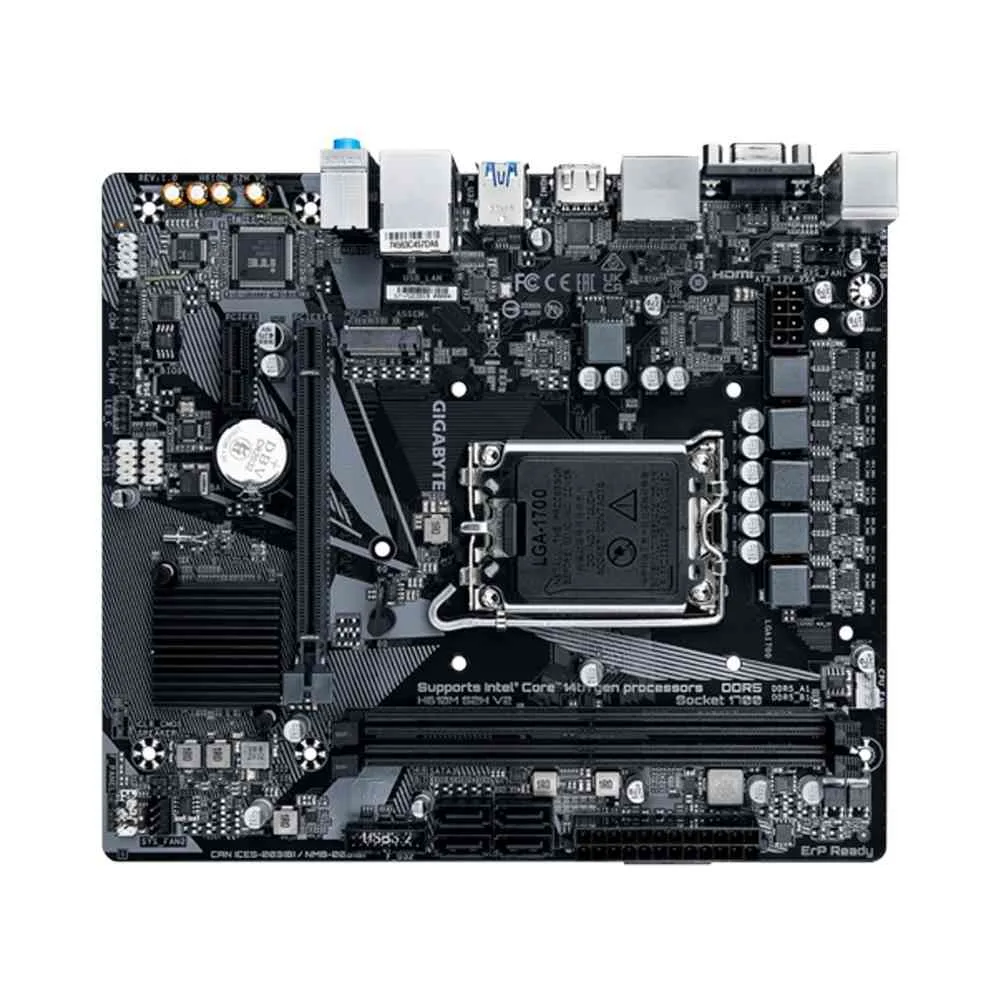

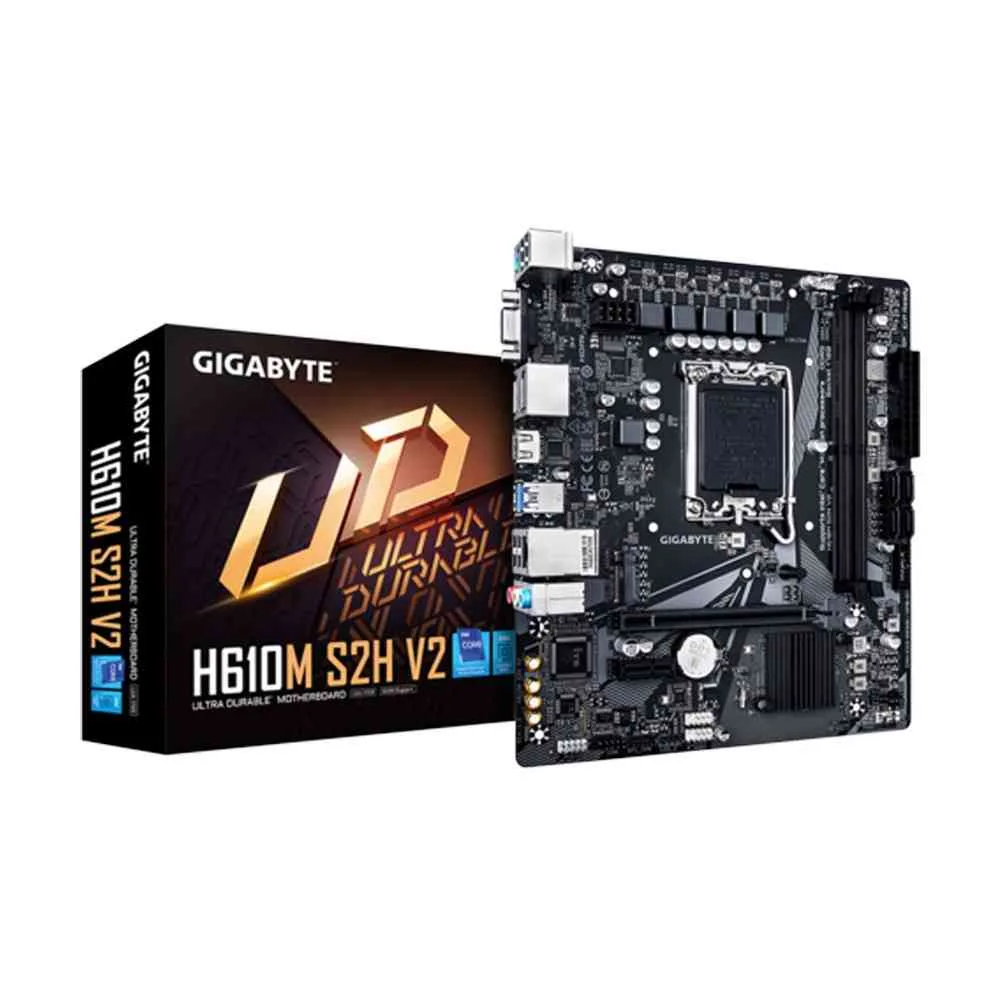

GigaByte Intel H610M S2H V2 DDR5 MotherBoard

Key Specifications

• Model NoGigaByte Intel H610M S2H V2 DDR5 MotherBoard
• Part NoH610M S2H V2 DDR5ChipsetIntel® H610 Express ChipsetForm FactorMicro ATXSocket
• CompatibilityLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron®
• ProcessorsL3 cache varies with CPU* Please refer to "CPU Support List" for more information.LANRealtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)Memroy14th and 13th Generation Intel® Core™ i9/i7 Pocessors:- Support for DDR5 5600/5200/4800/4400 MT/s memory modules13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron®
• Processors:- Support for DDR5 4800/4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme
• Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "
• Memory Support List" on GIGABYTE's website for more information.)Onboard
• GraphicsIntegrated
• Graphics
• Processor-Intel® HD
• Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj* Support for DisplayPort 1.2 version and HDCP 2.3(
• Graphics specifications may vary depending on CPU support.)Support for up to triple-display at the same timej

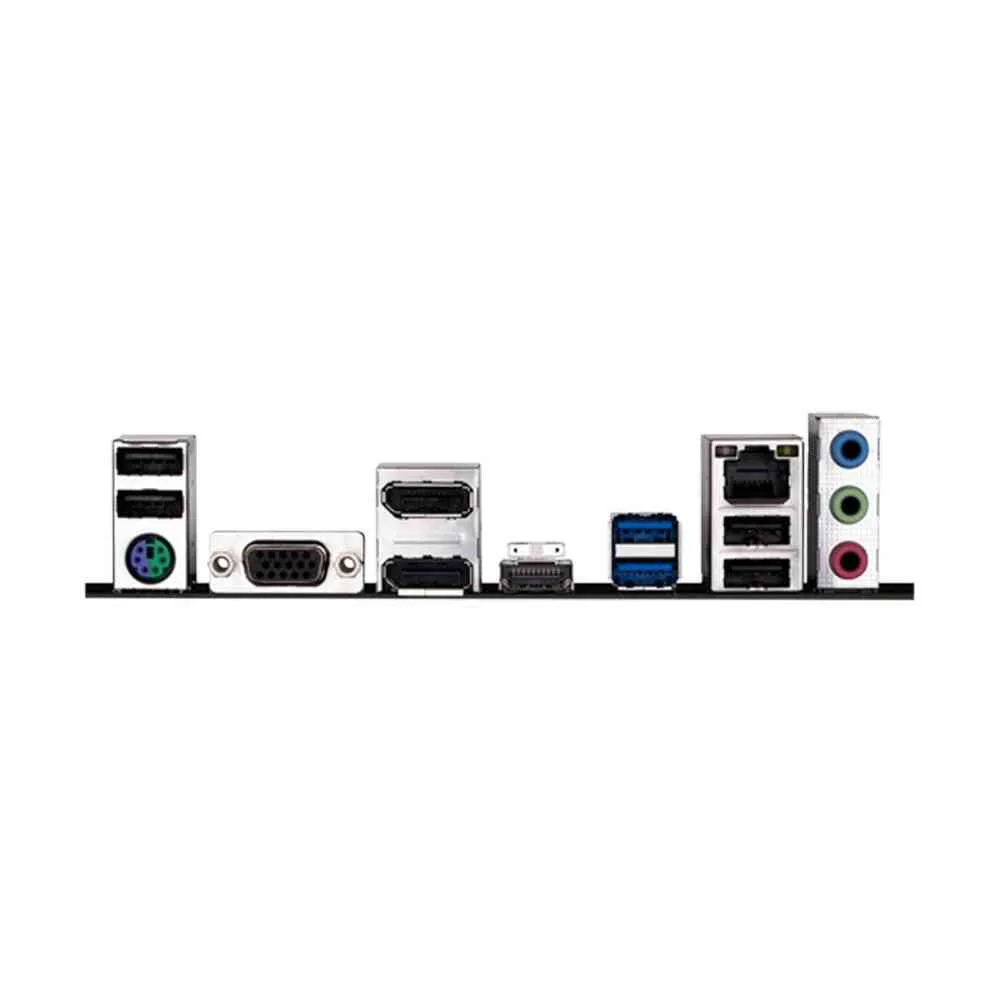

• CompatibilityChipset:- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSDsupport)- 4 x SATA 6Gb/s connectorsBack Panel I/O Ports1 x PS/2 keyboard/mouse port1 x D-Sub port2 x DisplayPort1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacksUSB Ports Front (Support )Chipset:- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headersExpansion SlotsCPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1AudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Internal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x speaker header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Clear CMOS jumper1 x chassis intrusion headerBack Panel ConnectorsSpecial FeaturesSupports Intel® Core™ 14th/ 13th /12th processorsDual Channel Non-ECC Unbuffered DDR5, 2 DIMMs4+1+1 Hybrid Digital VRM DesignGbE LAN with Bandwidth ManagementNVMe PCIe 3.0 x4 M.22*DisplayPort / HDMI / D-Sub Ports for Multiple DisplayHigh Quality Audio Capacitors and Audio Noise GuardSmart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPGIGABYTE APP Center, Simple and Easy UseAnti-Sulfur Resistors Design
• Product Size ( Dimension )22.3cm x 19.6cm
