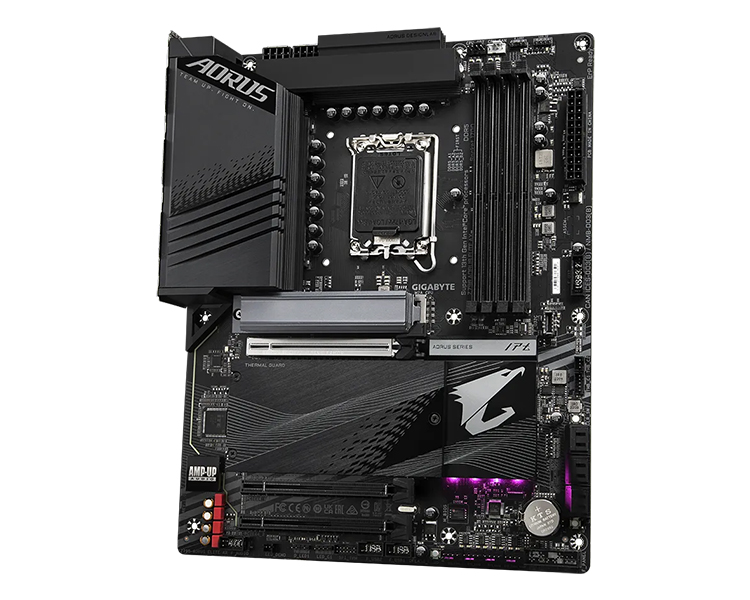

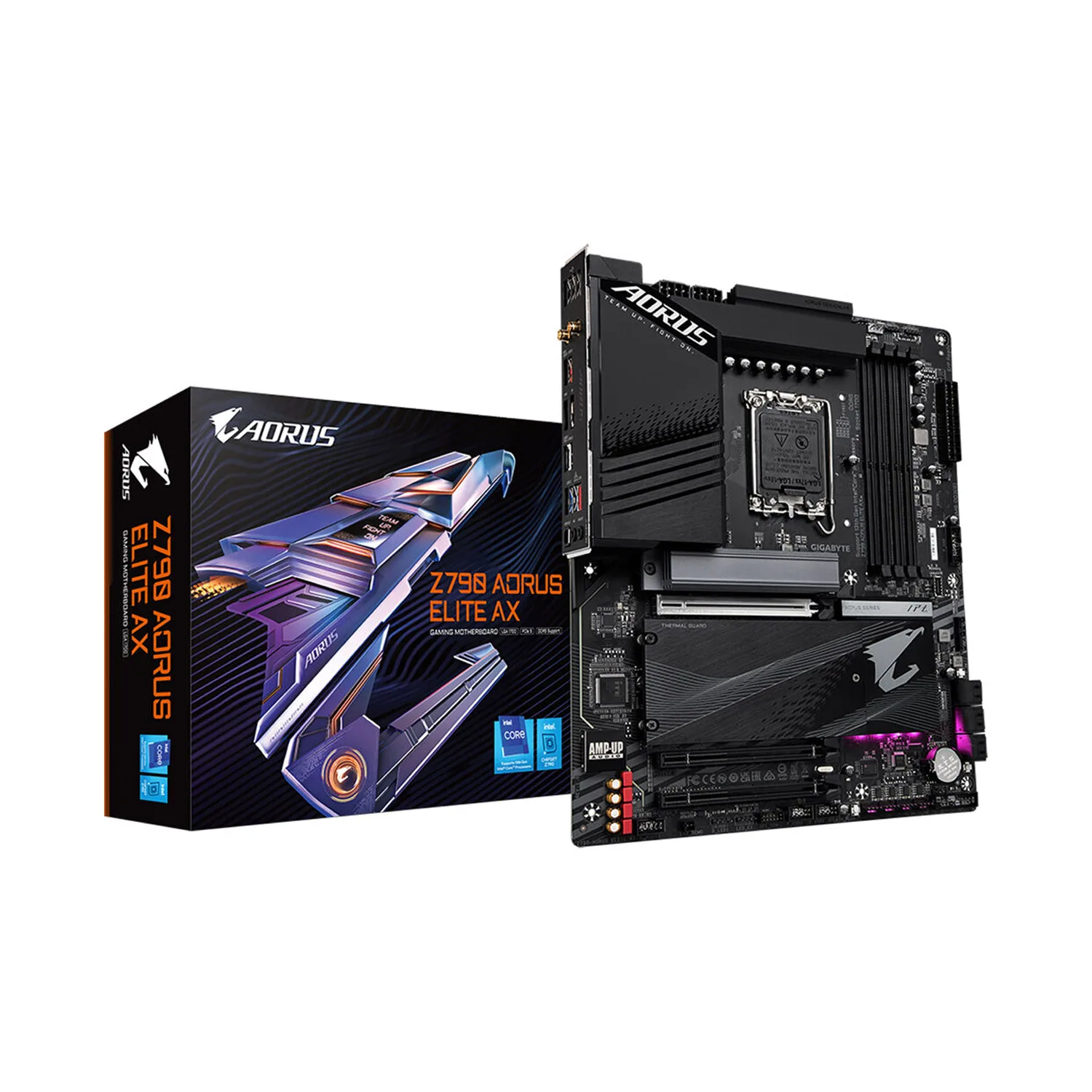

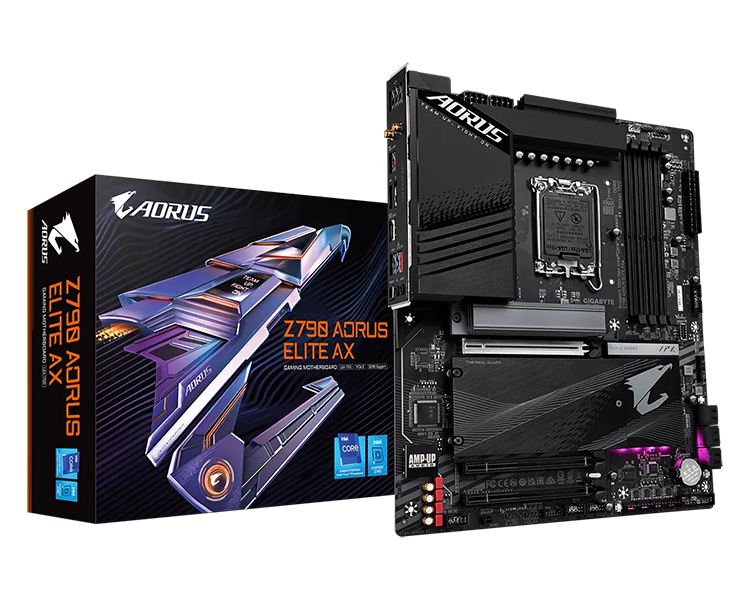

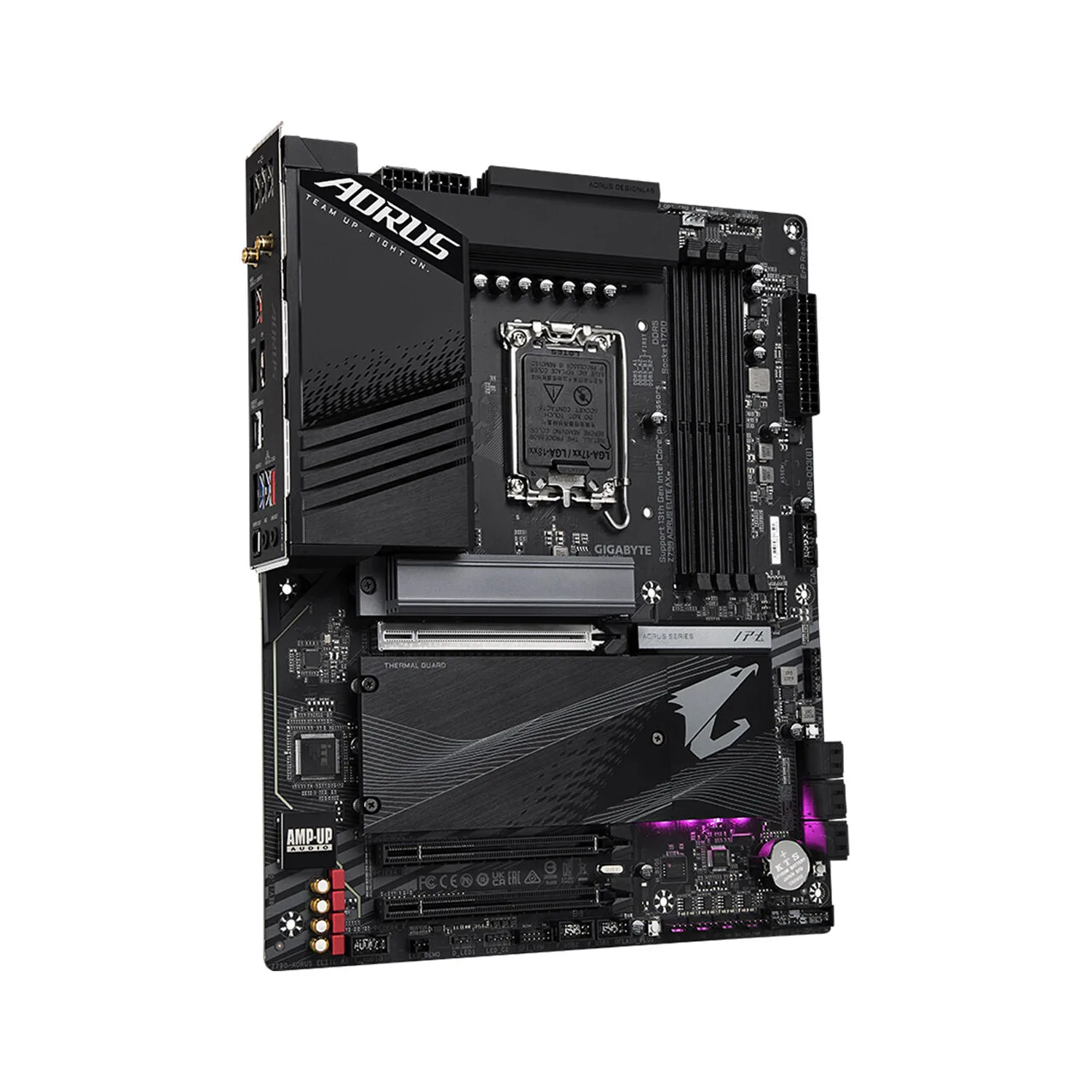

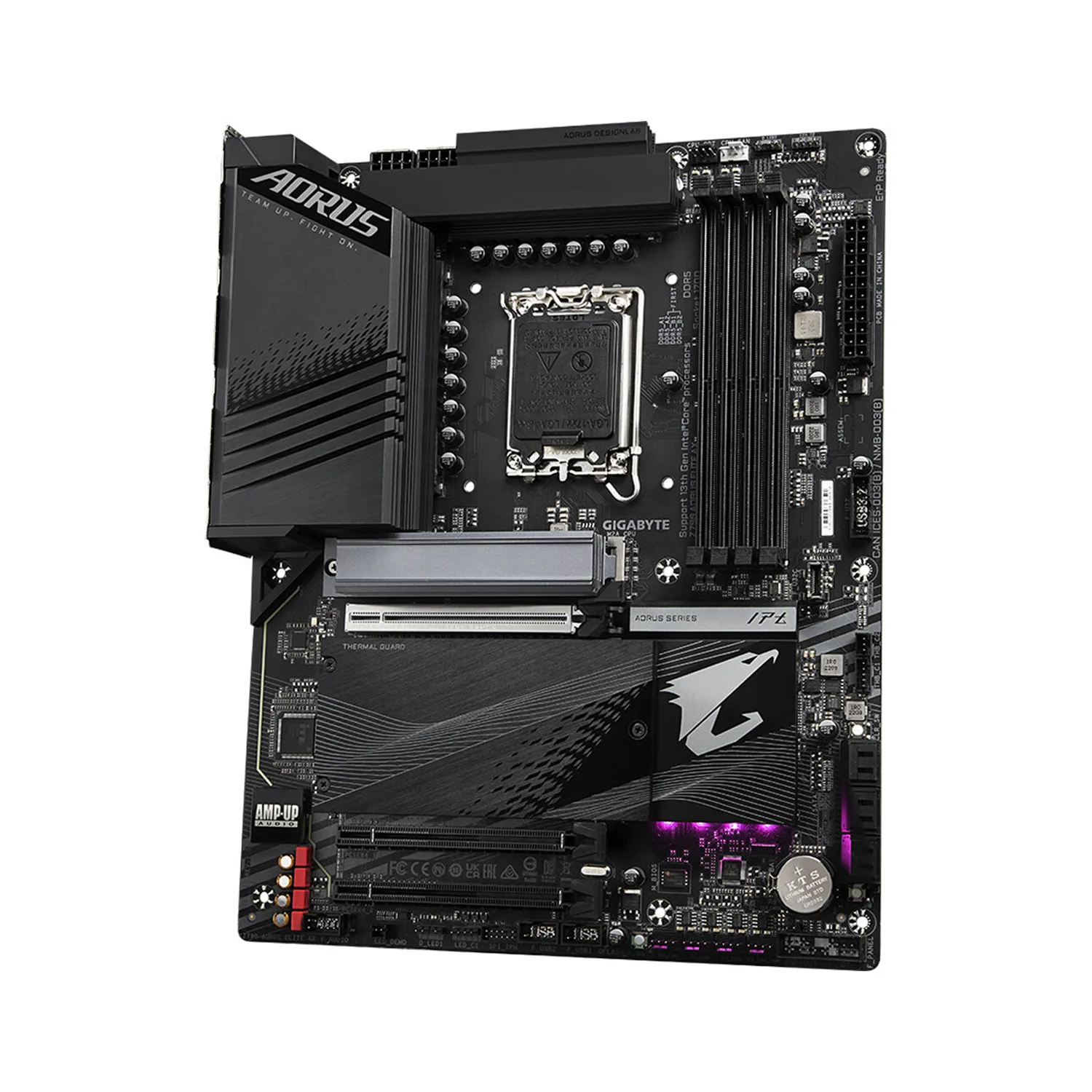

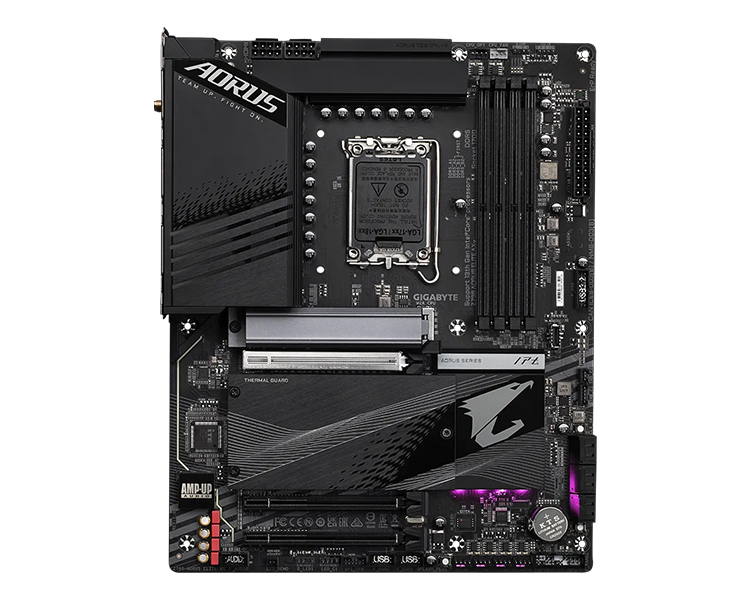

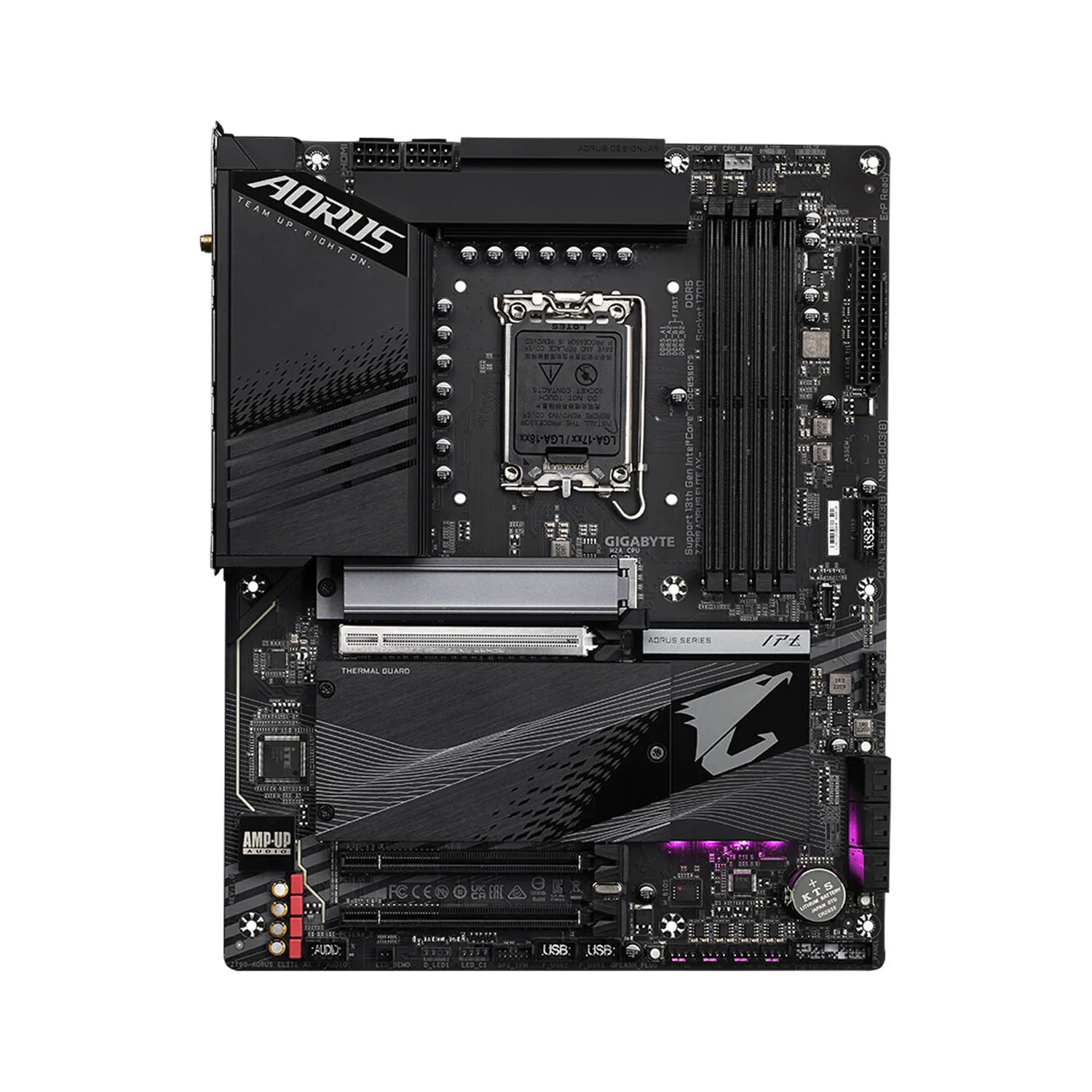

GigaByte Intel Z790 AORUS ELITE AX DDR5 Gaming MotherBoard

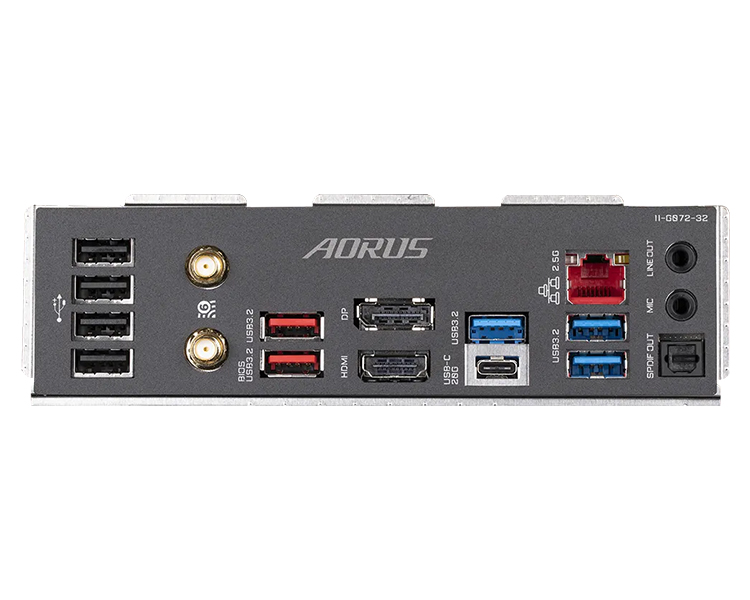

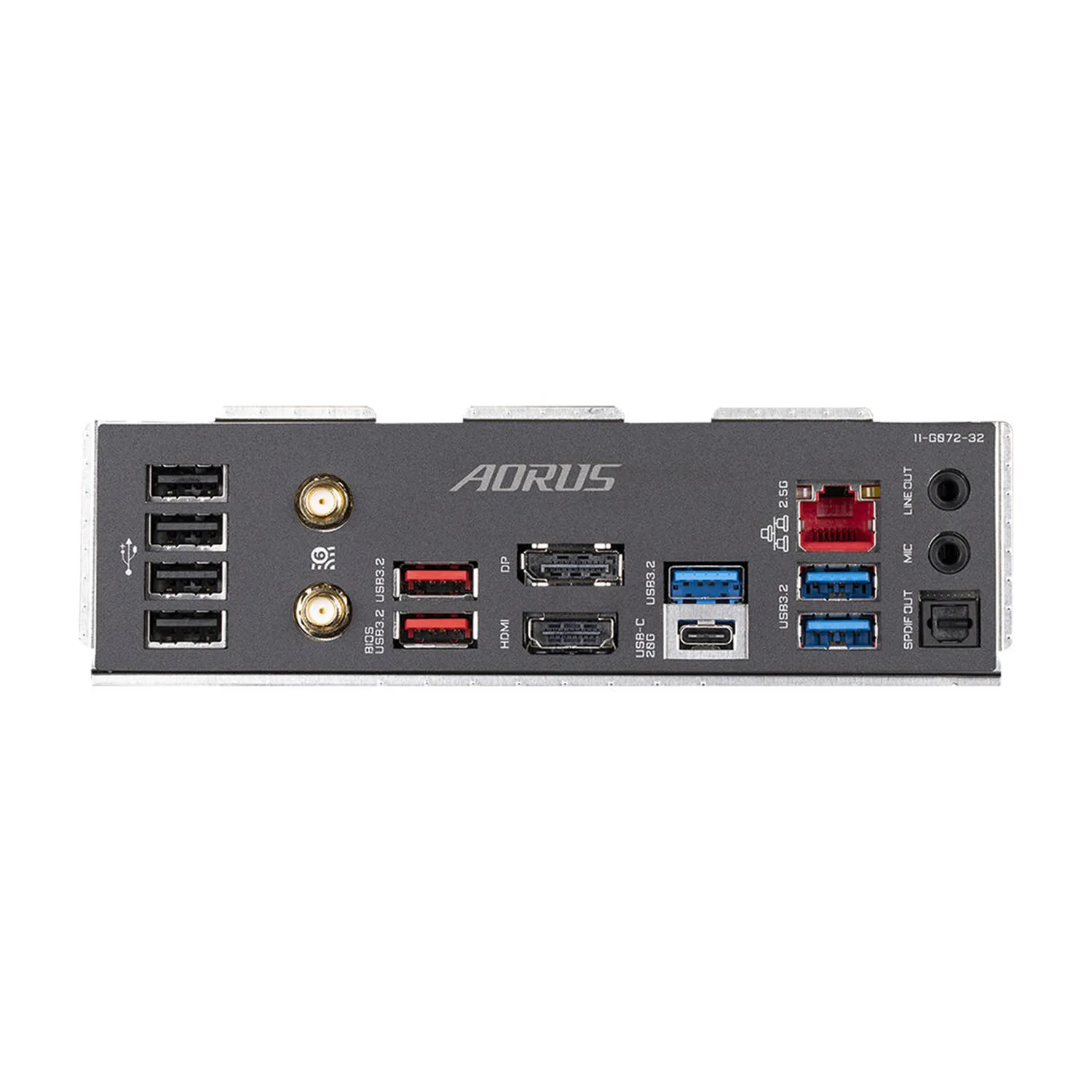

<table style="border-collapse: collapse; width: 100%;" border="1"> <tbody> <tr> <td style="width: 50.1657%;"> <h1 class="page-title"><strong><span class="base" data-ui-id="page-title-wrapper">Z790 AORUS ELITE AX DDR5</span></strong></h1> <div> <div class="KvSummary__productHeadiing__UPRDo KvSummary__themeWhite__21KI0"> <ul> <li>Intel^®&nbsp;Socket LGA 1700：Support 13th and 12th Gen Series Processors</li> <li>Unparalleled Performance：Twin 16*+1+2 Phases Digital VRM Solution</li> <li>Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support</li> <li>Next Generation Storage：4*PCIe 4.0 x4 M.2 Connectors</li> <li>Advanced Thermal Design &amp; M.2 Thermal Guard III: To Ensure VRM Power Stability &amp; M.2 SSD Performance</li> <li>EZ-Latch Plus：M.2 Connectors with Quick Release &amp; Screwless Design</li> <li>Fast Networks：2.5GbE LAN &amp; Wi-Fi 6E 802.11ax</li> <li>Extended Connectivity：DP, HDMI, Front USB-C^®&nbsp;10Gb/s, Rear USB-C^®&nbsp;20Gb/s</li> <li>Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP</li> <li>Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card</li> </ul> <p class="note">* 8+8 phases parallel power design</p> </div> </div> </td> <td style="width: 49.8343%;"><img style="display: block; margin-left: auto; margin-right: auto;" src="{{media url=.renditions/wysiwyg/codazon/gallery/GigaByte_Intel_Z790_AORUS_ELITE_AX_DDR5_Gaming_MotherBoard_0000_1.jpg}}" alt="" width="750" height="600"></td> </tr> <tr> <td style="width: 50.1657%;"><img style="display: block; margin-left: auto; margin-right: auto;" src="{{media url=.renditions/wysiwyg/codazon/gallery/GigaByte_Intel_Z790_AORUS_ELITE_AX_DDR5_Gaming_MotherBoard_0001_2.jpg}}" alt="" width="750" height="600"></td> <td style="width: 49.8343%;"> <h1 class="theme-title title--main"><strong>PERFORMANCE</strong></h1> <ul> <li><strong>UNPARALLELED PERFORMANCE</strong><br>With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.</li> <li><strong>Twin Digital VRM Design</strong><br>To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.</li> <li><strong>Design Ready for PCIe 5.0</strong><br>PCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge GPUs released in the next few years to their full capability</li> <li><strong>DDR5 Overclocking Up to 7600 and Beyond*</strong><br>AORUS is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard</li> <li><strong>Triple 7G/s Gen4 M.2 PCIe SSDs in RAID 0</strong><br>The exclusive 3 PCIe 4.0 M.2 from CPU and 2nd Generation 7000 MB/s SSD provides unparalleled Read/ Write performance up to 21053 and 15499 MB/s.</li> <li><strong>GIGABYTE PerfDrive</strong><br>PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.</li> </ul> </td> </tr> <tr> <td style="width: 50.1657%;"> <h1><strong>PERSONALIZATION</strong></h1> <ul> <li class="a-spacing-mini"><strong>Fully Covered Thermal Design</strong><br>High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.</li> <li class="a-spacing-mini"><strong>Enlarged Thermal Guard</strong><br>Enlarged M.2 heatsink prevents high-speed, large-capacity PCIe 4.0/3.0 SSDs flash from throttling due to overheating.</li> <li class="a-spacing-mini"><strong>6-Layer &amp; 2X Copper PCB</strong><br>2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.</li> <li class="a-spacing-mini"><strong>4X Large Surface</strong><br>Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.</li> <li class="a-spacing-mini"><strong>Real One-piece Build</strong><br>TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.</li> <li class="a-spacing-mini"><strong>Multi-Cut Design</strong><br>TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.</li> <li class="a-spacing-mini"><strong>M.2 Thermal Guard III</strong><br>M.2 Thermal Guard III constructed with 6X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of M.2 SSDs may cause, especially under heavy workload.The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency.</li> <li class="a-spacing-mini"><strong>High Current Support</strong><br>Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection</li> <li class="a-spacing-mini"><strong>Precision Control</strong><br>Multiple temperature/fan speed control points for precise fan curve</li> <li class="a-spacing-mini"><strong>Dual Curve Mode</strong><br>Slope/Stair dual mode for different user scenario</li> <li class="a-spacing-mini"><strong>Fan Stop</strong><br>Fan can stop completely below users' specified temperature point</li> </ul> </td> <td style="width: 49.8343%;"><img style="display: block; margin-left: auto; margin-right: auto;" src="{{media url=.renditions/wysiwyg/codazon/gallery/GigaByte_Intel_Z790_AORUS_ELITE_AX_DDR5_Gaming_MotherBoard_0002_3.jpg}}" alt="" width="750" height="600"></td> </tr> <tr> <td style="width: 50.1657%;"><img style="display: block; margin-left: auto; margin-right: auto;" src="{{media url=.renditions/wysiwyg/codazon/gallery/GigaByte_Intel_Z790_AORUS_ELITE_AX_DDR5_Gaming_MotherBoard_0003_4.jpg}}" alt="" width="750" height="600"></td> <td style="width: 49.8343%;">&nbsp; <h1><strong>Connectivity</strong></h1> <ul> <li><strong>802.11ax Wi-Fi 6E</strong><br>The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.</li> <li><strong>First adopter on 2.5GbE LAN onboard</strong><br>2X Faster than ever<br>Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.<br>Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet</li> <li><strong>Connecting the Future - USB 3.2 Gen 2x2 Type-C®</strong><br>Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.</li> <li><strong>CONNECTING THE FUTURE - Front USB3.2 Gen 2 Type-C®</strong><br>USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.</li> <li><strong>Audiophile Grade Capacitors (Premium Grade Audio)</strong><br>To ensure a studio-quality experience, WIMA and Premium Grade Audio capacitors are used to provide power to the overall system.</li> </ul> </td> </tr> </tbody> </table>
