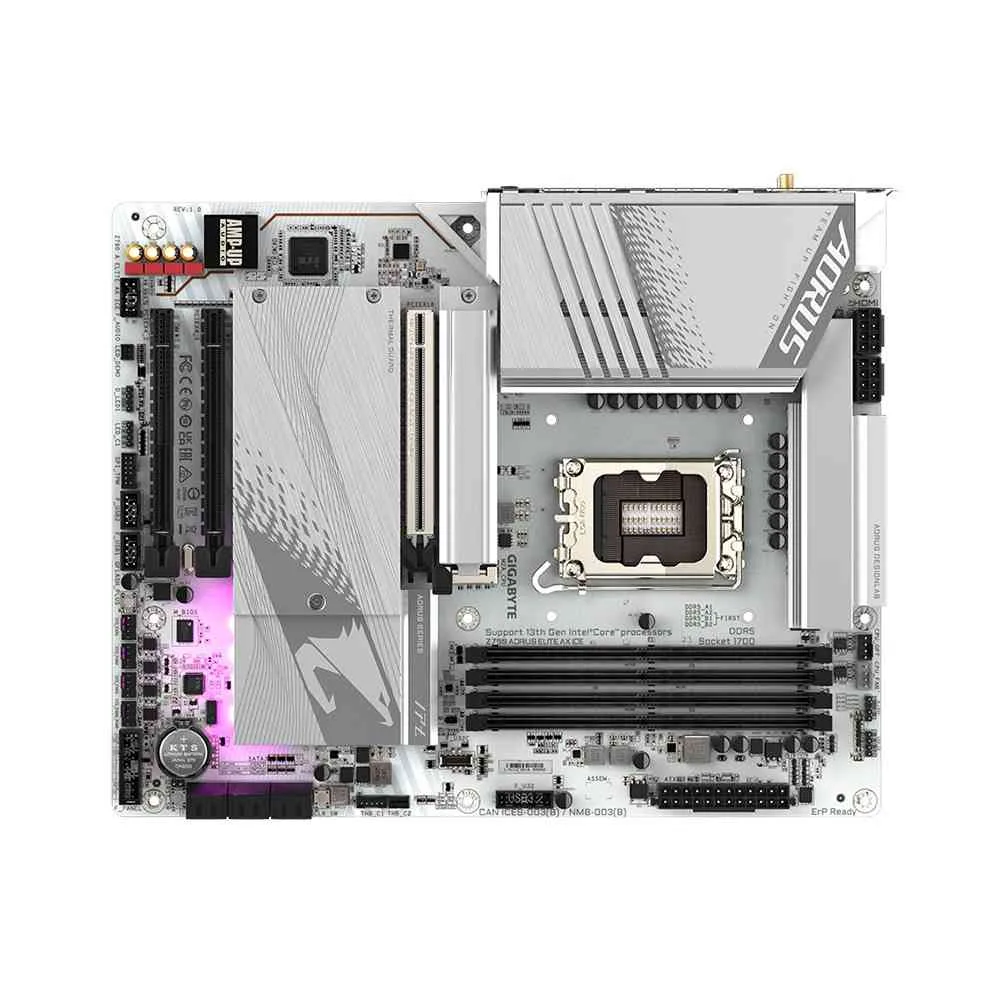

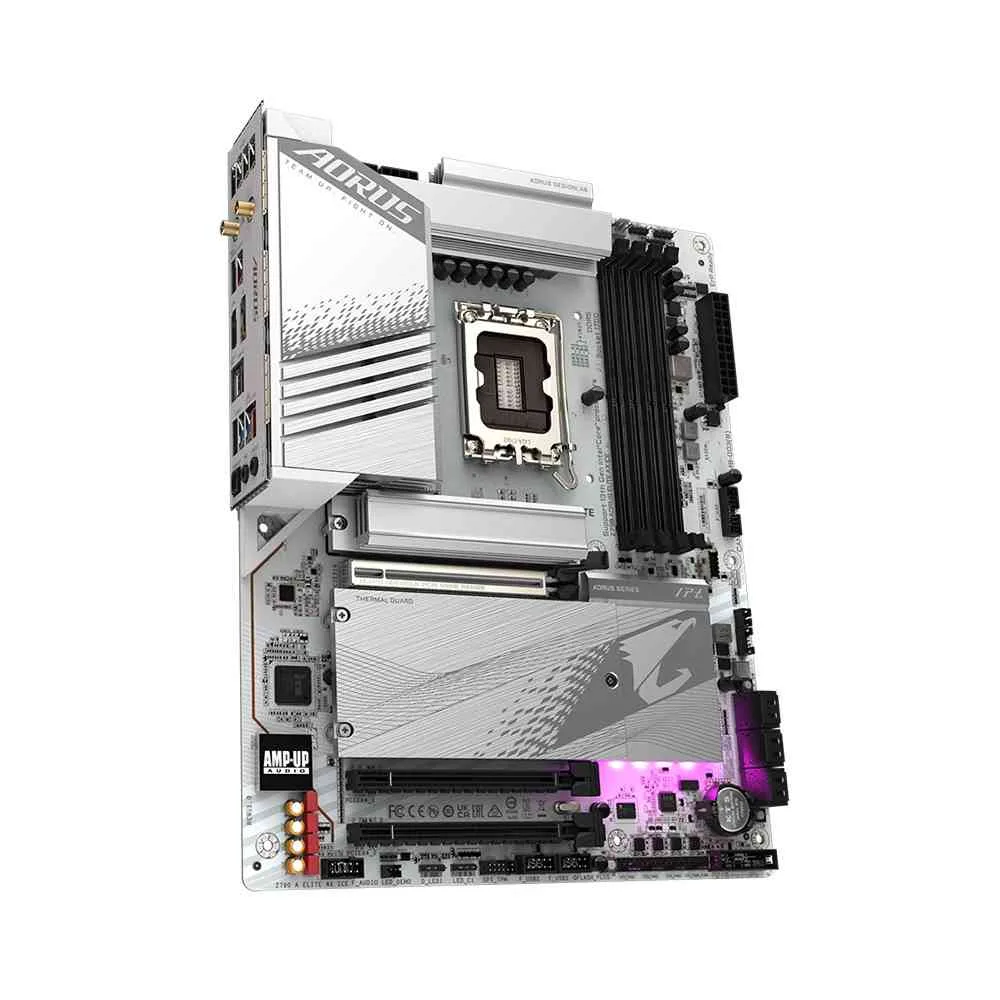

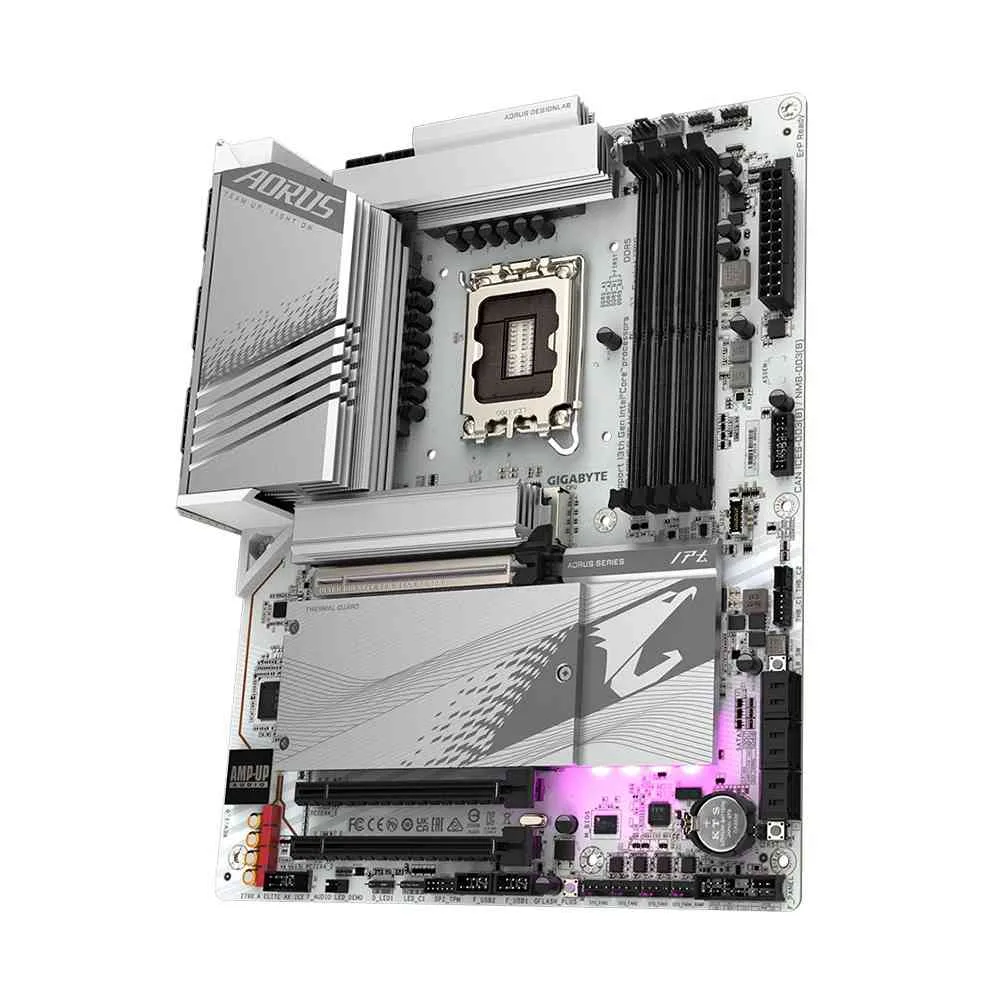

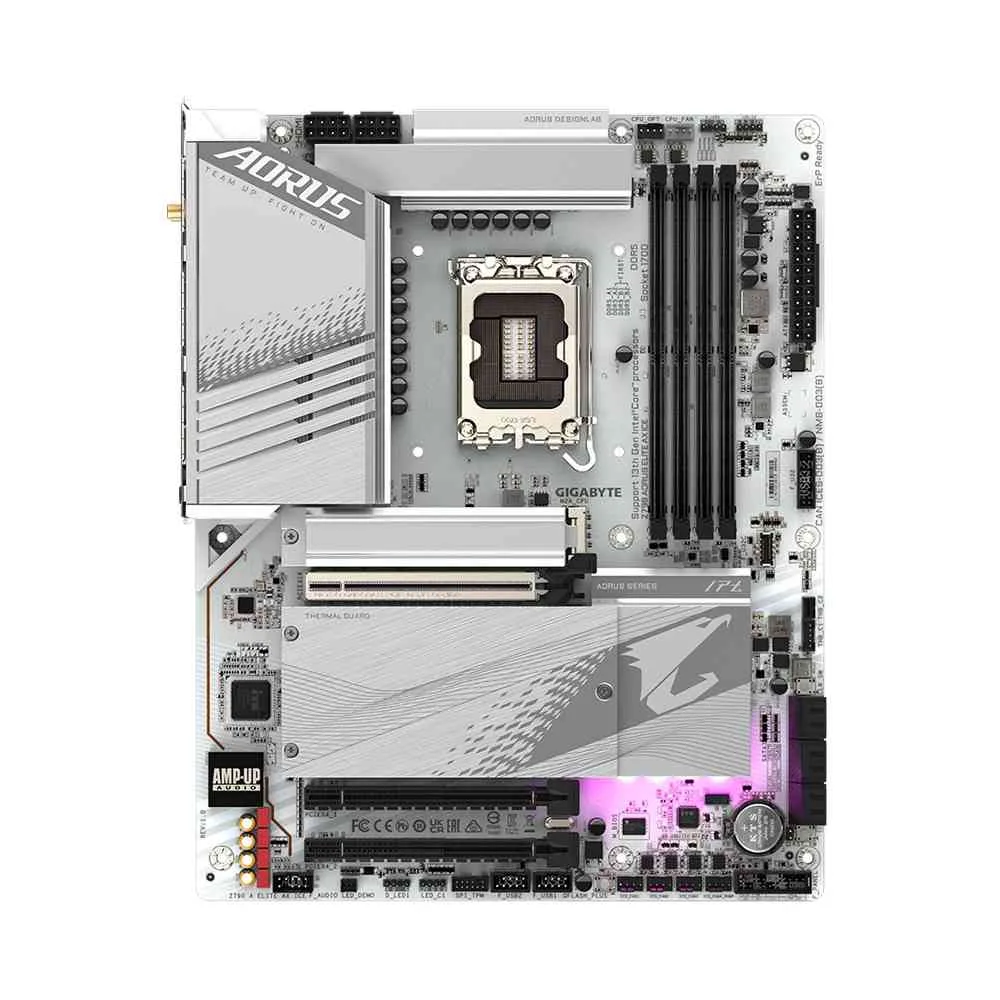

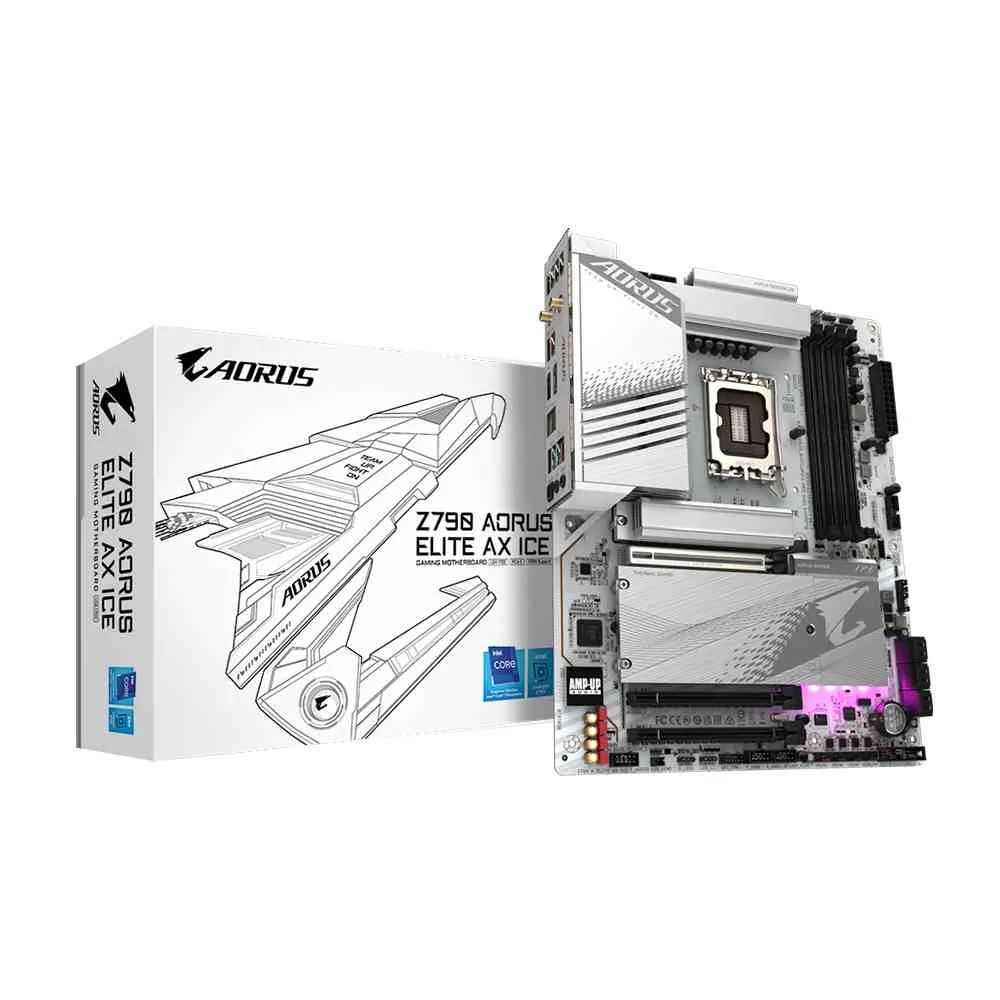

GigaByte Intel Z790 AORUS ELITE AX ICE DDR5 Gaming MotherBoard Wifi- White

Model No : GigaByte Intel Z790 AORUS ELITE AX ICE DDR5 Gaming MotherBoard Wifi- White Part No : Z790 A ELITE AX ICE Chipset : Intel® Z790 Express Chipset Form Factor : ATX Socket Compatibility : LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU Wireless & Bluetooth : Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate LAN : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Memroy : Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules Onboard Graphics : Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60* Support for DisplayPort 1.2 version and HDCP 2.3 Storage Interface : CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)6 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Back Panel I/O Ports : 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks USB Ports Front (Support) : Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Expansion Slots : CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) Audio : Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out Back Panel Connectors : 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks Internal I/O Connectors : 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumper Special Features : Intel® Socket LGA 1700：Support 13th and 12th Gen Series ProcessorsUnparalleled Performance：Twin 16+1+2 Phases Digital VRM SolutionDual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module SupportNext Generation Storage：4*PCIe 4.0 x4 M.2 ConnectorsAdvanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD PerformanceEZ-Latch Plus：M.2 Connectors with Quick Release & Screwless DesignFast Networks：2.5GbE LAN & Wi-Fi 6E 802.11axExtended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/sSmart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card Product Size (Dimension) : 30.5cm x 24.4cm Warranty : 1 Year ( As per Manufacturer Policy )
