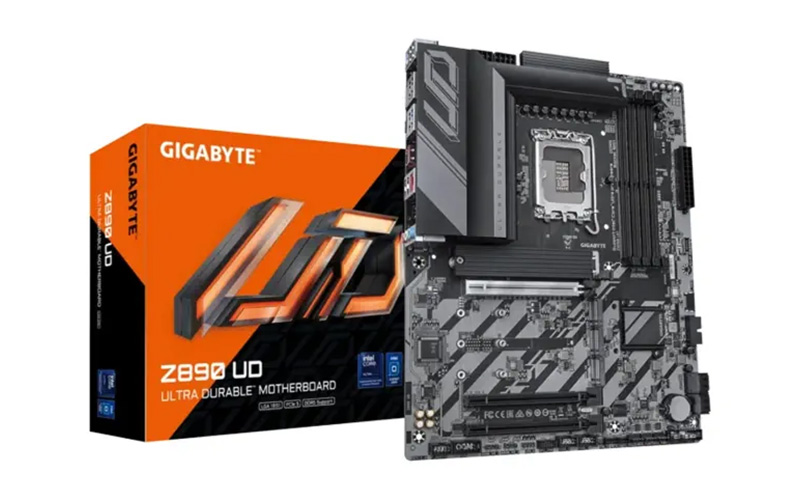

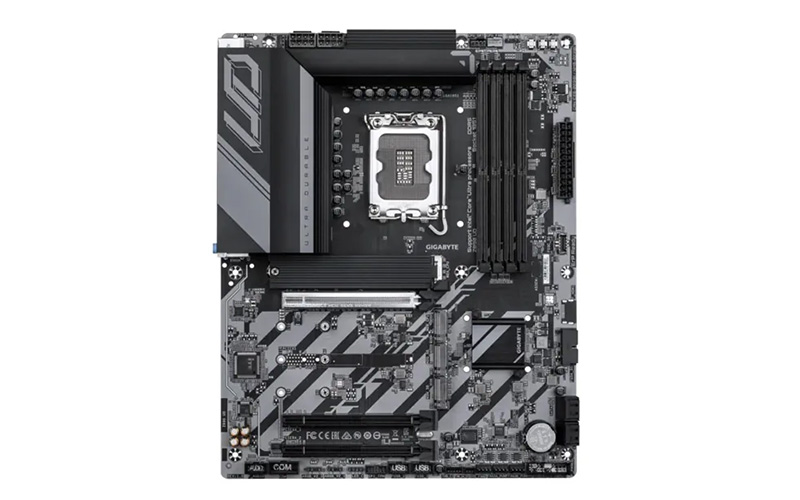

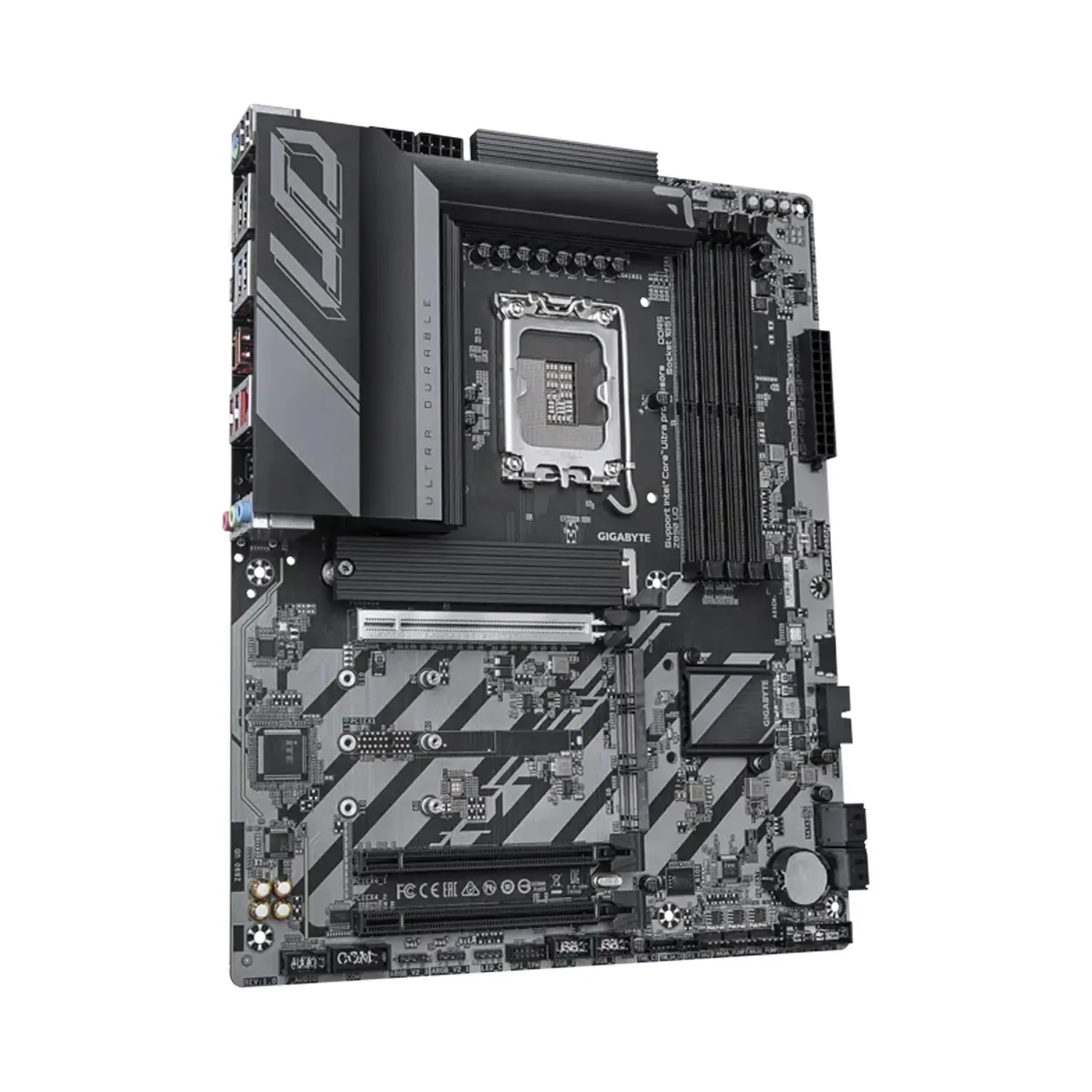

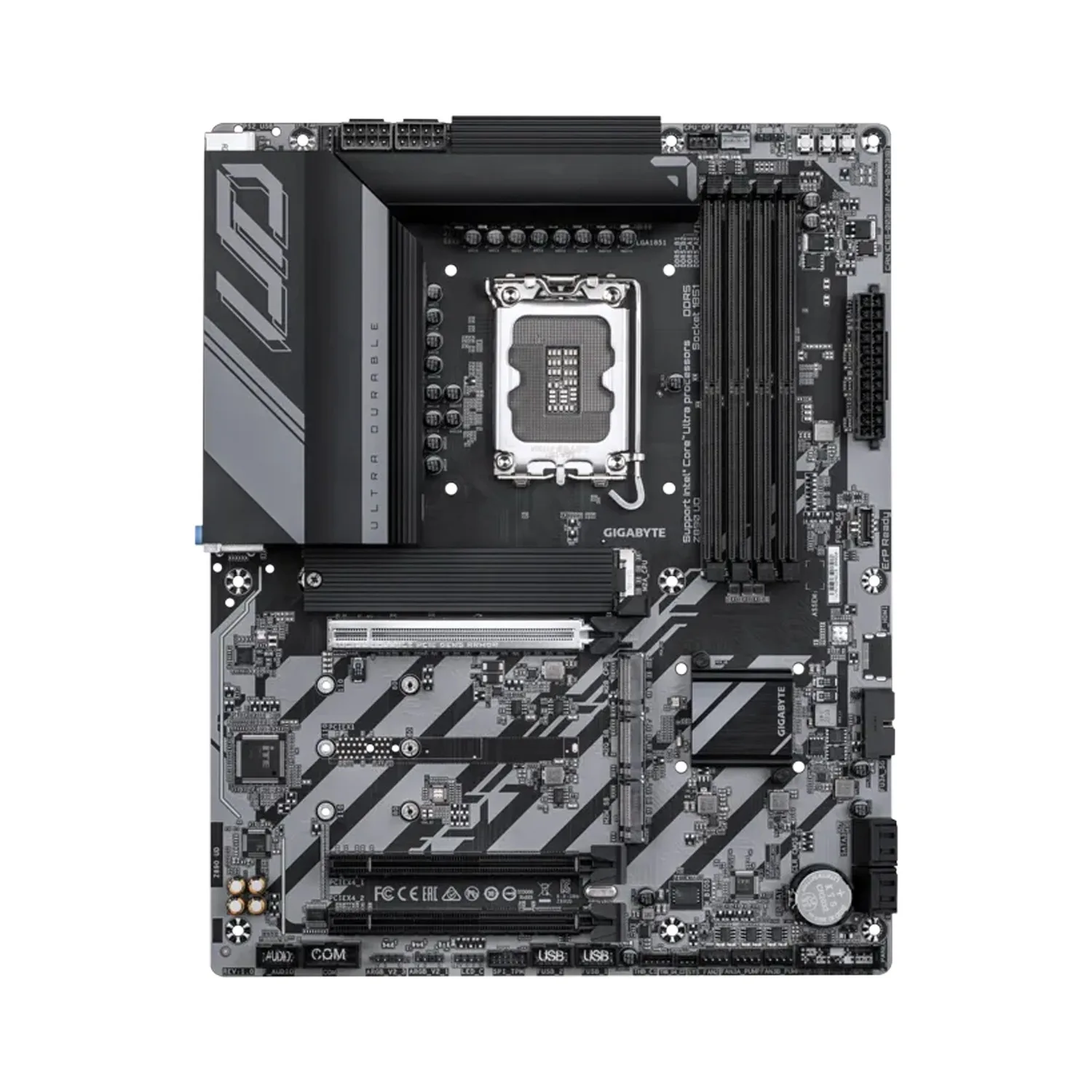

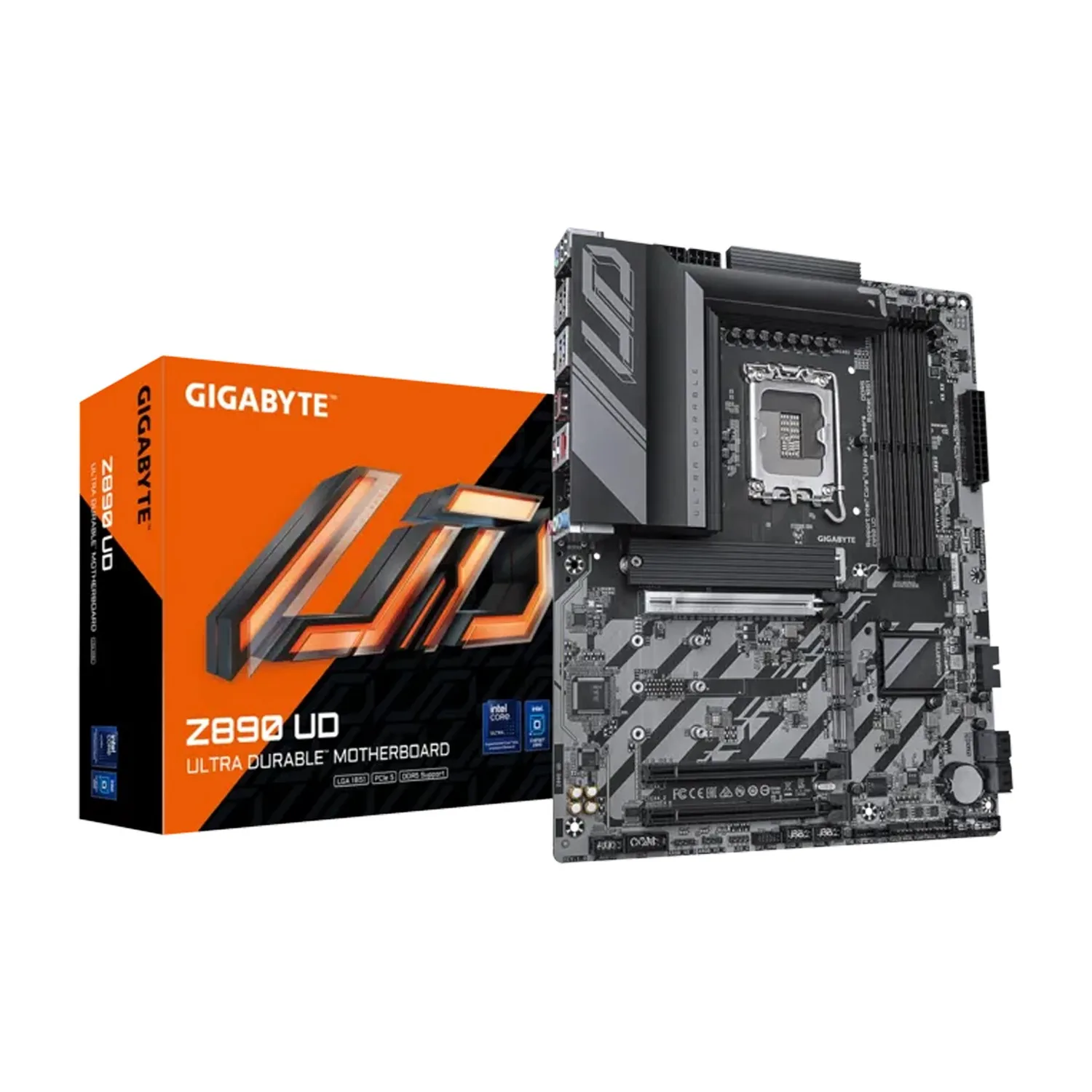

Gigabyte Intel Z890 UD DDR5 Gaming Motherboard

Next-Generation Intel Platform with DDR5 and PCIe 5.0

The Gigabyte Intel Gaming Motherboard Z890 UD DDR5 is built on the latest Intel Z890 chipset, supporting Intel Core Ultra (Series 2) processors via the LGA1851 socket. It delivers cutting-edge performance with DDR5 memory support reaching up to extreme overclocked speeds around 9200 MT/s, ensuring high bandwidth and system responsiveness. With PCIe 5.0 support for both graphics and storage, it provides a future-ready platform for high-end gaming and productivity builds.

Robust Power Design with Advanced Thermal Management

Equipped with a 12+1+2 phase digital VRM design using high-quality components, the motherboard ensures stable power delivery even under demanding workloads. It features advanced thermal solutions such as full-coverage VRM heatsinks and M.2 Thermal Guard to maintain optimal temperatures. Smart Fan 6 technology enables precise cooling control, helping to balance performance and noise efficiently.

High-Speed Connectivity and DIY-Friendly Features

The Z890 UD offers modern connectivity including 2.5GbE LAN and USB4 Type-C with up to 40Gb/s transfer speeds, along with DisplayPort support for high-resolution output. It includes multiple M.2 slots (including PCIe 5.0) for ultra-fast storage and several PCIe slots for expansion. Builder-friendly features like Q-Flash Plus, EZ-Latch design, and debug LEDs simplify installation and upgrades, making it suitable for both beginners and advanced users.

Key Specifications

• Chipset: Intel Z890

• CPU Socket: LGA1851 (Intel Core Ultra Series 2)

• Memory: 4 × DDR5 DIMM, up to 256GB (up to ~9200 MT/s OC)

• VRM: 12+1+2 Phase Digital Power Design

• Expansion Slots:

  • 1 × PCIe 5.0 x16

  • 2 × PCIe 4.0 x4

• Storage:

  • 1 × M.2 PCIe 5.0 x4

  • 3 × M.2 PCIe 4.0 x4

  • 4 × SATA 6Gb/s

• Networking: 2.5GbE LAN

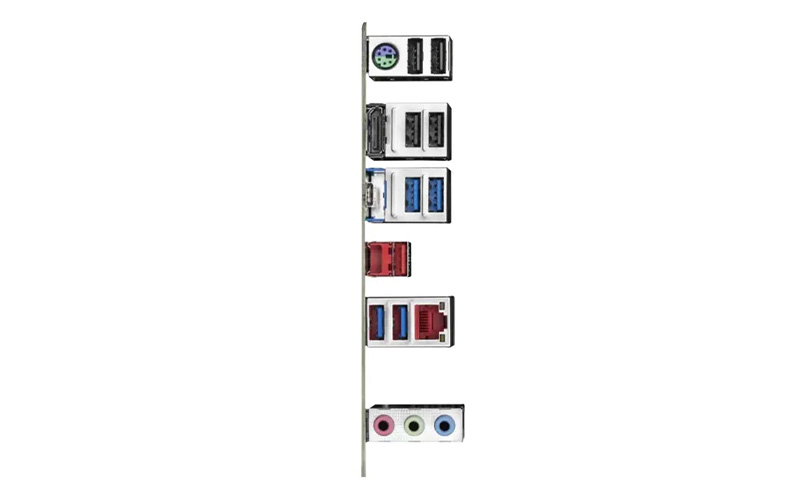

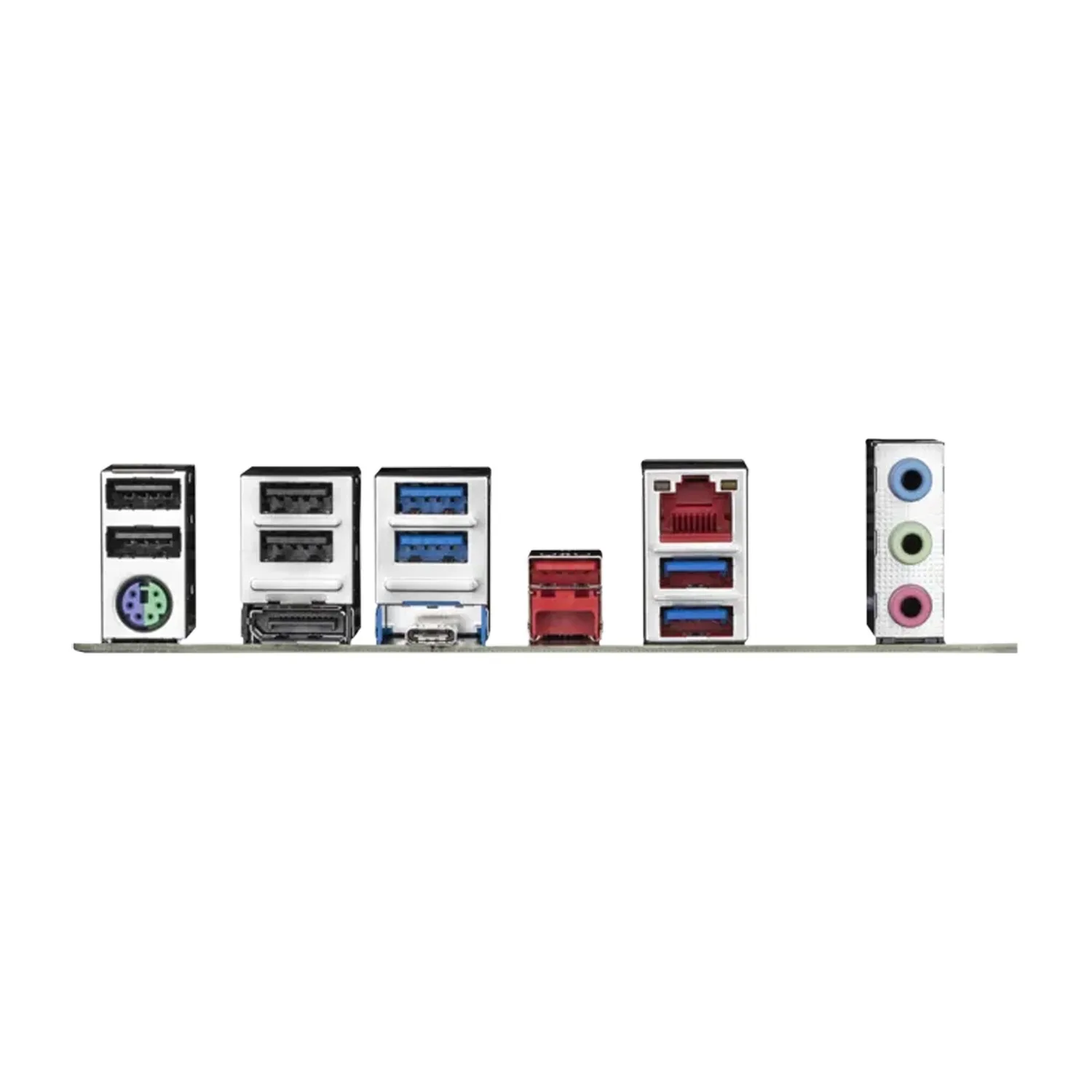

• Ports: USB4 Type-C (40Gb/s), USB 3.2 Gen 2, USB 3.2 Gen 1

• Video Outputs: DisplayPort

• Audio: 8-channel HD Audio with premium capacitors

• Cooling: VRM Thermal Armor, M.2 Thermal Guard, Smart Fan 6

• Special Features: Q-Flash Plus, EZ-Latch PCIe, Debug LEDs

• Form Factor: ATX

• Use Case: High-end gaming, content creation, future-proof Intel builds
