Gigabyte Intel Z890 UD WIFI6E DDR5 Gaming Motherboard

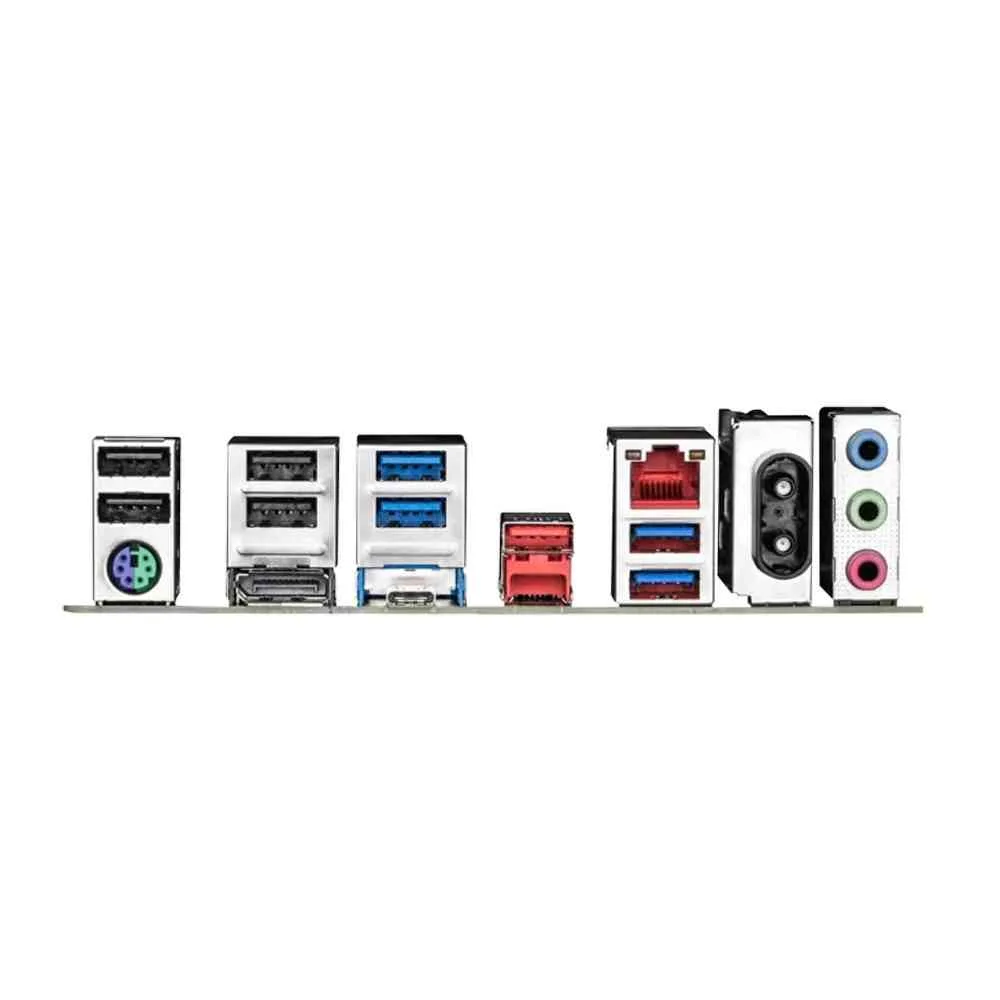

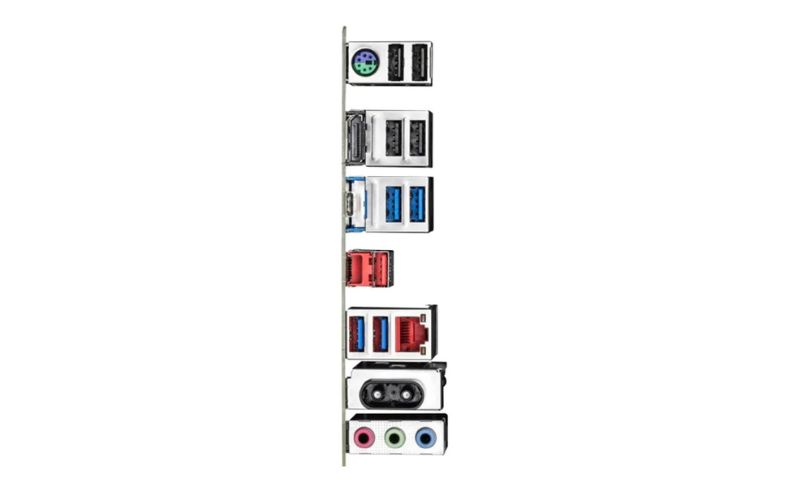

Model No : Gigabyte Z890 UD WIFI6E Motherboard Part No : Z890 UD WIFI6E Chipset : Intel Z890 Express Form Factor : ATX Socket Compatibility : Intel LGA1851 – Supports Intel Core Ultra Processors (Series 2) Wireless & Bluetooth : Wi‑Fi 6E (802.11ax) with 2T2R antenna support • Bluetooth 5.3 Lighting : 3 × Addressable RGB LED Headers • 1 × RGB LED Header Memory Type : DDR5 Memory Compatibility : 4 × DIMM slots, Dual‑Channel, Up to 256 GB, supports XMP and high‑speed DDR5 up to ~9200 MT/s (OC) Storage Compatibility : 3 × M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4) • 4 × SATA 6 Gb/s ports with RAID support Back Panel I/O Ports : 1 × USB4 Type‑C (with DisplayPort Alt mode) • 1 × USB 3.2 Gen2 Type‑A • 4 × USB 3.2 Gen1 Type‑A • 4 × USB 2.0 • 1 × DisplayPort • 1 × RJ45 LAN • 3 × Audio Jacks • PS/2 Combo USB Ports Front (Support) : Internal headers for USB Type‑C and USB 3.2 Gen1 / USB 2.0 support Expansion Slots : 1 × PCIe 5.0 x16 • 2 × PCIe 4.0 x16 (x4 mode) • 1 × PCIe 4.0 x16 (x1 mode) Audio : Realtek HD Audio Codec • 8‑Channel (2/4/5.1/7.1) Internal I/O Connectors : 24‑pin ATX power • 2 × 8‑pin CPU power • CPU fan header • Pump/fan headers • System fan headers • RGB headers • USB headers • Front panel headers • TPM header • Serial header Special Features : PCIe EZ‑Latch • Q‑Flash Plus Button • VRM Thermal Armor Advanced & M.2 Thermal Guard Package Content : Motherboard • I/O Shield • Antennas • SATA Cables • Documentation Product Size (Dimension) : Standard ATX dimensions Product Weight : Not Specified Warranty : 1 Year ( As per Manufacturer Policy )
