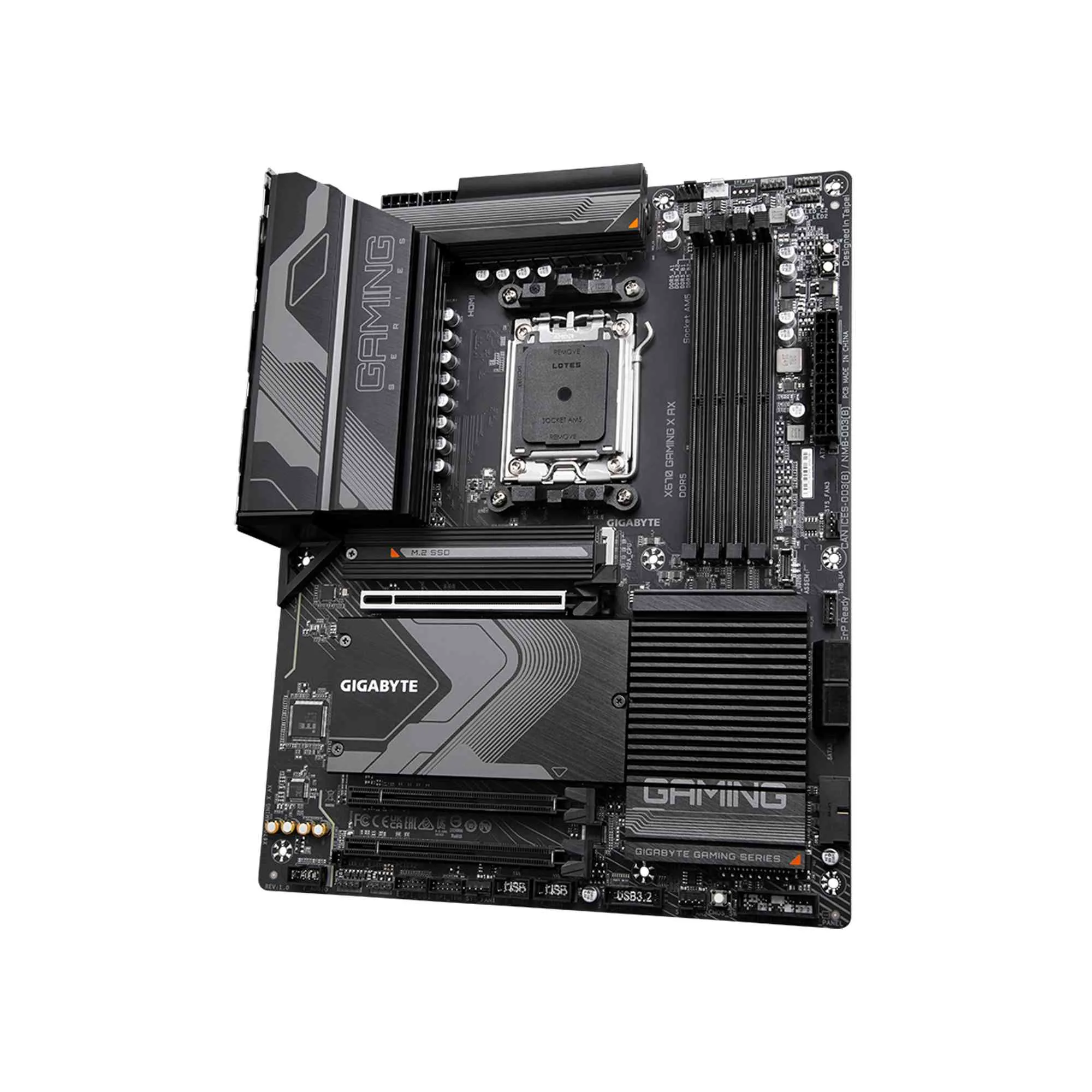

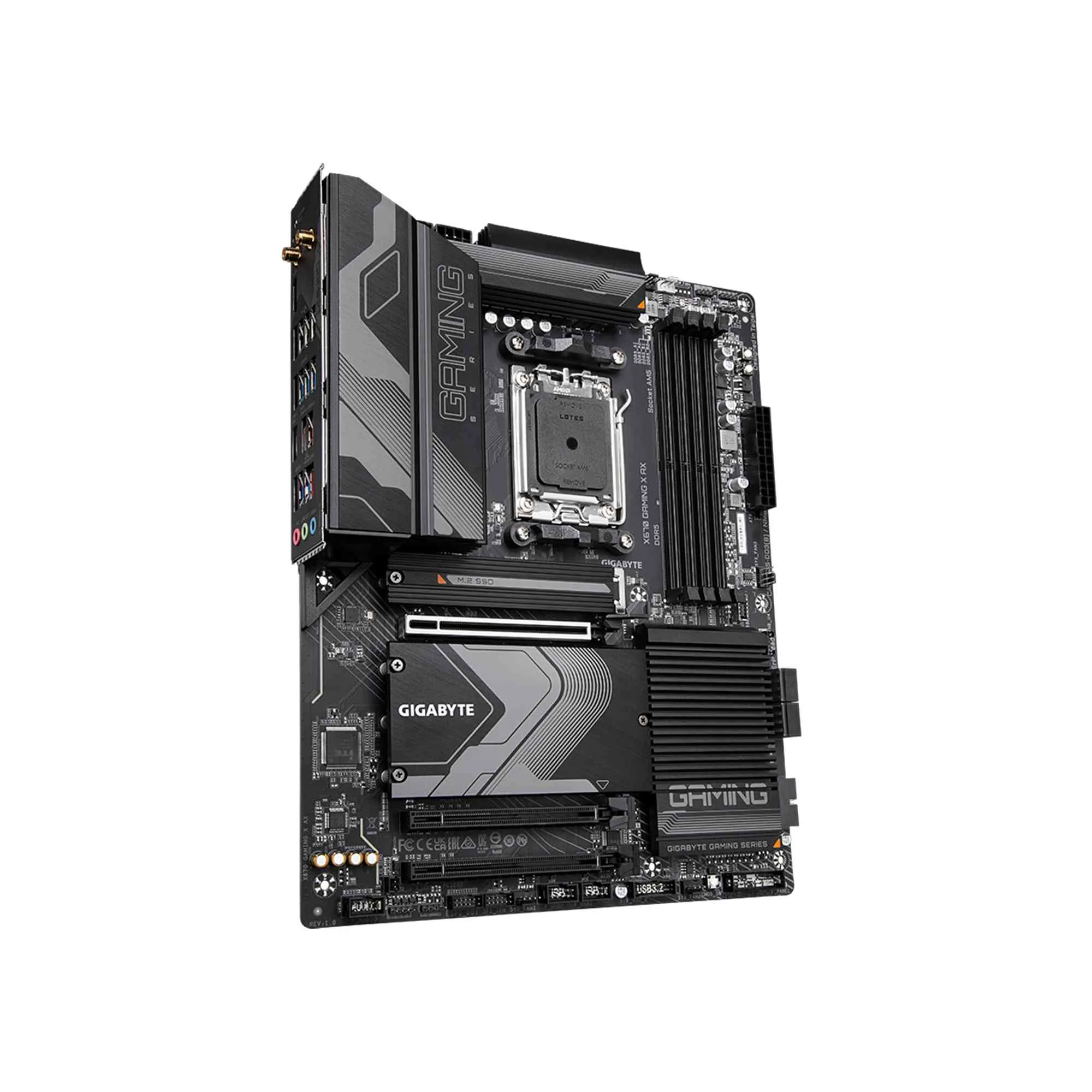

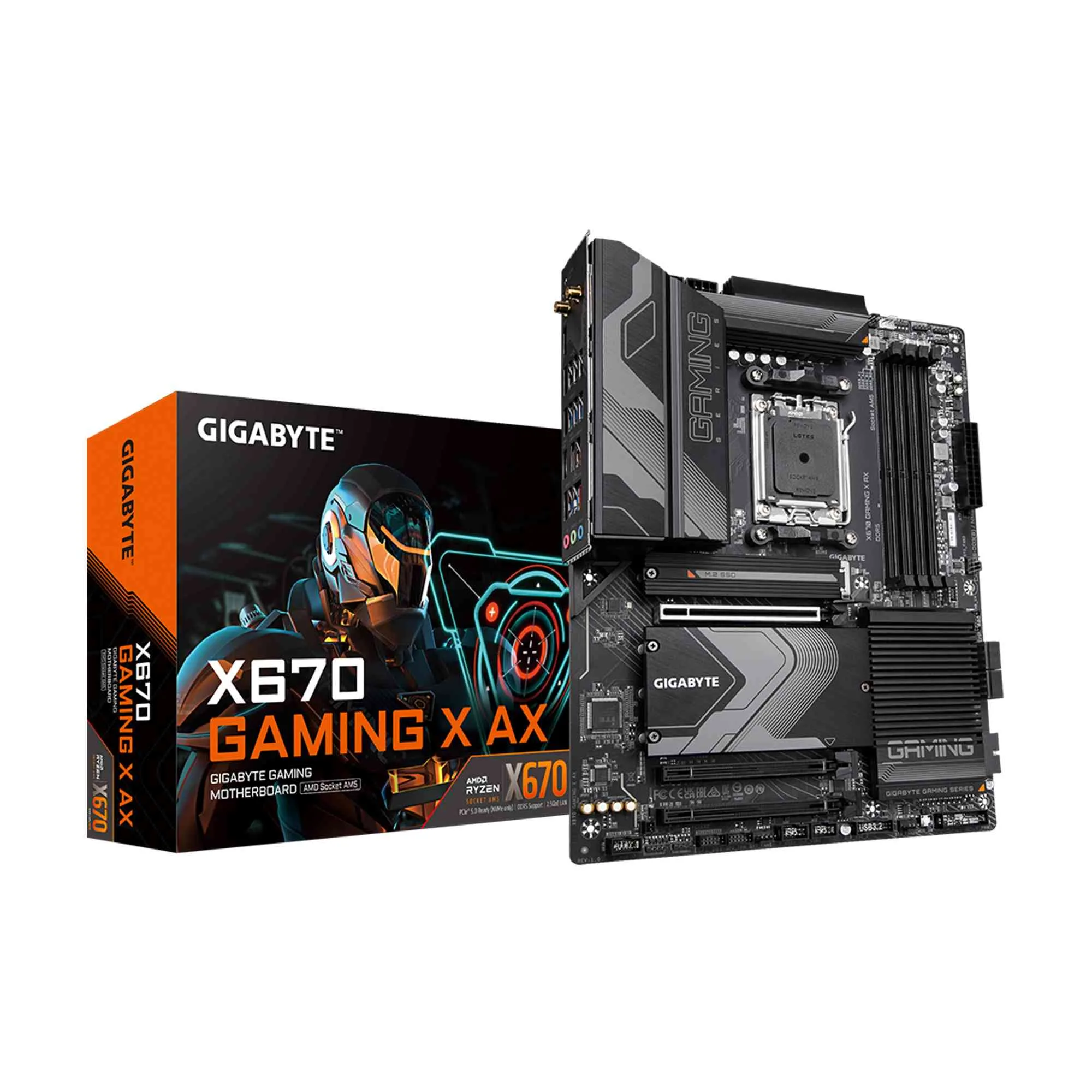

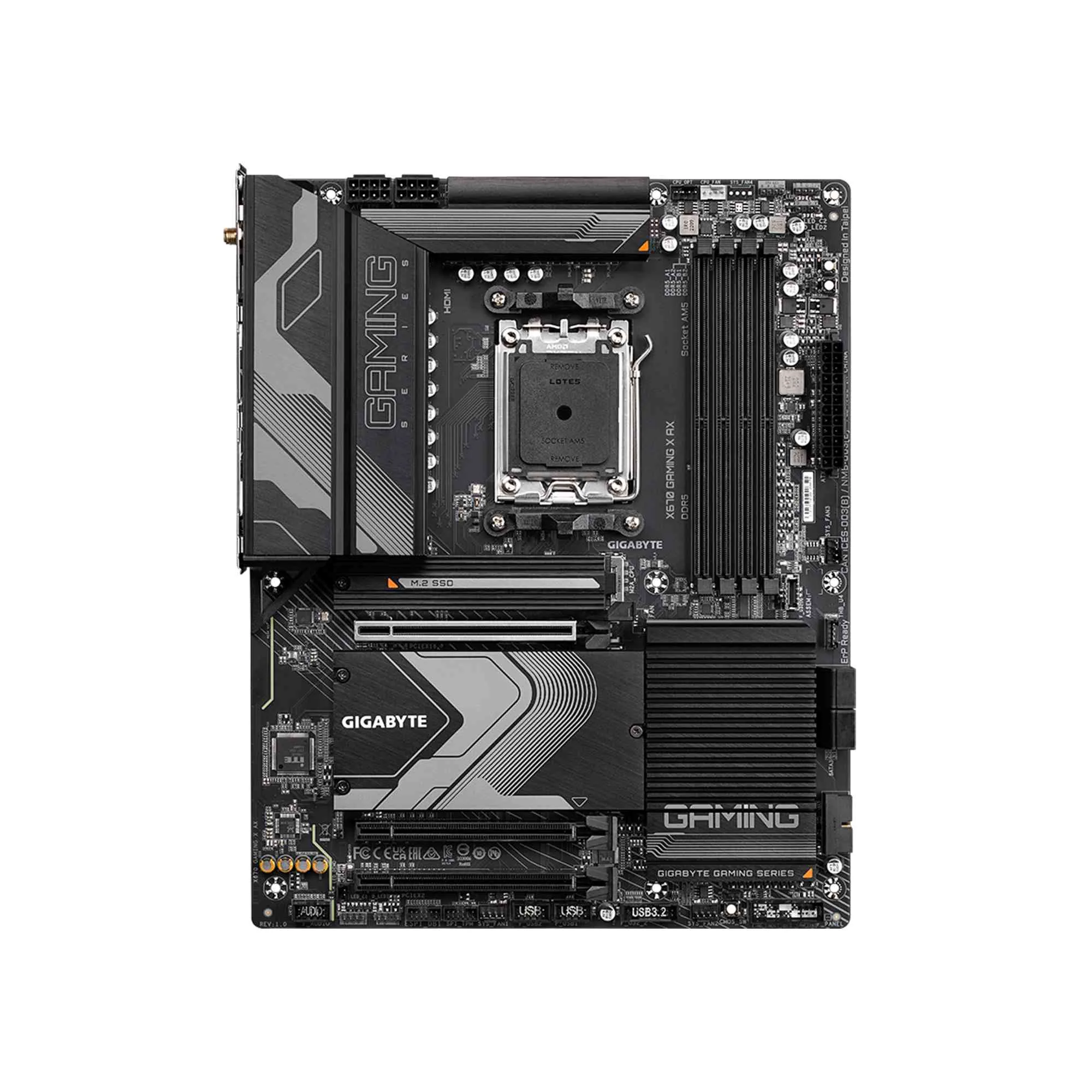

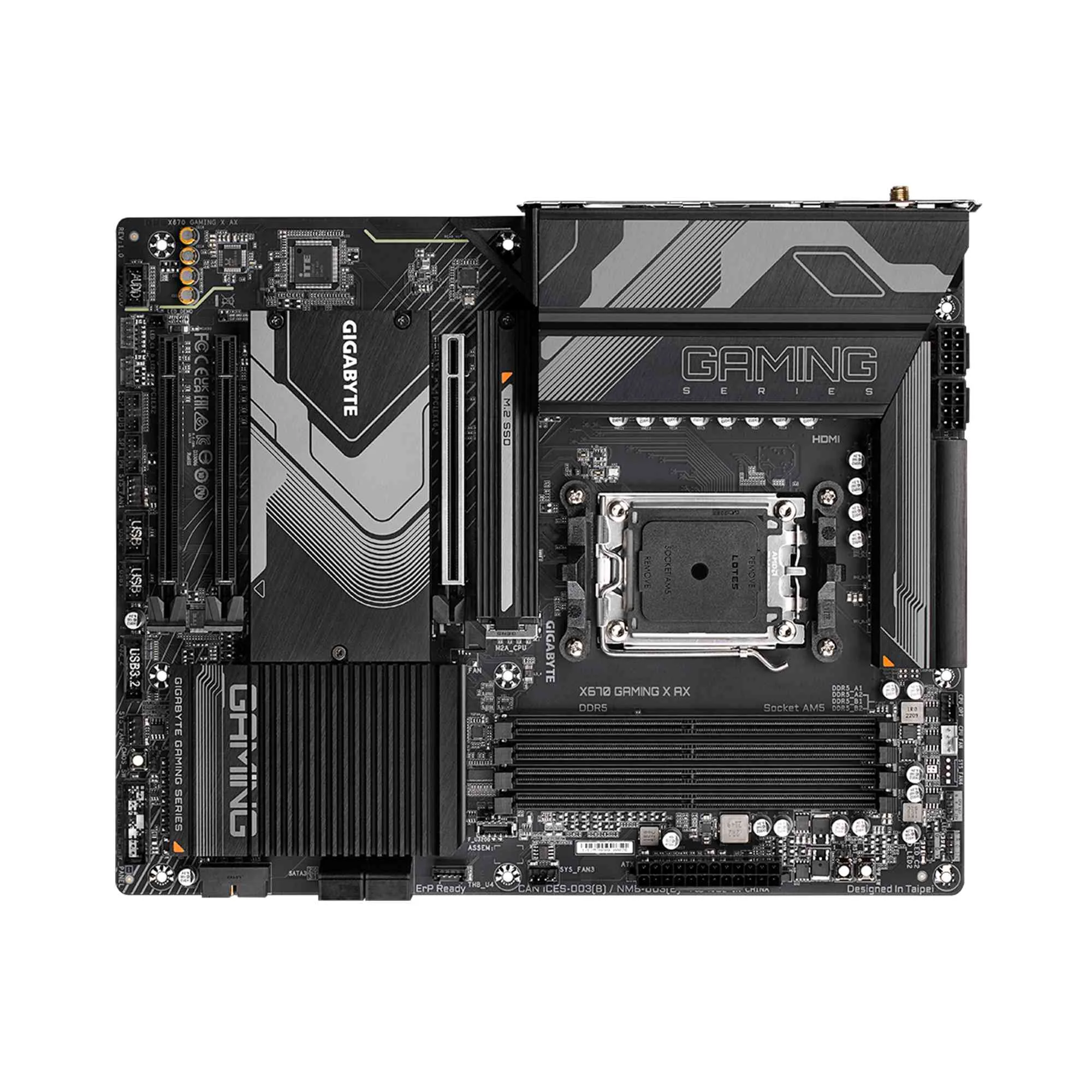

GIGABYTE X670 GAMING X AX DDR5 AMD Ryzen Socket AM5 PCle 5.0 Gaming MotherBoard

Key Specifications

• Model NoGIGABYTE X670 GAMING X AX DDR5 AMD Ryzen Socket AM5 PCle 5.0 Gaming MotherBoard
• Part NoX670 GAMING X AXChipsetAMD X670Form FactorATX Form Factor; 30.5cm x 24.4cmCPUAMD Socket AM5, support for: AMD Ryzen™ 7000 Series
• ProcessorsWireless & BluetoothAMD Wi-Fi 6E RZ616 (MT7922A22M)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate(Actual data rate may vary depending on environment and equipment.)Memroy TypeDDR5
• CompatibilitySupport for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
• Memory Profile (XMP) memory modules
• CompatibilityCPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)(Note) Actual support may vary by CPU.1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
• GraphicsIntegrated
• Graphics
• Processor:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.Back Panel I/O Ports1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x HDMI port6 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port, with USB 3.2 Gen 2x2 support1 x RJ-45 port3 x audio jacksI/O ControlleriTE® I/O Controller ChipUSB PortsCPU:2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports on the back panelCPU + USB 2.0 Hub:4 x USB 2.0/1.1 ports on the back panelChipset:2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)4 x USB 2.0/1.1 ports available through the internal USB headersExpansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)AudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Internal I/O Connectors1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip header2 x addressable LED strip headers2 x RGB LED strip headers4 x SATA 6Gb/s connectors4 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x power button1 x reset button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumperSpecial FeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupBIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0H/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.Operating SystemSupport for Windows 11 64-bitSupport for Windows 10 64-bit
• Warranty1 Year ( As per Manufacturer Policy )
