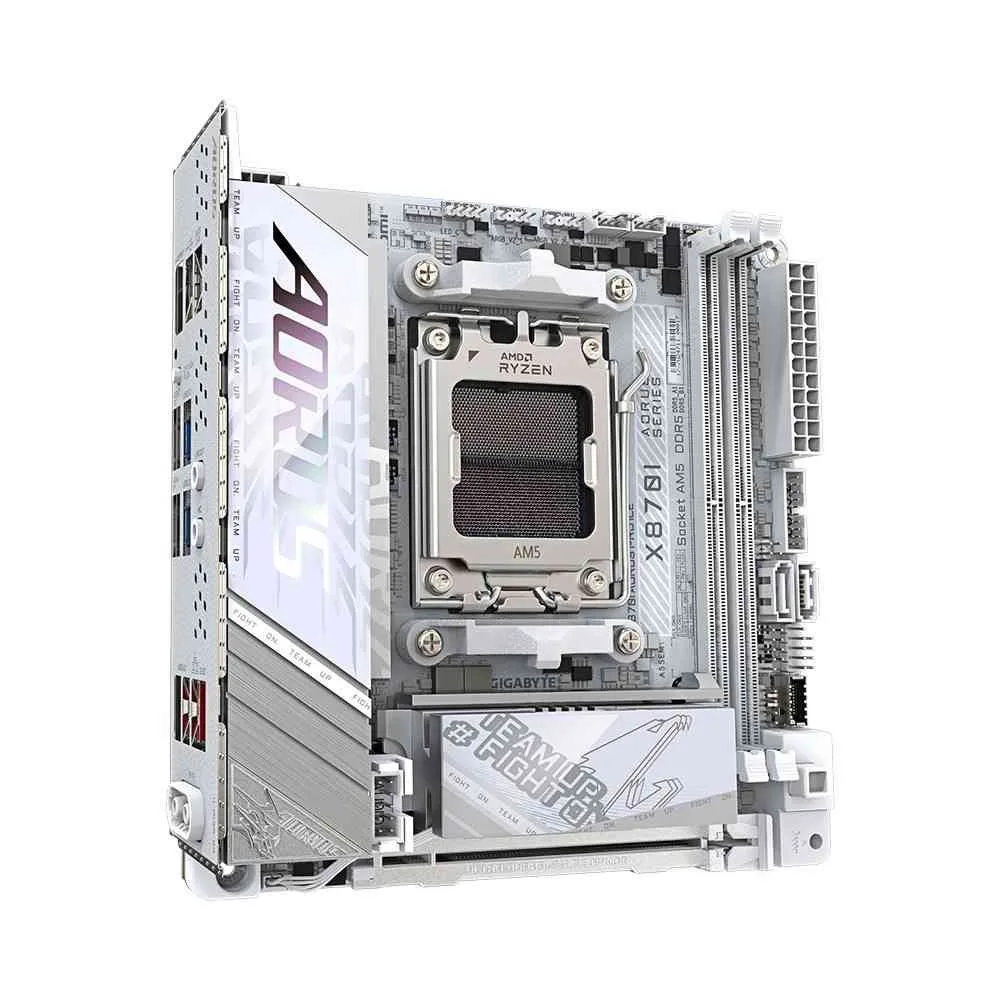

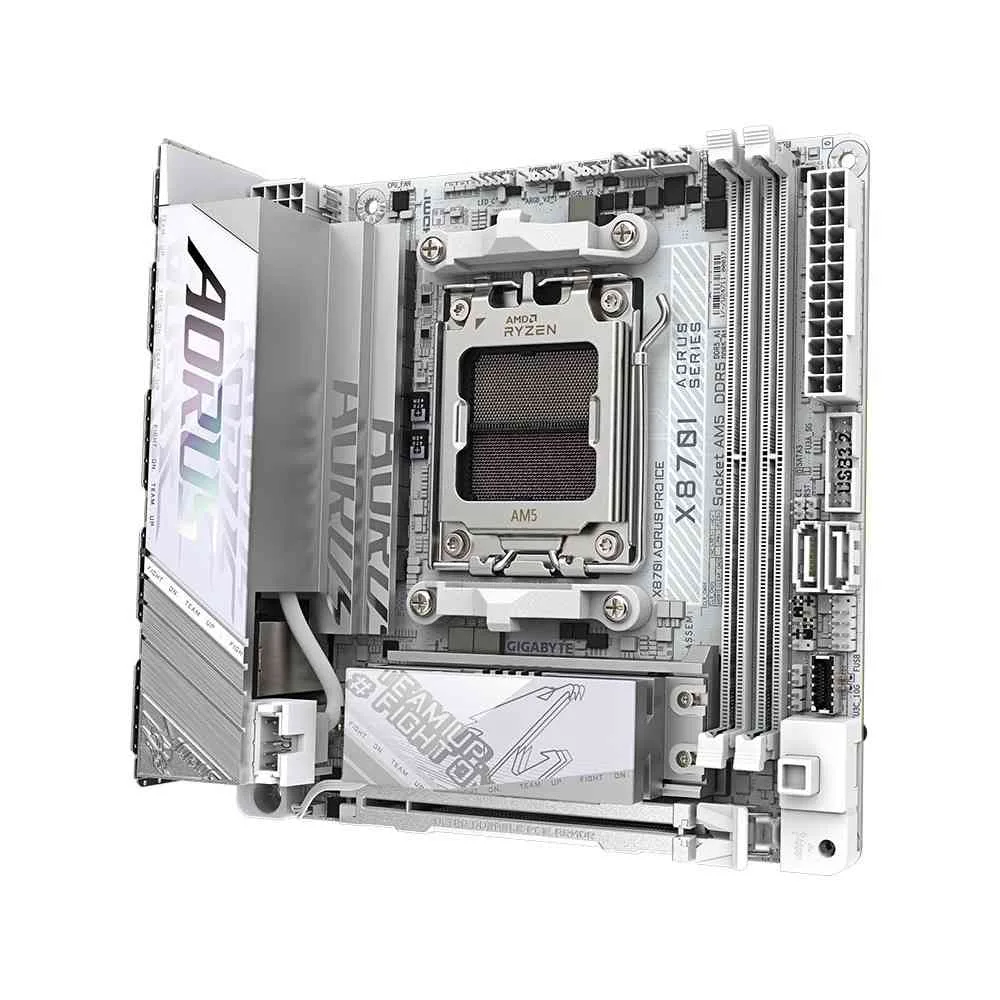

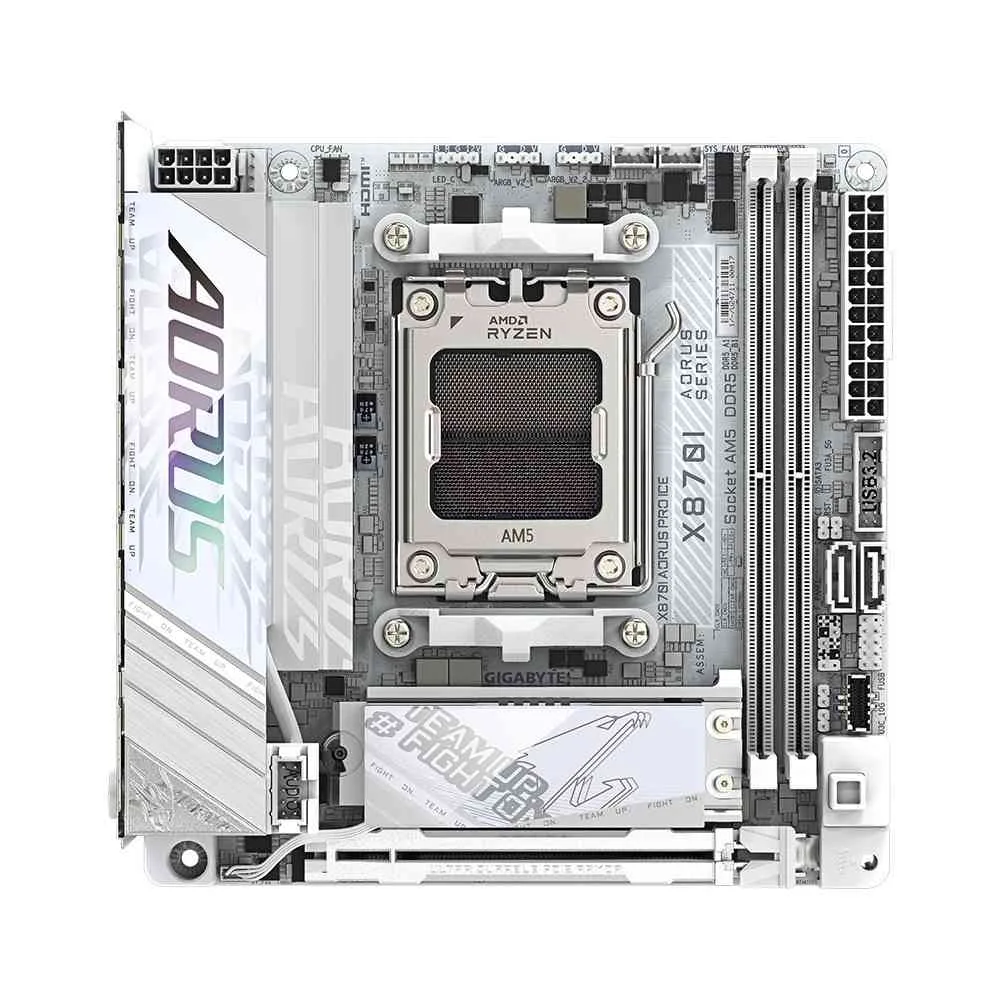

GigaByte X870I Aorus Pro Ice Wifi7 AMD Ryzen DDR5 Gaming Motherboard

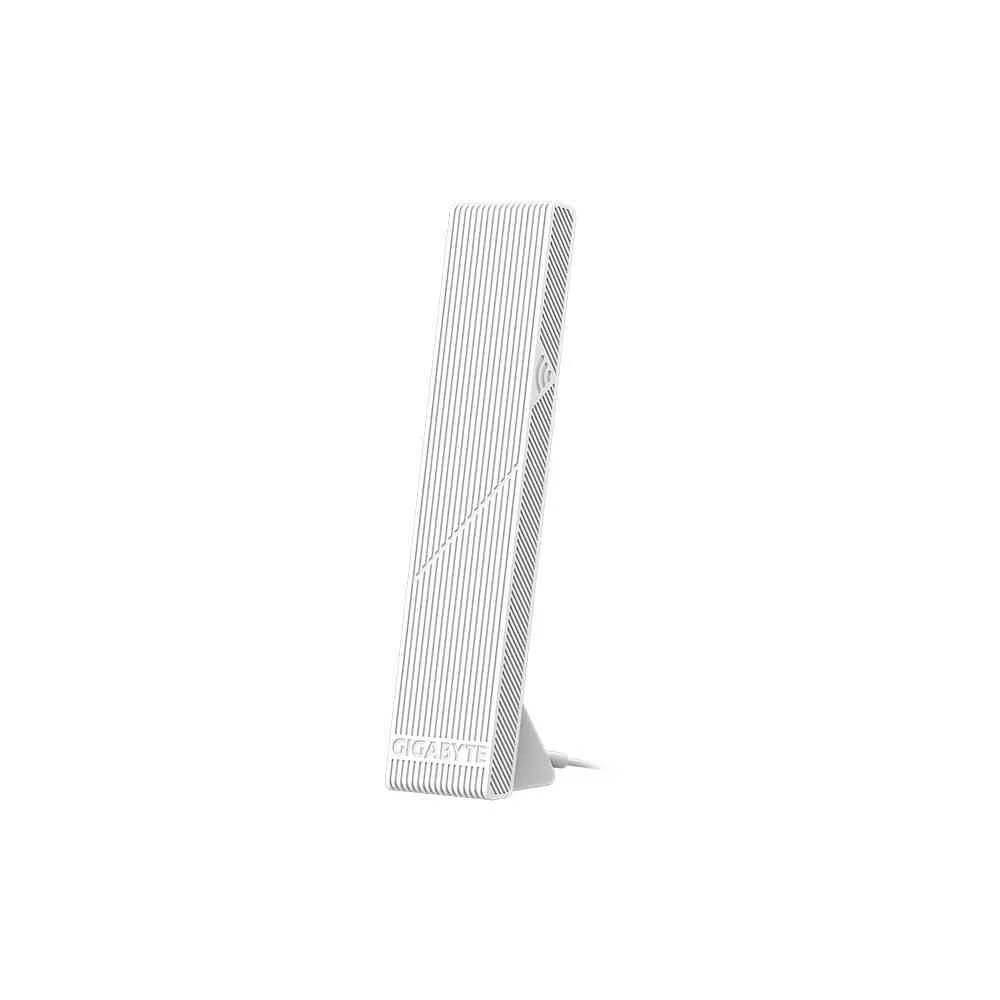

Model No : GigaByte X870I Aorus Pro Ice Wifi7 AMD Ryzen DDR5 Gaming Motherboard Part No : X870I AORUS PRO ICE Chipset : AMD X870 Form Factor : Mini-ITX Form Factor; 17.0cm x 17.0cm Socket Compatibility : AMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000 Series Processors LAN : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module : Realtek® Wi-Fi 7 RTL8922AE- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no supportdriver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. Graphics : Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz* Support for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) Memroy : Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules Storage Compatibility : 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs2 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.RAID 0 and RAID 1 support for SATA storage devices Back Panel I/O Ports : 1 x Q-Flash Plus button1 x HDMI port (Note)2 x antenna connectors (2T2R)1 x USB4® USB Type-C® port (DisplayPort (Note))1 x USB Type-C® port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)2 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port2 x audio jacks(Note) Actual support may vary by CPU. USB Ports : CPU+ASMedia USB4® controller:- 1 x USB4® USB Type-C® port on the back panelCPU:- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Expansion Slots : 1 x PCI Express x16 slot, integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. Audio : Realtek® ALC4080 CODECHigh Definition Audio2-channel Internal I/O Connectors : 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors2 x SATA 6Gb/s connectors1 x front panel header1 x speaker header1 x front panel audio header (routed from the adapter card on the rear panel)1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x reset jumper1 x Clear CMOS jumper1 x chassis intrusion header Special Features : Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup I/O Controller : iTE® I/O Controller Chip H/W Monitoring : Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install. BIOS : 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Warranty : 1 Year ( As per Manufacturer Policy )
