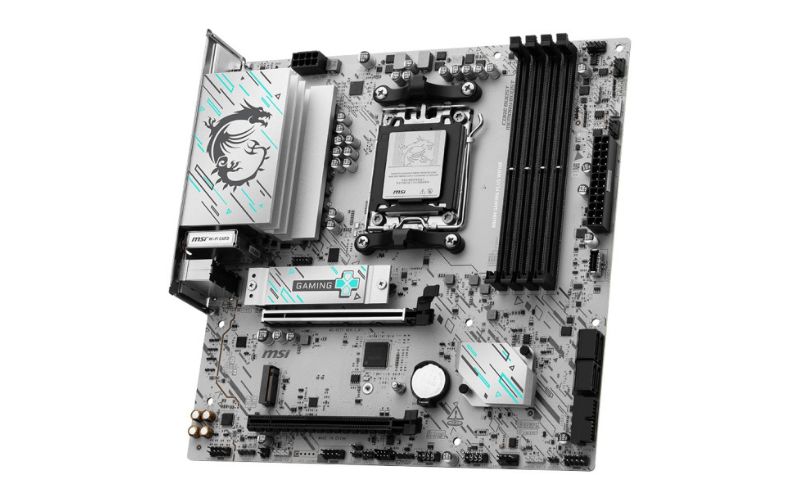

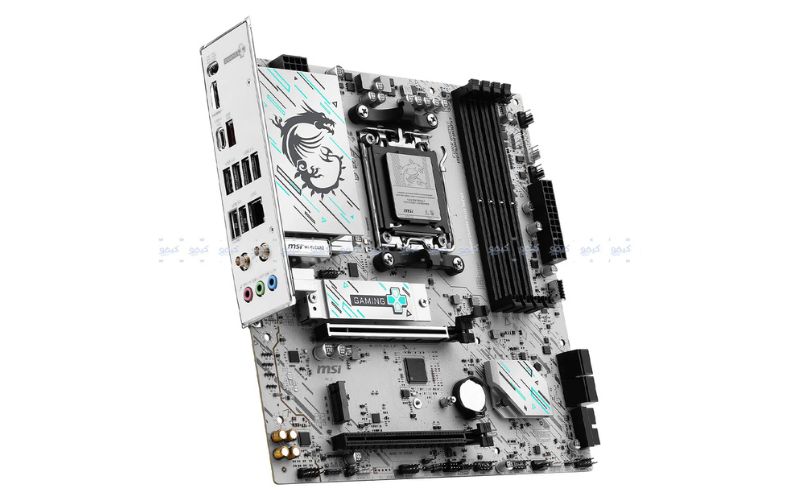

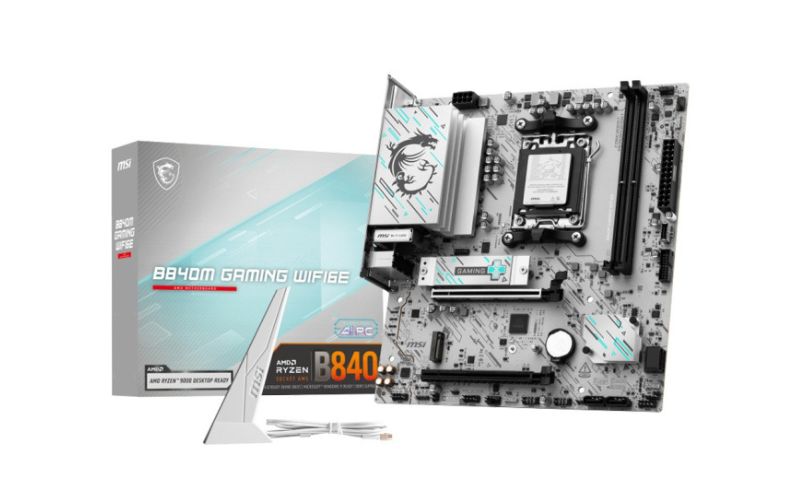

MSI AMD B840M Gaming WIFI6E DDR5 MotherBoard

Modern Performance for Next-Gen AMD Ryzen

The MSI B840M Gaming WIFI is a precision-engineered Micro-ATX motherboard built to support the latest AMD Ryzen processors on the AM5 socket. Designed as a reliable and efficient foundation, it leverages the B840 chipset to deliver optimized power delivery and system stability. With MSI's Core Boost technology, this motherboard ensures that your processor receives a consistent and clean power supply, making it an ideal choice for gamers and professionals looking for a modern, future-proof system in a compact form factor.

DDR5 Memory and Lightning-Fast Storage

Embracing the latest standards in memory and data transfer, the B840M Gaming WIFI features dedicated support for high-frequency DDR5 memory. Through MSI’s Memory Boost technology, the board provides an isolated and optimized circuit for memory signals, ensuring peak performance and stability during heavy multitasking. Additionally, it offers high-speed M.2 slots for NVMe SSDs, allowing for exceptionally fast boot times and reduced game loading durations, ensuring your system stays responsive under any load.

Advanced Wi-Fi 6E and Intelligent Cooling

Connectivity is a standout feature of this motherboard, as it comes equipped with integrated Wi-Fi 6E. This technology utilizes the 6GHz spectrum to provide ultra-fast wireless speeds and lower latency, even in environments with many connected devices. To maintain this high level of performance, the board includes premium thermal solutions such as heavy-duty heatsinks and M.2 Shield Frozr. These components work together to prevent thermal throttling, keeping your system cool and efficient during extended gaming or work sessions.

Key Specifications

• Chipset: AMD B840.

• CPU Support: AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).

• Memory: 2 x DDR5 Slots, Dual Channel (Supports high-frequency Overclocking).

• Expansion Slots: 1 x PCIe 4.0 x16 Slot (Steel Armor), 1 x PCIe x1 Slot.

• Storage: 2 x M.2 Slots (PCIe 4.0 x4), 4 x SATA 6Gb/s Ports.

• Networking: Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gbps LAN.

• Display Output: 1 x HDMI 2.1, 1 x DisplayPort 1.4 (Supports 4K @ 60Hz).

• Audio: Realtek 7.1-Channel High Definition Audio.

• USB Ports: Supports USB 3.2 Gen 1 and Gen 2 (Type-A and Type-C).

• Form Factor: Micro-ATX.
