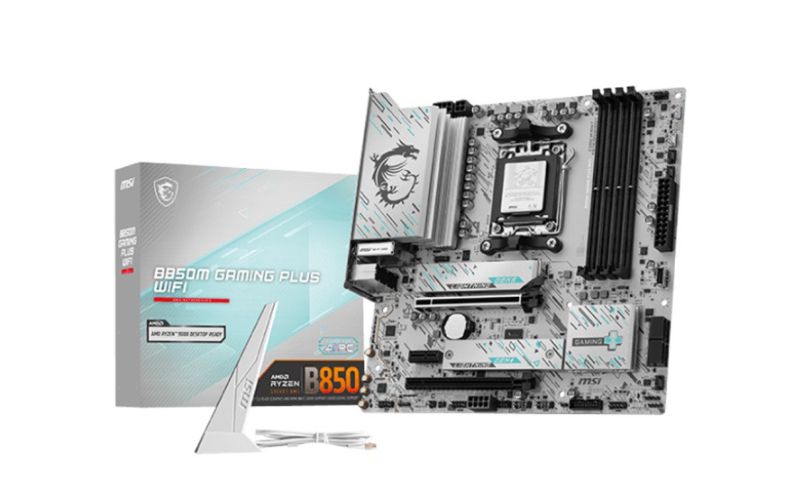

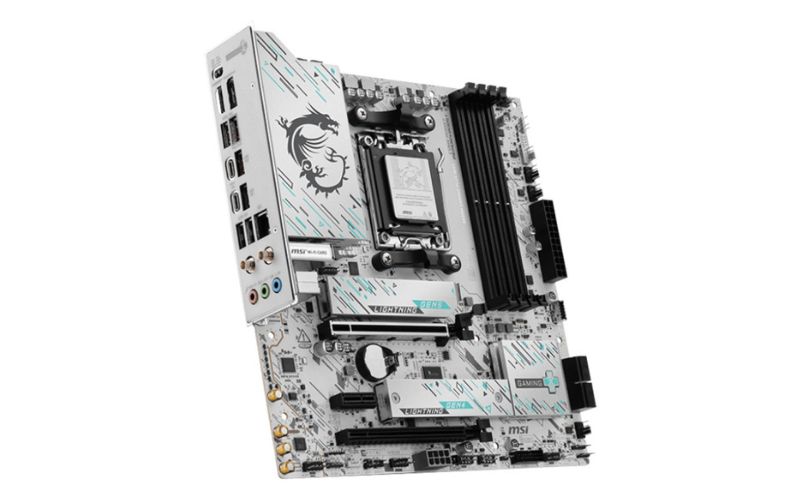

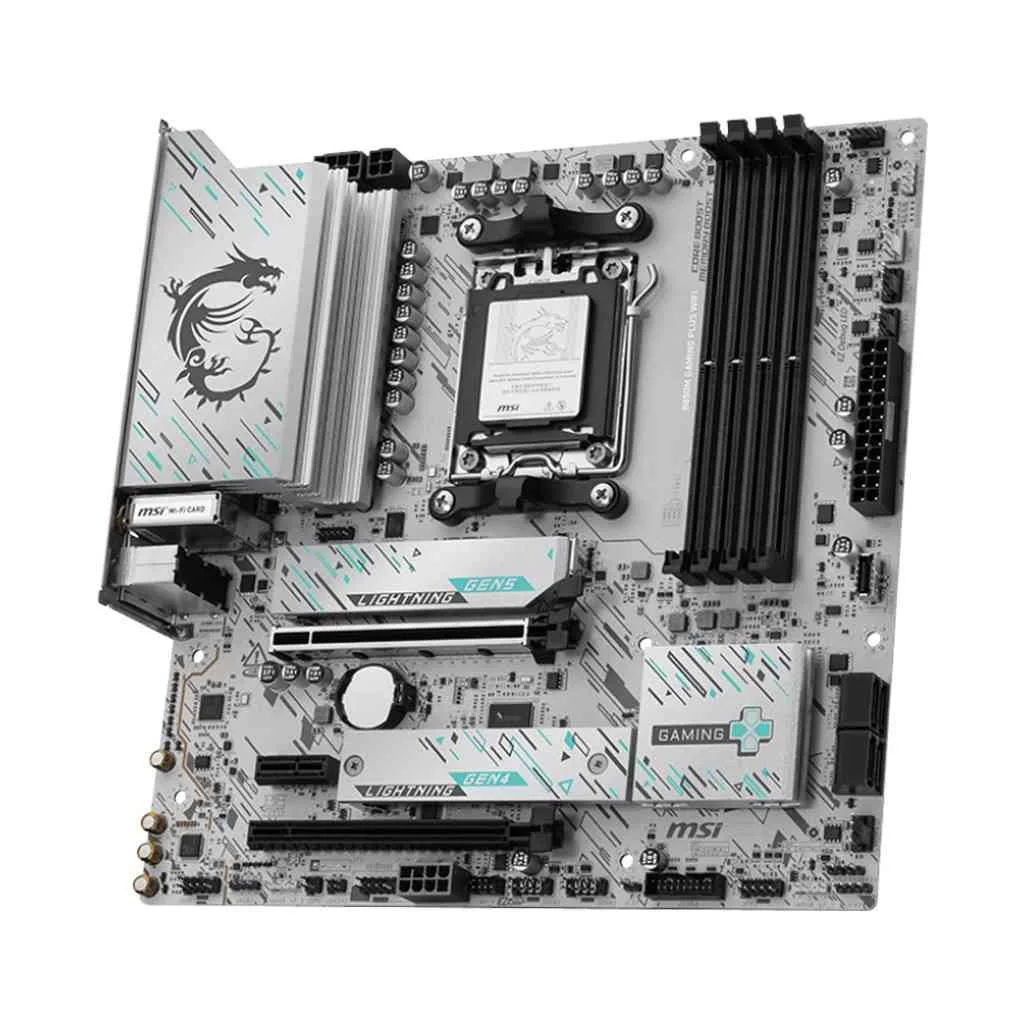

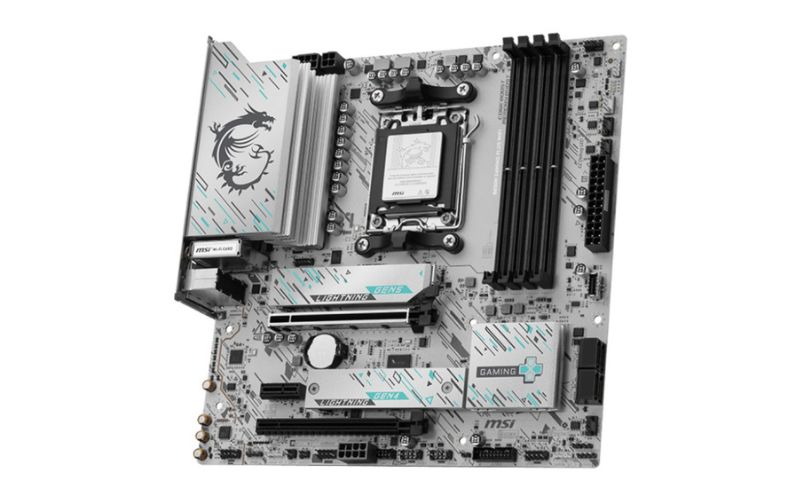

MSI AMD B850M Gaming Plus WIFI DDR5 MotherBoard

Unleashing Next-Gen Gaming Performance

The MSI B850M Gaming Plus WIFI is a high-performance Micro-ATX motherboard meticulously crafted for the latest AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AM5 socket and the advanced B850 chipset, this board is designed for gamers who demand a balance of power and efficiency. Featuring a robust VRM power design and MSI’s Core Boost technology, it provides stable and clean power delivery to the CPU, ensuring your system maintains peak performance during the most demanding gaming titles and creative applications.

Superior Speed with DDR5 and PCIe 5.0 Integration

Engineered to lead the way in data speed, the B850M Gaming Plus WIFI supports the latest DDR5 memory technology, offering a massive leap in bandwidth for smoother multitasking. A standout feature is the inclusion of PCIe 5.0 support for the primary M.2 storage slot, enabling the use of ultra-high-speed Gen5 NVMe SSDs for near-instant game loading and rapid file transfers. With MSI Memory Boost, the memory circuits are optimized and isolated, allowing for extreme signal stability and high-frequency overclocking performance.

Advanced Wireless Connectivity and Premium Cooling

Stay ahead of the competition with integrated Wi-Fi 6E, providing access to the 6GHz band for lower latency and faster wireless speeds even in crowded networks. This is paired with a 2.5G LAN port for a rock-solid, high-speed wired connection. To ensure the hardware stays cool under pressure, the motherboard is equipped with an extended heatsink design and M.2 Shield Frozr. These thermal solutions prevent heat buildup and throttling, keeping your high-speed SSDs and power components running at their full potential for extended sessions.

Key Specifications

• Chipset: AMD B850.

• CPU Support: AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).

• Memory: 4 x DDR5 Slots, Dual Channel (Supports high-frequency Overclocking).

• Expansion Slots: 1 x PCIe 5.0/4.0 x16 Slot (Steel Armor), 1 x PCIe 3.0 x1 Slot.

• Storage: 2 x M.2 Slots (Including 1 x PCIe 5.0 x4 slot), 4 x SATA 6Gb/s Ports.

• Networking: Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gbps LAN.

• Display Output: 1 x HDMI 2.1, 1 x DisplayPort 1.4 (Supports 4K @ 60Hz).

• Audio: Realtek 7.1-Channel High Definition Audio.

• USB Ports: Support for USB 3.2 Gen 2 (10Gbps) Type-A and Type-C.

• Form Factor: Micro-ATX (244mm x 244mm).
