MSI AMD B850M Gaming WIFI6E DDR5 MotherBoard

Future-Ready Performance for AMD Ryzen

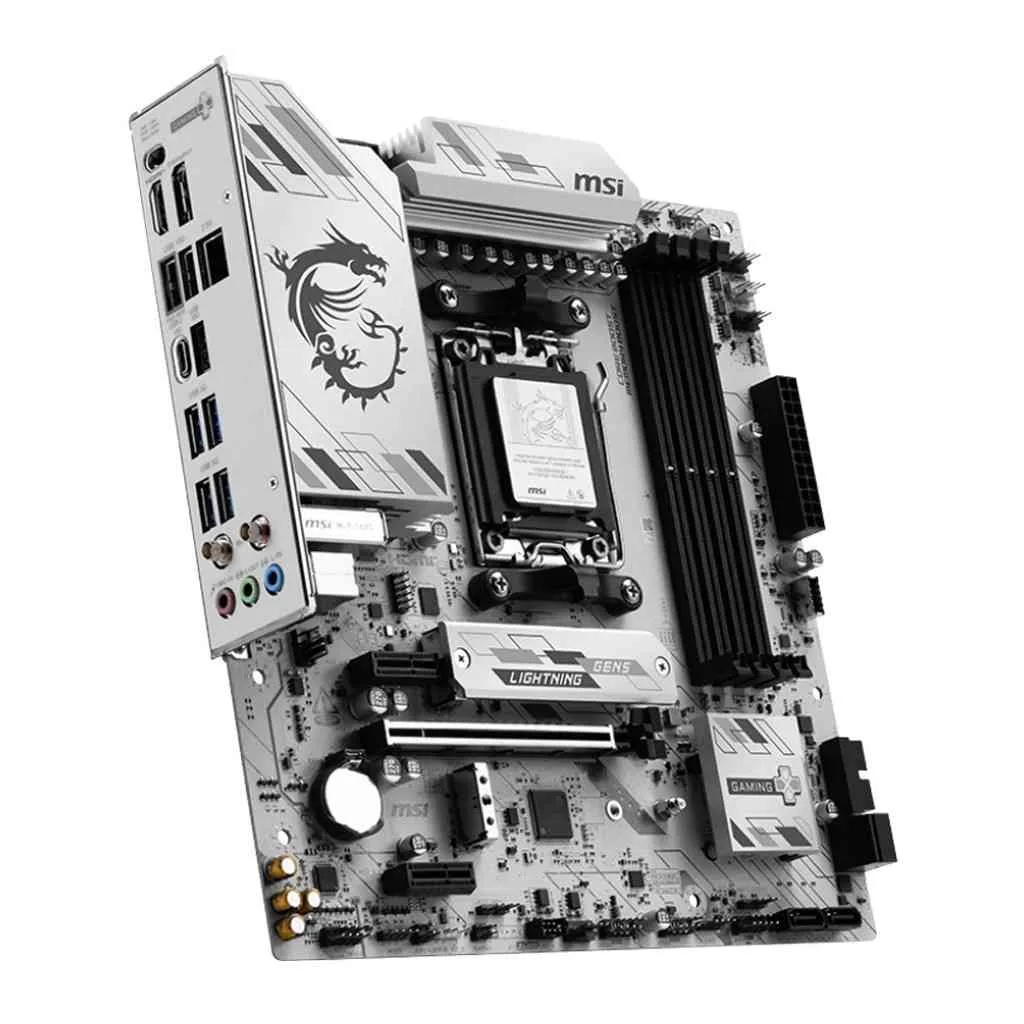

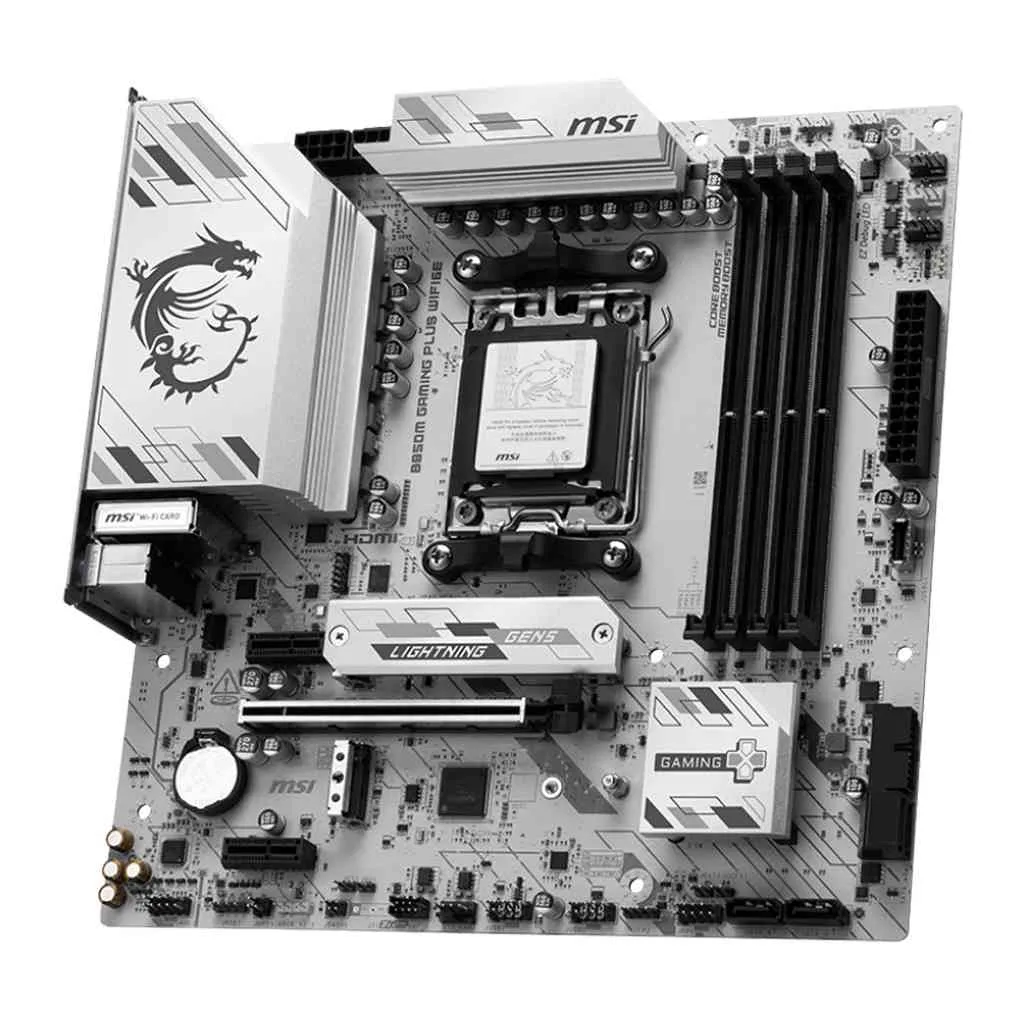

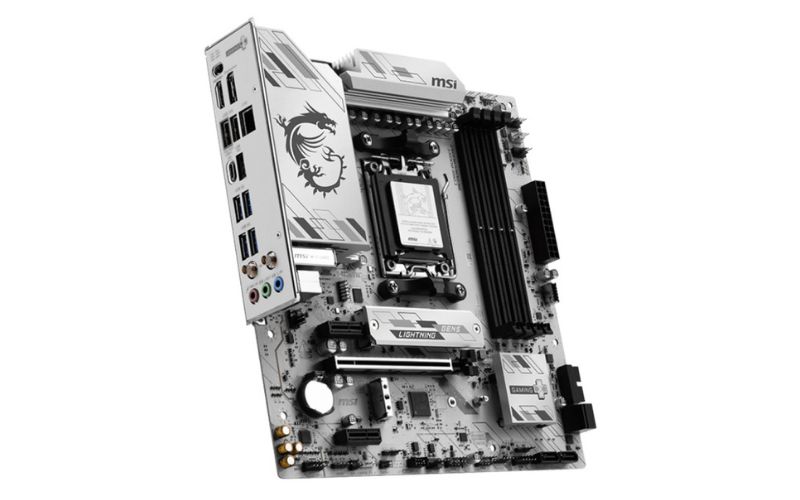

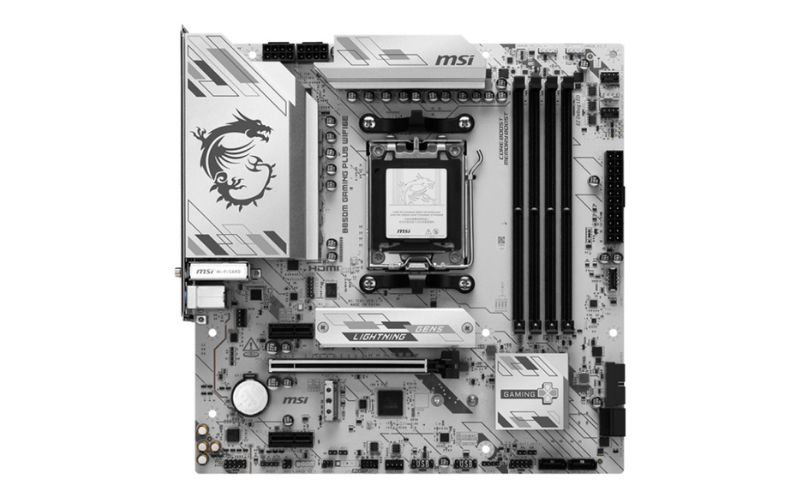

The MSI B850M Gaming WIFI is a next-generation Micro-ATX motherboard engineered to unlock the full potential of AMD Ryzen 9000 series processors while maintaining full compatibility with the 8000 and 7000 series. Built on the AM5 socket and the advanced B850 chipset, it features a sophisticated power delivery system and MSI’s Core Boost technology. This ensures high-efficiency performance and stability during heavy multitasking or intensive gaming sessions, providing a reliable foundation for enthusiasts looking to build a high-performance, modern PC.

Unrivaled Memory and PCIe 5.0 Speed

This motherboard is designed for the future of data transfer, offering full support for high-frequency DDR5 memory. With MSI Memory Boost, the signal traces are optimized and isolated to ensure peak memory stability and overclocking capability. A key highlight is the inclusion of PCIe 5.0 support for the primary M.2 storage slot, allowing for the use of ultra-fast Gen5 NVMe SSDs. This ensures near-instant boot times and provides the massive bandwidth required for next-generation gaming and large-scale data processing.

Cutting-Edge Wi-Fi 6E and Thermal Cooling

Connectivity is a primary focus of the B850M Gaming WIFI, which comes equipped with Wi-Fi 6E technology. By utilizing the 6GHz band, it offers faster speeds, lower latency, and reduced interference in congested wireless environments. For wired connections, the 2.5G LAN port delivers superior networking performance. To maintain these speeds, the motherboard is outfitted with a premium thermal solution, including enlarged VRM heatsinks and M.2 Shield Frozr, which effectively prevents thermal throttling to keep your system running at peak efficiency.

Key Specifications

• Chipset: AMD B850.

• CPU Support: AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).

• Memory: 2 x DDR5 Slots, Dual Channel (Supports high-frequency Overclocked modules).

• Expansion Slots: 1 x PCIe 4.0/5.0 x16 Slot (Steel Armor), 1 x PCIe 3.0 x1 Slot.

• Storage: 2 x M.2 Slots (Including PCIe 5.0 x4 support), 4 x SATA 6Gb/s Ports.

• Networking: Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gbps LAN.

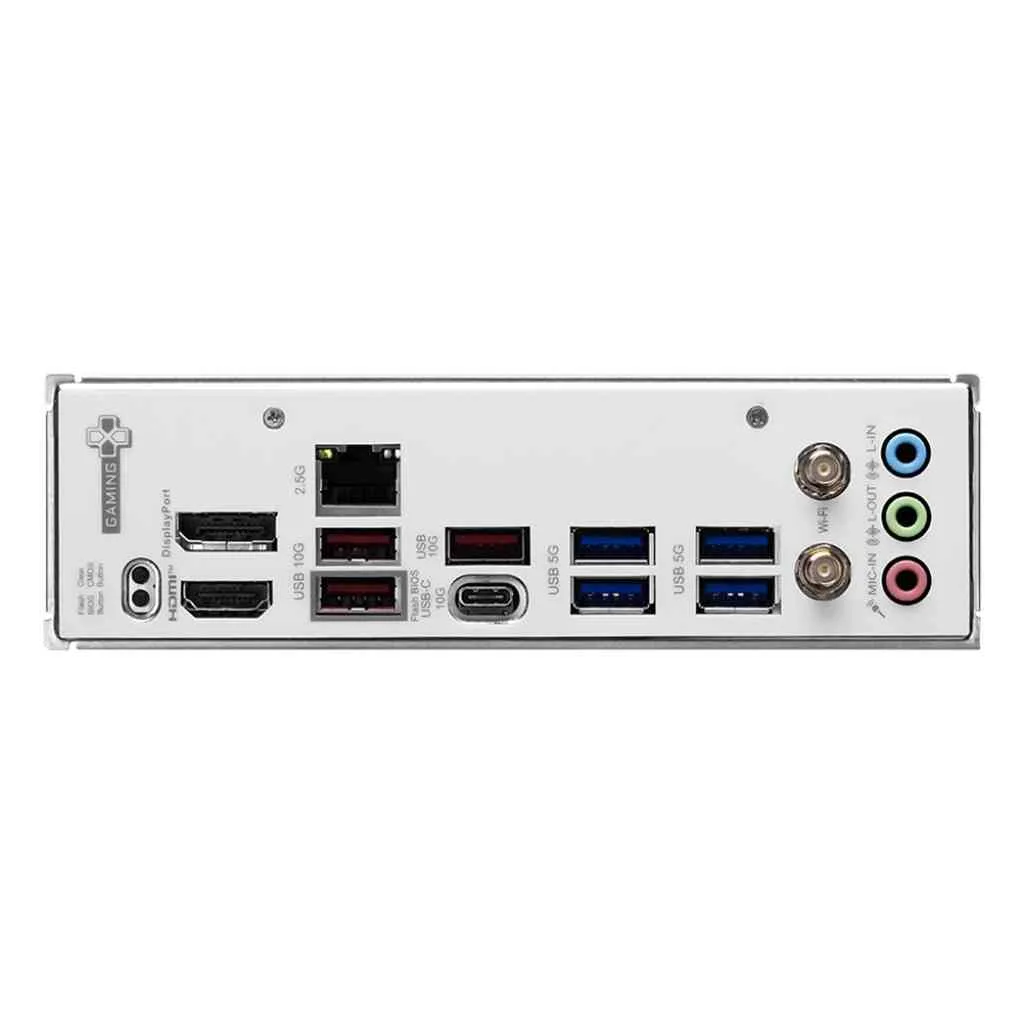

• Display Output: 1 x HDMI 2.1, 1 x DisplayPort 1.4 (4K @ 60Hz support).

• Audio: Realtek 7.1-Channel High Definition Audio.

• USB Ports: Includes USB 3.2 Gen 2 (10Gbps) Type-C and Type-A ports.

• Form Factor: Micro-ATX (244mm x 211mm).
