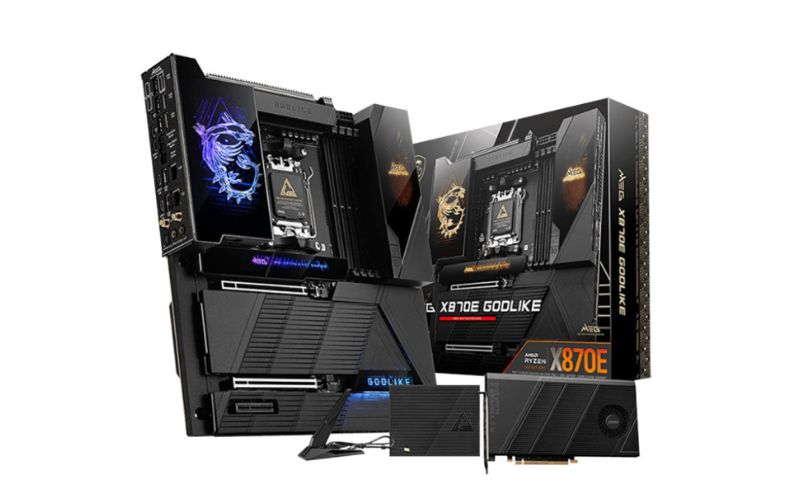

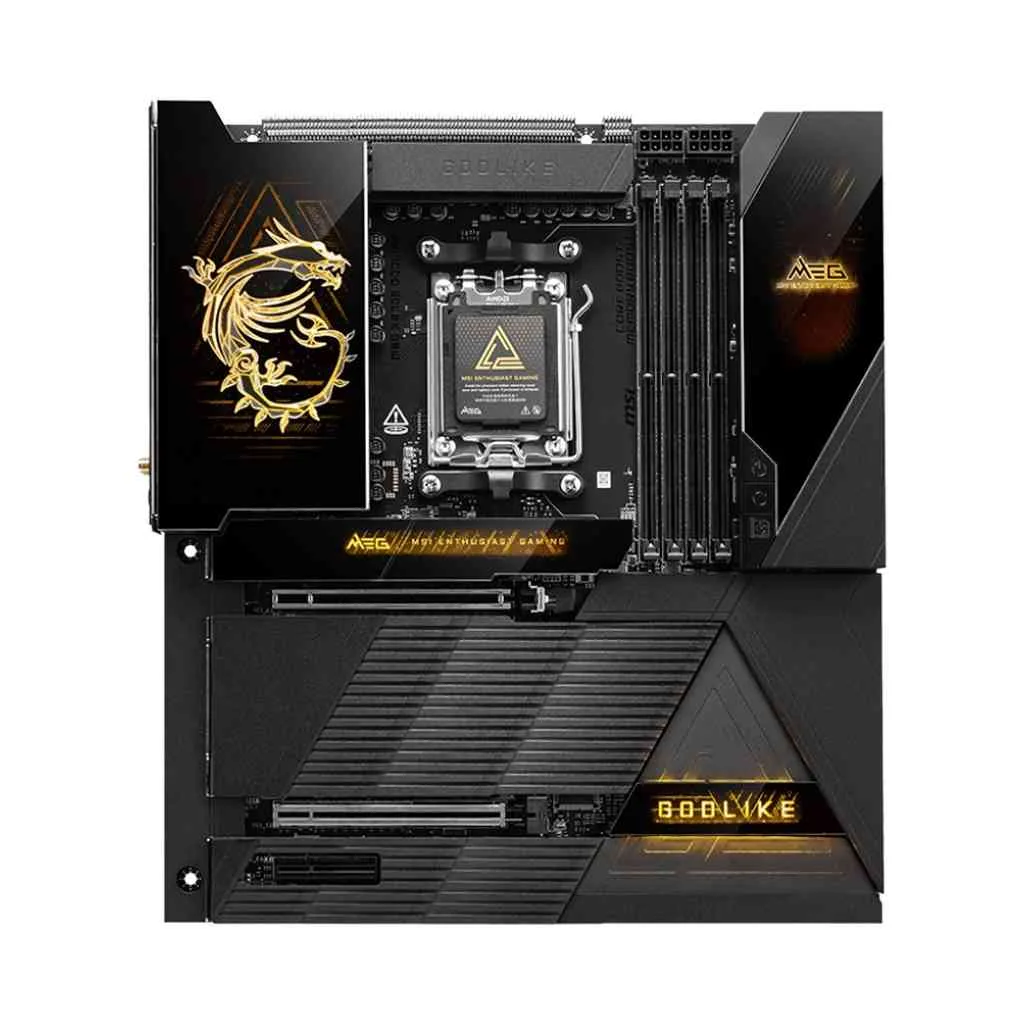

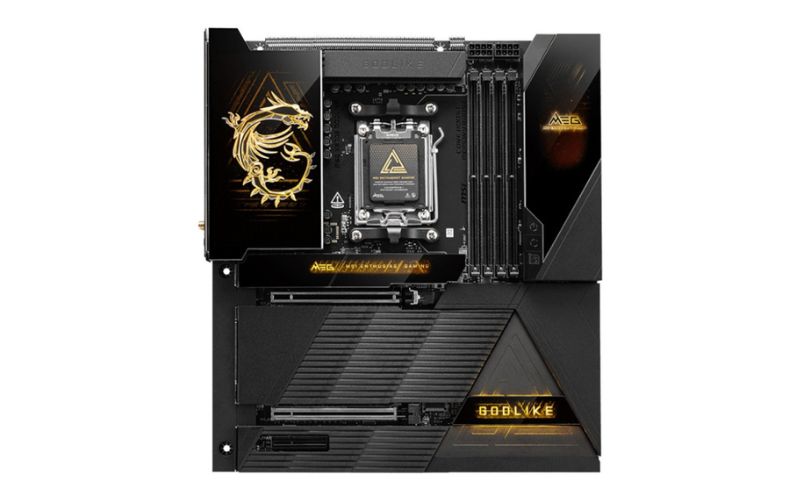

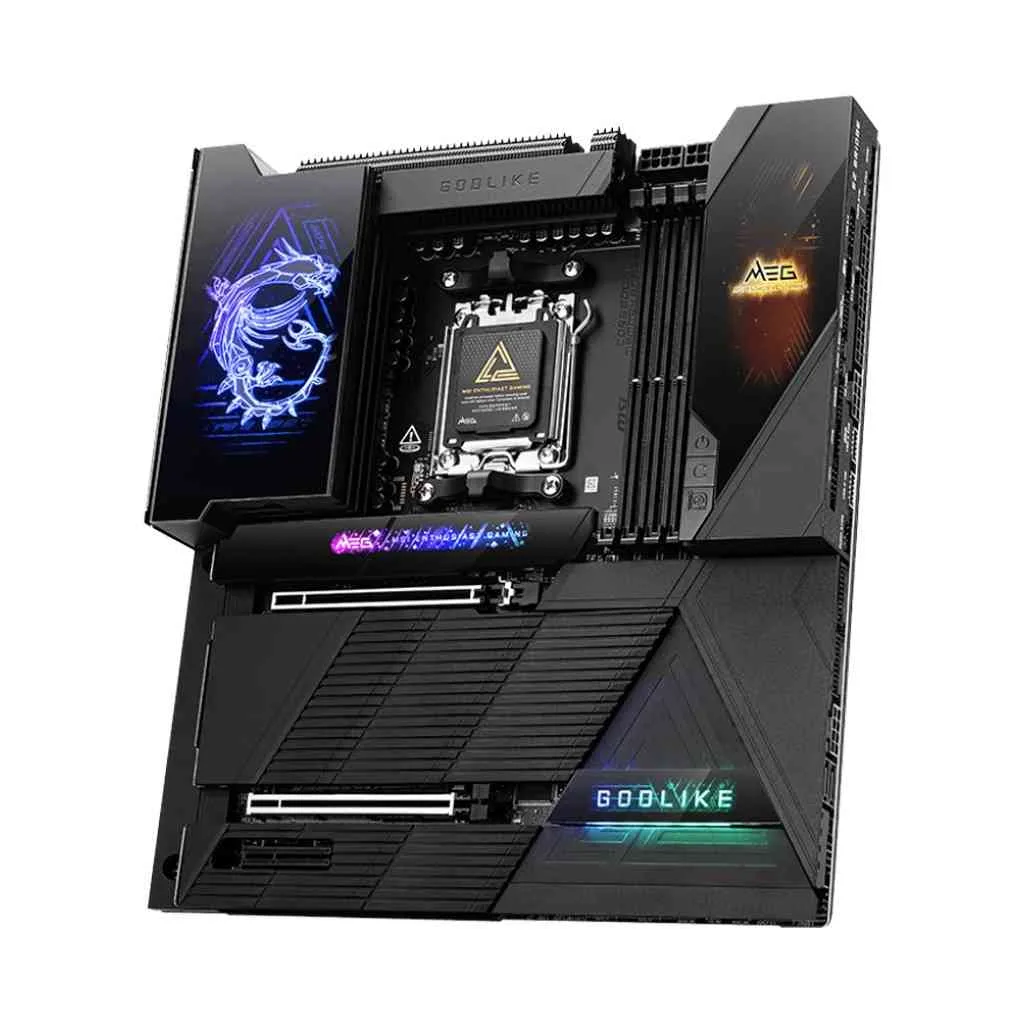

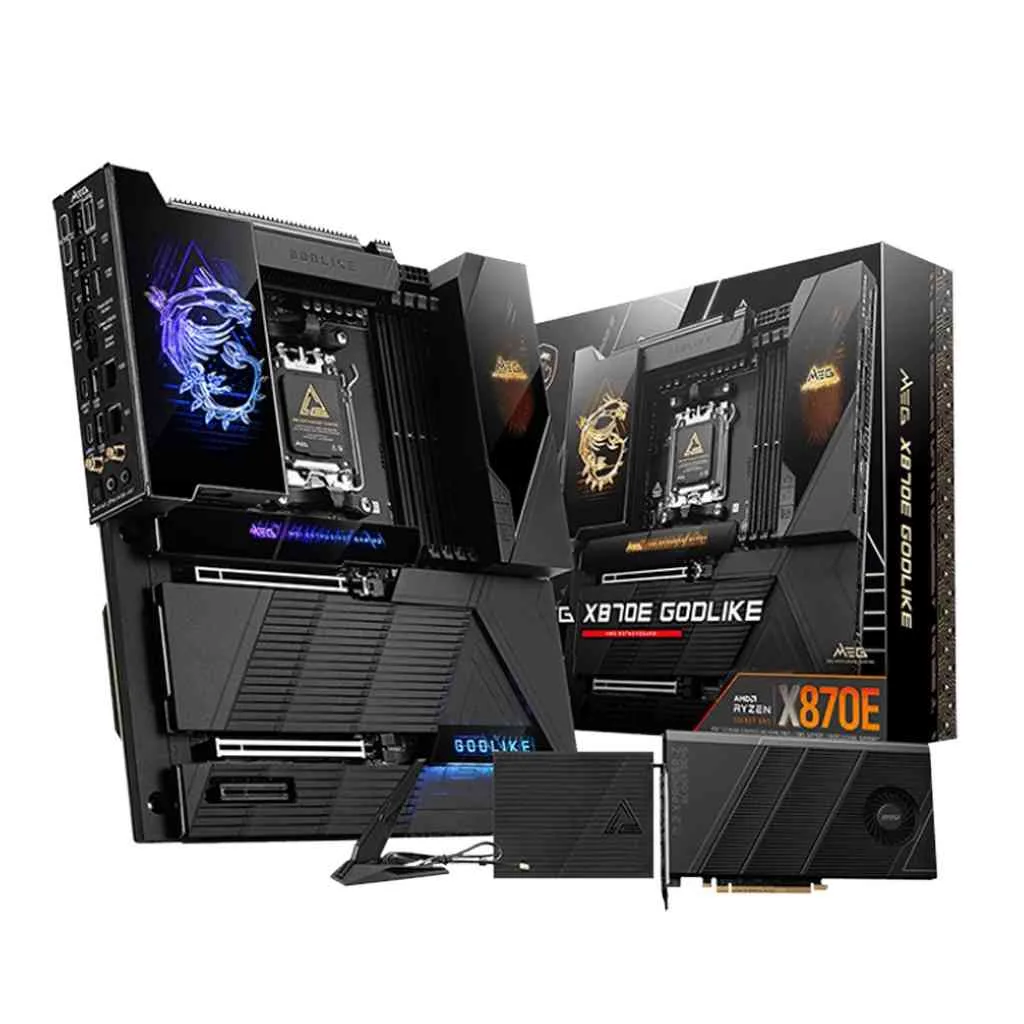

MSI AMD MEG X870E GodLike DDR5 Gaming MotherBoard

The Apex of AMD Ryzen Performance

The MSI MEG X870E GODLIKE stands as the undisputed flagship of the X870E series, designed for enthusiasts and overclockers who demand absolute perfection. Engineered to house the latest AMD Ryzen processors on the AM5 socket, this motherboard utilizes a massive 24+2+1 Duet Rail Power System with 110A Smart Power Stages. This extreme power delivery ensures total stability even under the most aggressive overclocking scenarios. Its premium aesthetic is complemented by the M-Vision Dashboard—a 4.3-inch full-color touch LCD that provides real-time system monitoring and hardware control directly at your fingertips.

Revolutionary Connectivity and PCIe 5.0 Integration

Built for the future of high-speed computing, the GODLIKE features full PCIe 5.0 support across both its primary graphics slots and its primary M.2 storage interfaces. It is equipped with cutting-edge Wi-Fi 7 technology, offering massive bandwidth and ultra-low latency for wireless networking, alongside a staggering 10G Super LAN port for elite wired performance. The board also includes dual USB4 ports, delivering up to 40Gbps speeds for professional-grade peripherals and lightning-fast external data transfers, making it a powerhouse for both elite gaming and heavy creative workflows.

Elite Thermal Engineering and Memory Mastery

To maintain peak performance, the GODLIKE employs a sophisticated cooling ecosystem including a finned heatsink design, a dedicated cross-heatpipe, and double-sided M.2 Shield Frozr to prevent thermal throttling on high-speed Gen5 SSDs. With four DDR5 DIMM slots optimized via MSI’s Memory Boost technology, the board supports extreme memory frequencies exceeding 8000MHz. Every inch of this E-ATX motherboard is crafted with enthusiast-grade components, offering a level of durability and customization that represents the pinnacle of modern hardware engineering.

Key Specifications

• Chipset: AMD X870E.

• CPU Support: AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).

• Memory: 4 x DDR5 Slots, Dual Channel (Supports 8000+ MHz Overclocked).

• Onboard Display: M-Vision Dashboard (4.3-inch Full-Color Touch LCD).

• Expansion Slots: 2 x PCIe 5.0 x16 Slots (Supports x16/x0 or x8/x8 modes).

• Storage: 5 x M.2 Slots (Including PCIe 5.0 x4 support), 4 x SATA 6Gb/s Ports.

• Networking: Wi-Fi 7 Solution, Bluetooth 5.4, 10G Super LAN + 5G LAN.

• USB4 Ports: 2 x USB4 Type-C (40Gbps) with DisplayPort signal support.

• Audio: Realtek ALC4082 Codec + ESS SABRE9218 PQ DAC (7.1-Channel).

• Form Factor: E-ATX (Requires a large enthusiast-grade chassis).
