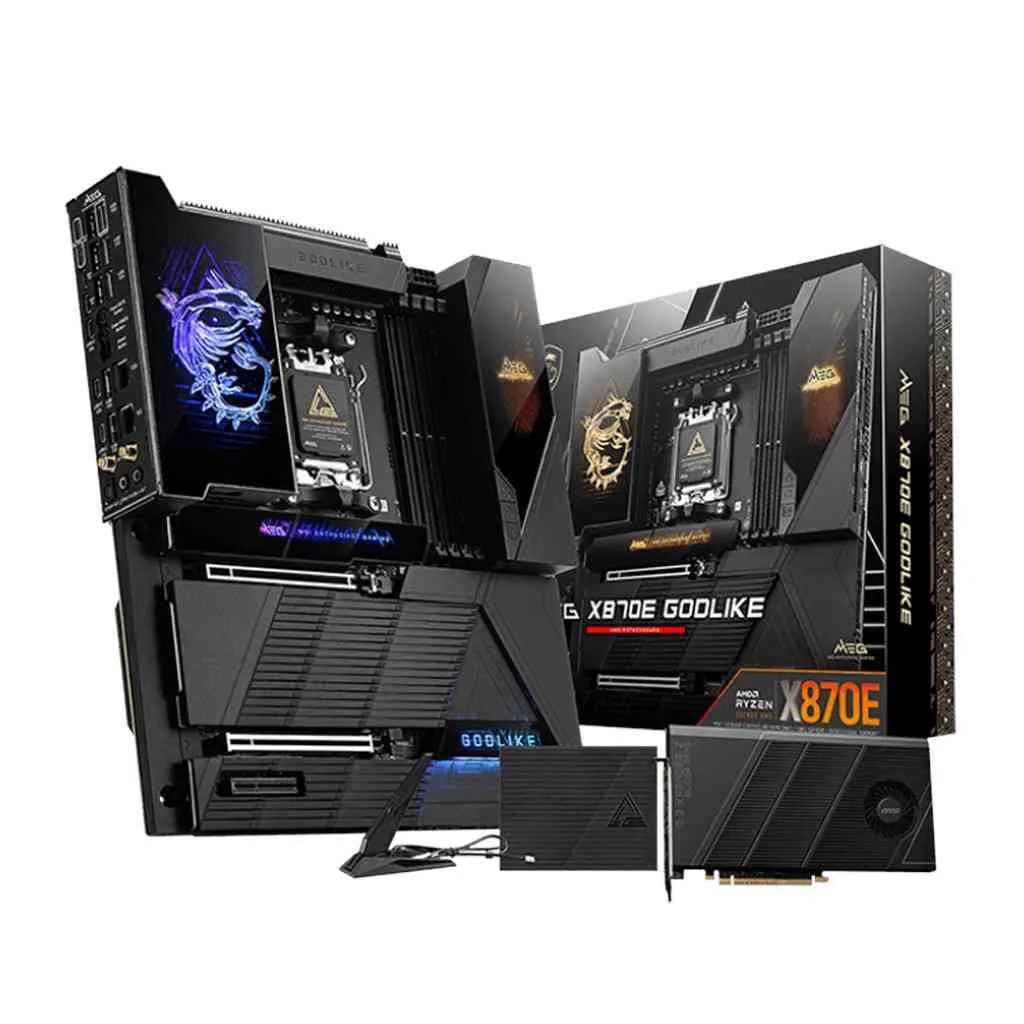

MSI AMD MEG X870E GodLike X Edition DDR5 Gaming MotherBoard

The Apex of Performance and Engineering

The MSI MEG X870E GODLIKE X Edition is a masterclass in motherboard engineering, designed for those who refuse to accept anything but the absolute best. Built on the flagship X870E chipset, it features a monstrous 24+2+1 Duet Rail Power System with 110A Smart Power Stages. This unparalleled power delivery is designed to shatter overclocking world records and provide perfect stability for the most powerful AMD Ryzen 9000 series processors. With its sophisticated aesthetic and the integrated M-Vision Dashboard—a full-color touch LCD—you can monitor system stats or customize graphics directly on the board.

Next-Generation Connectivity: USB4 and PCIe 5.0

The GODLIKE X defines the future of data transfer with dual USB4 ports, delivering up to 40Gbps speeds and support for 8K display daisy-chaining. It fully maximizes the PCIe 5.0 ecosystem, providing multiple PCIe 5.0 M.2 slots for the fastest storage array possible and dual PCIe 5.0 x16 slots for high-bandwidth expansion. This board is engineered to eliminate every possible bottleneck, ensuring that your Gen5 NVMe SSDs and next-gen graphics cards operate at their theoretical maximum speeds without compromise.

Elite Wi-Fi 7 and Revolutionary Thermal Control

Networking on the GODLIKE X is second to none, featuring the latest Wi-Fi 7 standard with 320MHz channel support and a dual-LAN configuration, including a massive 10G Super LAN for data-center grade wired speeds. To tame the heat of this powerhouse, MSI employs a stacked fin array heatsink connected by a cross-heatpipe and a dedicated wavy-fin design to increase surface area. The Screwless M.2 Shield Frozr allows for instant, tool-free access to your drives, while the heavy-duty metal backplate provides structural integrity and additional passive cooling for the entire PCB.

Key Specifications

• Chipset: AMD X870E.

• CPU Support: AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).

• Memory: 4 x DDR5 Slots, Dual Channel (Extreme OC support exceeding 9000+ MHz).

• Power Design: 24+2+1 Phases with 110A Smart Power Stages.

• Special Feature: M-Vision Dashboard (Integrated Color Touch LCD).

• Expansion Slots: 2 x PCIe 5.0 x16 Slots (Supports x16/x0 or x8/x8).

• Storage: 5 x M.2 Slots (Including PCIe 5.0 x4 support), 4 x SATA 6Gb/s.

• USB4: 2 x USB4 Ports (40Gbps with DisplayPort Alt Mode).

• Networking: Wi-Fi 7, Bluetooth 5.4, 10Gbps LAN + 5Gbps LAN.

• Audio: ESS Audio DAC + Realtek ALC4082 7.1-Channel High-Fidelity Audio.

• Form Factor: E-ATX (304.8mm x 277mm).
