MSI AMD MPG B850 Edge Ti WIFI DDR5 Gaming MotherBoard

Exquisite Design and Enthusiast-Grade Power

The MSI MPG B850 EDGE TI WIFI is a high-performance ATX motherboard designed for users who demand both aesthetic beauty and raw processing power. Optimized for the latest AMD Ryzen 9000, 8000, and 7000 series processors, it features a striking silver-white "Titanium" finish that stands out in any build. Under the hood, it boasts a powerful 12+2+1 Duet Rail Power System with 80A Smart Power Stages, ensuring that even the most power-hungry CPUs maintain rock-solid stability during intense gaming sessions or heavy content creation.

Unmatched Speed with DDR5 and PCIe 5.0

Engineered for the next era of data transfer, this motherboard fully embraces DDR5 memory technology, utilizing MSI’s Memory Boost to deliver extreme signal stability and overclocking potential. It provides high-bandwidth PCIe 5.0 support on the primary x16 slot for the latest graphics cards and features a dedicated PCIe 5.0 M.2 slot. This allows users to experience the staggering speeds of Gen5 NVMe SSDs, virtually eliminating loading screens and providing a seamless, lightning-fast computing experience.

Next-Gen Wi-Fi 7 and Elite Thermal Cooling

Connectivity is a cornerstone of the EDGE TI series, now upgraded to the cutting-edge Wi-Fi 7 standard. This offers significantly wider bandwidth and lower latency compared to previous generations, paired with a 2.5G LAN for professional-grade wired networking. To keep temperatures in check, the board is equipped with an extended heatsink design, highly efficient 7W/mK thermal pads, and M.2 Shield Frozr on all storage slots, ensuring peak performance is maintained even under sustained high loads.

Key Specifications

• Chipset: AMD B850.

• CPU Support: AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).

• Memory: 4 x DDR5 Slots, Dual Channel (Supports extreme frequencies over 7600+ MHz OC).

• Power Design: 12+2+1 Duet Rail Power System with 80A Smart Power Stages.

• Expansion Slots: 1 x PCIe 5.0 x16 Slot (Steel Armor), 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x1 Slot.

• Storage: 3 x M.2 Slots (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4), 4 x SATA 6Gb/s Ports.

• Networking: Wi-Fi 7, Bluetooth 5.4, and Realtek 2.5Gbps LAN.

• Display Output: 1 x HDMI 2.1, 1 x DisplayPort 1.4 (Supports 4K @ 120Hz).

• Audio: Realtek ALC4080 7.1-Channel High Performance Audio.

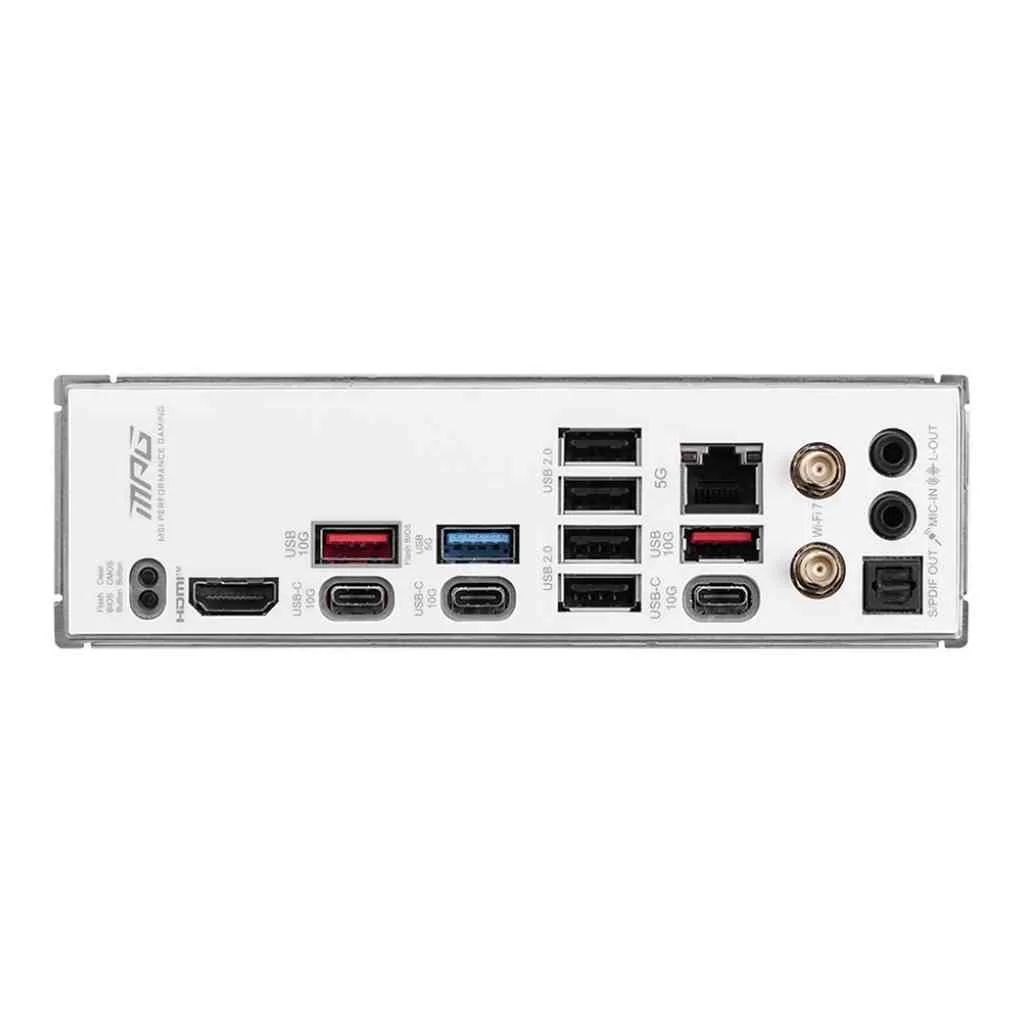

• USB Ports: Support for USB 3.2 Gen 2x2 (20Gbps) Type-C and multiple Type-A ports.

• Form Factor: ATX (304.8mm x 243.8mm).
