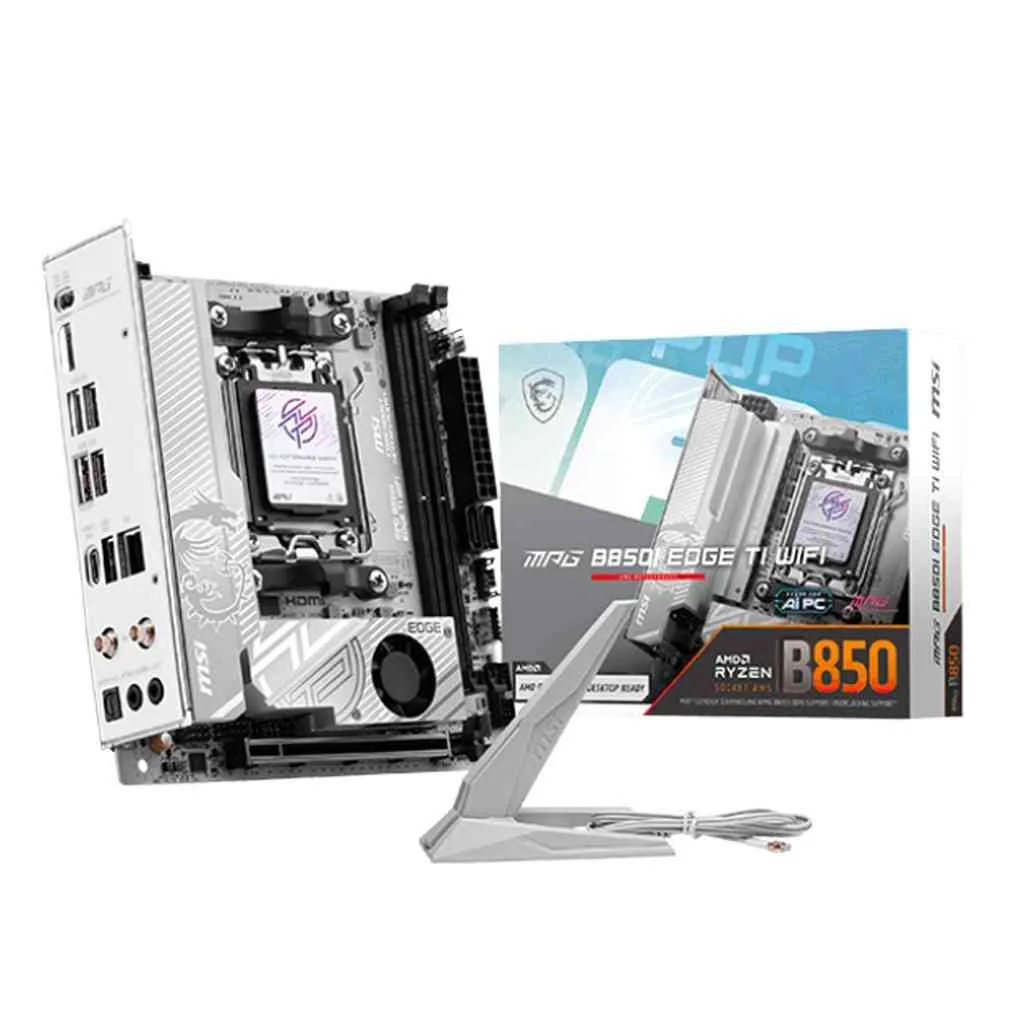

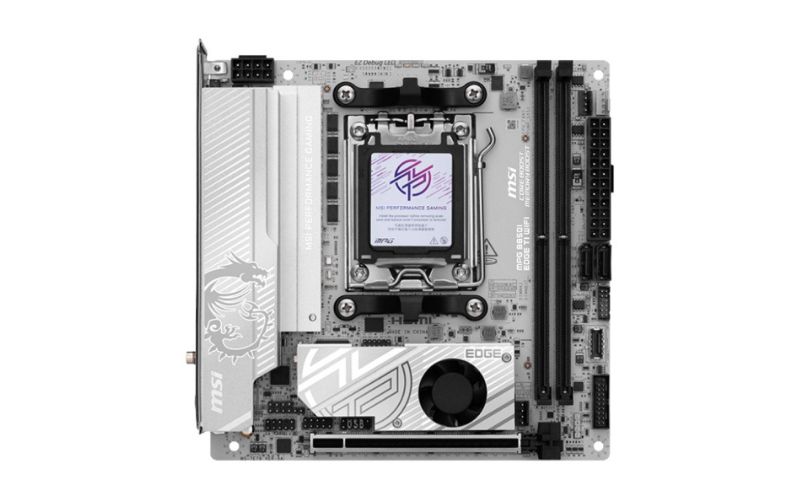

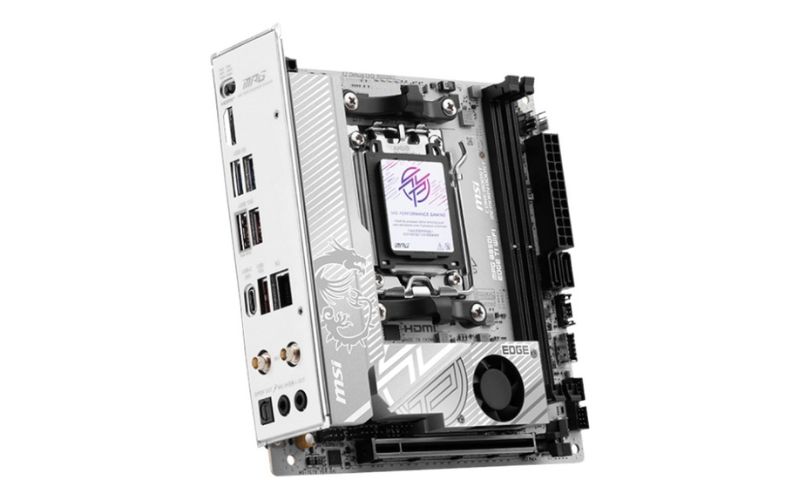

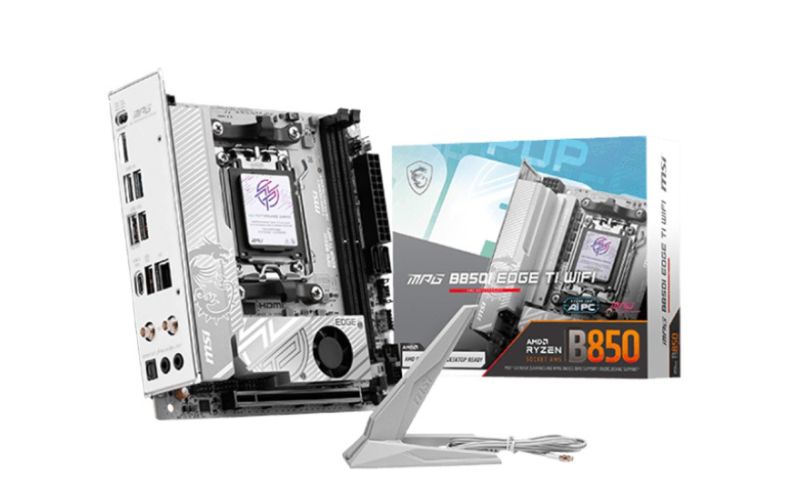

MSI AMD MPG B850I Edge Ti WIFI DDR5 Gaming MotherBoard

Compact Powerhouse for Enthusiast Builds

The MSI MPG B850I EDGE TI WIFI is a premium Mini-ITX motherboard that proves elite performance can come in small packages. Specifically engineered to support the latest AMD Ryzen 9000, 8000, and 7000 series processors, it features a stunning "Titanium Silver" aesthetic perfect for boutique and small-form-factor (SFF) builds. Despite its compact footprint, it utilizes a robust Direct 8+2+1 Phase power design with 80A Smart Power Stages, providing the rock-solid stability and efficiency required for enthusiast-grade gaming and intensive multitasking.

Leading-Edge Speed and Gen5 Storage

Built to push the boundaries of compact computing, the EDGE TI WIFI fully supports ultra-fast DDR5 memory, optimized through MSI’s Memory Boost technology for superior signal integrity. It features the latest PCIe 5.0 support for the primary M.2 storage slot, allowing users to harness the extreme read/write speeds of Gen5 NVMe SSDs. The primary PCIe x16 slot is reinforced with MSI Steel Armor, providing the physical strength needed to support heavy modern graphics cards while maintaining maximum data bandwidth.

Next-Gen Wi-Fi 7 and Advanced Cooling

To manage heat in tight chassis environments, this motherboard is equipped with an extended heatsink and M.2 Shield Frozr to ensure components stay cool and prevent thermal throttling. Networking is a major highlight, featuring the cutting-edge Wi-Fi 7 standard, which offers significantly higher speeds and lower latency for a seamless online experience. Complemented by a 2.5G LAN port and Bluetooth 5.4, the B850I EDGE TI WIFI provides a comprehensive connectivity suite for gamers and creators who demand the best in a compact size.

Key Specifications

• Chipset: AMD B850.

• CPU Support: AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).

• Memory: 2 x DDR5 Slots, Dual Channel (Supports extreme frequencies over 7200+ MHz OC).

• Power Design: Direct 8+2+1 Phase Power with 80A Smart Power Stages.

• Expansion Slots: 1 x PCIe 5.0 x16 Slot (Steel Armor).

• Storage: 2 x M.2 Slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4), 4 x SATA 6Gb/s Ports.

• Networking: Wi-Fi 7, Bluetooth 5.4, and Realtek 2.5Gbps LAN.

• Display Output: 1 x HDMI 2.1 (Supports 4K @ 120Hz).

• Audio: Realtek ALC4080 7.1-Channel High Performance Audio.

• USB Ports: Includes ultra-fast USB 3.2 Gen 2x2 (20Gbps) Type-C.

• Form Factor: Mini-ITX (170mm x 170mm).
