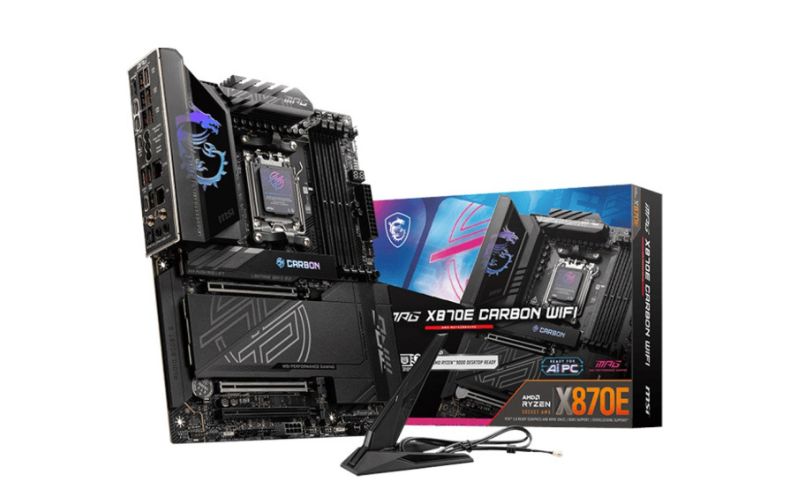

MSI AMD MPG X870E Carbon WIFI DDR5 Gaming MotherBoard

High-Performance Architecture for Enthusiasts

The MSI MPG X870E CARBON WIFI is an enthusiast-grade motherboard engineered to push the limits of the AMD Ryzen 9000 series processors. Built on the flagship X870E chipset, it features a powerful 18+2+1 Duet Rail Power System with 110A Smart Power Stages. This massive power delivery ensures absolute stability even under the most extreme overclocking conditions. With its iconic carbon-fiber aesthetic and Mystic Light RGB integration, it provides the perfect blend of high-end style and raw processing power for elite gaming builds.

Blistering Speeds with USB4 and PCIe 5.0

This motherboard is designed for a future without bottlenecks, featuring dual built-in USB4 ports that deliver speeds up to 40Gbps and support for high-resolution display outputs. It fully utilizes the PCIe 5.0 standard across the primary graphics slots and multiple M.2 slots, providing the necessary bandwidth for next-generation Gen5 NVMe SSDs and high-performance GPUs. This ensures near-instant data access and peak frame rates, making it a premier choice for gamers and creators who require the fastest storage and interface technologies available.

Elite Networking and Signature Cooling

Connectivity reaches new heights with integrated Wi-Fi 7 and a high-speed 5G LAN port for professional-grade networking. To keep the hardware cool, the Carbon WIFI is equipped with a premium thermal solution consisting of a heavy-duty heatsink with a heatpipe, 7W/mK thermal pads, and Screwless M.2 Shield Frozr. This innovative tool-less design allows for easy SSD installation while ensuring your drives stay at optimal temperatures, preventing any performance throttling during intense, sustained gaming sessions.

Key Specifications

• Chipset: AMD X870E.

• CPU Support: AMD Ryzen 9000, 8000, and 7000 Series (Socket AM5).

• Memory: 4 x DDR5 Slots, Dual Channel (Supports extreme frequencies over 8000+ MHz OC).

• Power Design: 18+2+1 Phases with 110A Smart Power Stages.

• Expansion Slots: 2 x PCIe 5.0 x16 Slots (Supports x16/x0 or x8/x8 modes), 1 x PCIe 4.0 x4 Slot.

• Storage: 4 x M.2 Slots (Including 2 x PCIe 5.0 x4), 4 x SATA 6Gb/s Ports.

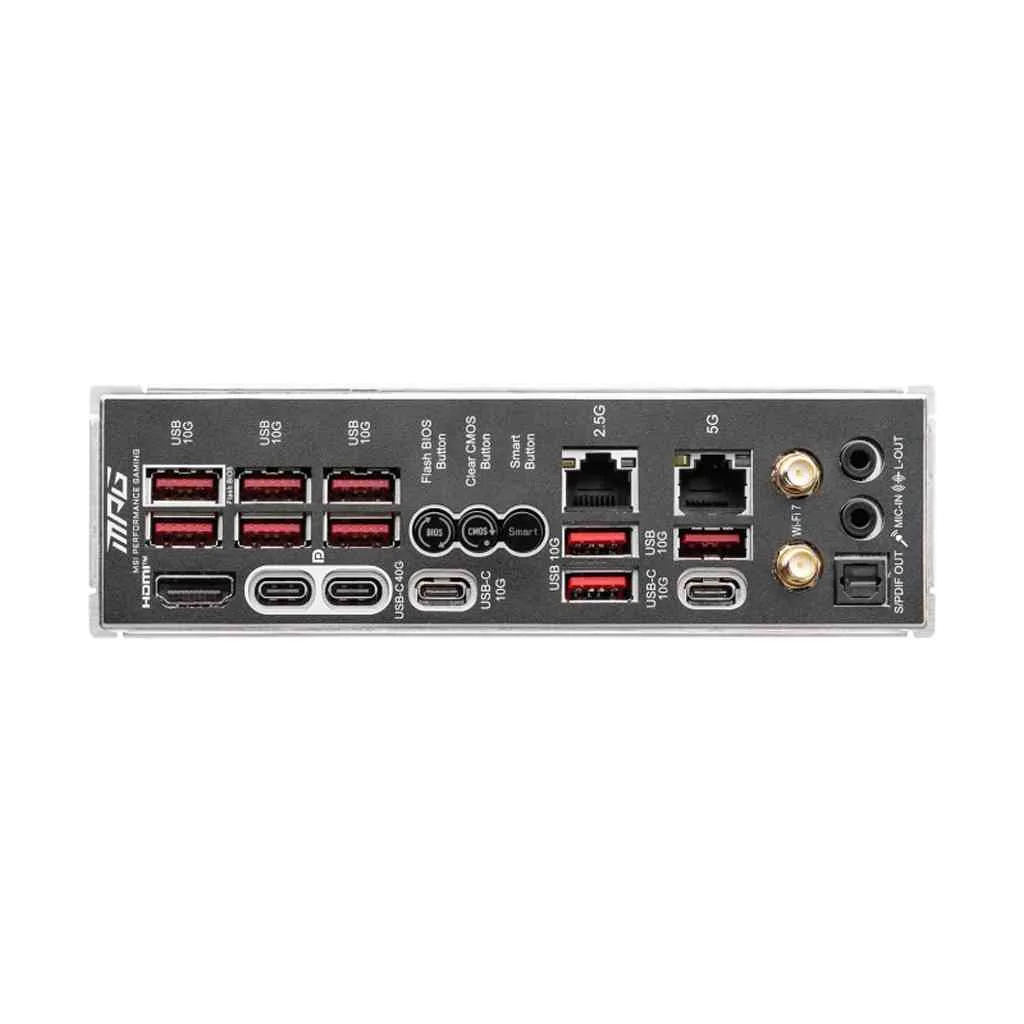

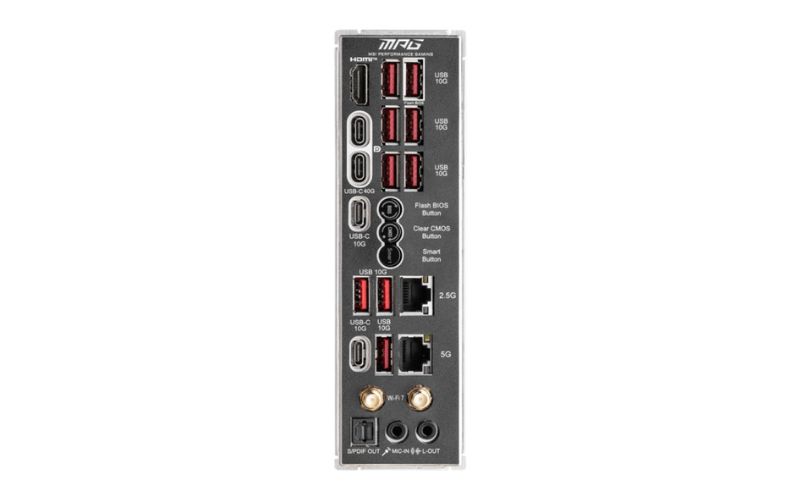

• USB4: 2 x USB4 Ports (40Gbps with DisplayPort Alt Mode).

• Networking: Wi-Fi 7, Bluetooth 5.4, and 5Gbps High-Speed LAN.

• Display Output: 2 x USB4 (via DP), 1 x HDMI 2.1 (Supports 4K @ 120Hz).

• Audio: Realtek ALC4080 7.1-Channel High Performance Audio.

• Form Factor: ATX (304.8mm x 243.8mm).
