MSI AMD MPG X870I Edge Ti EVO WIFI DDR5 Gaming MotherBoard

Flagship Mini-ITX AM5 Motherboard for Enthusiast Builds

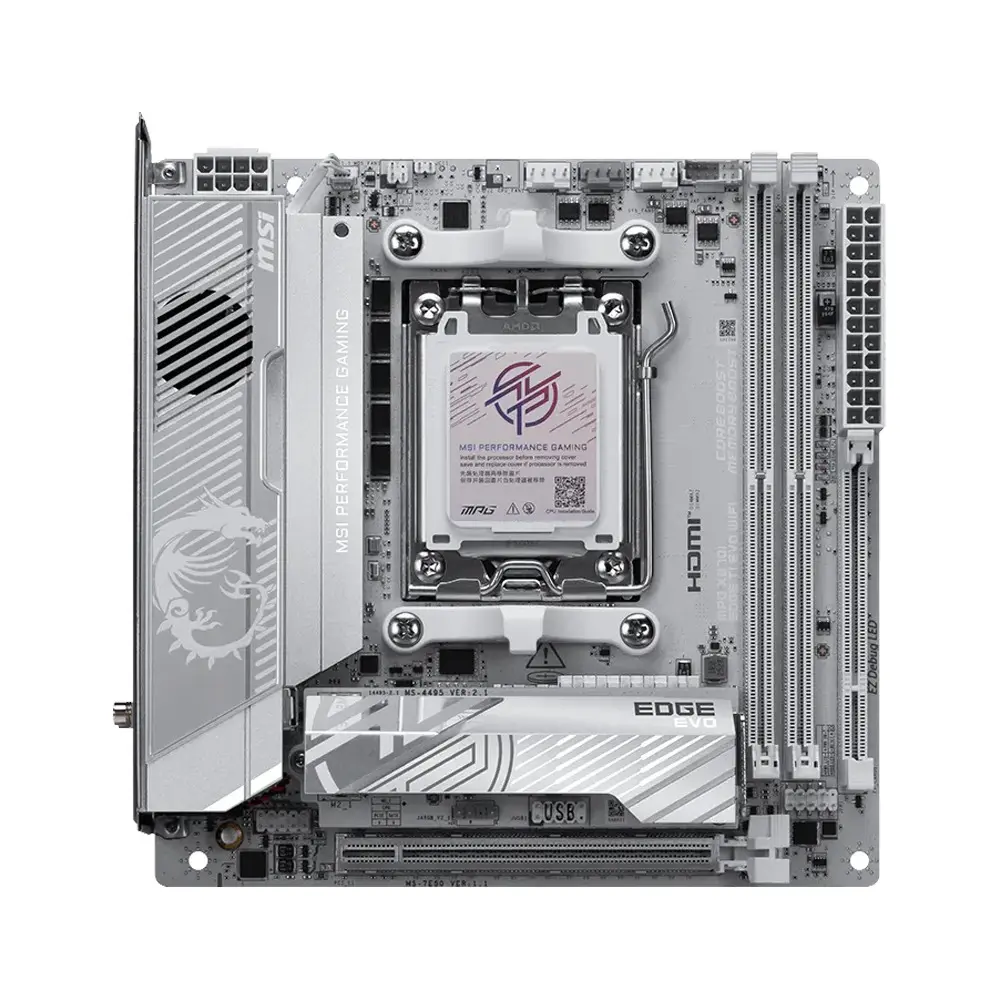

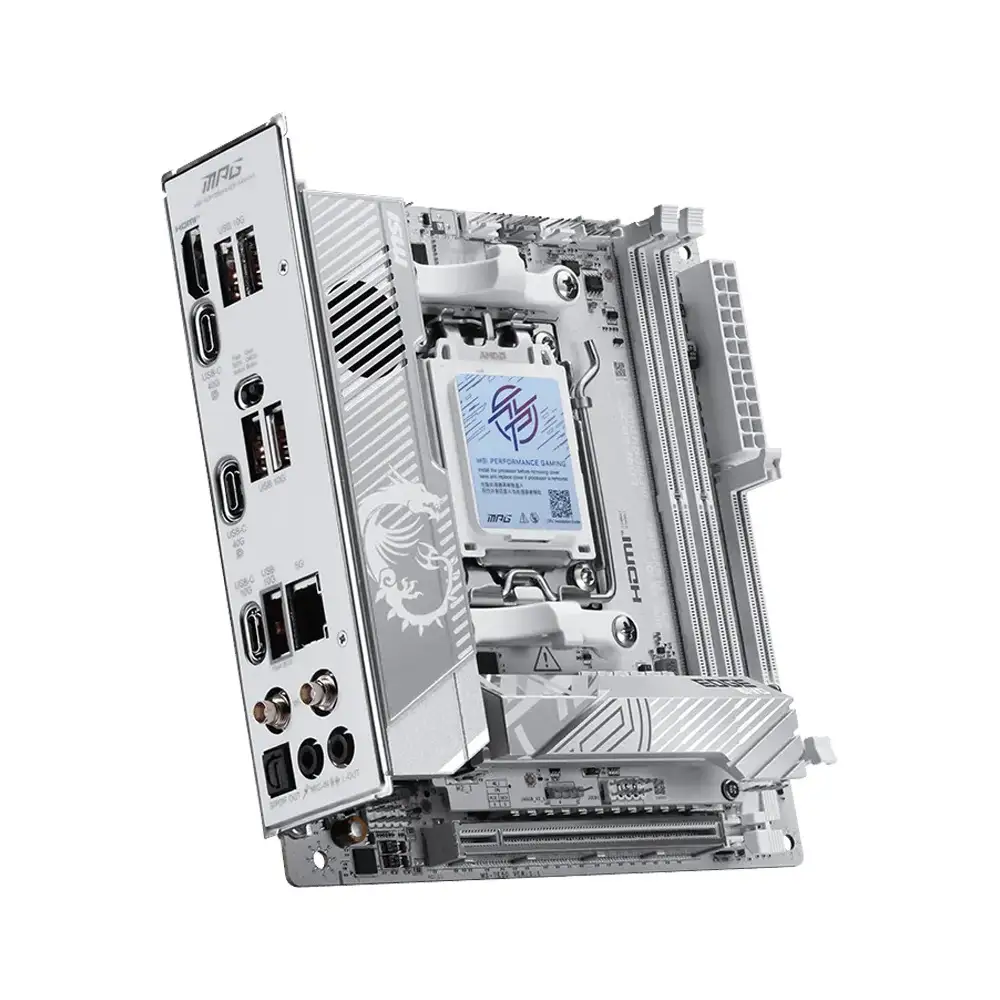

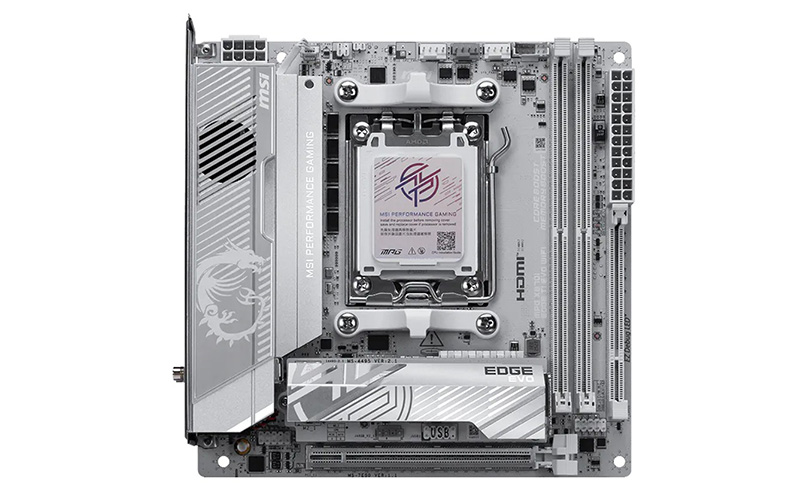

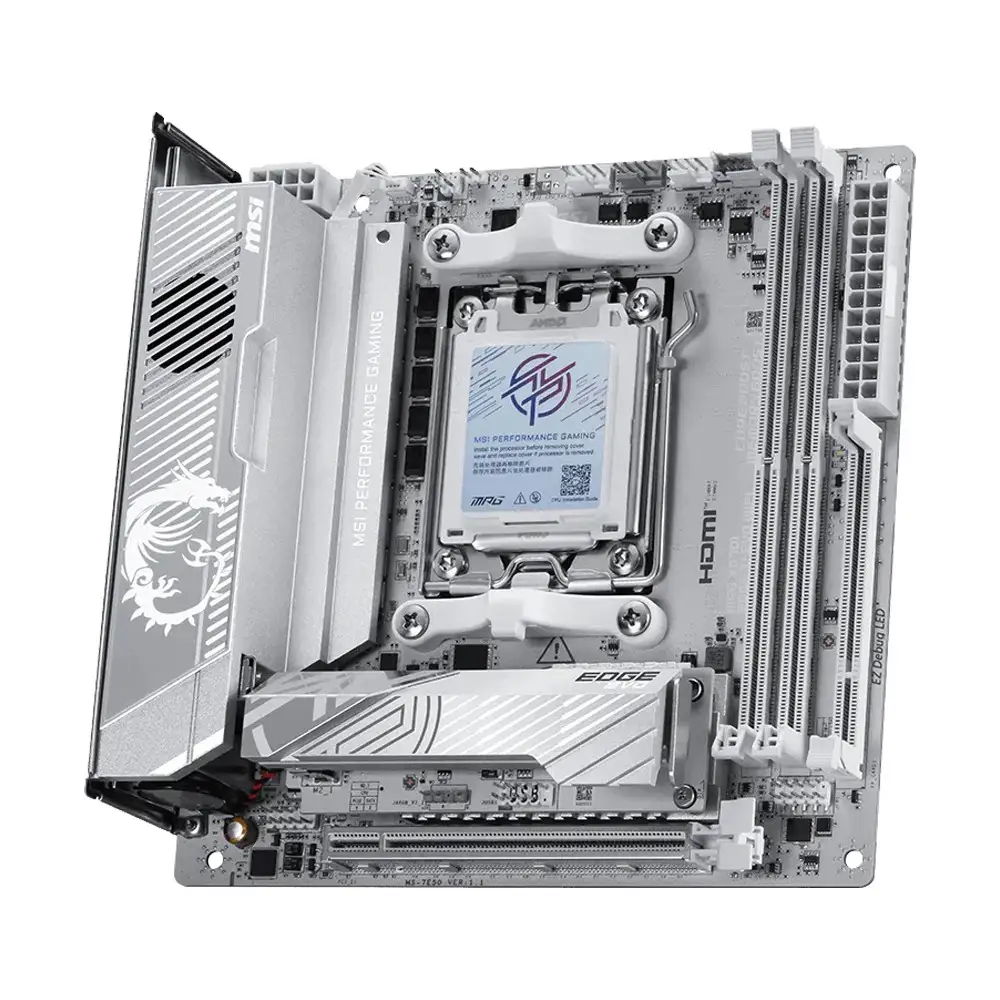

The MSI MPG X870I EDGE TI EVO WIFI is a premium Mini-ITX gaming motherboard designed for compact high-performance systems based on AMD’s latest AM5 platform. Built around the AMD X870 chipset, it supports AMD Ryzen 7000, 8000, and 9000 Series desktop processors and delivers enthusiast-level features in a 170 × 170 mm form factor. Its distinctive silver-white “Edge Ti” design makes it especially attractive for clean, high-end small form factor builds.

Advanced Connectivity and DDR5 Performance

This gaming motherboard supports dual-channel DDR5 memory with overclocking support up to DDR5-10000+ MT/s (OC), enabling exceptional bandwidth for gaming and productivity workloads. Despite its compact size, it includes a PCIe 5.0 x16 slot for next-generation graphics cards, one PCIe 5.0 M.2 slot plus two additional PCIe 4.0 M.2 slots, USB4 connectivity (40Gbps Type-C), Realtek 5G LAN, and integrated Wi-Fi 7 with Bluetooth 5.4. These features make it one of the most feature-rich Mini-ITX AM5 boards currently available.

Premium Power Delivery and Enthusiast Features

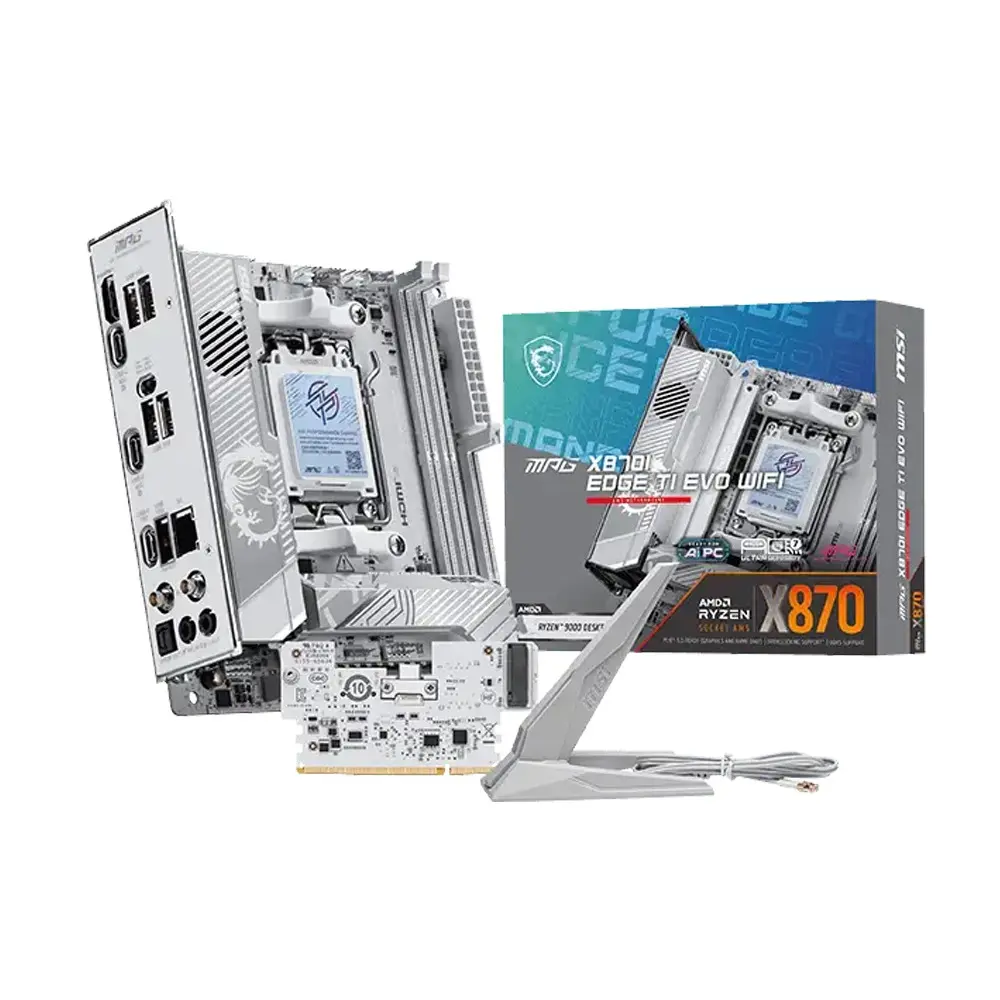

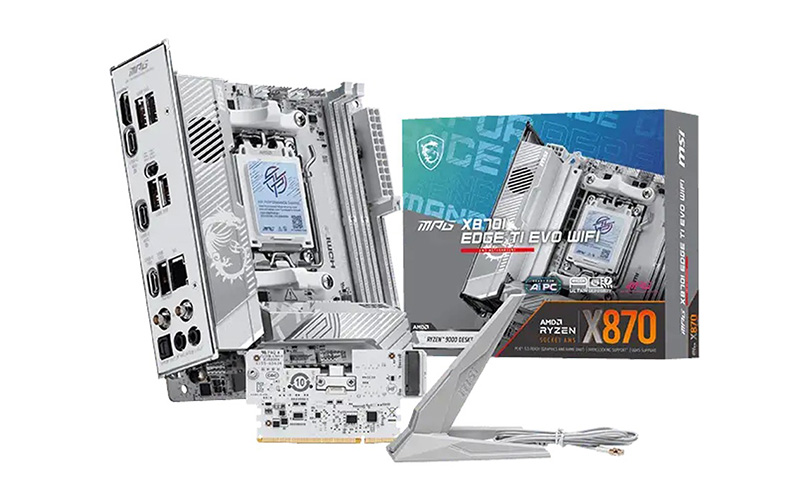

MSI equips the board with an 8+2+1 Duet Rail power system, server-grade 12-layer PCB construction, enlarged heatsinks, and M.2 Shield Frozr cooling to ensure stable performance under heavy loads and overclocking. Audio Boost 5 with the Realtek ALC4080 codec provides high-quality 7.1-channel sound, while MSI EZ DIY features such as EZ Antenna and Flash BIOS simplify assembly and updates. Community feedback highlights the board’s excellent feature set, though some builders note that the included FP/XPANDER card can create tight clearances in very compact cases.

Key Specifications

• Product Name: MSI MPG X870I EDGE TI EVO WIFI

• Chipset: AMD X870

• CPU Socket: AM5

• Form Factor: Mini-ITX (170 × 170 mm)

• Processor Support: AMD Ryzen 7000 / 8000 / 9000 Series

• Memory Support: 2 × DDR5 DIMM, up to 128GB

• Memory Speed: DDR5 10000+ MT/s (OC)

• Expansion Slot: 1 × PCIe 5.0 x16

• Storage: 1 × PCIe 5.0 M.2, 2 × PCIe 4.0 M.2, 2 × SATA 6Gb/s

• Networking: Realtek 5G LAN

• Wireless Connectivity: Wi-Fi 7 + Bluetooth 5.4

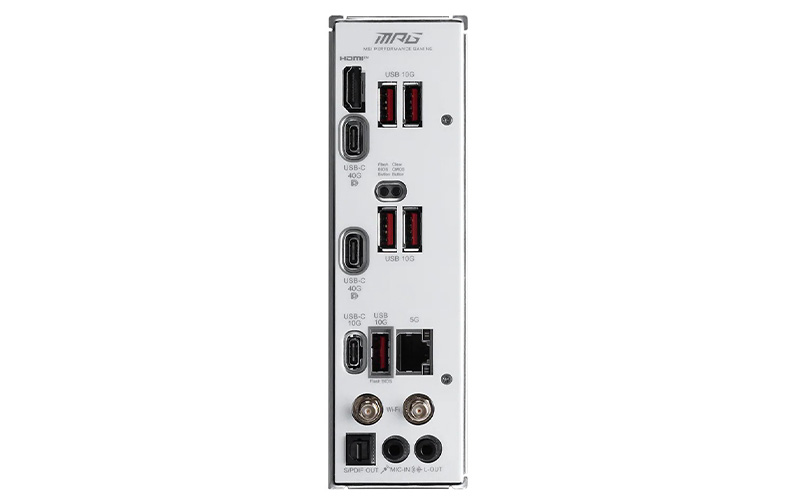

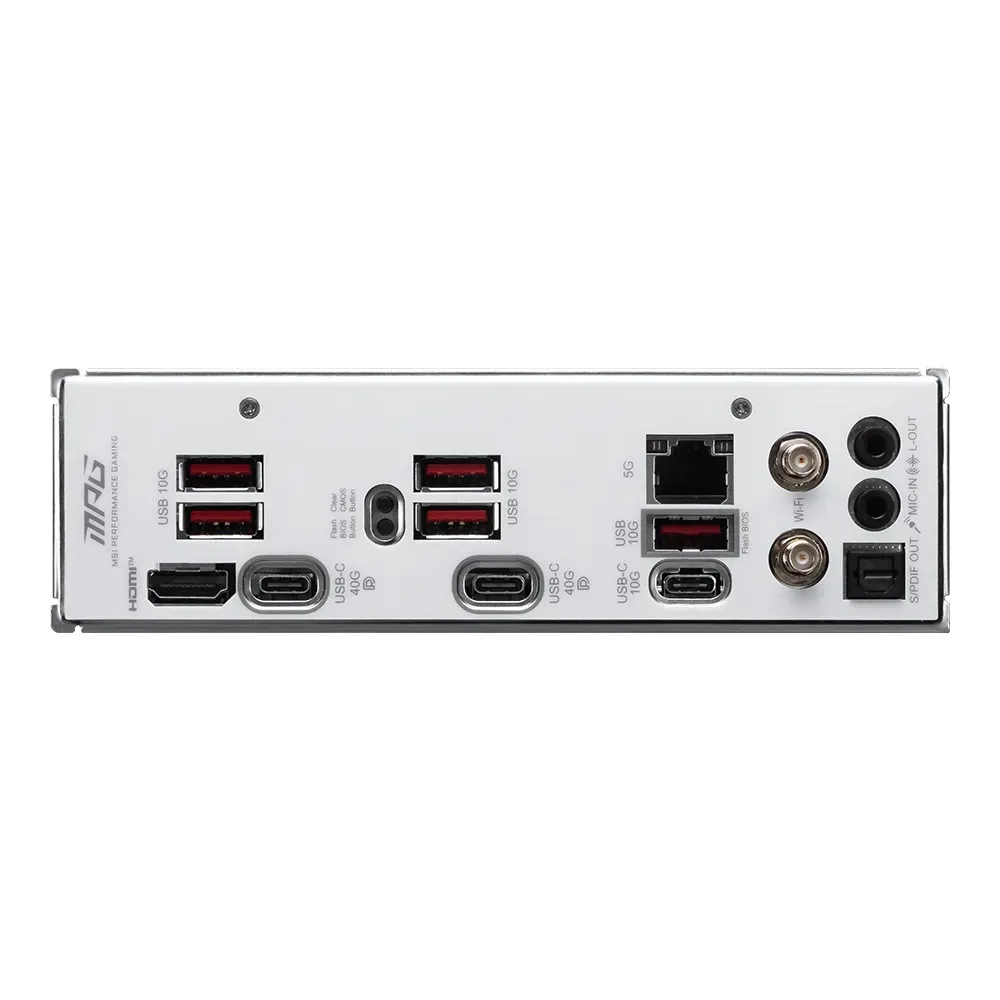

• USB Connectivity: USB4 (40Gbps Type-C), USB 20Gbps Type-C, USB 10Gbps Type-A/C

• Audio: Realtek ALC4080, 7.1-Channel Audio Boost 5

• Video Outputs: HDMI 2.1 + 2 × USB-C DisplayPort (via compatible CPUs)

• Operating System Support: Windows 11 64-bit

• Usage: Premium Small Form Factor Gaming and Workstation Builds
