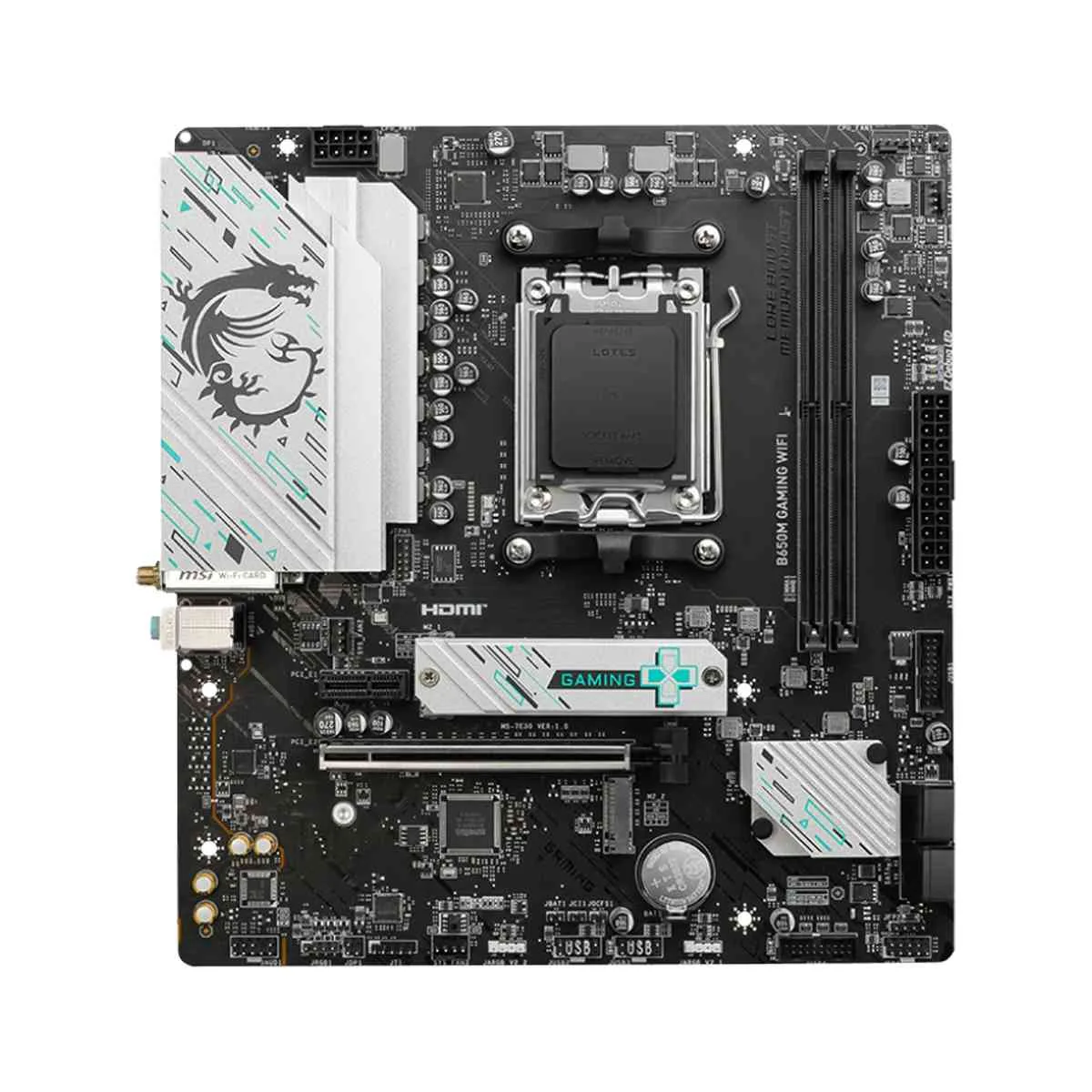

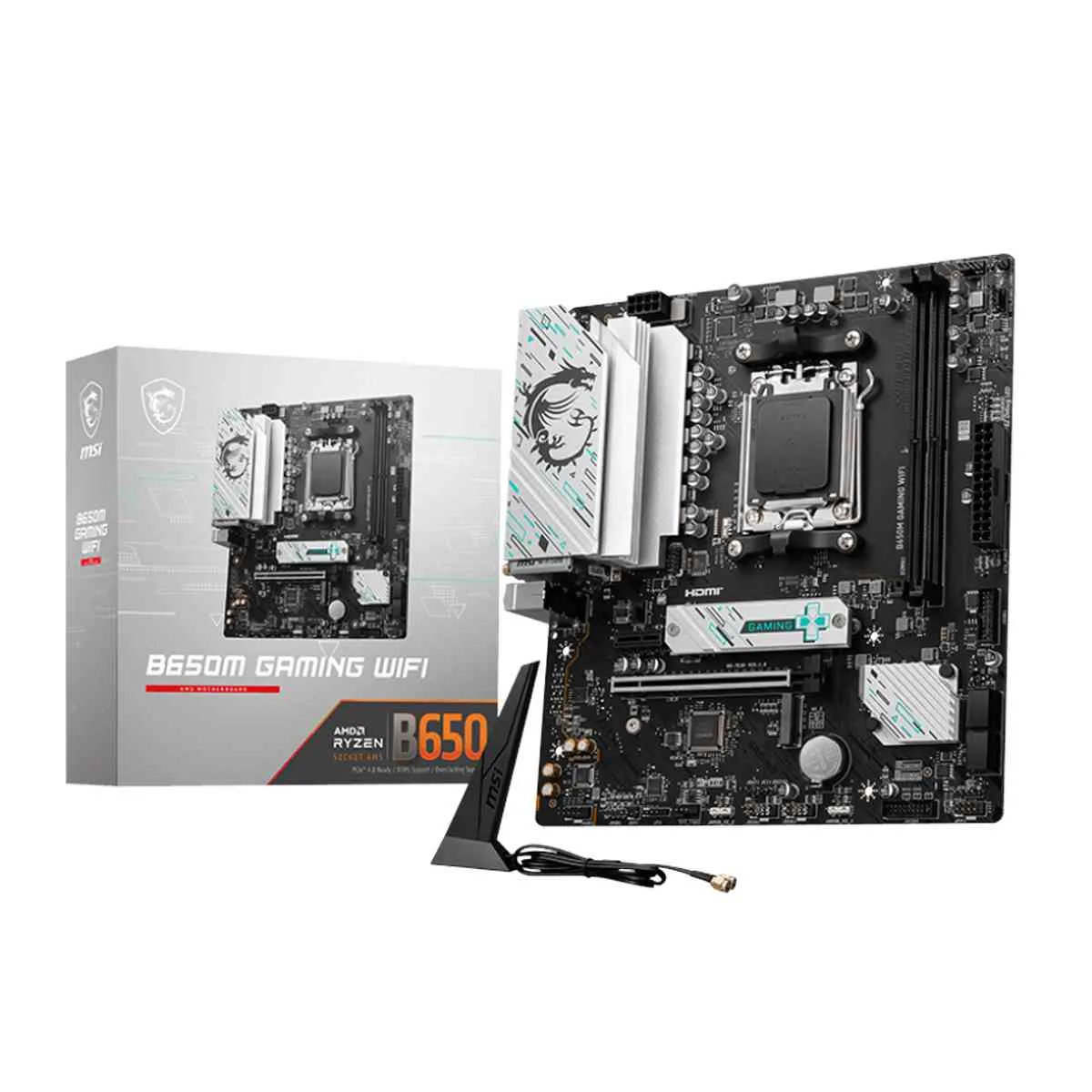

MSI B650M Gaming Wifi DDR5 Gaming Motherboard

Model No : MSI B650M Gaming Wifi DDR5 Gaming Motherboard Part No : 911-7E30-001 Form Factor : mATX226mmx243.84mm Chipset : AMD B650 CPU : Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 Memory : 2x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO™ Onboard Graphics : 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot : 1x PCI-E x16 slotSupports x16/x1• Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)1x PCI-E x1 slotPCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) Audio : Realtek® ALC897 Codec7.1-Channel High Definition Audio Storage : 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices4x SATA 6G•The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor RAID : Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices USB : 2x USB 2.0 (Rear)4x USB 2.0 (Front)3x USB 5Gbps Type A (Rear)1x USB 5Gbps Type C (Rear)4x USB 5Gbps Type A (Front) LAN : Realtek® RTL8125BG 2.5Gbps LAN Internal IO : 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports Connectivity : AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. LED Features : 4x EZ Debug LED Back Panel Ports : DisplayPortHDMI™USB 3.2 Gen 1 5Gbps (Type-A)2.5G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonUSB 3.2 Gen 1 5Gbps (Type-C)USB 3.2 Gen 1 5Gbps (Type-A)USB 2.0 Operating System : Support for Windows® 11 64-bit, Windows® 10 64-bit Warranty : 1 Year ( As per Manufacturer Policy )
