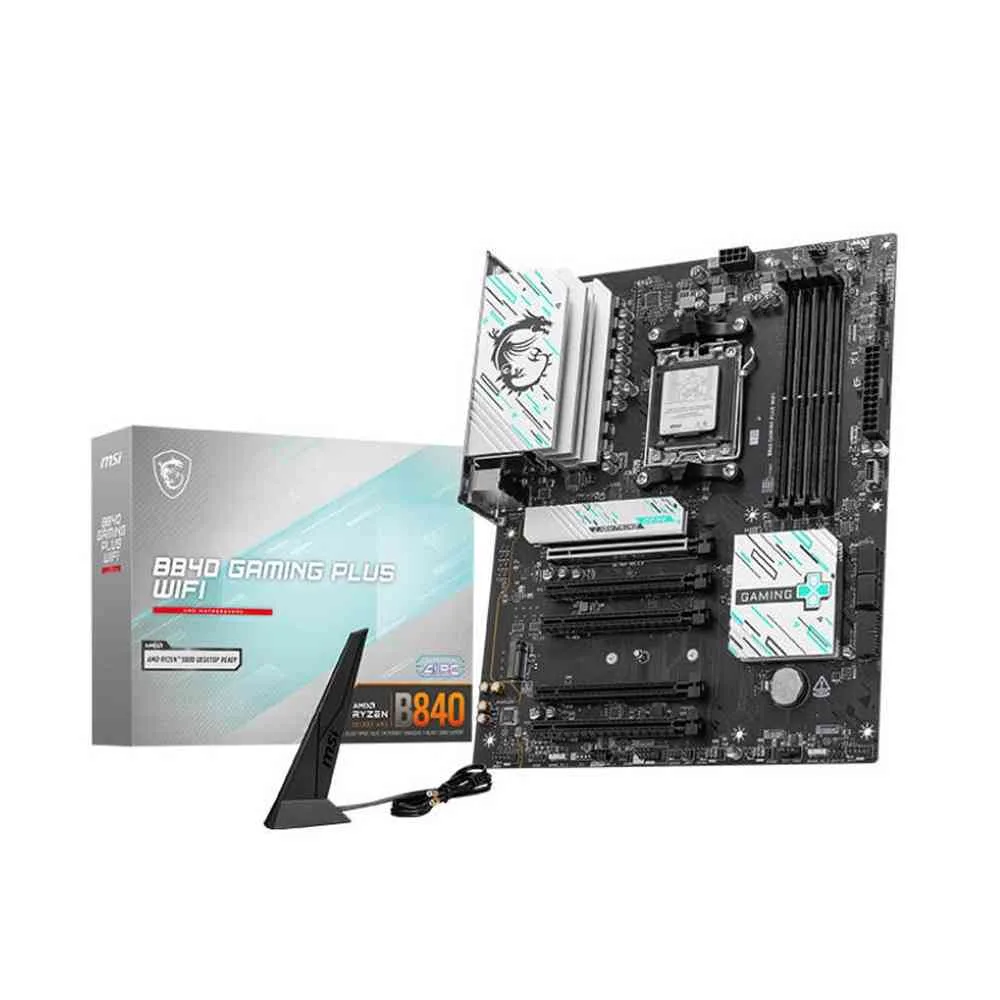

MSI B840 Gaming Plus Wifi, Ai PC, PCIe 4.0 Ready DDR5 AMD Ryzen Gaming MotherBoard

Model No : MSI B840 Gaming Plus Wifi, Ai PC, PCIe 4.0 Ready DDR5 AMD Ryzen Gaming MotherBoard Part No : 911-7E57-002 Chipset : AMD B840 Form Factor : ATX Socket Compatibility : Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 Wireless & Bluetooth : Wi-Fi 7 SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM Lighting : 4x EZ Debug LED Memroy Type : 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8000+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 4800+ MT/s Memory Compatibility : Supports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only* Lan : Realtek® 8125BG 2.5G LAN Storage Compatibility : 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices4x SATA 6GM2_2 slot• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor) Back Panel I/O Ports : Clear CMOS ButtonUSB 10Gbps (Type-A)USB 2.02.5G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMI™ 2.1 PortUSB 10Gbps (Type-C)USB 5Gbps (Type-A) USB Ports Front (Support ) : 2x USB 5Gbps Type A 1x USB 5Gbps Type C Expansion Slots : 5x PCI-E x16 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E1 slot• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) Audio : Realtek® ALC8977.1-Channel High Definition Audio Internal I/O Connectors : 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Combo Fan (Pump_Sys Fan)4x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 5Gbps Type C ports Special Features : The B840 GAMING PLUS WIFI comes with several proprietary MSI features, such as EZ DIY tools for easy installation and setup, RGB lighting with addressable V2 RGB LED connectors, and an EZ Debug LED system for troubleshooting. It also supports RAID 0 and RAID 1 configurations for M.2 NVMe storage devices, enhancing storage performance and redundancy. Package Content : European Union Ragulaloty Notice, Quick Installation Guide, EZ M.2 Clip II Remover, EZ M.2 Clip II, EZ Wi-Fi Antina, Sata cable, 1 to 2 EZ Conn-Cable (V1) Product Size ( Dimension ) : 243.84mmx304.8mm Product Weight : 3 Kg Warranty : 1 Year ( As per Manufacturer Policy )
