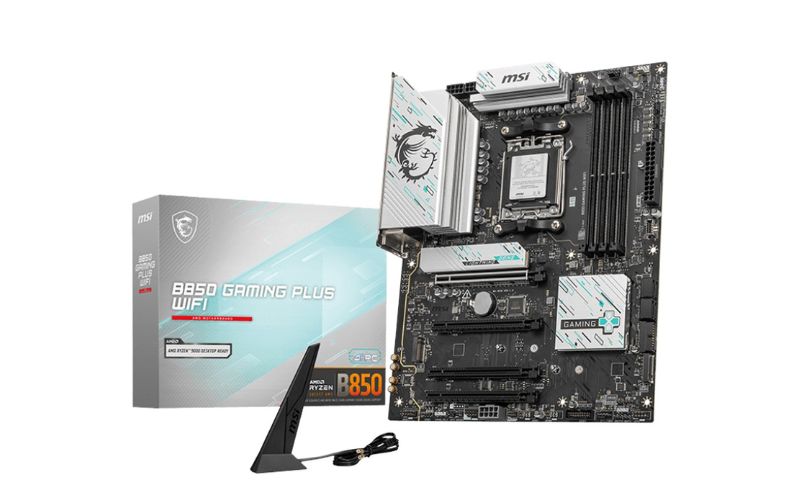

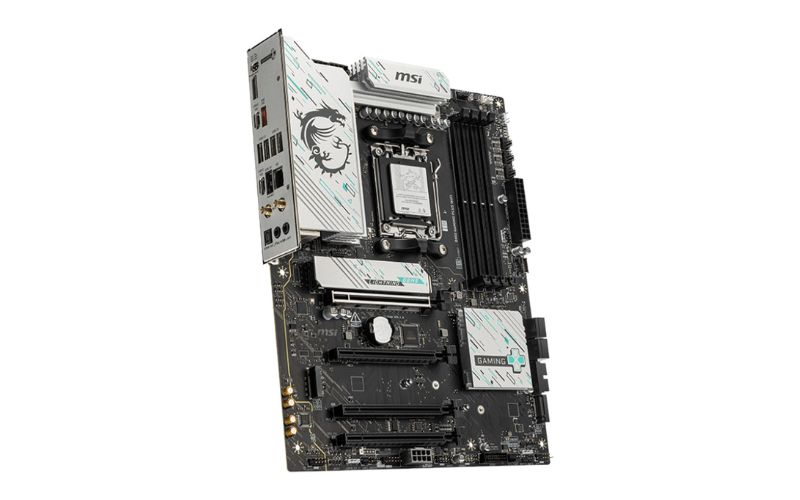

MSI B850 GAMING PLUS WIFI – ATX AM5 DDR5 Motherboard with PCIe 5.0, WiFi 7 & 5G LAN | 911-7E56-014

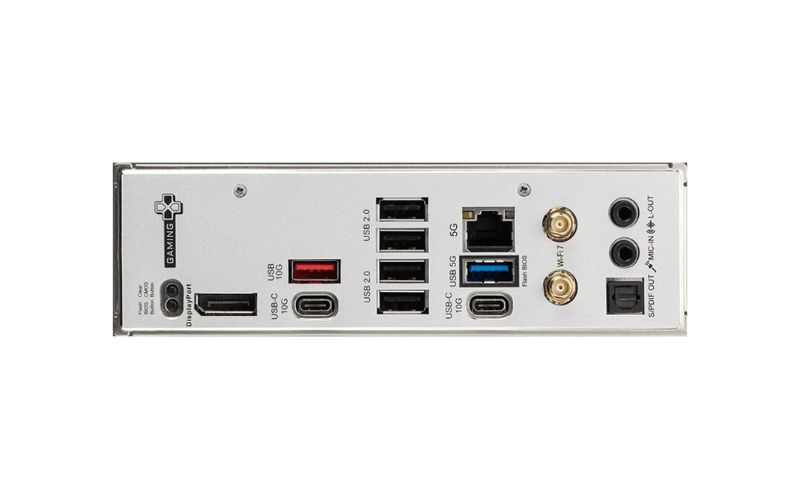

Model No : B850 GAMING PLUS WIFI Part No : 911-7E56-014 Chipset : AMD B850 Form Factor : ATX Socket Compatibility : AMD AM5 (Supports Ryzen 7000 / 8000 / 9000 Series Desktop Processors) Wireless & Bluetooth : Wi-Fi 7, Bluetooth 5.4 Lighting : RGB and ARGB headers, EZ Debug LED Memory Type : DDR5 Memory Compatibility : 4 × DDR5 UDIMM slots, up to 256 GB Supports dual channel, EXPO, and memory overclocking up to DDR5-8200+ (OC) Storage Compatibility : 3 × M.2 slots (PCIe Gen5 x4 / Gen4 x4 / Gen4 x2) 4 × SATA 6 Gb/s ports Supports RAID 0 / 1 for NVMe Back Panel I/O Ports : HDMI, DisplayPort, USB Type-C, multiple USB Type-A ports, 5G LAN, Wi-Fi antenna connectors, audio jacks, BIOS Flash and Clear CMOS buttons USB Ports Front / Internal Support : Internal headers for USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 (including internal Type-C) Expansion Slots : 1 × PCIe 5.0 ×16, 1 × PCIe 4.0 ×4, 2 × PCIe 3.0 ×1 Audio : Realtek ALC897, 7.1-channel high-definition audio Internal I/O Connectors : ATX 24-pin power, 8-pin CPU power, fan/pump headers, RGB/ARGB headers, front panel, TPM header, front audio, USB headers Special Features : 12+2+1 Duet Rail VRM Power System, Extended Heatsinks, M.2 Shield Frozr II, Steel Armor PCIe slot, Core Boost, Memory Boost, EZ Debug LED, PCIe Supplemental Power Connector Package Content : Motherboard, Wi-Fi antennas, SATA cables, M.2 screws/clips, user manual, quick installation guide Product Size (Dimension) : 304.8 mm × 243.8 mm Product Weight : Approx. 1.8 kg (gross) Warranty : 1 Year ( As per Manufacturer Policy )
