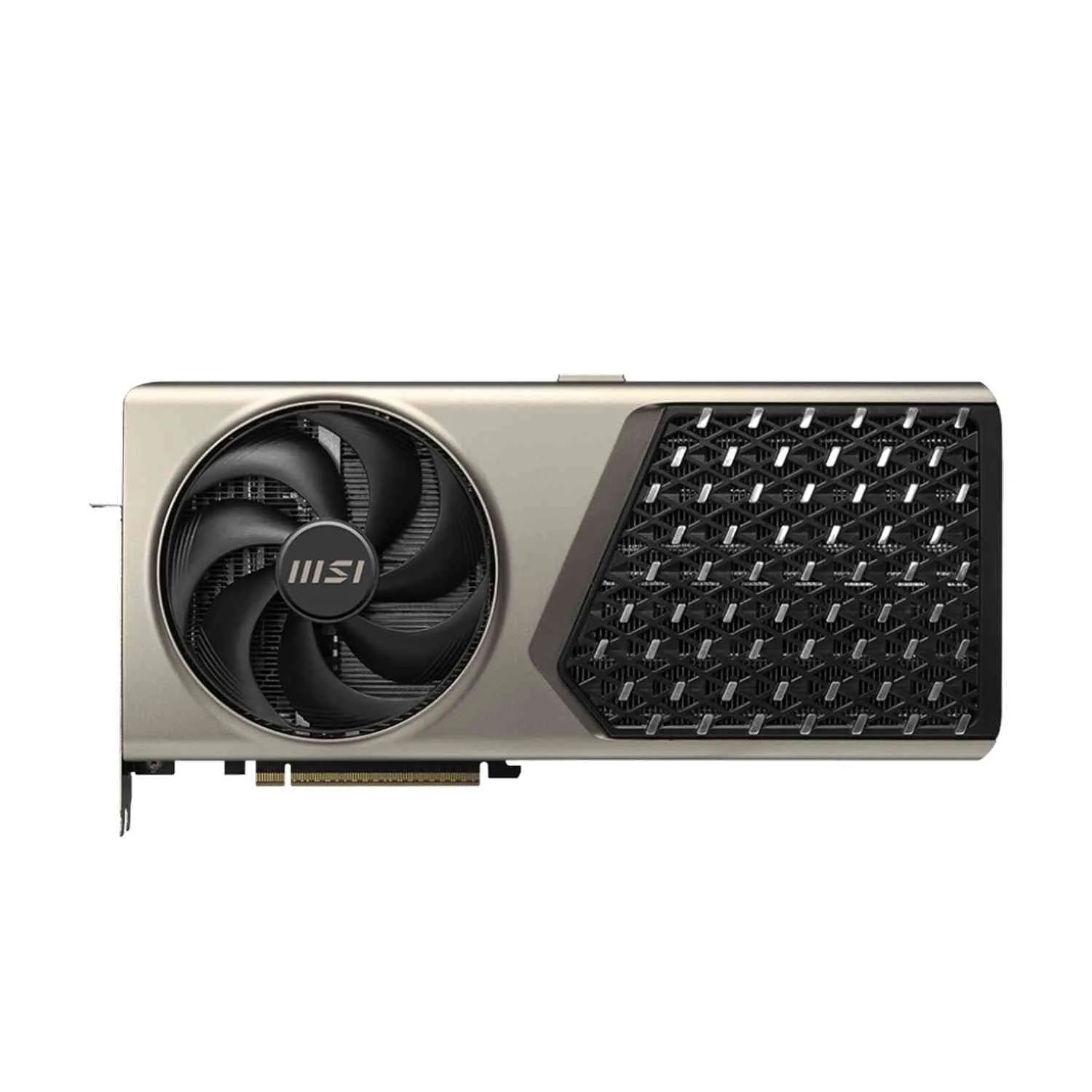

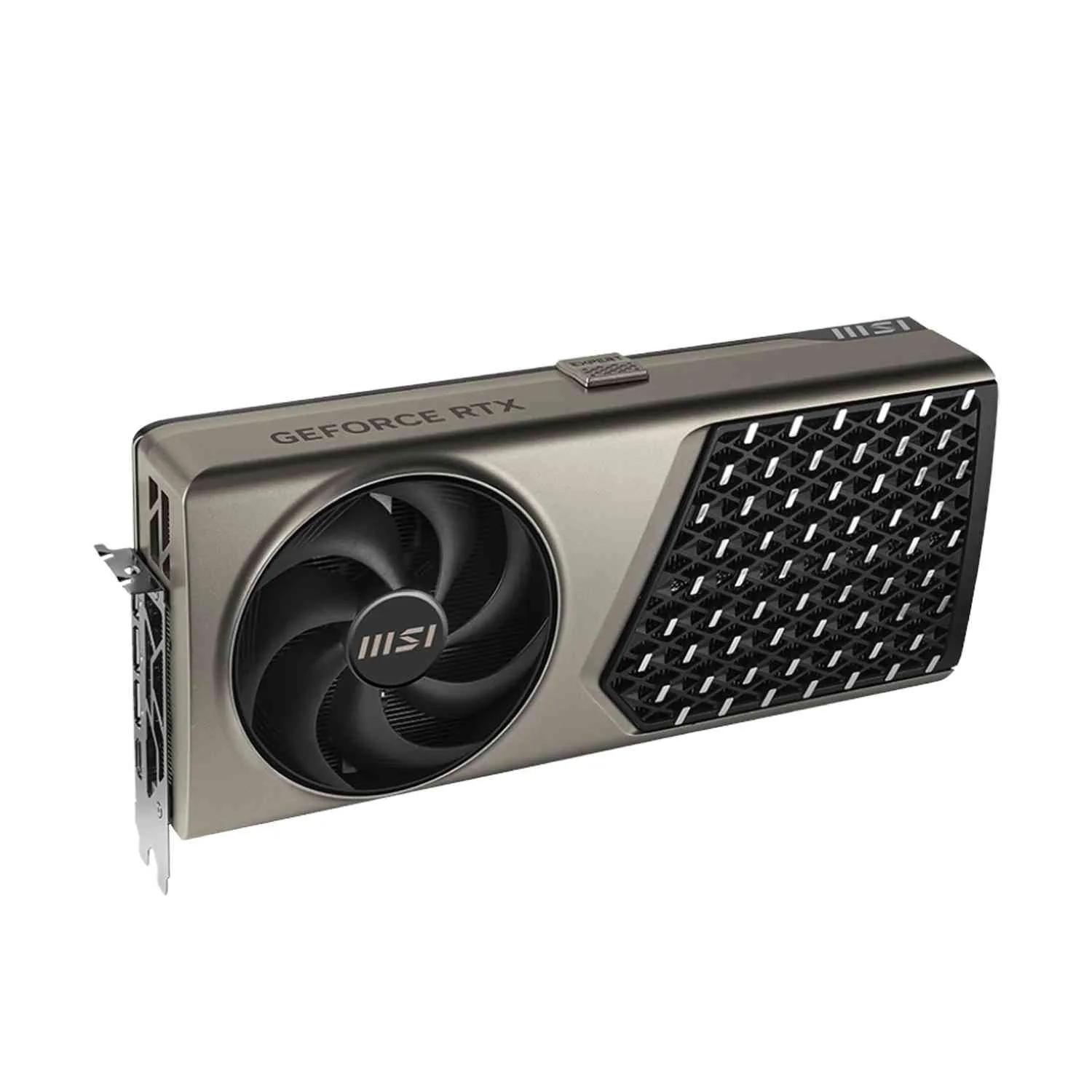

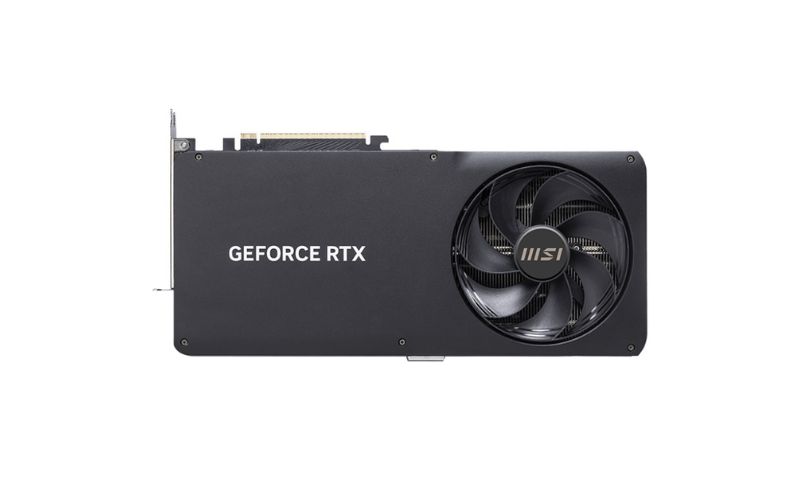

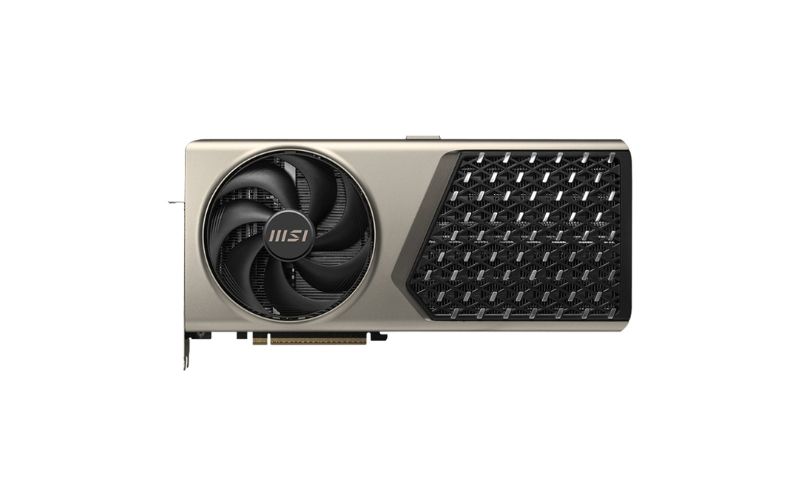

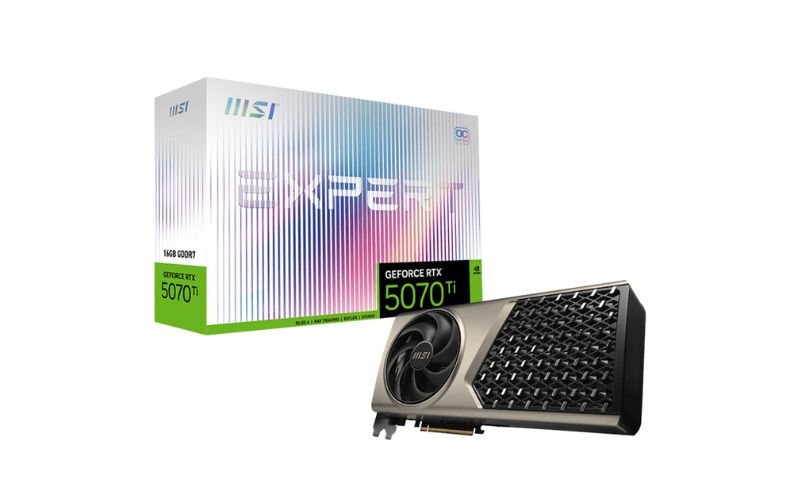

MSI Geforce RTX 5070Ti Expert OC Edition 16GB GDDR7 Graphic Card

Performance & Architecture

The MSI GeForce RTX 5070 Ti 16 GB EXPERT OC Edition is built on NVIDIA’s cutting‑edge Blackwell architecture, featuring 8,960 CUDA cores, a factory boost clock of approximately 2,580 MHz, and a high‑speed 16 GB of GDDR7 memory on a 256‑bit bus with up to 28 Gbps transfer rate. This combination empowers the GPU to handle demanding titles at high frame‑rates, excel at 1440p (and even 4K) gaming, and support advanced AI and ray‑tracing workloads with confidence.

Cooling, Build Quality & Features

The EXPERT OC version boasts a premium build: a reinforced die‑cast aluminium shroud, dual‑fan “Flow Frozr 2” cooling solution (with MSI’s Zero Frozr idle‑fan stop feature) and a rigid backplate for physical stability and heat dissipation. Connectivity is generous with three DisplayPort 2.1b ports and one HDMI 2.1b port (supporting up to 8K @ 120 Hz or 4K @ 480 Hz with HDR). The card uses a PCI Express Gen 5 ×16 interface and draws around 300 W of power (recommended PSU ~750 W).

Why Choose It & Who It’s For

This card is ideal for gamers and creators seeking premium performance without stepping into ultra‑enthusiast tiers. With 16 GB of VRAM and the latest generation of architecture and memory, it’s well placed for modern tasks from high‑fps competitive gaming to content creation and VR. The factory overclock (OC Edition) adds a performance buffer, while the robust cooling design ensures sustained performance over long sessions. In short: if you want one of the most capable 16 GB GPUs of its class that’s ready for high resolution, high refresh builds, this MSI variant is a strong pick.

Specification

GPU Architecture & Core / Memory Specs: Based on the NVIDIA GeForce RTX 5070 Ti chip; 8,960 CUDA cores.

Memory: 16 GB of GDDR7 memory, on a 256‑bit memory bus.

Memory Speed & Clock: Memory bandwidth up to ~28 Gbps (some listings noting up to 30 Gbps). Core boost clock around 2,580 MHz (Extreme Performance clock ≈2,588 MHz in MSI Centre).

Interface & Power: PCI‑Express Gen 5 x16 interface; typical board power (TDP) approx 300 W; one 16‑pin power connector (or via adapter as required); recommended PSU ~750 W.

Outputs & Resolutions: Outputs: 3× DisplayPort 2.1b + 1× HDMI 2.1b (capable of up to 8K @ 120Hz with DSC or 4K @ 480Hz HDR as per HDMI spec). Max resolution ~7680×4320.

Size & Cooling: Dimensions approx 319 mm length × 150 mm width × 60 mm height. Dual‑fan cooling design (MSI Flow Frozr 2) with a reinforced backplate.
