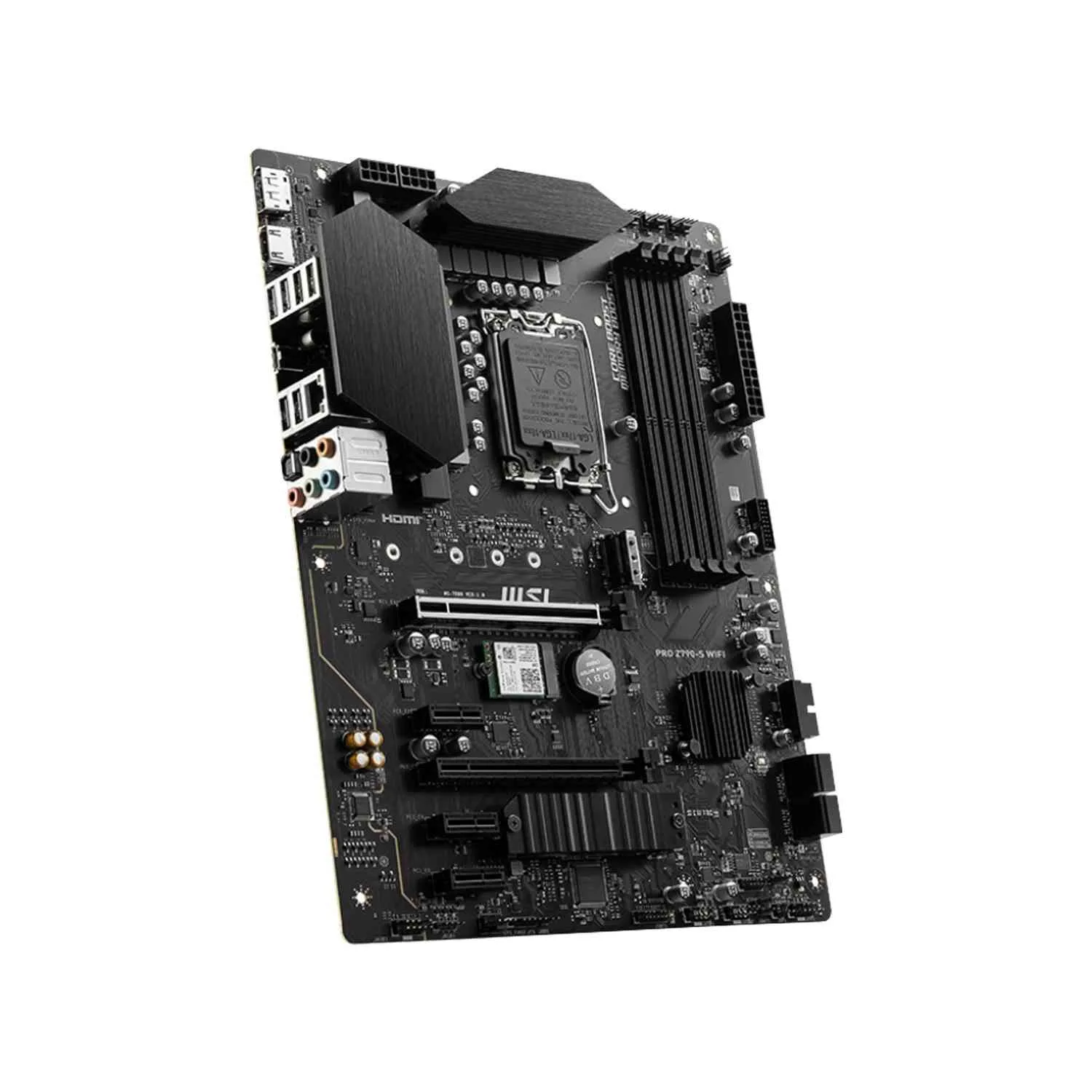

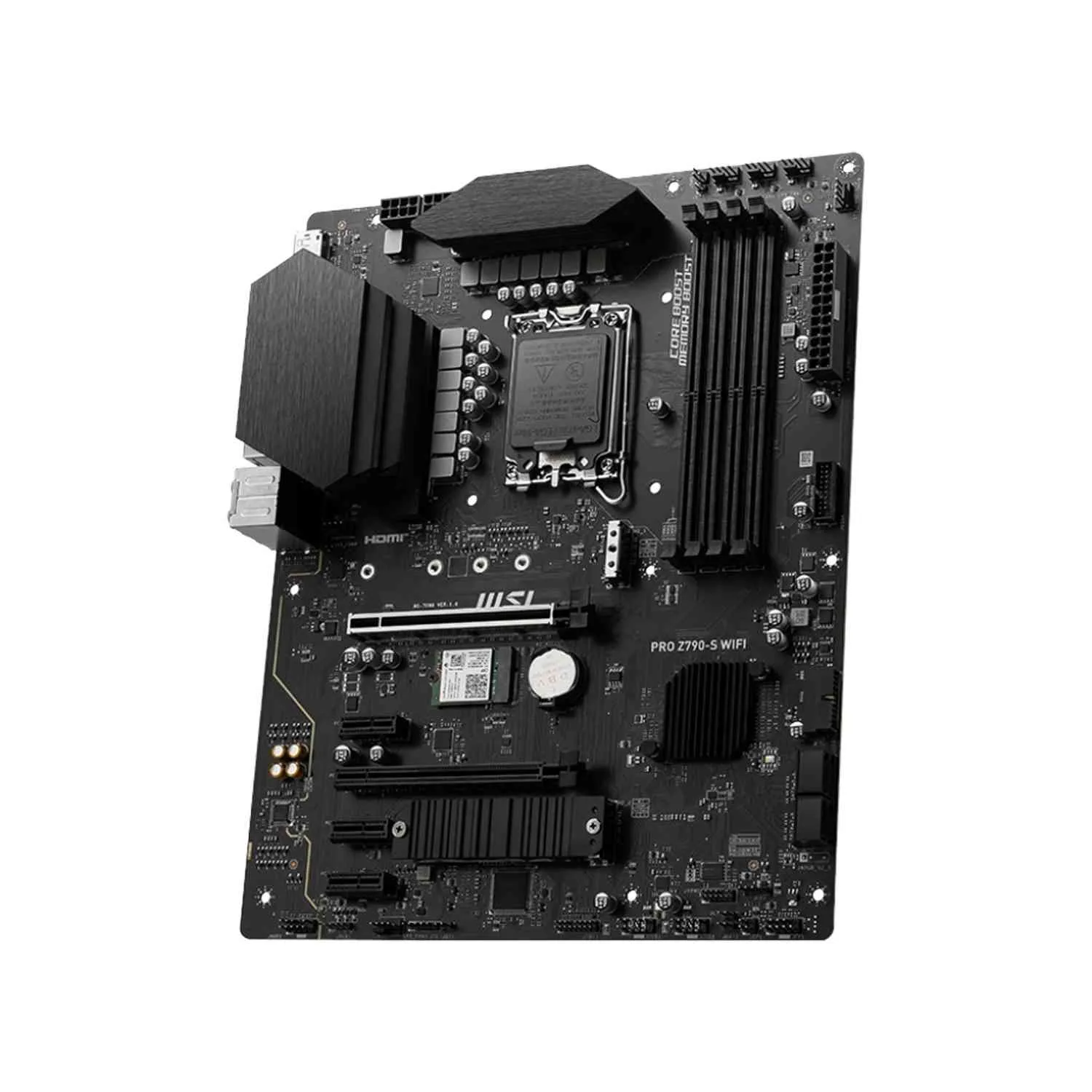

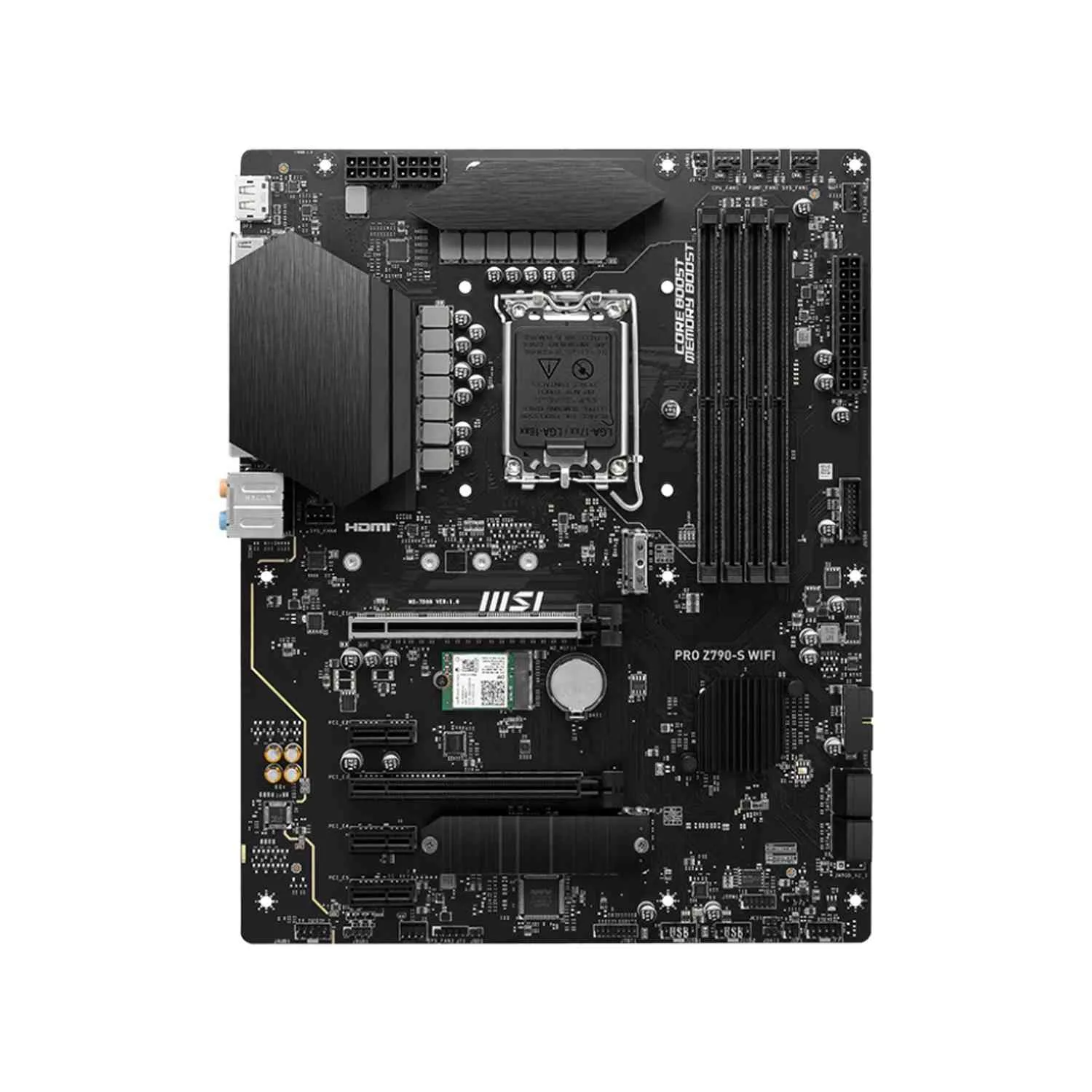

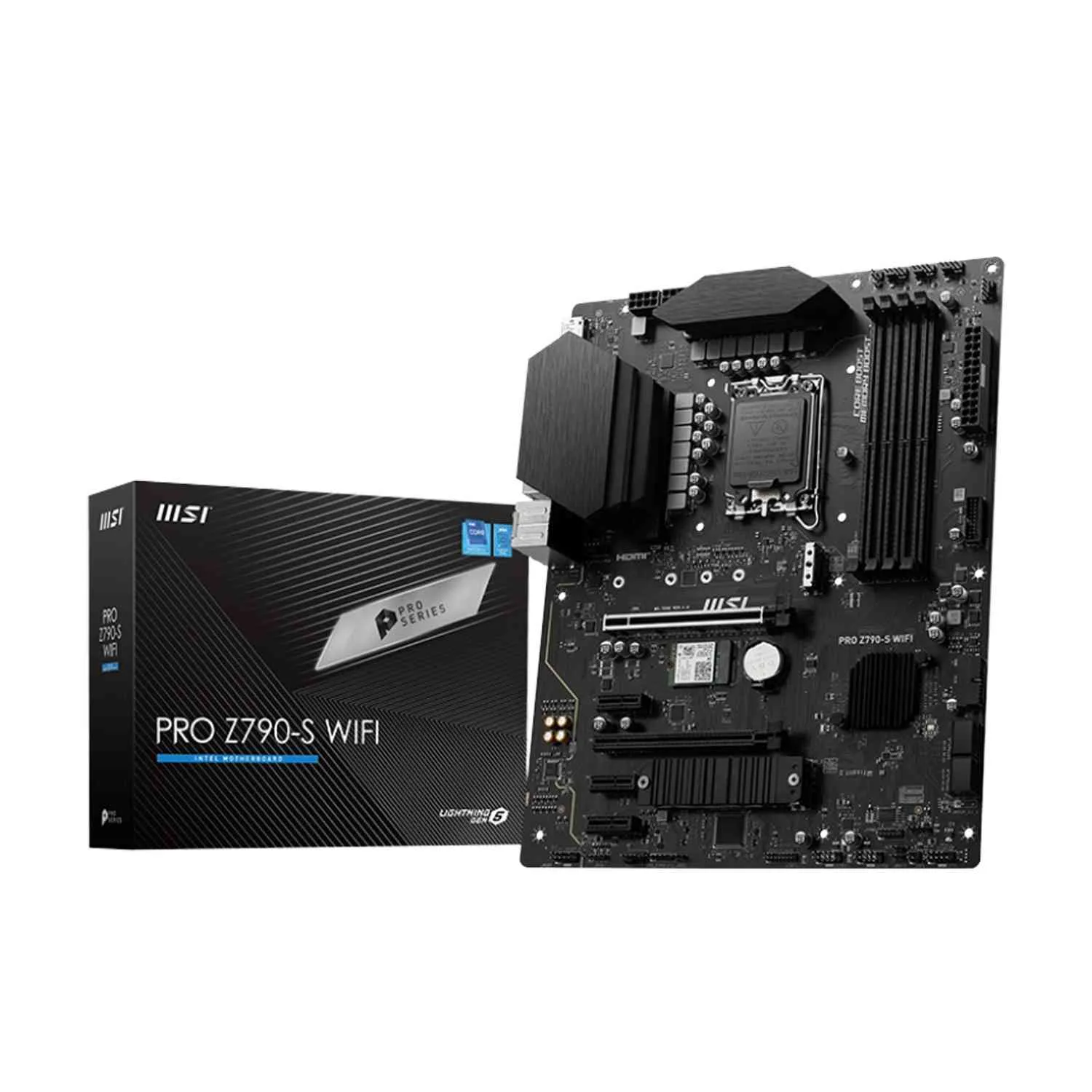

MSI Inte Pro Z790-S Wifi DDR5 Gaming MotherBoard

Model No : MSI Intel Pro Z790-S Wifi DDR5 Gaming MotherBoard Part No : 911-7D88-008 Chipset : INTEL Z790 Form Factor : ATX243.84mmx304.8mm Socket Compatibility : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700 LAN : Realtek® RTL8125BG 2.5Gbps LAN Wireless : Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. Graphics : 1x HDMI™Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Memroy : 4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6600+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory Storage Compatibility : 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G Expansion Slot : 2x PCI-E x16 slot3x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) Back Panel I/O Ports : DisplayPortHDMI™USB 2.0USB 3.2 Gen 2x2 20Gbps (Type-C)2.5G LANAudio ConnectorsUSB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 1 5Gbps (Type-A)S/PDIF-OUT Audio : Realtek® ALC897 Codec7.1-Channel High Definition AudioSupports S/PDIF output Internal I/O Connectors : 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan4x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports USB : 2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)4x USB 5Gbps Type A (Front)1x USB 20Gbps Type C (Rear) LED Features : 4x EZ Debug LED RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Warranty : 1 Year ( As per Manufacturer Policy )
