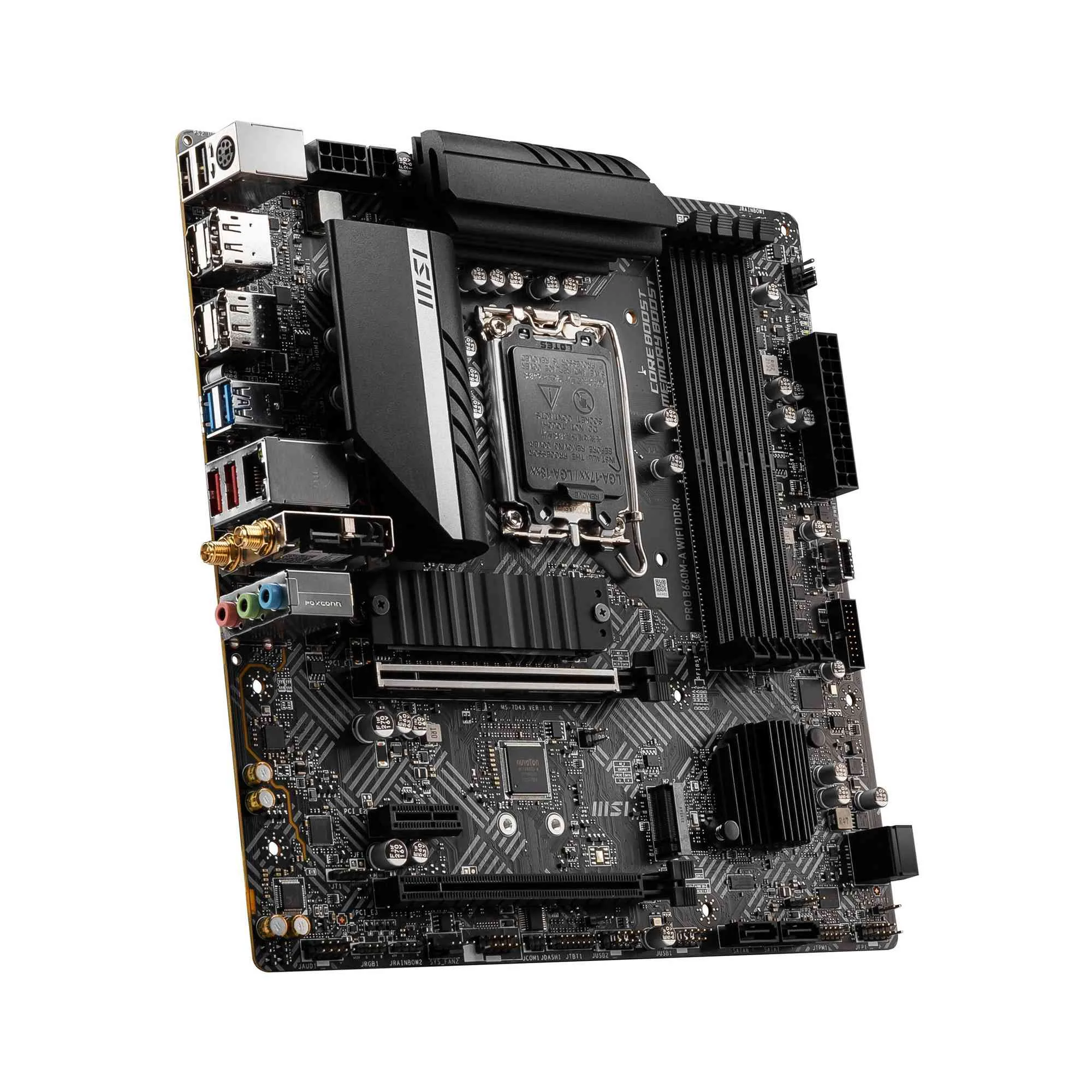

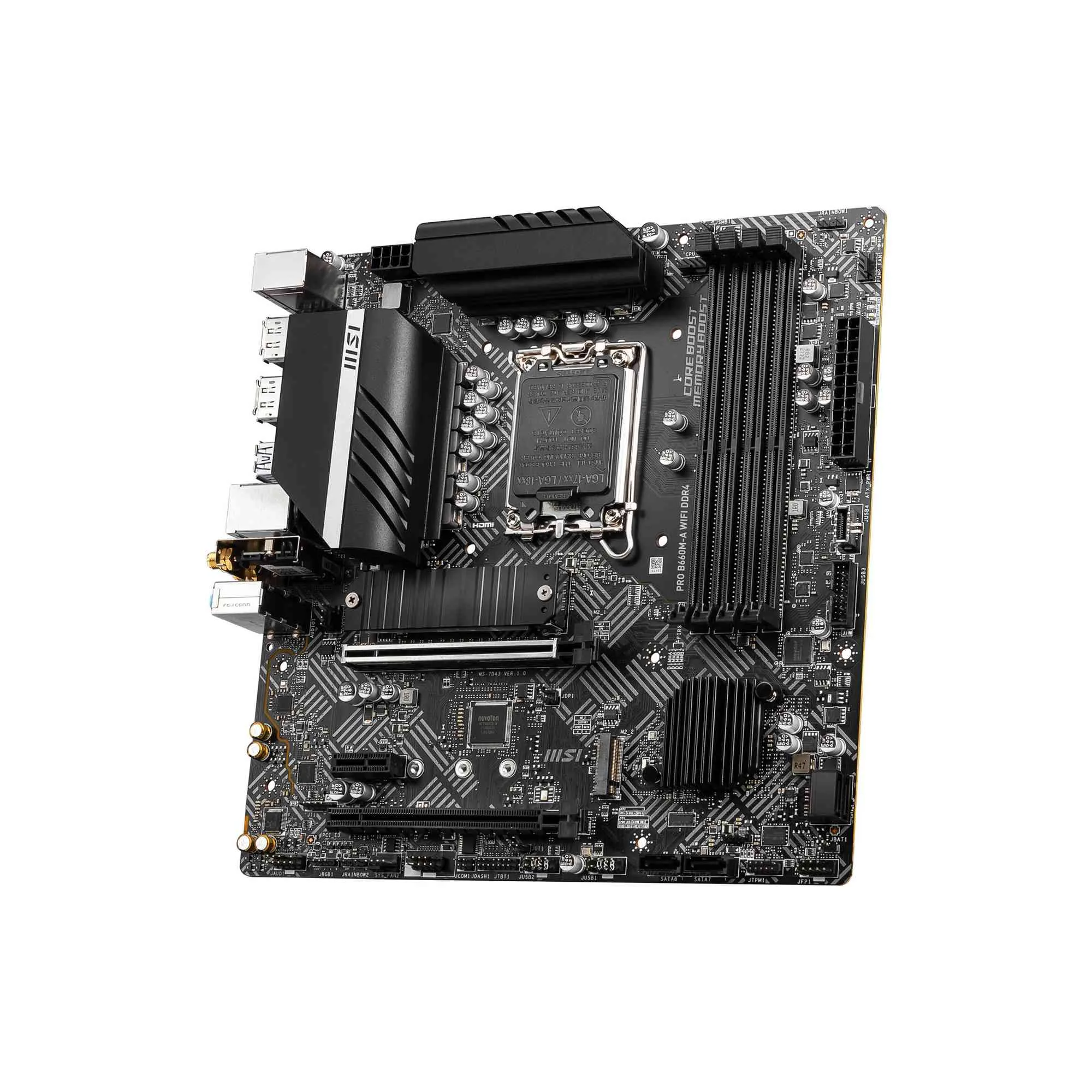

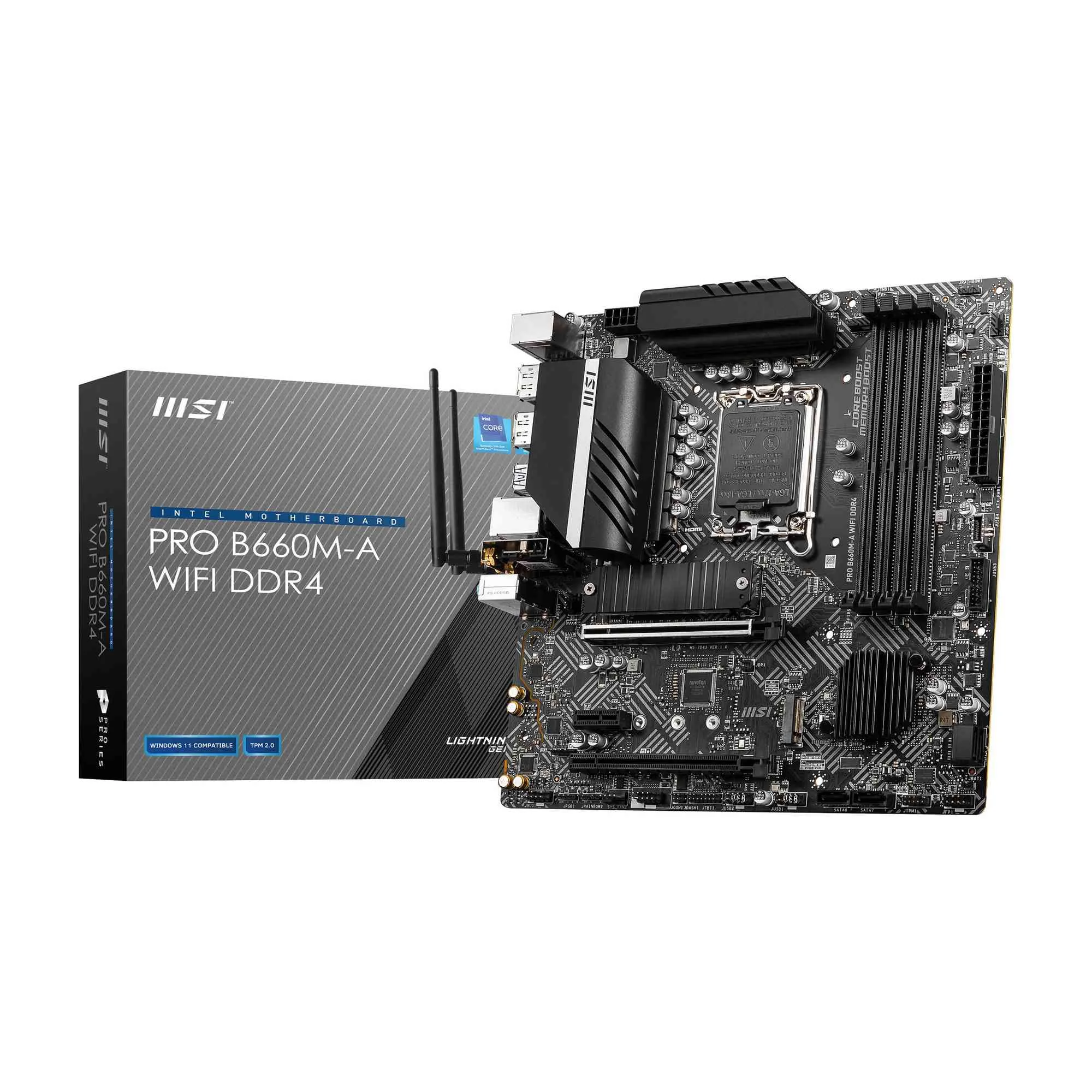

MSI Intel PRO B660M-A WIFI DDR4 MotherBoard
The MSI Intel PRO B660M-A WIFI DDR4 Motherboard features a Micro-ATX form factor and Intel® B660 Chipset. It supports up to 128 GB of DDR4 RAM, Wi-Fi 6 connectivity, and multiple storage options, suitable for high-performance computing and gaming
KWD 41.040
KWD 43.915
SKU :
911-7D43-003
4 interest-free payments of KWD 10.978Learn more
Estimated delivery:1 work day
Free return within: 14 days of purchaseSecure shopping your data is always safeOverview
Model OverviewThe MSI Intel PRO B660M-A WIFI DDR4 Motherboard features a Micro-ATX form factor, measuring 9.6 x 9.6 inches. It is designed for Intel's 12th generation processors, utilizing the LGA 1700 socket and the Intel B660 chipset for enhanced performance and connectivity. | |
 | |
 | |
Memory SupportThis motherboard supports up to 128 GB of DDR4 memory across four slots, accommodating speeds from 2133 MHz to 4800 MHz (OC). It utilizes a dual-channel architecture for optimal memory performance, ensuring efficient data handling for demanding applications. Access Point | |
Storage OptionsThe MSI B660M-A offers extensive storage compatibility with four SATA III ports and two M.2 slots for PCIe 4.0 drives. It also supports RAID configurations 0, 1, 5, and 10, providing flexibility for various storage setups and data redundancy. Router | |
 | |
 | |

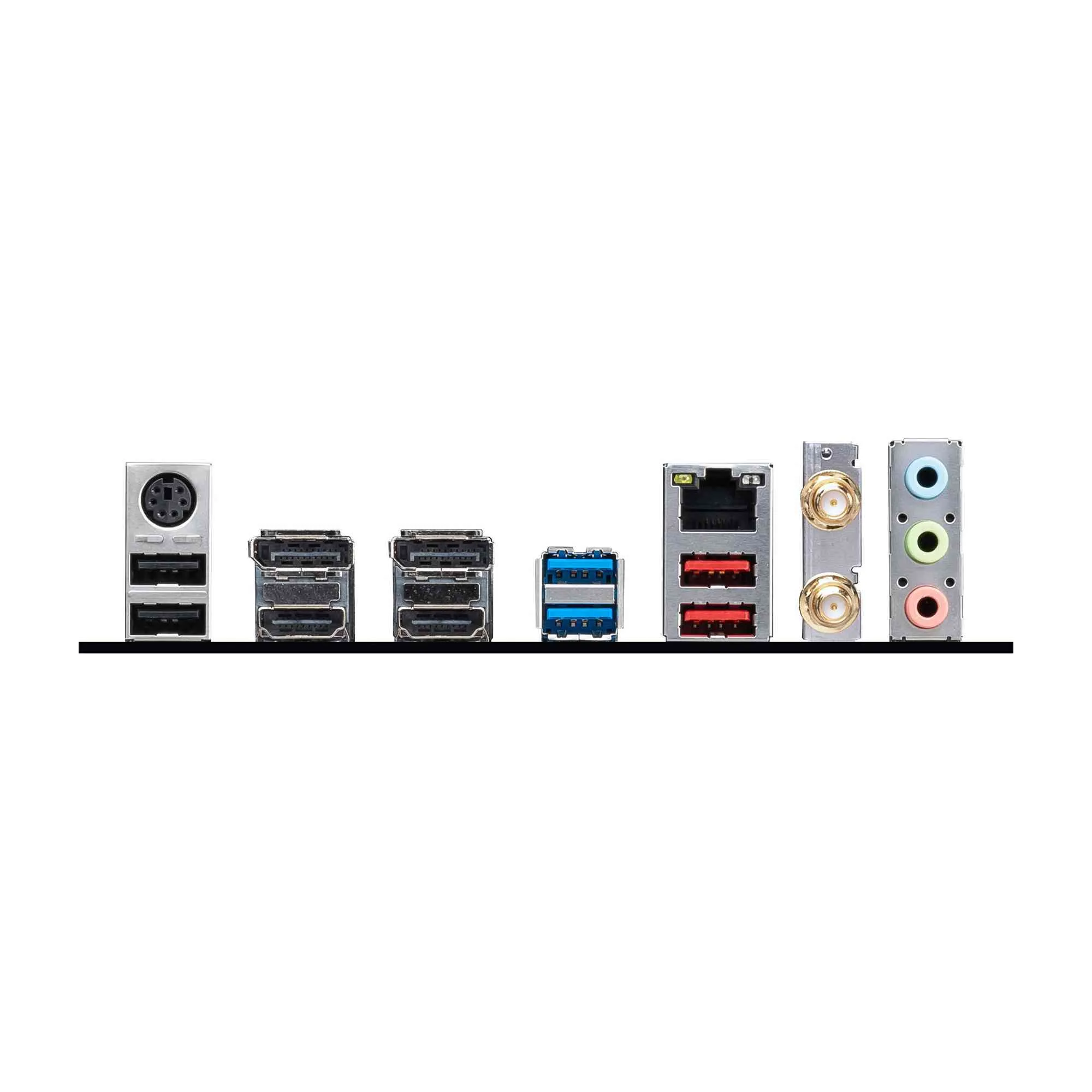

Connectivity FeaturesEquipped with Wi-Fi 6 (802.11ax) and Bluetooth 5.2, this motherboard ensures fast and reliable wireless connectivity. The back panel includes multiple USB ports, HDMI, and DisplayPort outputs, facilitating versatile connections for peripherals and displays. WiFi Router | |
Audio and ExpansionThe motherboard features a Realtek ALC897 audio codec for 7.1-channel sound, enhancing the multimedia experience. It also includes several expansion slots, including one PCIe 4.0 x16 and one PCIe 3.0 x16, allowing for additional graphics or other expansion cards. Mesh Router | |
 |
Key Specifications
- Model NoMSI Intel PRO B660M-A WIFI DDR4 MotherBoard
- Part No911-7D43-003ChipsetIntel® B660 ChipsetForm FactorMicro-ATX9.6 x 9.6" / 24.4 x 24.4 cmSocket
- Compatibility1700WirelessBluetooth 5.2Wi-Fi 6 (802.11ax) with MU-MIMO SupportModule Support 1 E Key M.2Memroy4 x 288-PinDDR4 2133, 2400, 2666, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800 MHzMaximum Capacity 128 GBDual ChannelNon-ECC Unbuffered
- Compatibility4 x SATA III1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)Optane
- Memory SupportRAID 0, 1, 5, 10 (SATA)Expansion Slot1 x PCIe 4.0 x161 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1Back Panel I/O Ports2 x USB-A (USB 3.1/3.2 Gen 2)2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)2 x USB-A (USB 2.0)2 x HDMI 2.12 x DisplayPort 1.43 x 1/8" / 3.5 mm1 x Realtek RTL8125BG 2.5Gigabit1 x PS/22 x ConnectorAudioRealtek ALC897 (7.1-Channel)Internal I/O Connectors1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)2 x 2.0 Header (Supports 4 USB-A Port)Multi-GPU Support: AMD CrossFireX1 x 4-Pin CPU2 x 4-Pin System1 x 4-Pin Pump1 x 24-Pin Mainboard1 x 8-Pin ATX1 x 4-Pin ATXSecurity:Chassis Intrusion, TPM Header3 x RGB LED HeaderClear CMOS Diagnostics1 x Thunderbolt Header1 x SerialSpecial FeaturesMicro-ATX Form FactorIntel B660 ChipsetLGA 1700 Socket4 x Dual-Channel DDR4-4800 (OC) Slots4 x SATA III, 2 x M.21 x PCIe x16, 1 x PCIe 3.0 x4 Slots1 x PCIe 3.0 x1 Slot2 x DisplayPort, 2 x HDMIWi-Fi 6 (802.11ax), 2.5 Gigabit EthernetWindows 11 & Windows 10 (64-Bit) SupportWeight3.015 lb
- Warranty1 Year ( As per Manufacturer Policy )
