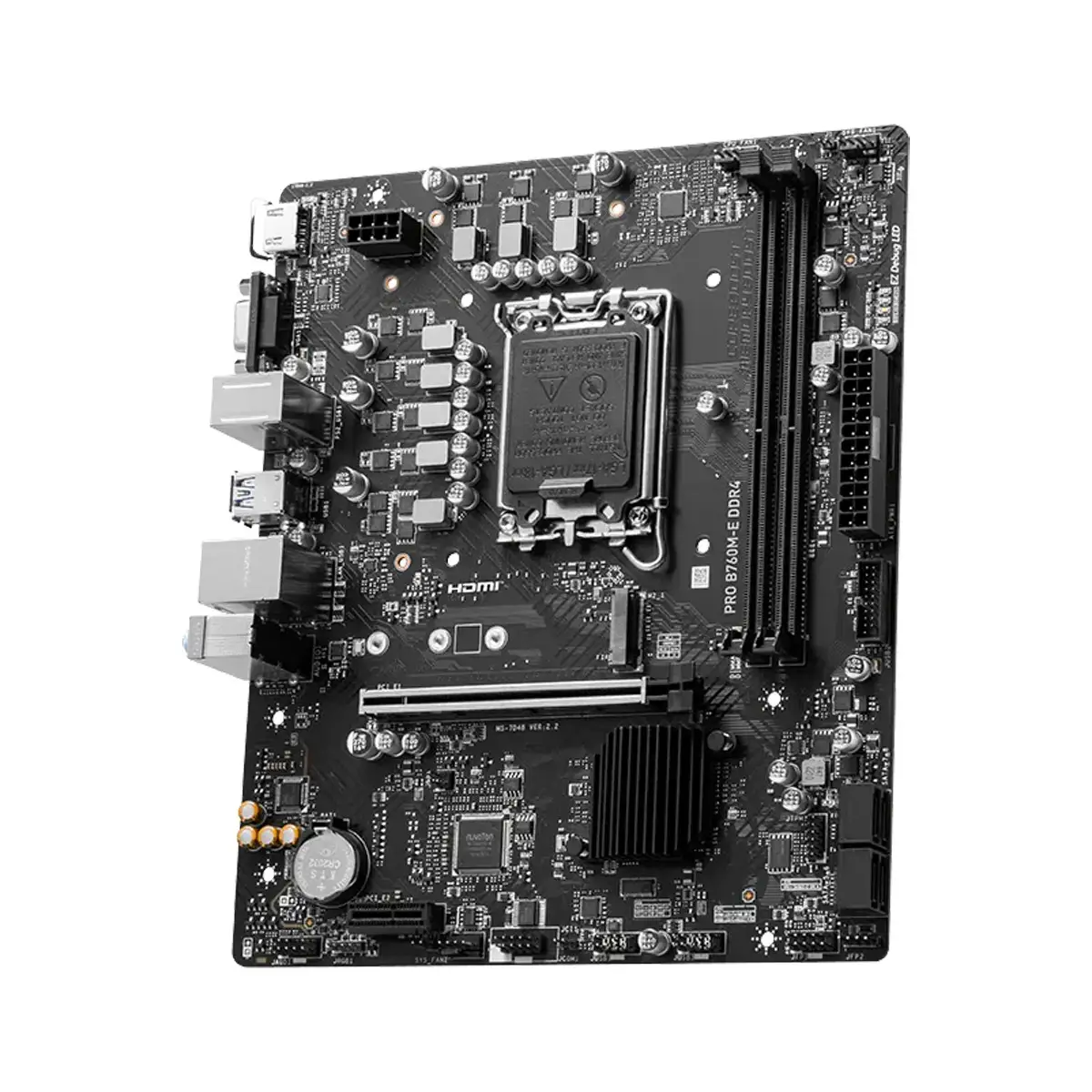

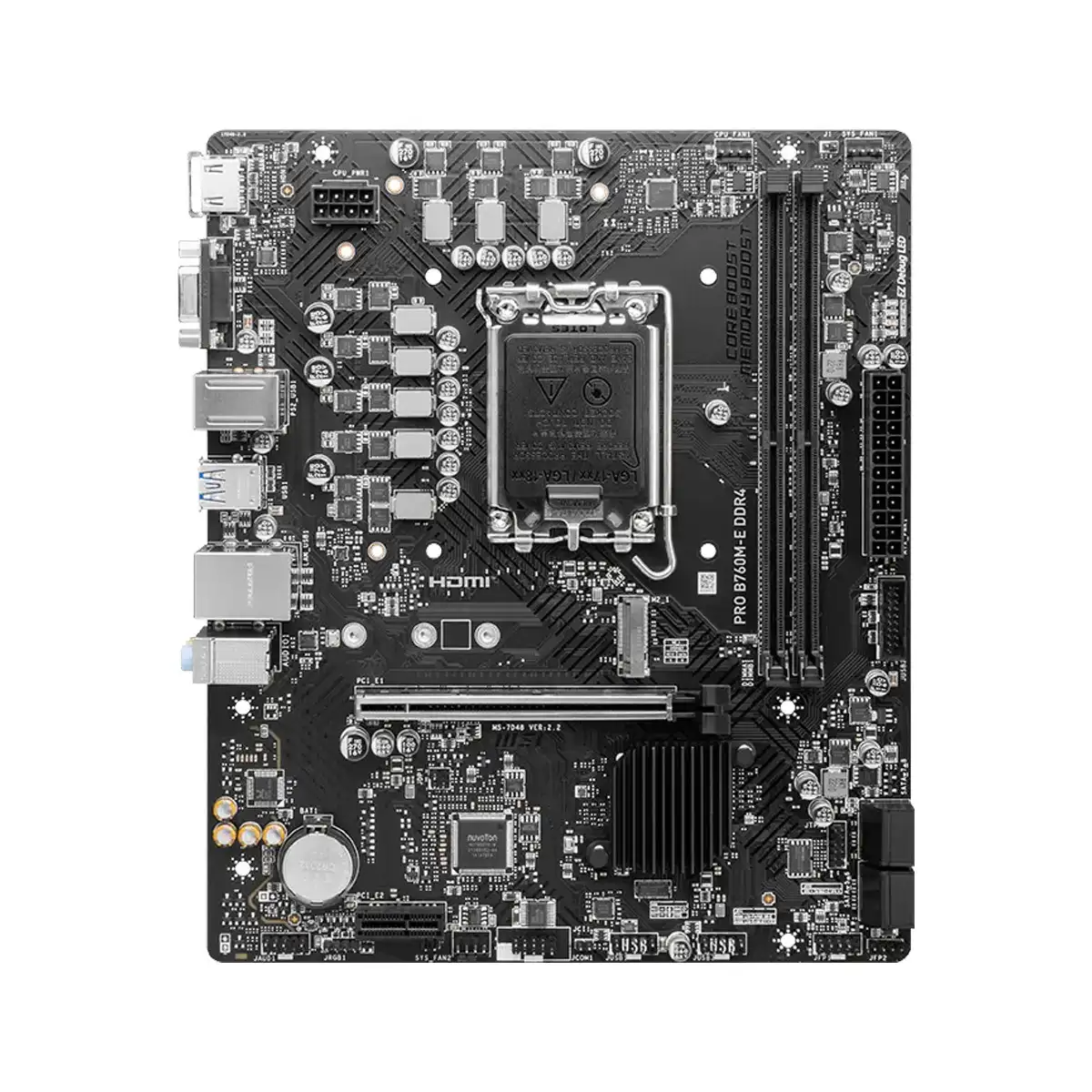

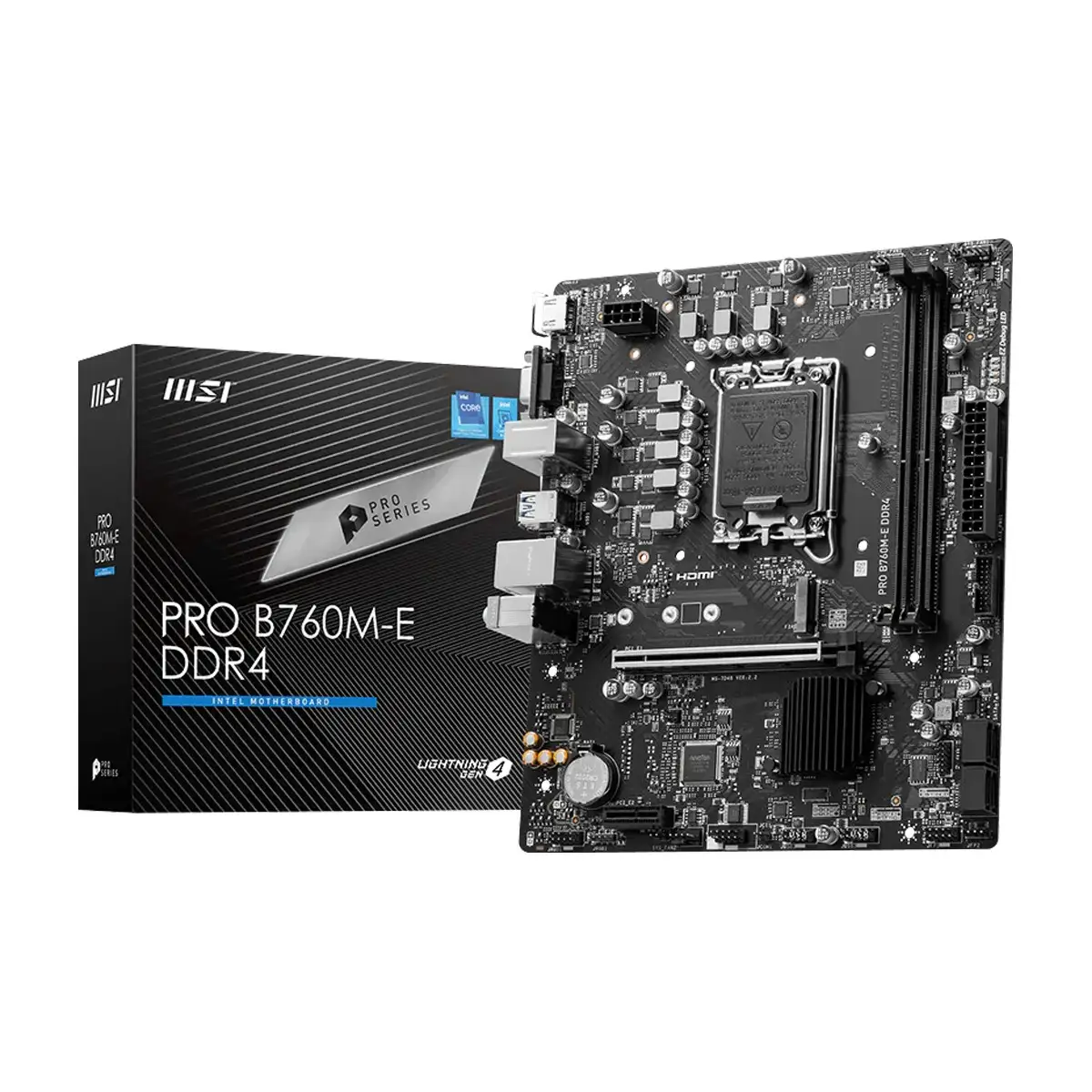

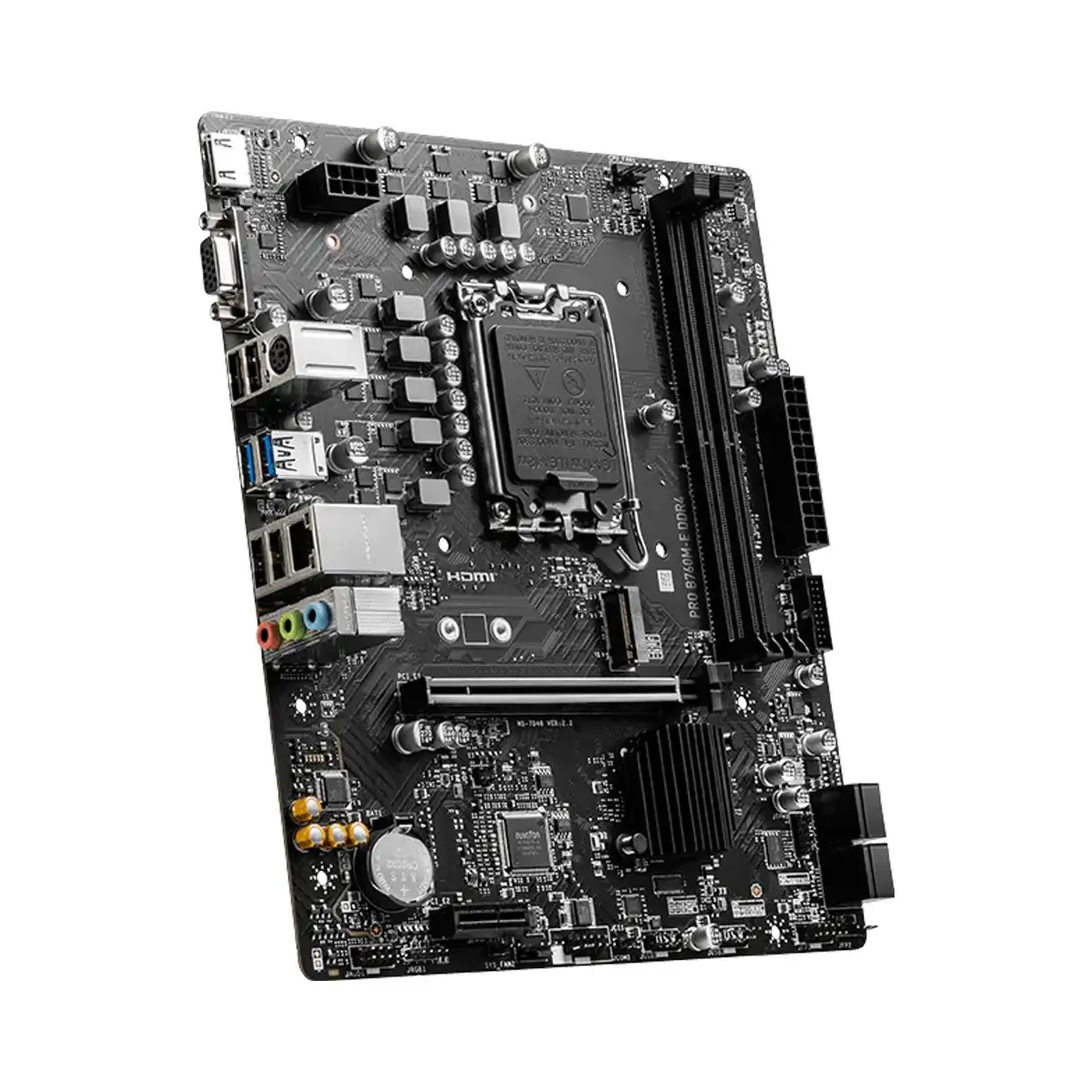

MSI Intel PRO B760M-E DDR4 MotherBoard
In stock
The MSI Intel PRO B760M-E DDR4 Motherboard features a Micro-ATX form factor and supports Intel LGA 1700 processors. It includes 2 DDR4 DIMM slots for up to 128GB memory, Realtek Gigabit LAN, and multiple USB ports, suitable for everyday computing and upgrades
KWD 37.050
KWD 39.645
SKU :
911-7D48-061
4 interest-free payments of KWD 9.911Learn more
Estimated delivery:1 work day
Free return within: 14 days of purchaseSecure shopping your data is always safeOverview
Model OverviewThe MSI Intel PRO B760M-E DDR4 Motherboard is designed for micro-ATX builds, featuring a robust Intel® B760 chipset. It supports Intel® LGA 1700 socket processors, including the latest 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors. | |
 | |
 | |
Memory and StorageThis motherboard accommodates up to 128GB of DDR4 memory across two DIMM slots, with support for dual-channel configurations and overclocking up to 4800 MT/s. Storage options include one M.2 PCIe 4.0 x4 slot and four SATA 6Gb/s ports for versatile data management. RAM | |

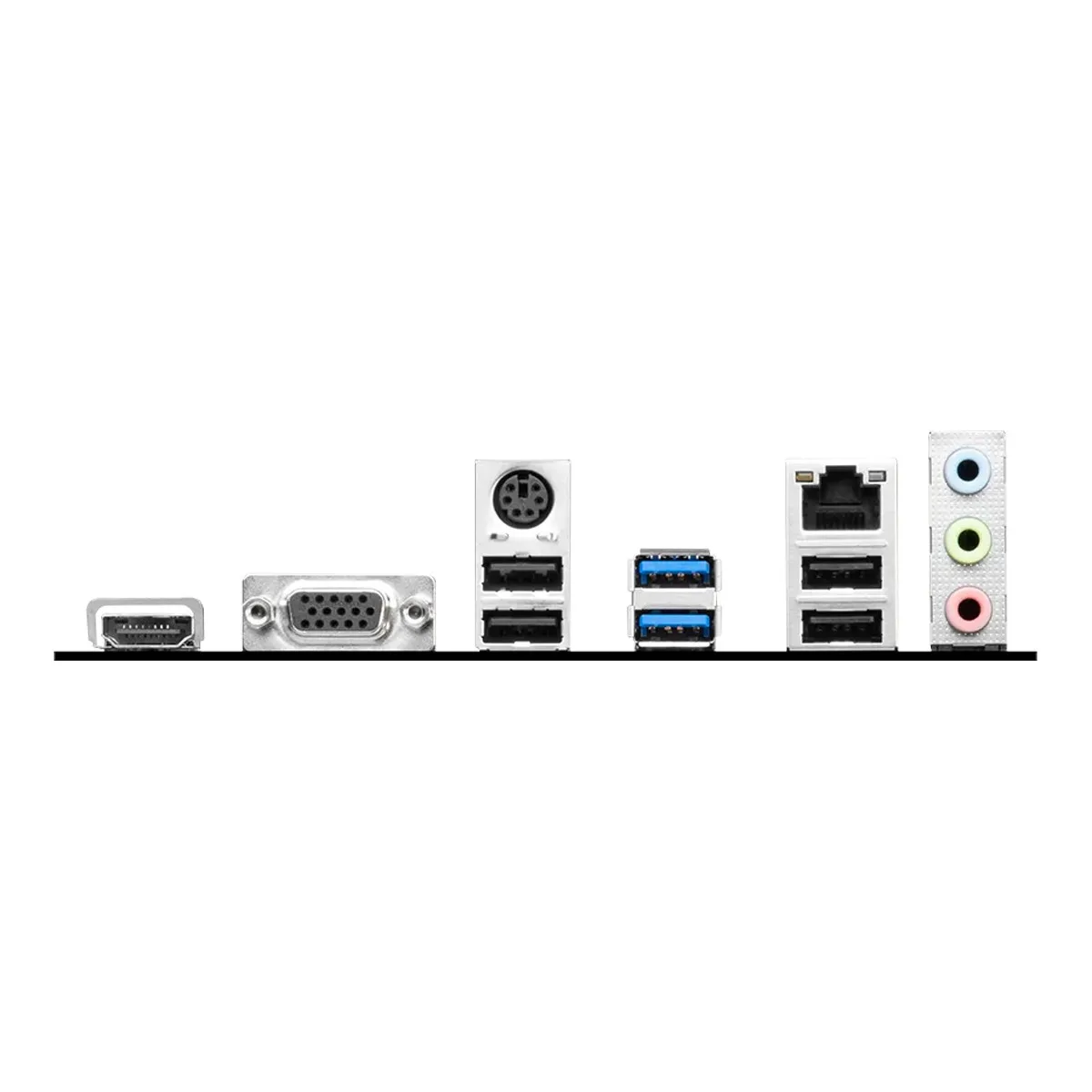

Audio and ConnectivityEquipped with Realtek® ALC897 7.1-Channel HD Audio, the motherboard ensures high-quality sound output. Connectivity options include four USB 3.2 Gen 1 Type-A ports, two USB 2.0 Type-A ports, HDMI 2.1, VGA, and a RJ45 LAN port for comprehensive peripheral support. Memory | |
 | |
 | |
Expansion and FeaturesThe MSI PRO B760M-E includes one PCIe 4.0 x16 and one PCIe 3.0 x1 expansion slot, allowing for additional graphics or network cards. Special features like Core Boost, Memory Boost, and EZ Debug LED enhance performance and troubleshooting capabilities. RAM | |
Dimensions and WarrantyThis motherboard measures 243.8 × 211 mm and weighs approximately 0.8 kg, making it suitable for compact builds. It comes with a one-year warranty as per manufacturer policy, ensuring reliability and support for your system. RAM | |
 |
Key Specifications
- Model NoPRO B760M-E DDR4
- Part No911-7D48-061ChipsetIntel® B760Form FactorMicro-ATXSocket
- CompatibilityIntel® LGA 1700 (Supports 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
- Processors)Wireless & BluetoothNo Built-in Wi-Fi / BluetoothLanRealtek® RTL8111H Gigabit LANMemroy TypeDDR4
- Compatibility2 × DDR4 DIMM Slots, Dual Channel, Up to 128GB, DDR4 OC up to 4800 MT/s, Intel® XMP SupportLightingNo Integrated RGB Lighting, 1 × RGB LED Header
- Compatibility1 × M.2 PCIe 4.0 x4 Slot, 4 × SATA 6Gb/sBack Panel I/O Ports4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 Type-A, 1 × HDMI 2.1, 1 × VGA, 1 × RJ45 LAN, 3 × Audio Jacks, PS/2 Combo PortUSB Ports Front (Support )1 × USB 3.2 Gen 1 Header, 2 × USB 2.0 HeadersExpansion Slots1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1AudioRealtek® ALC897 7.1-Channel HD AudioInternal I/O Connectors24-Pin ATX
- Power, 8-Pin CPU
- Power, CPU Fan Header, System Fan Header, USB Headers, Front Panel Header, Front Audio Header, TPM Header, RGB LED Header, SATA PortsSpecial FeaturesCore Boost,
- Memory Boost, EZ Debug LED, Audio Boost, Steel Armor PCIe Slot, Click BIOS 5, MSI Center
- Package ContentMotherboard, 2 × SATA Cables, M.2 Screw, Quick Installation Guide, User Manual
- Product Size ( Dimension )243.8 × 211 mm
- Product WeightApprox. 0.8 kg
- Warranty1 Year ( As per Manufacturer Policy )
