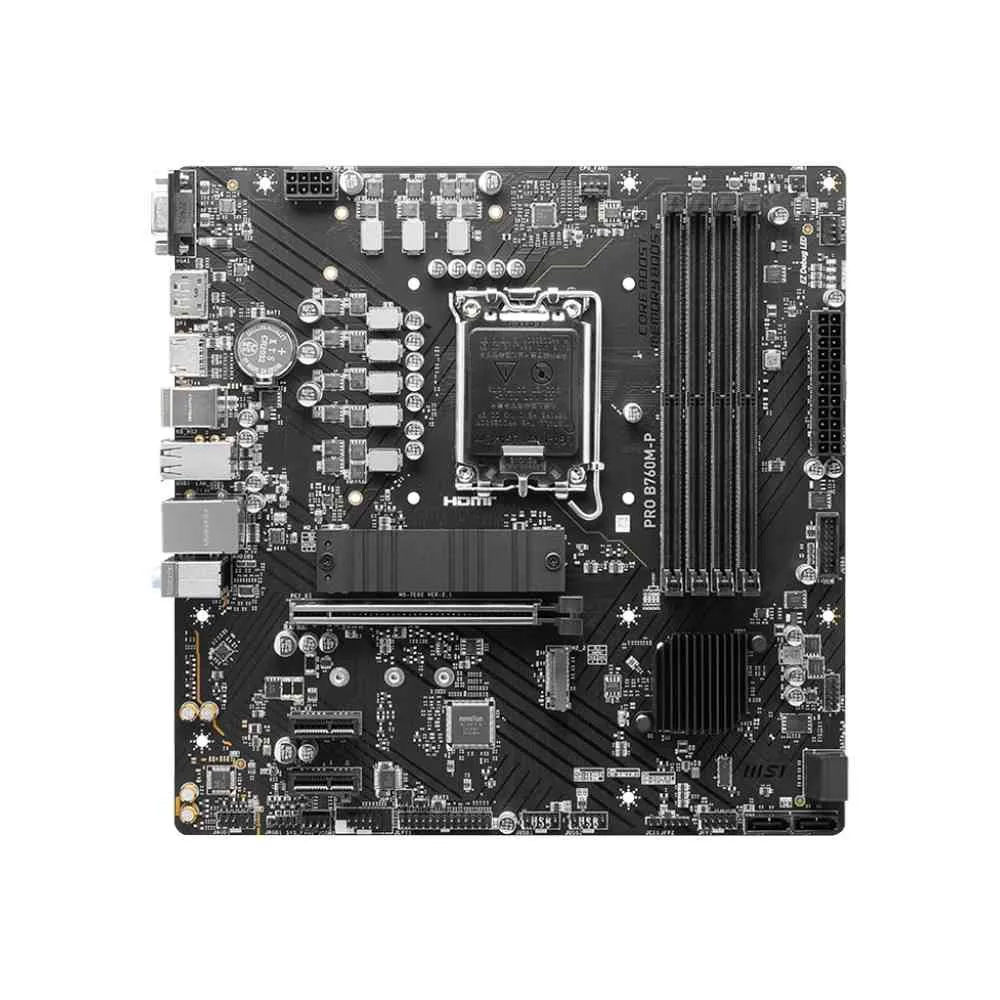

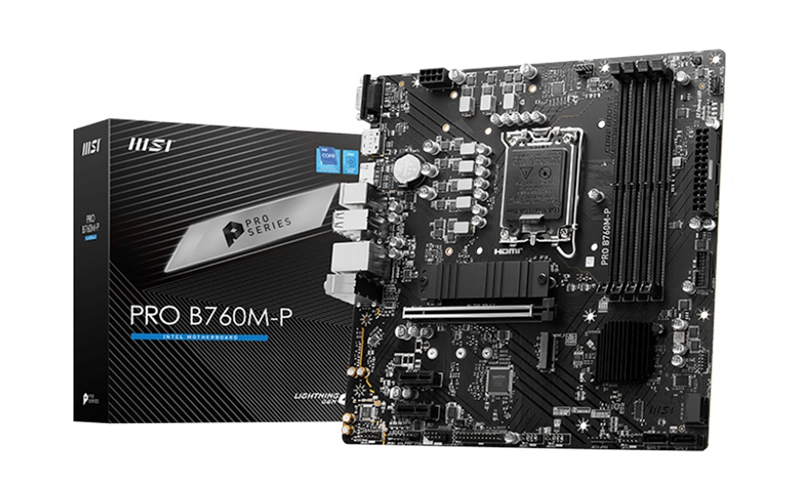

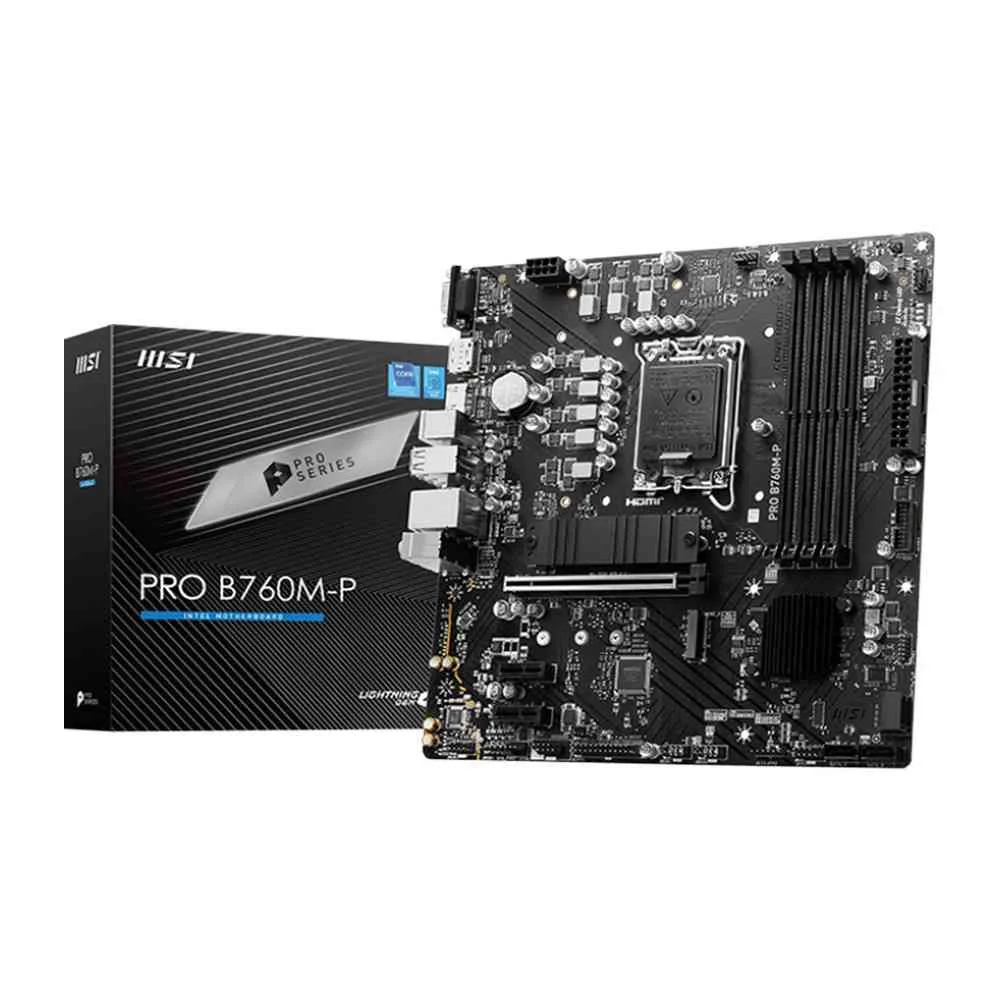

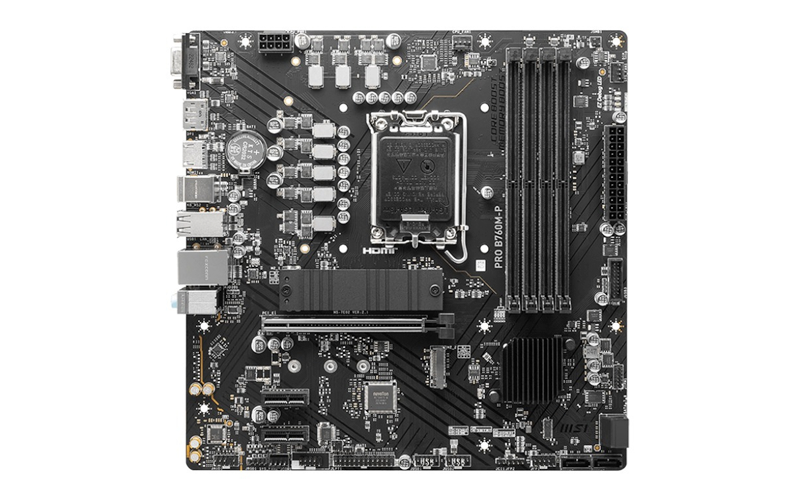

MSI Intel PRO B760M-P DDR5 MotherBoard

Model No : MSI Intel PRO B760M-P DDR5 MotherBoard Part No : 911-7E02-026 Chipset : INTEL B760 Form Factor : mATX Socket Compatibility : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700 Wireless & Bluetooth : No LAN : Realtek® RTL8111H Gigabit LAN Memroy Type : 4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory Onboard Graphics : 1x HDMI™Support HDMI™ 1.4, maximum resolution of 4K 30Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Storage Compatibility : 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. Back Panel I/O Ports : VGADisplayPortHDMI™Keyboard / MouseUSB 2.0LAN portAudio ConnectorsUSB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-C) USB Ports Front (Support ) : 4x USB 2.0 (Rear)4x USB 2.0 (Front)1x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Rear) Expansion Slots : 1x PCI-E x16 slot2x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) Audio : Realtek® ALC897 Codec7.1-Channel High Definition Audio Internal I/O Connectors : 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Printer Port (JLPT)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports Special Features : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socketSupports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)Core Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityLightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield FrozrAUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceSteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength Product Size ( Dimension ) : 243.84mmx304.8mm Warranty : 1 Year ( As per Manufacturer Policy )
