MSI Intel PRO B760M-A WIFI DDR5 LGA1700 Motherboard

4
★★★★★★★★★★
Ratings5
The MSI Intel PRO B760M-A WIFI DDR5 LGA1700 Motherboard supports 12th and 13th Gen Intel® Core™ processors. It features a compact mATX form factor, dual HDMI™ 2.1 outputs, and supports up to 192GB of DDR5 memory at 6800 MHz, suitable for gaming and professional use
KWD 49.590
KWD 53.060
SKU :
911-7D99-007
4 interest-free payments of KWD 13.265Learn more
Split into 4 payments of KWD 13.265 interest-free.Learn more
Taly
Estimated delivery:1 work day
Free return within: 14 days of purchase
Secure shopping your data is always safe
Overview

Model Overview

The MSI Intel PRO B760M-A WIFI DDR5 Motherboard is designed for high-performance computing. It features an ATX form factor, measuring 243.84mm x 243.84mm, and is compatible with 12th and 13th Gen Intel® Core™ processors, as well as Pentium® Gold and Celeron® processors using the LGA 1700 socket.

Model Overview
Networking Capabilities

Networking Capabilities

Equipped with Realtek® RTL8125BG 2.5G LAN and Intel® Wi-Fi 6E, this motherboard ensures fast and reliable connectivity. The integrated wireless module supports MU-MIMO and operates across 2.4GHz, 5GHz, and 6GHz bands, providing speeds up to 2.4Gbps, depending on country regulations. Access Point

Memory Support

The motherboard supports up to 192GB of DDR5 memory across four slots, with speeds ranging from 4800MHz to 6800MHz (OC). It features Intel® XMP 3.0 for easy overclocking and supports dual-channel memory configurations, enhancing overall system performance. Router

Memory Support
Storage Options

Storage Options

The MSI B760M-A offers versatile storage solutions with two M.2 slots and four SATA 6G ports. The M.2_1 slot supports PCIe 4.0 x4, while M.2_2 can operate in either PCIe 4.0 x4 or SATA mode, accommodating various storage devices for optimal performance. WiFi Router

Audio and Expansion

This motherboard features Realtek® ALC897 Codec for 7.1-channel high-definition audio, ensuring an immersive sound experience. Additionally, it includes multiple expansion slots, with two PCI-E x16 slots and one PCI-E x1 slot, allowing for enhanced graphics and peripheral connectivity. Mesh Router

Audio and Expansion

Key Specifications

  • Model NoMSI Intel PRO B760M-A WIFI DDR5 Motherboard
  • Part No911-7D99-007ChipsetINTEL B760Form FactormATX243.84mmx243.84mmSocket
  • CompatibilitySupports 12th/13th Gen Intel® Core™
  • Processors, Pentium® Gold and Celeron®
  • ProcessorsLGA 1700LANRealtek® RTL8125BG 2.5G LANWirelessIntel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
  • Graphics2x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*2x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics.
  • Graphics specifications may vary depending on the CPU installed.Memroy4x DDR5, Maximum
  • Memory Capacity 192GB
  • Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory

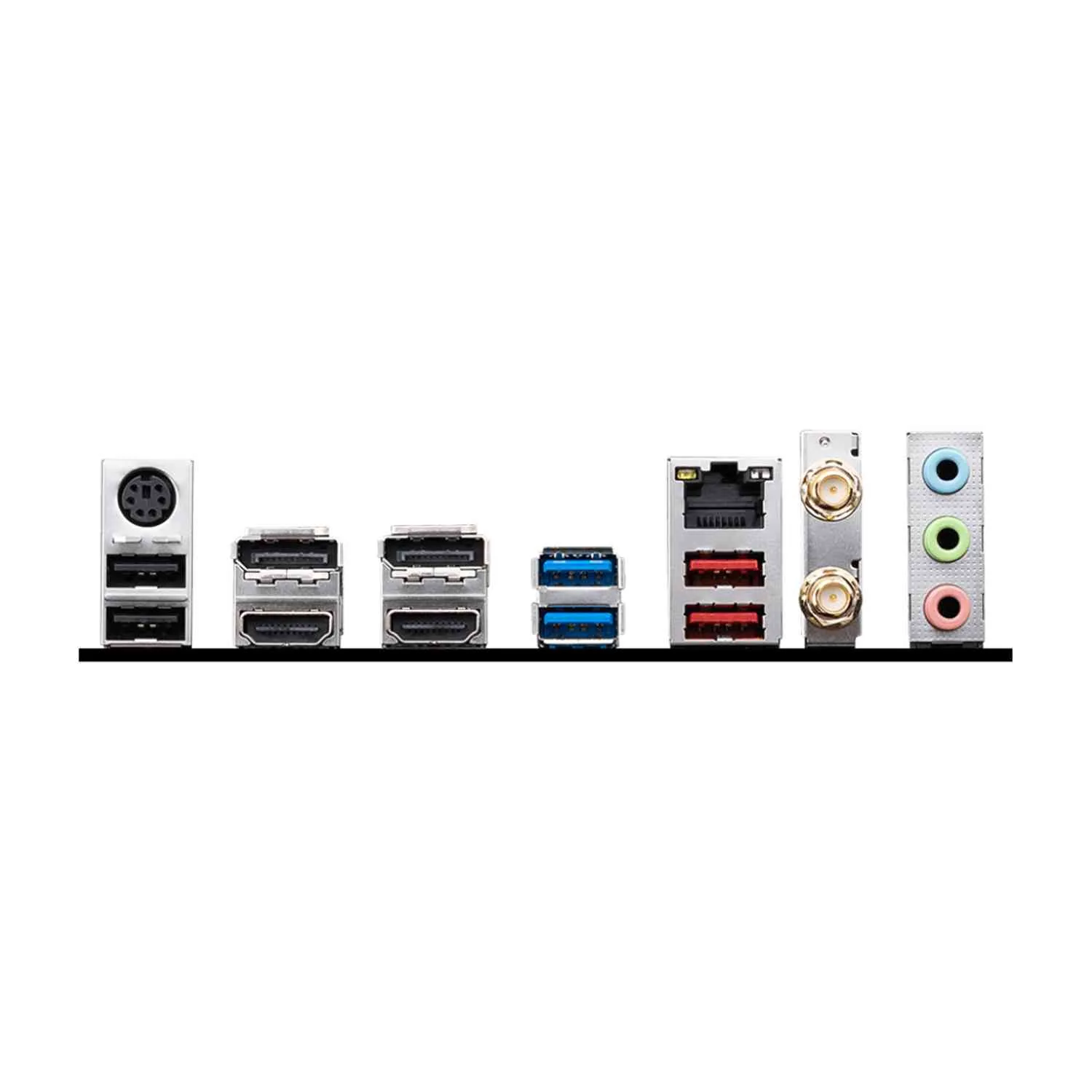

  • Compatibility2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.Expansion Slot2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)Back Panel I/O PortsKeyboard / MouseDisplayPortUSB 3.2 Gen 1 5Gbps (Type-A)2.5G LANWi-Fi / BluetoothAudio ConnectorsUSB 2.0HDMI™USB 3.2 Gen 2 10Gbps (Type-A)AudioRealtek® ALC897 Codec7.1-Channel High Definition AudioInternal I/O Connectors1x
  • Power Connector(ATX_PWR)2x
  • Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen1 Type C portsUSB2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen1 Type C (Front)2x USB 3.2 Gen2 Type A (Rear)LED Features4x EZ Debug LEDRAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSpecial FeaturesSupports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socketSupports DDR5
  • Memory, Dual Channel DDR5 6800+MHz (OC)Enhanced
  • Power Design: 12+1 Duet Rail
