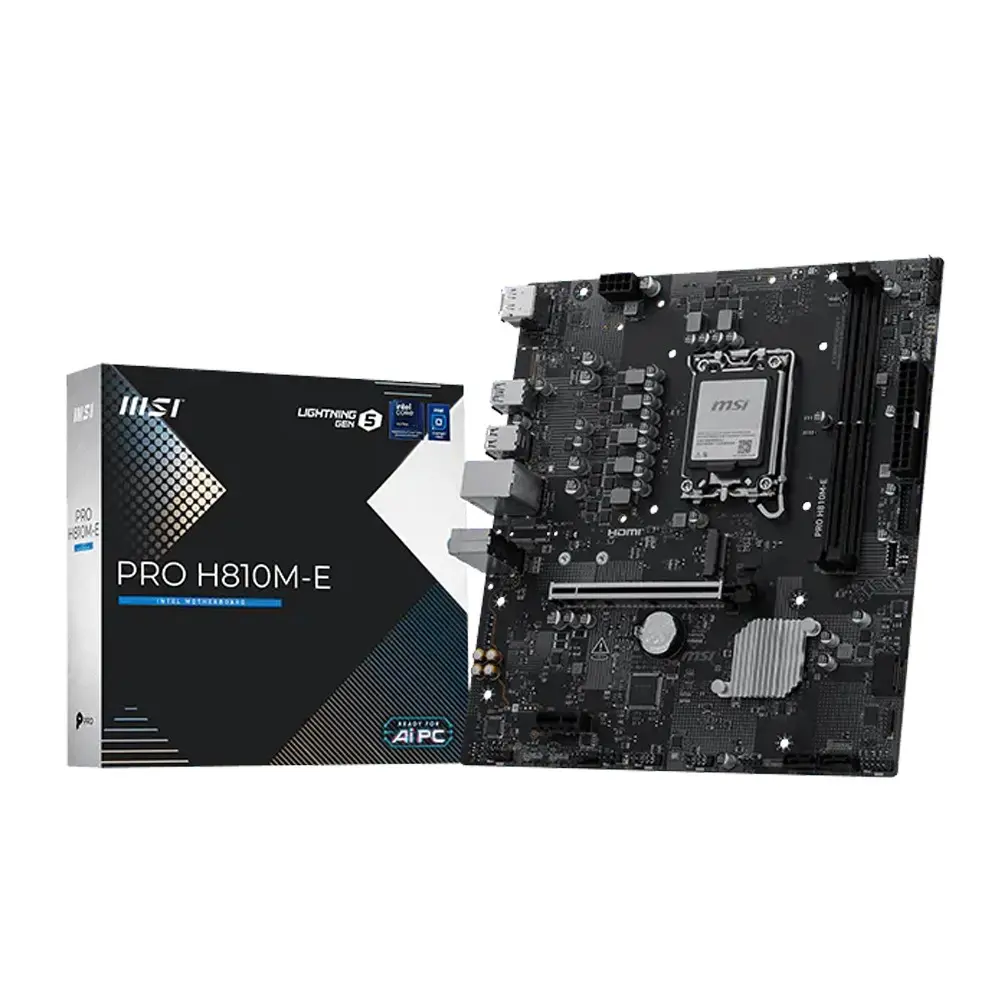

MSI Intel PRO H810M-E DDR5 Gaming MotherBoard

Next-Generation Intel Motherboard with DDR5 Support

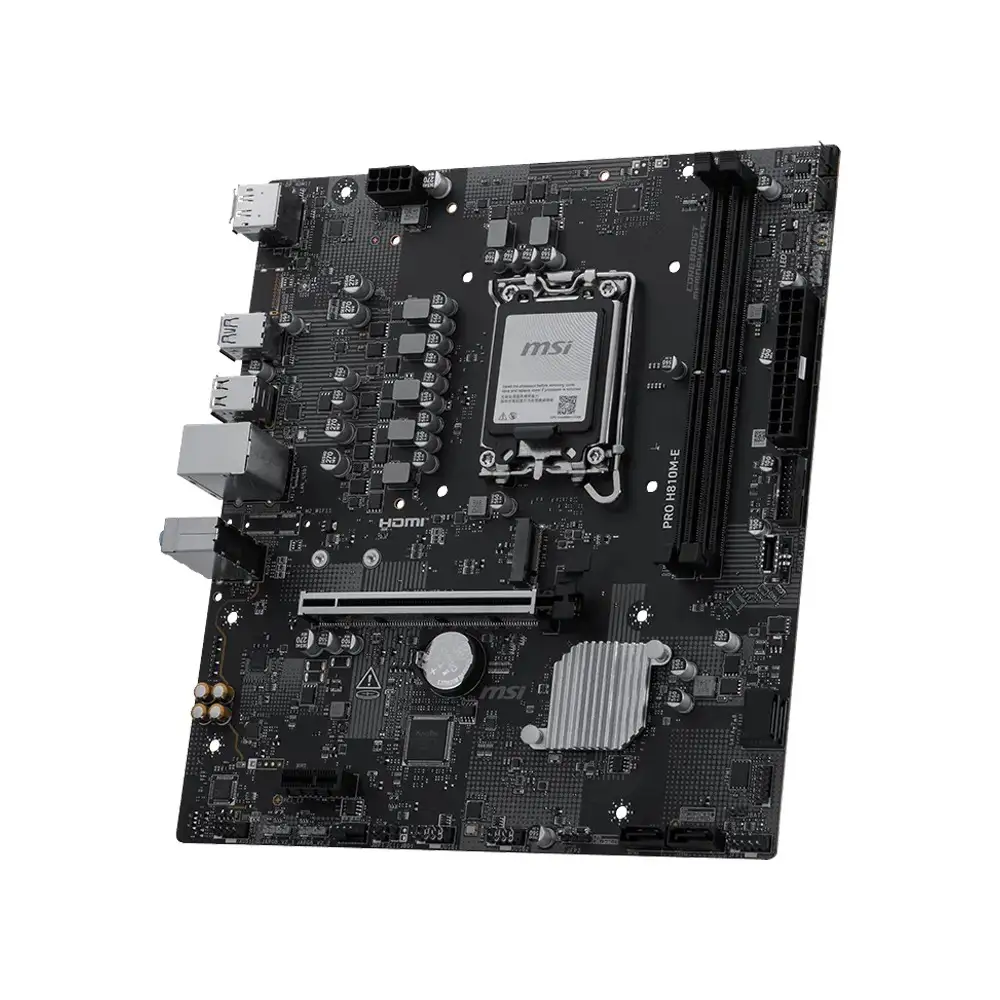

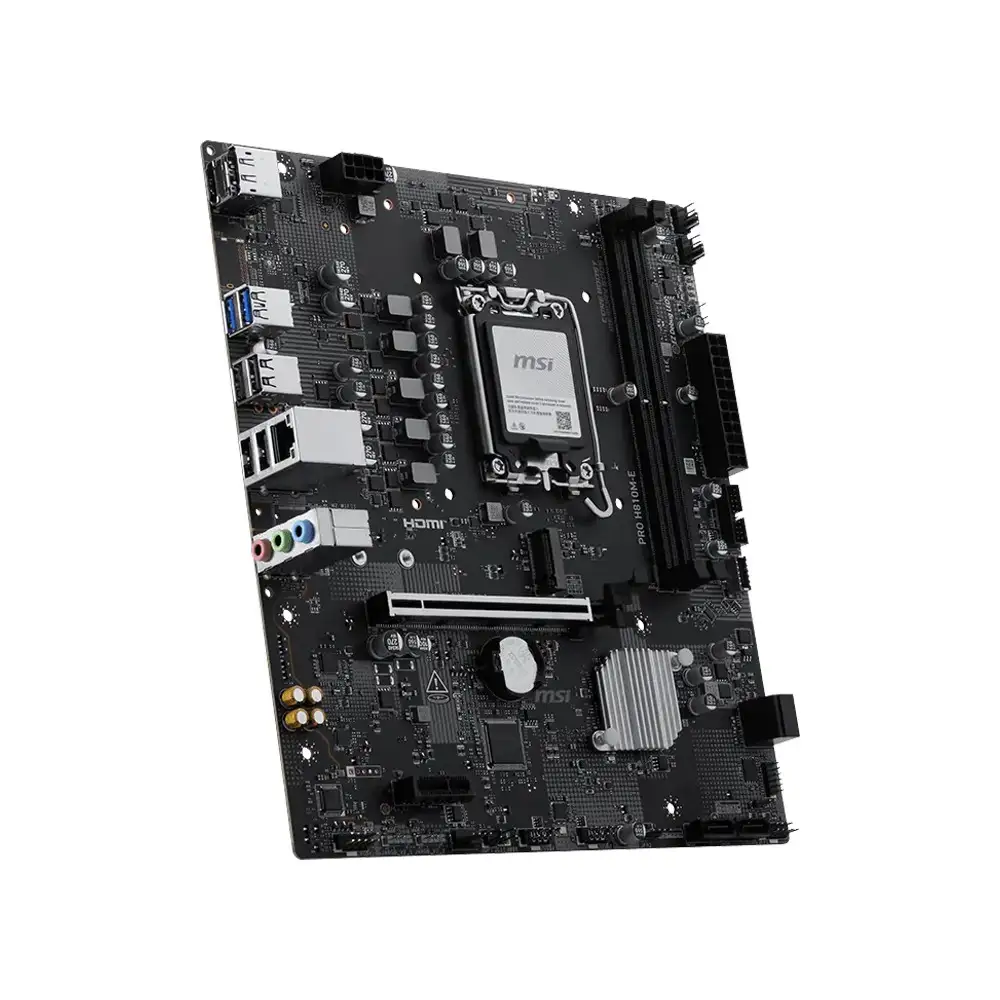

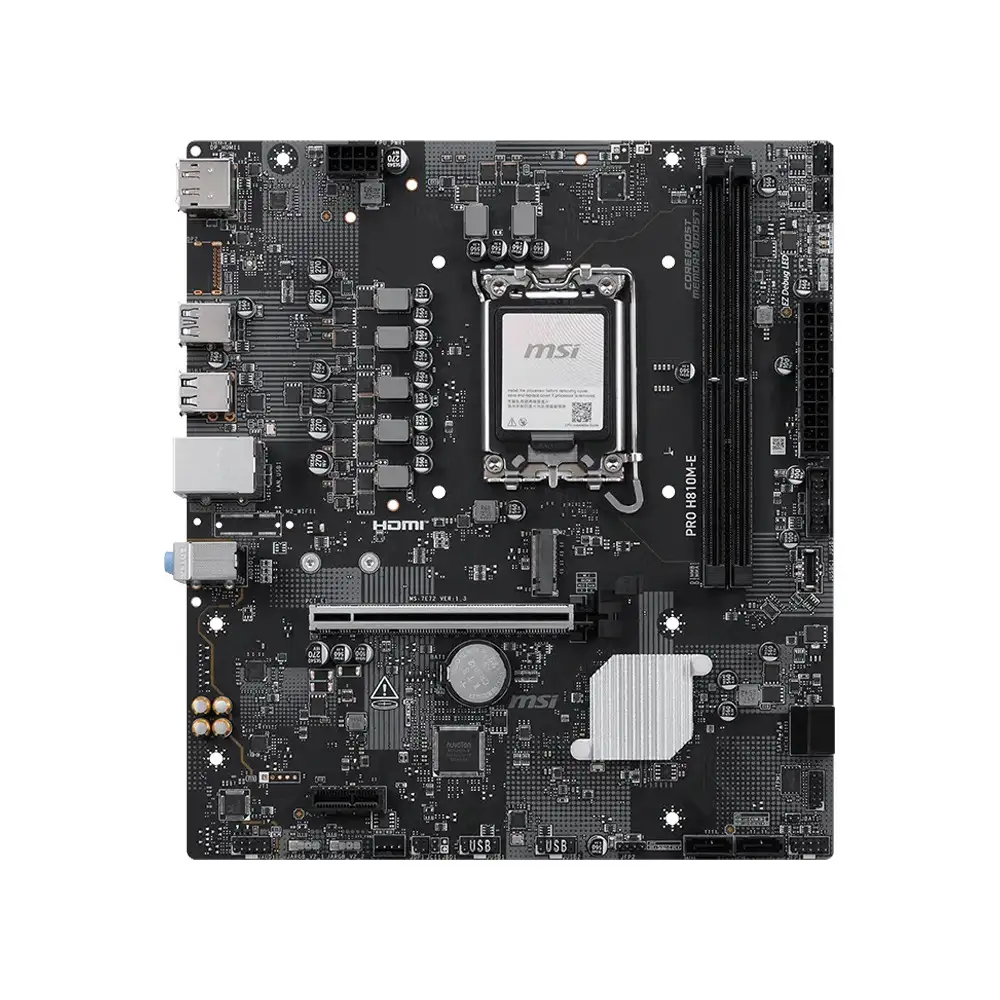

The MSI PRO H810M-E DDR5 is a modern micro-ATX motherboard built for Intel’s latest desktop processors using the LGA 1851 socket. Based on the Intel H810 chipset, it supports Intel Core Ultra Processors (Series 2), making it an excellent choice for budget gaming PCs, office systems, and productivity-focused builds. Its compact design and professional black-and-silver styling fit seamlessly into both gaming and workstation setups.

DDR5 Memory and High-Speed Expansion

This Gaming motherboard supports up to 128GB of DDR5 memory across two DIMM slots, with speeds up to DDR5-6400 MT/s (JEDEC) depending on the installed processor and memory configuration. It includes a PCIe 5.0 x16 slot for next-generation graphics cards and a PCIe 4.0 M.2 slot for high-speed NVMe SSDs, enabling faster load times and excellent overall system responsiveness. MSI also integrates Memory Boost technology to enhance memory stability and compatibility.

Reliable Connectivity and MSI EZ DIY Features

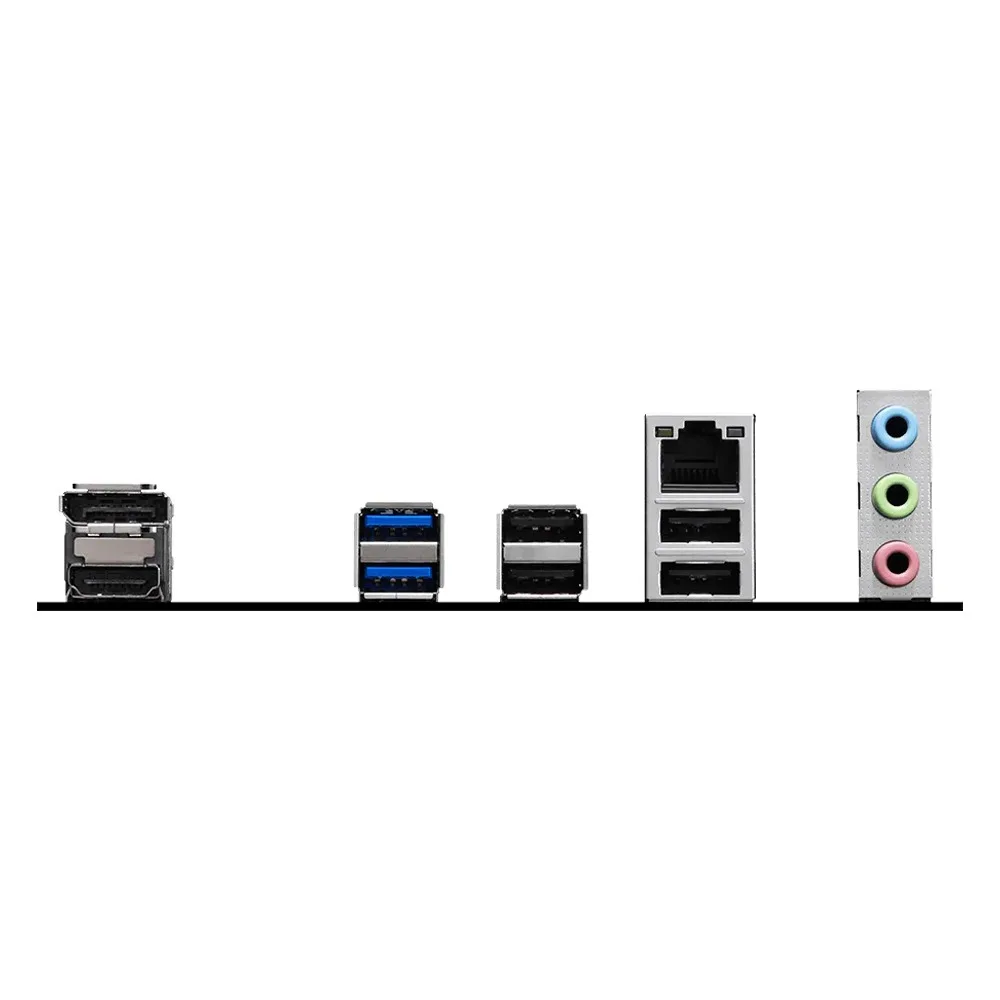

The PRO H810M-E is equipped with 2.5Gbps LAN, HDMI 2.1, DisplayPort 1.4, USB 5Gbps ports, and front-panel USB Type-C support for modern connectivity. Additional features such as EZ PCIe Clip II, EZ Debug LEDs, and MSI Click BIOS X simplify assembly, troubleshooting, and system tuning. Audio Boost with the Realtek ALC897 codec provides clear 7.1-channel sound, while Frozr AI Cooling helps automate fan control for stable and quiet performance.

Key Specifications

• Product Name: MSI Intel PRO H810M-E DDR5 Motherboard

• Chipset: Intel H810

• CPU Socket: LGA 1851

• Form Factor: Micro-ATX (220 × 243.84 mm)

• Processor Support: Intel Core Ultra Processors (Series 2)

• Memory Support: 2 × DDR5 DIMM Slots

• Maximum Memory Capacity: 128GB

• Memory Speed: DDR5 4800–6400 MT/s (JEDEC)

• Graphics Slot: 1 × PCIe 5.0 x16

• Additional Slot: 1 × PCIe 4.0 x1

• Storage: 1 × PCIe 4.0 x4 M.2, 4 × SATA 6Gb/s

• Networking: Realtek 2.5Gbps LAN

• Video Outputs: HDMI 2.1 and DisplayPort 1.4 (with compatible CPU)

• Audio: Realtek ALC897 7.1-Channel HD Audio

• USB Connectivity: Rear USB 5Gbps Type-A, Front USB Type-C (5Gbps)

• Special Features: EZ PCIe Clip II, EZ Debug LED, Memory Boost, Audio Boost

• Operating System Support: Windows 11 64-bit

• Usage: Gaming, Productivity, Office, AI-PC Builds
