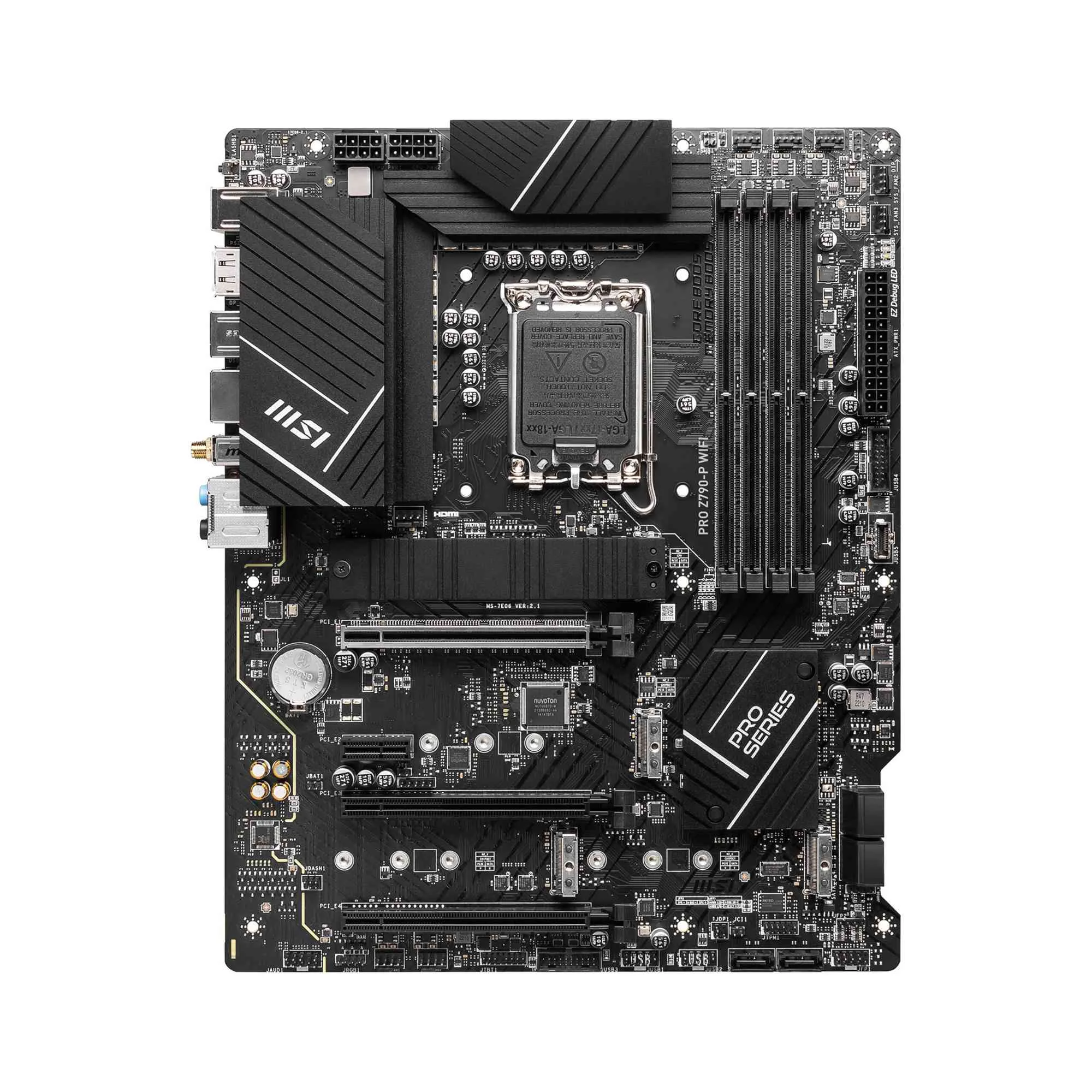

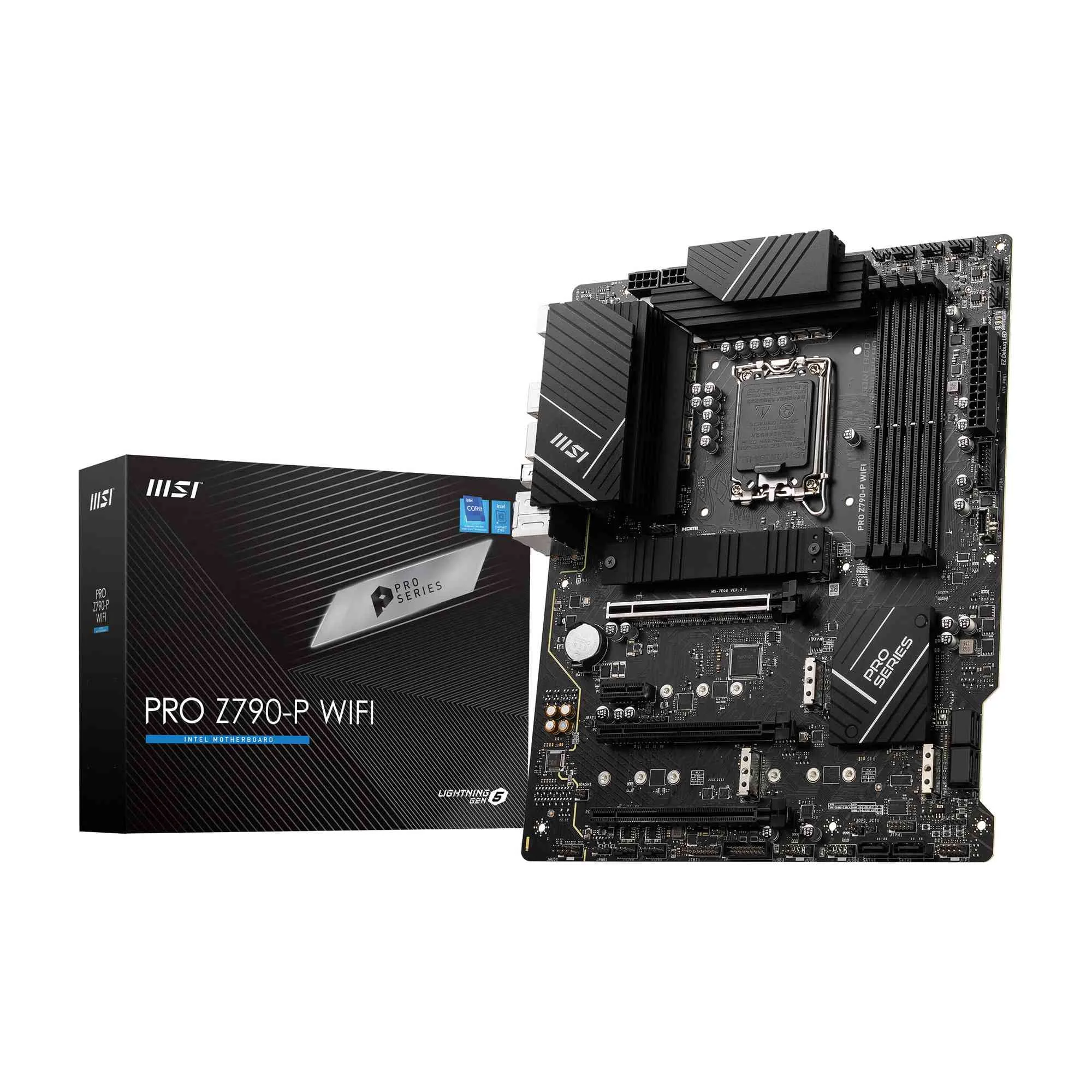

MSI Intel PRO Z790-P WIFI DDR5 LGA 1700 MotherBoard

Model No : MSI Intel PRO Z790-P WIFI DDR5 MotherBoard Part No : 911-7E06-010 Chipset : INTEL Z790 Form Factor : ATX243.84mmx304.8mm Socket Compatibility : Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA 1700 LAN : Intel® 2.5Gbps LAN Wireless : Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. Graphics : Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*Support DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.1x HDMI™1x DisplayPort Memroy : 4x DDR5, Maximum Memory Capacity 128GBMemory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7000+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory Storage Compatibility : 4x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices6x SATA 6G port Expansion Slot : 3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 PCIe 5.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) Back Panel I/O Ports : Keyboard / MouseDisplayPortUSB 2.02.5G LANWi-Fi / BluetoothAudio ConnectorsFlash BIOS ButtonUSB 2.0HDMI™USB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2x2 20Gbps (Type-C)USB 3.2 Gen 2 10Gbps (Type-A) Audio : Realtek® ALC897 Codec7.1-Channel High Definition Audio Internal I/O Connectors : 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.04x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C USB : 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear) LED Features : 4x EZ Debug LED RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices Special Features : Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socketSupports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory BoostPremium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experienceHigh Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level materialLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionAUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience Warranty : 1 Year ( As per Manufacturer Policy )
