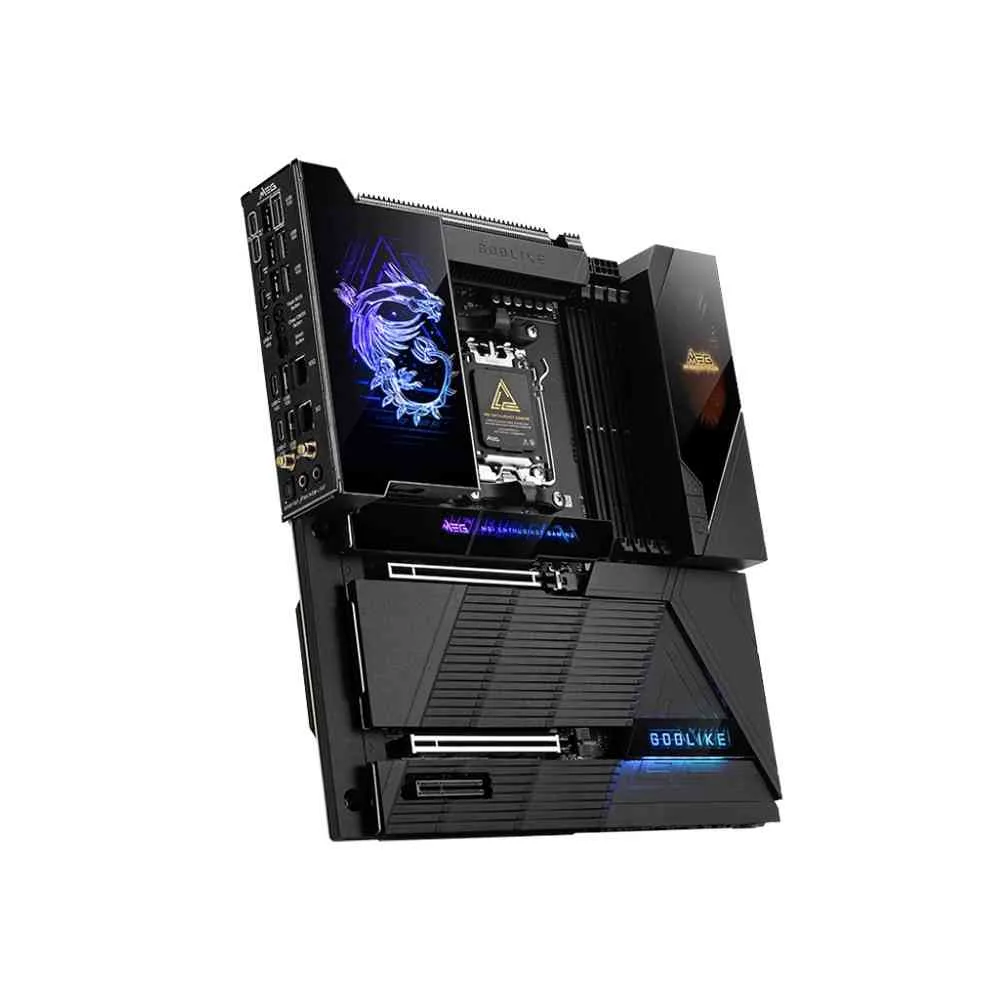

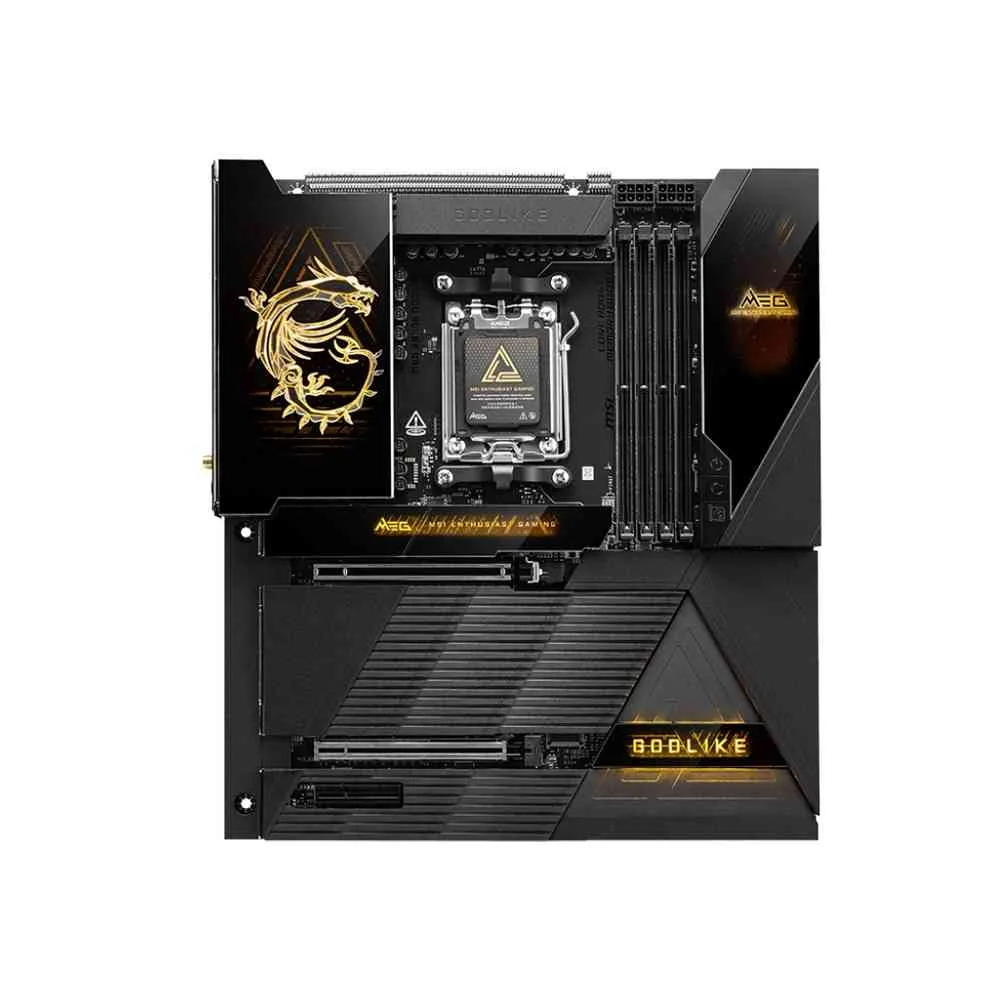

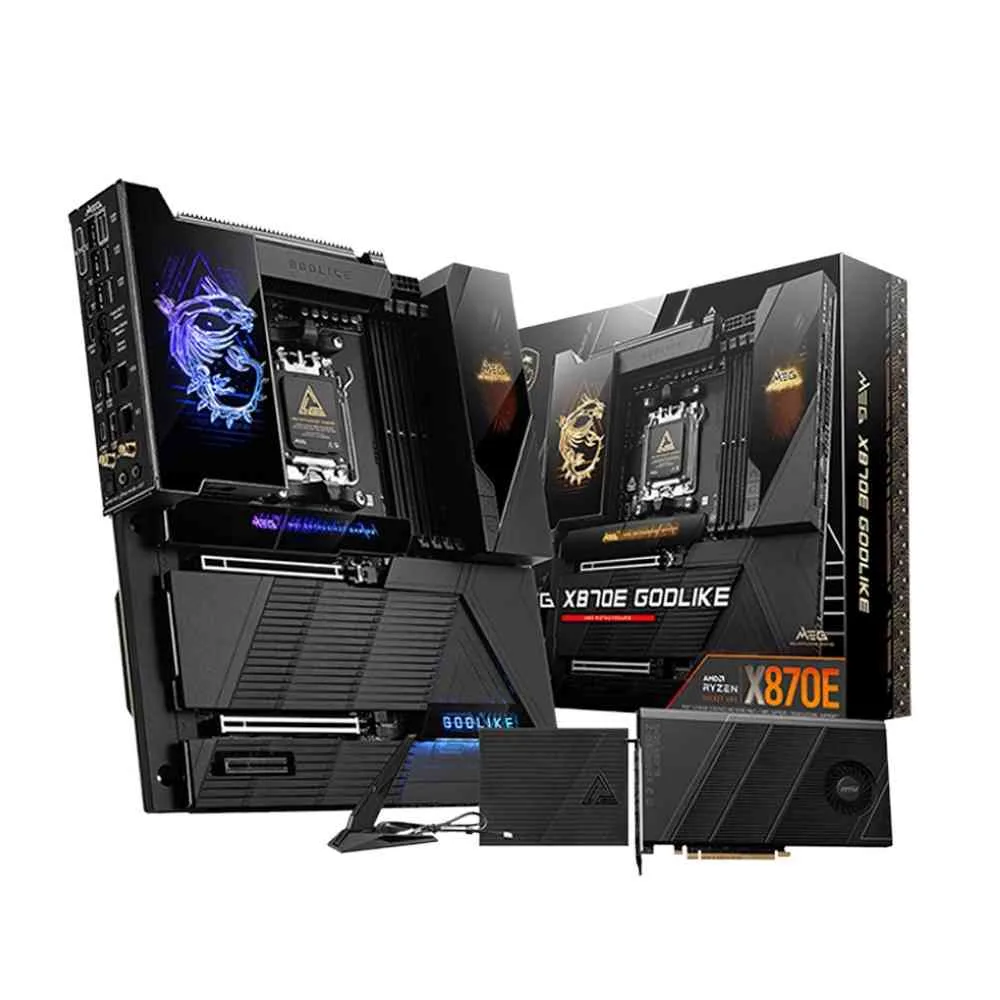

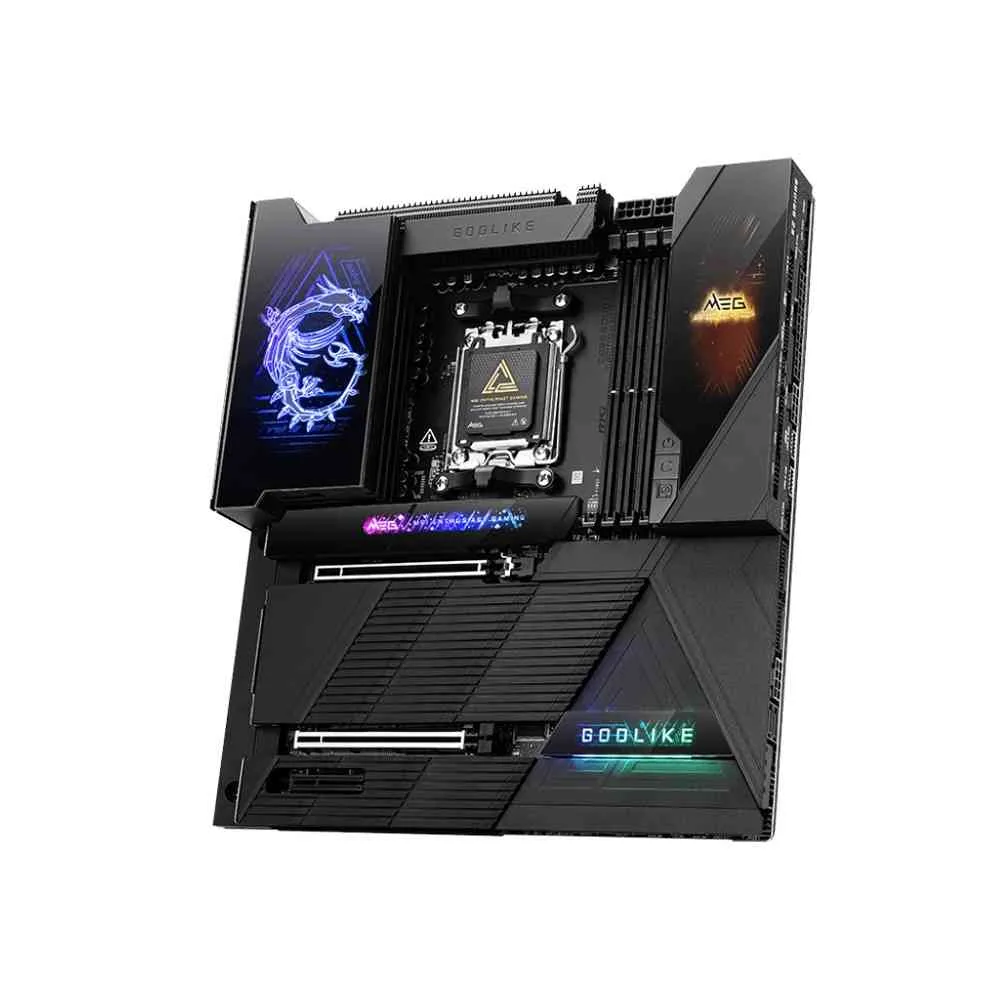

MSI MEG X870E GodLike PCIe 5.0 DDR5 AM5 for AMD Ryzen Gaming MotherBoard

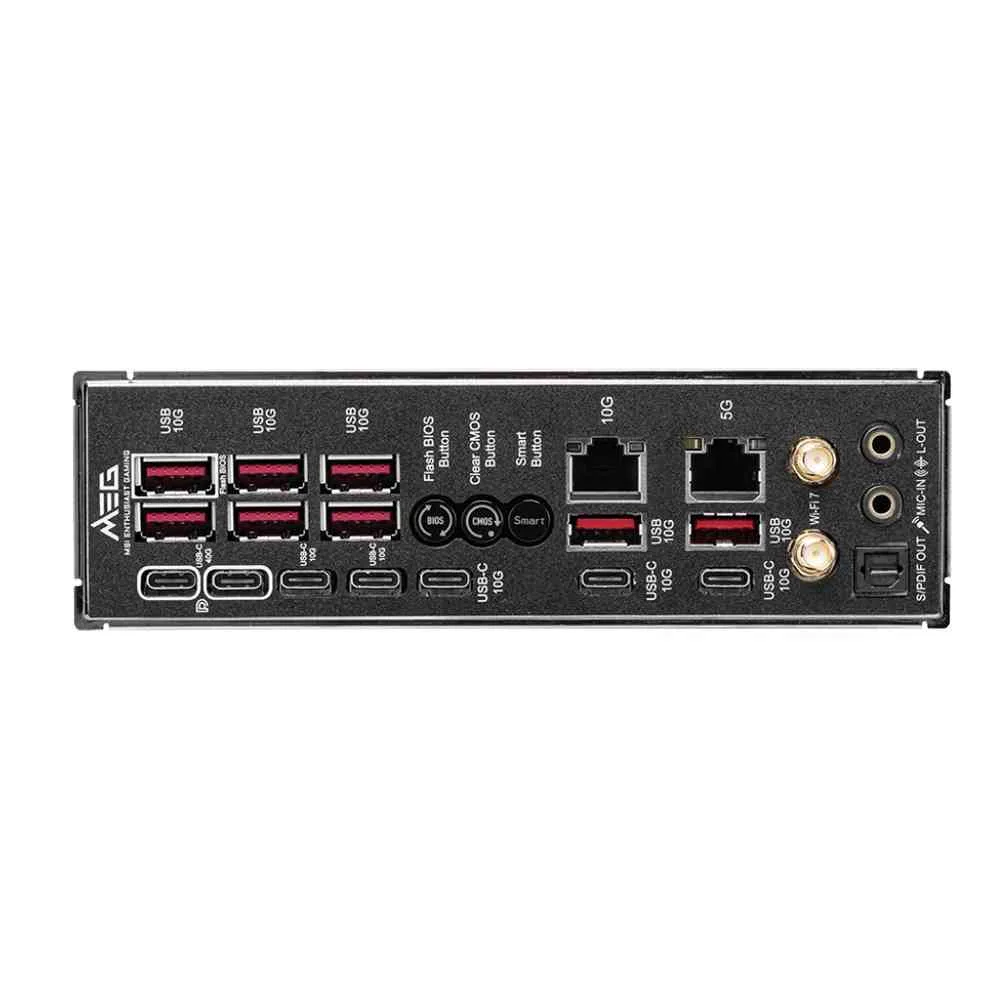

Model No : MSI MEG X870E GodLike PCIe 5.0 DDR5 AM5 for AMD Ryzen Gaming MotherBoard Part No : 911-7E48-001 Chipset : AMD X870E Form Factor : E-ATX304.8mmx277mm Socket Compatibility : Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 LAN : 1x Marvell® AQC113CS 10Gbps LAN1x Realtek® 8126 5Gbps LAN Wireless Communication module : Wi-Fi 7 SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. Graphics : 2x Type-C DisplayPortUSB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz** Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Memroy : 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8400+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only* Storage Compatibility : 7x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devicesM.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6GM.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devicesM.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devicesM.2_1:• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M.2_2:• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.M2_4:PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. Back Panel I/O Ports : USB 10Gbps (Type-A)Flash BIOS ButtonClear CMOS ButtonSmart Button10G LAN5G LANWi-Fi / BluetoothHD Audio ConnectorsUSB 40Gbps (Type-C)USB 10Gbps (Type-C)USB 10Gbps (Type-A)Optical S/PDIF-Out USB Ports : 4x USB 2.0 (Front)4x USB 5Gbps Type A (Front)8x USB 10Gbps Type A (Rear)5x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Front)2x USB 40Gbps Type C (Rear)* USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors. Expansion Slots : 2x PCI-E x16 slot1x PCI-E x4 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 & PCI_E2 slots• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)PCI_E3 slot• Supports up to PCIe 4.0 x4 Audio : Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA7.1-Channel USB High-Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel Internal I/O Connectors : 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x Front Type-C Quick Charge Connector(PD_PWR1)1x CPU Fan2x Combo Fan (Pump_Sys Fan)1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)2x Thermal Sensor connectors(T_SEN)1x Tuning Controller connector(JDASH)1x Addressable V2 RGB LED connector (JARGB_V2)V-check point4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 10Gbps Type C ports1x USB 20Gbps Type C ports I/O Controller : iTE® I/O Controller Chip LED Features : 1x Dynamic Dashboard III1x EZ Digit Debug LED1x EZ LED Control switch RAID : Supports RAID 0, RAID 1 and Raid 10 for SATA storage devicesSupports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices H/W Monitoring : Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.Noise detection BIOS : 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Warranty : 1 Year ( As per Manufacturer Policy )
