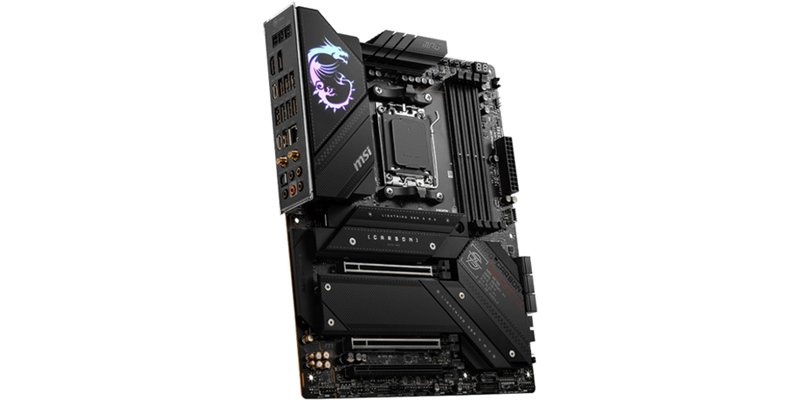

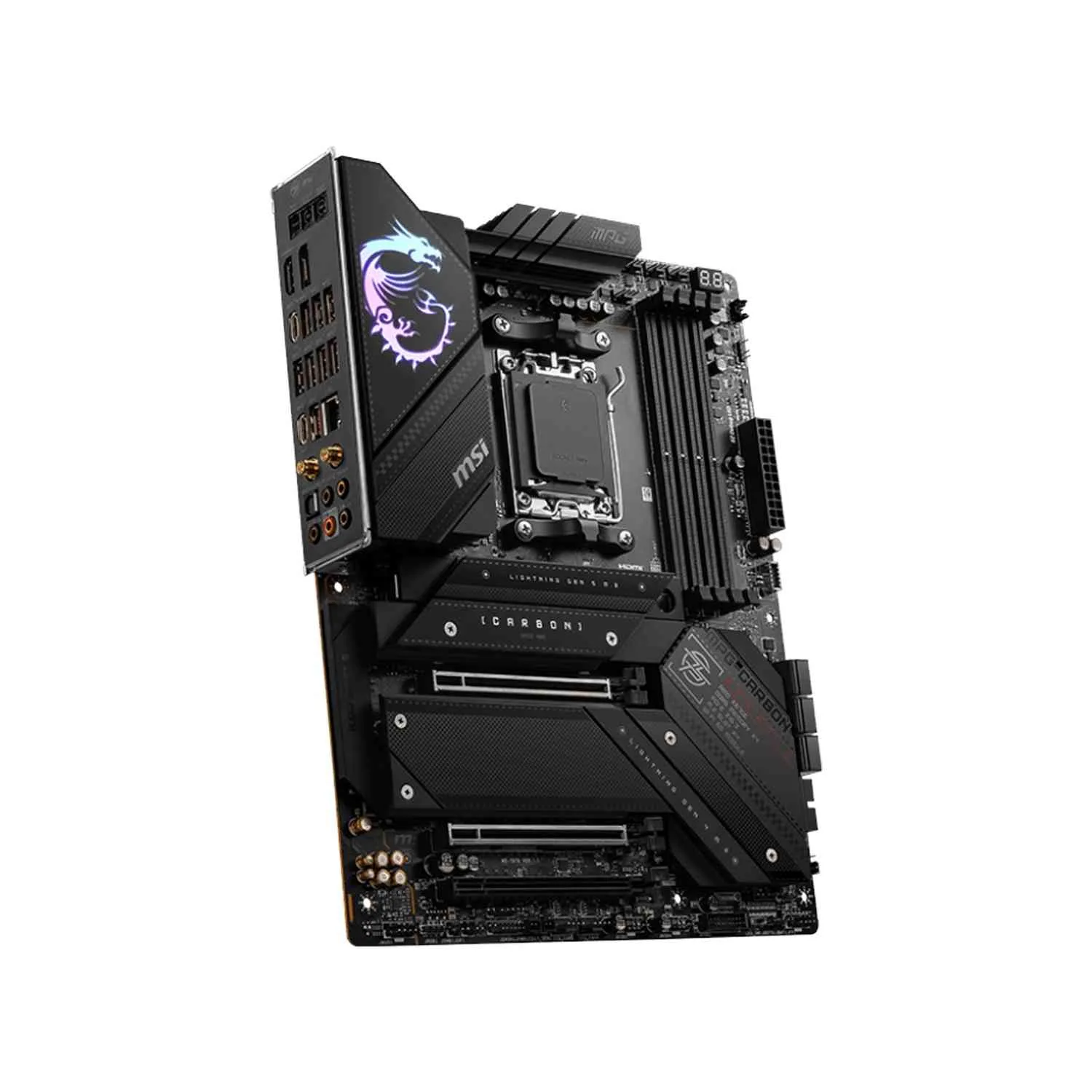

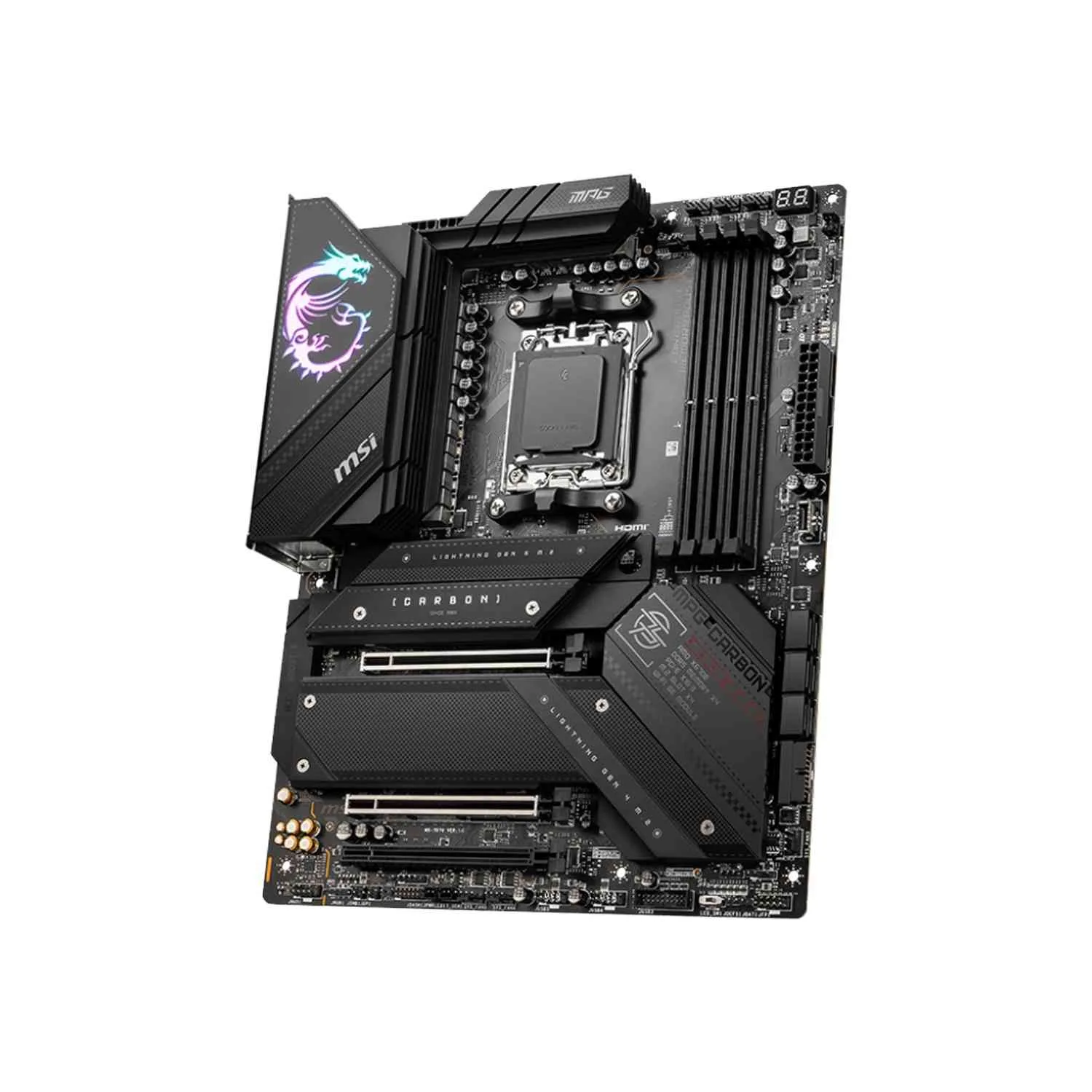

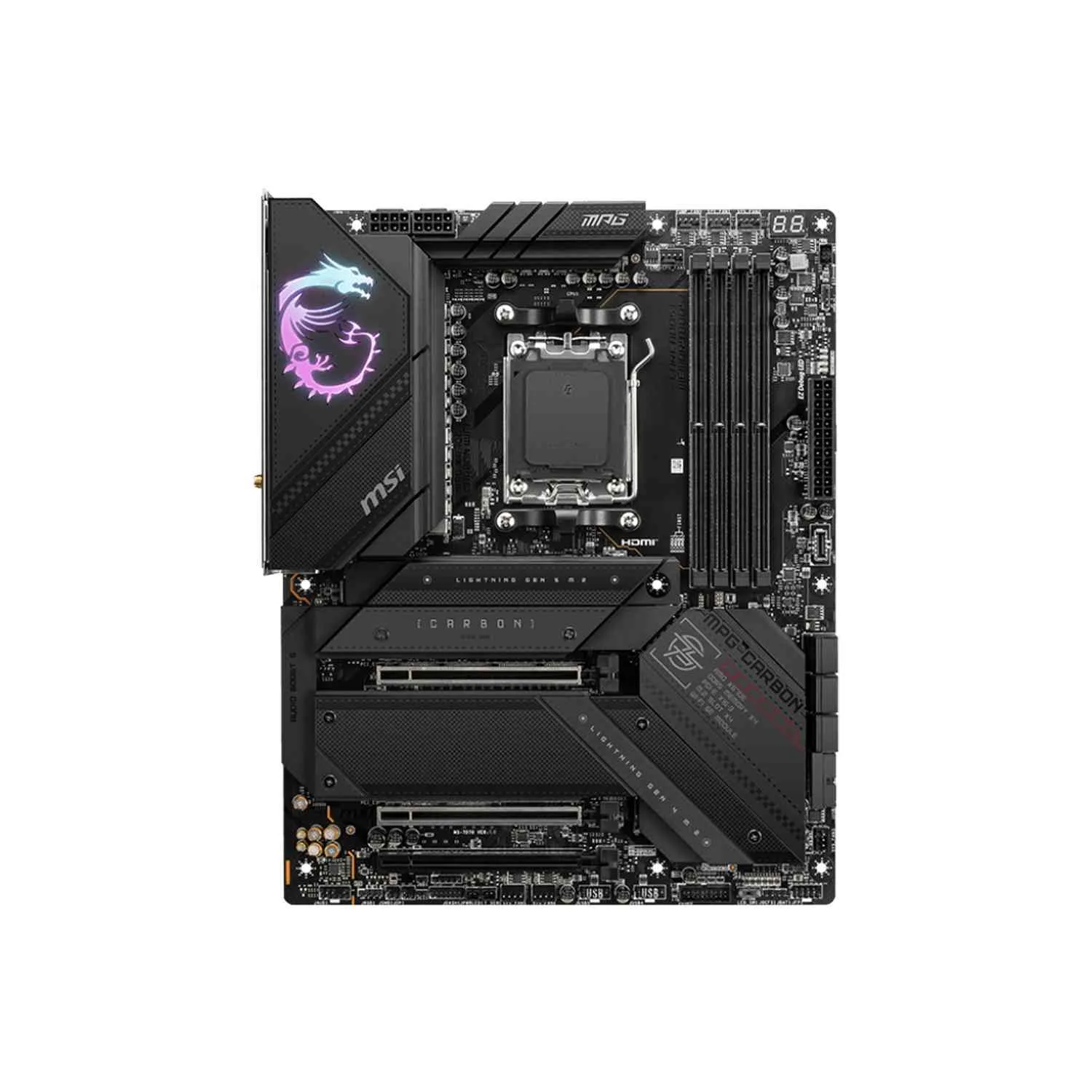

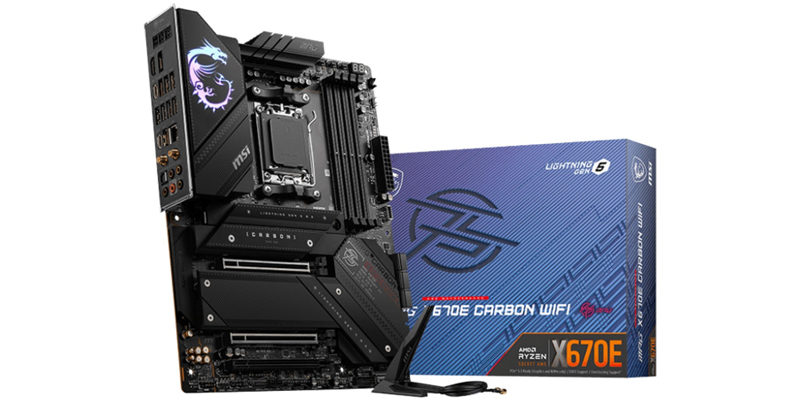

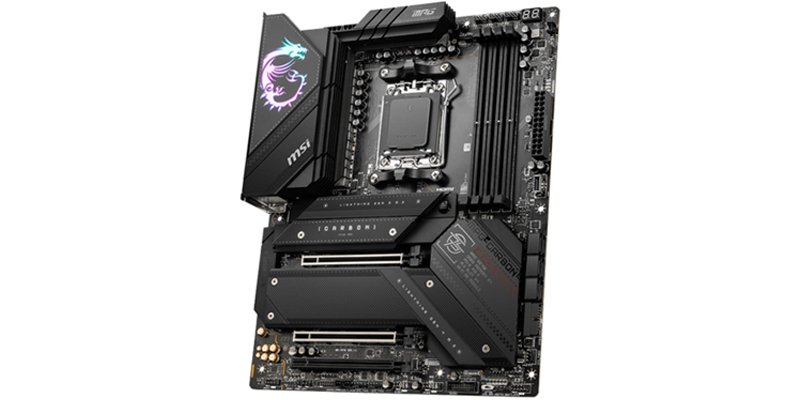

MSI MPG X670E Carbon Wifi AMD DDR5 Gaming Motherboard

Model No : MSI MPG X670E Carbon Wifi AMD DDR5 Gaming Motherboard Part No : 911-7D70-013 Chipset : AMD X670 Form Factor : ATX Socket Compatibility : Supports AMD Ryzen™ 8000/ 7000 Series Desktop ProcessorsSocket AM5 Wireless & Bluetooth : AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. LAN : Realtek® RTL8125BG 2.5Gbps LAN Memroy : 4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO Onboard Graphics : 1x HDMI™Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz*1x Type-C DisplayPortSupports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Expansion Slots : 3x PCI-E x16 slot• Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 9000 and 7000 Series processors)• Supports x8/x0/x4(For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)• Supports x4/x0/x4 (For Ryzen™ 5 8500G processor)PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) Storage Compatibility : 4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices6x SATA 6G• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed RAID : Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices Back Panel I/O Ports : Clear CMOS ButtonFlash BIOS ButtonDisplayPortUSB 2.02.5G LANAudio ConnectorsSmart ButtonHDMI™USB 10Gbps (Type-C Display port)USB 10Gbps (Type-A)USB 20Gbps (Type-C)Wireless / BluetoothS/PDIF-Out USB Ports Front (Support ) : 2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 2.0 ports (Rear)4x USB 2.0 ports (Front)4x USB 5Gbps Type A (Front)6x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear) Audio : Realtek® ALC4080 Codec7.1-Channel USB High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel Internal I/O Connectors : 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Thermal Sensor connectors(T_SEN)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 10Gbps Type C ports Special Features : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop ProcessorsSupports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory BoostPremium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experienceHigh Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level materialDIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel ArmorLightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x22.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionMYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devicesAUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience Package Content : 2 x SATA 6Gb/s cables1 x I/O Shield2 x M.2 SSD screw packages1 x Wi-Fi AntennaInstallation Media1 x Support DVDDocumentation1 x User guide Product Size ( Dimension ) : 304.8mmx243.84mm Warranty : 1 Year ( As per Manufacturer Policy )
