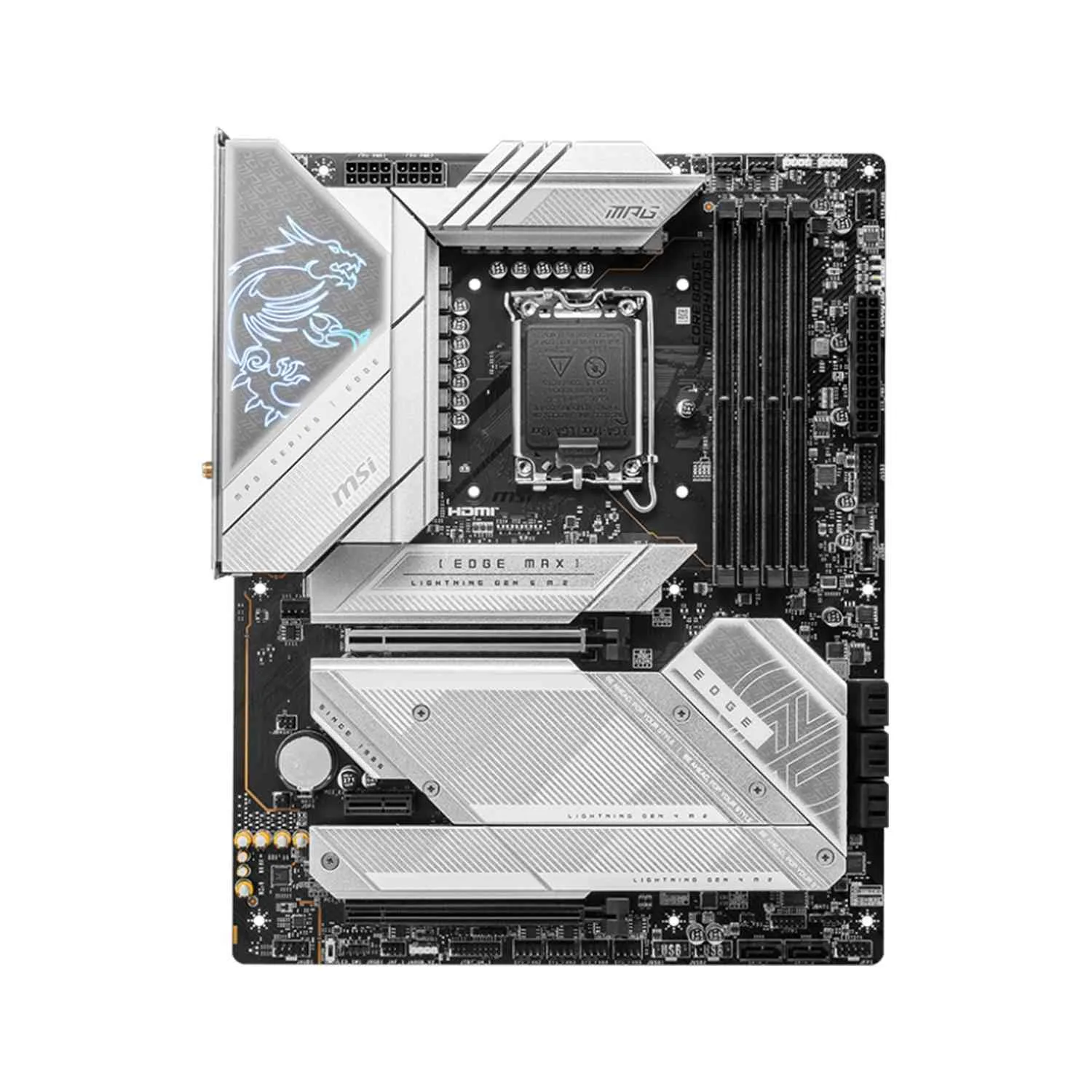

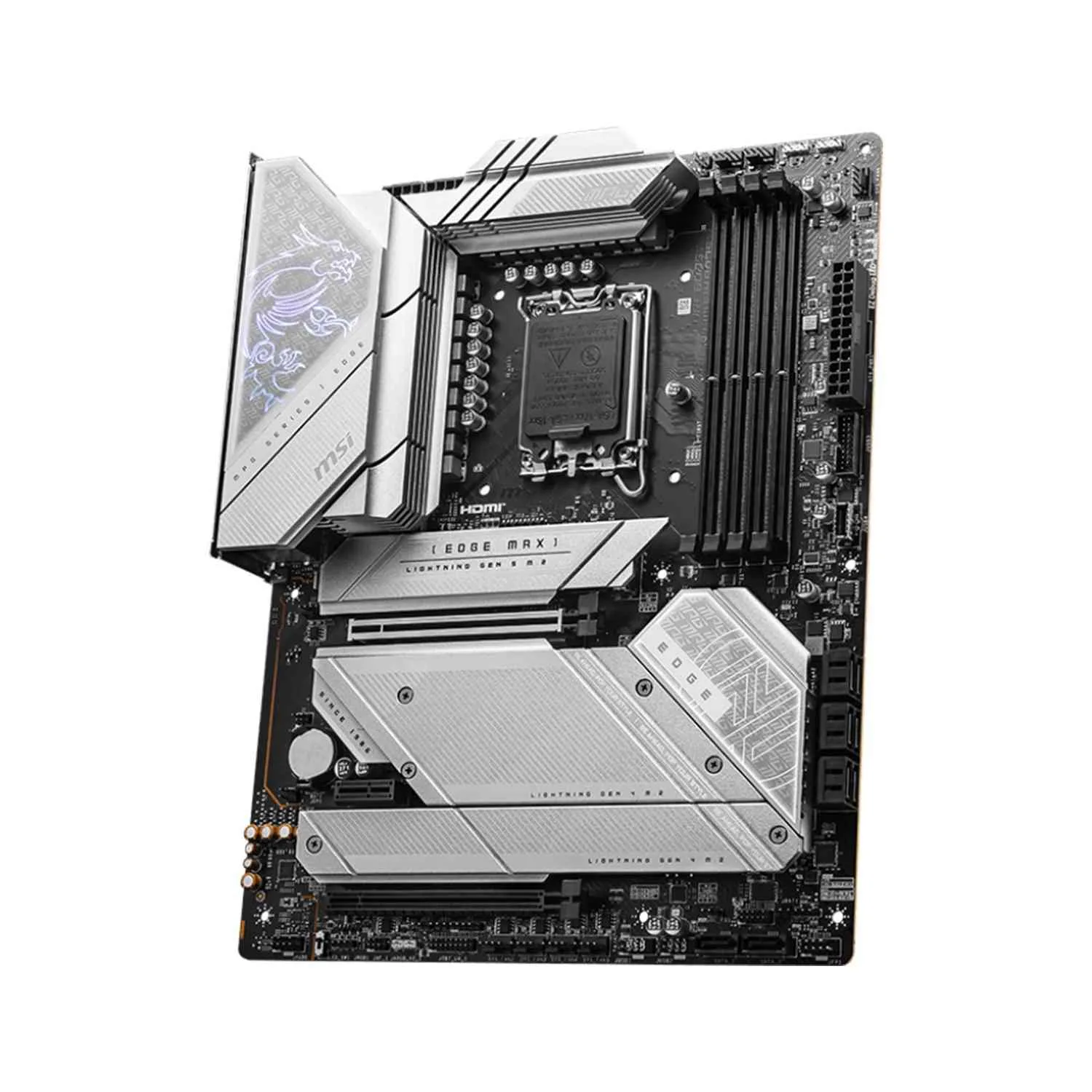

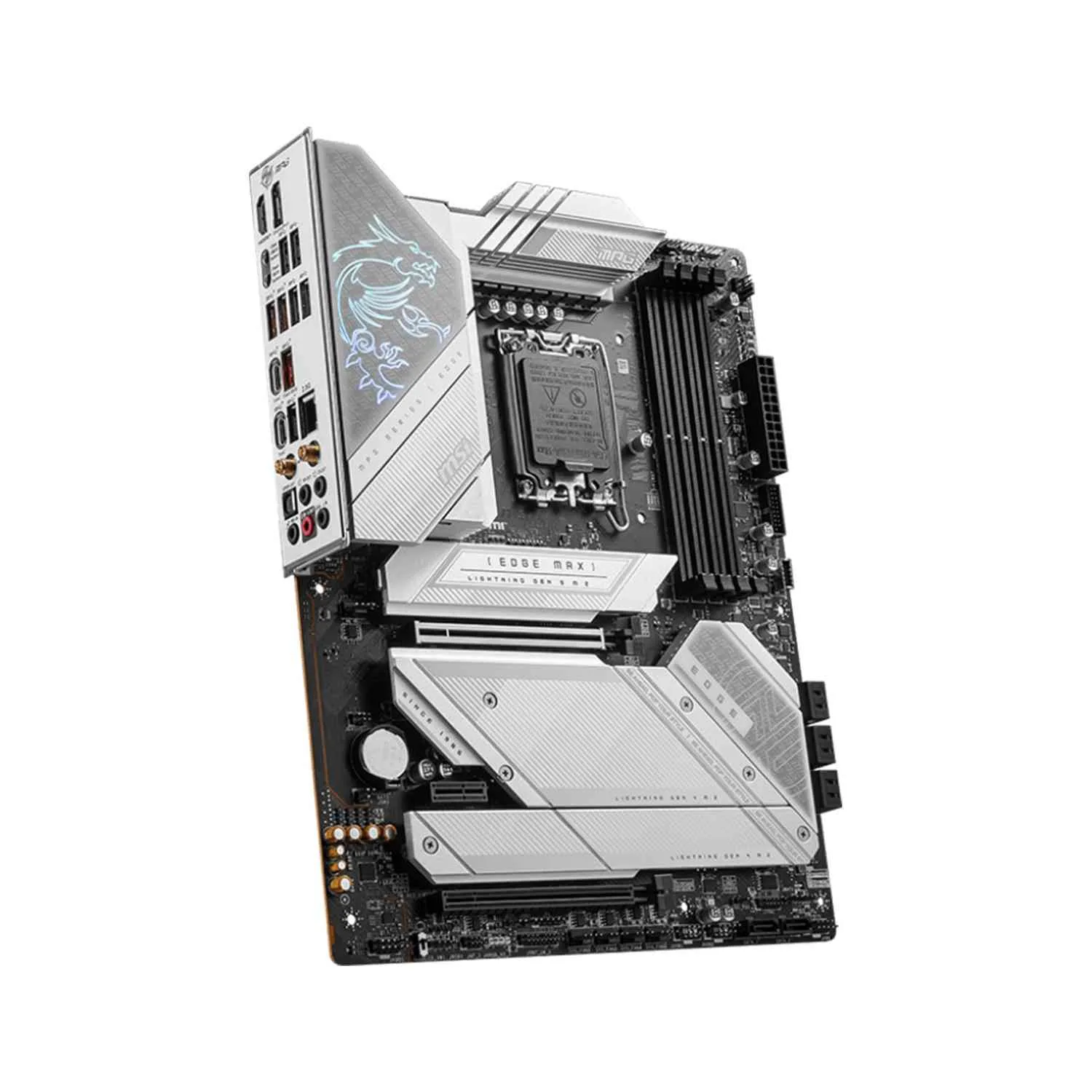

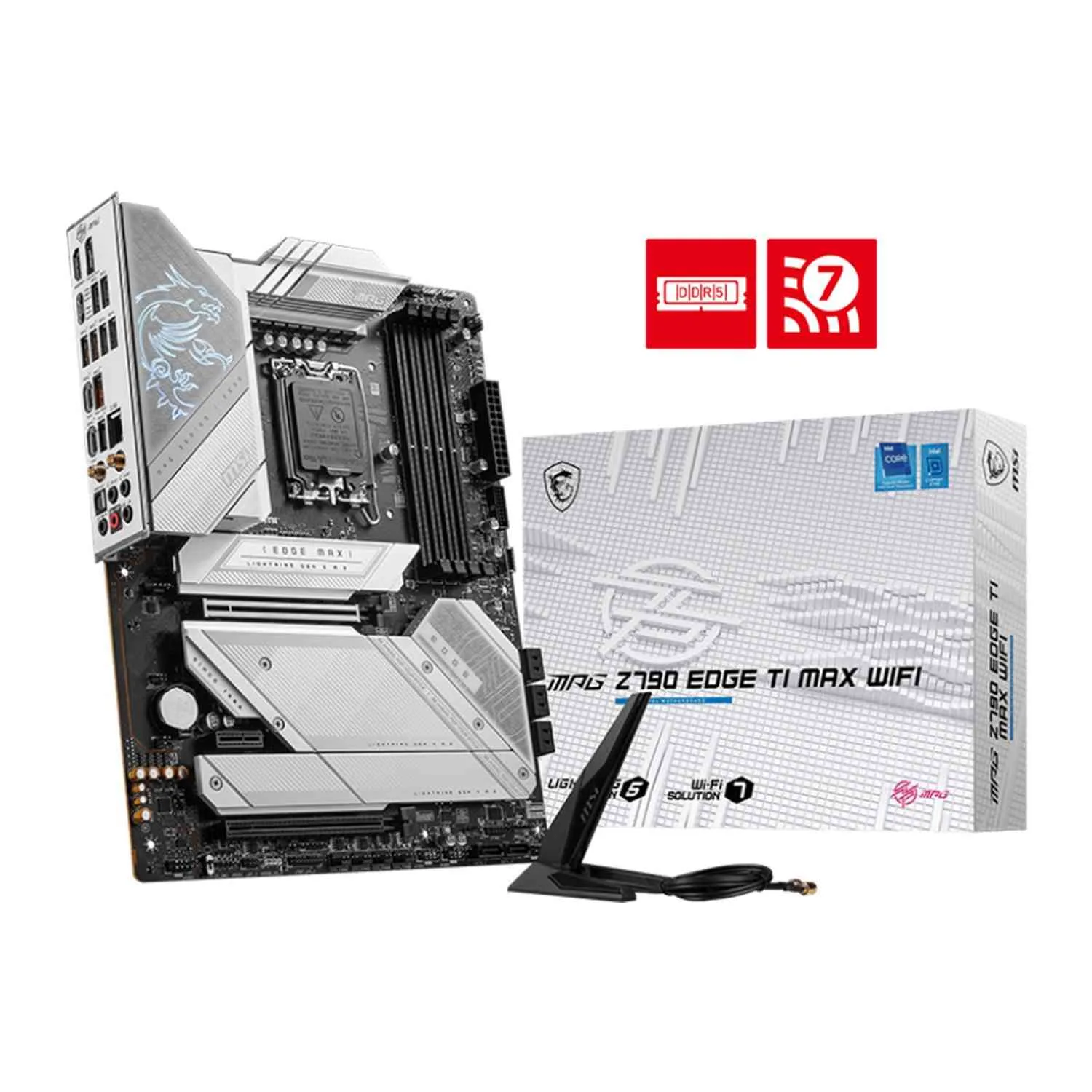

MSI MPG Z790 Edge Ti Max Wifi 7 Motherboard DDR5

Model No : MSI MPG Z790 Edge Ti Max Wifi 7 Motherboard DDR5 Part No : 911-7E25-009 Chipset : INTEL Z790 Form Factor : ATX243.84mmx304.8mm Socket Compatibility : Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA 1700 LAN : Intel® 2.5Gbps LAN Wireless : Wi-Fi 7 SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. Graphics : 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Memroy : 4x DDR5, Maximum Memory Capacity 256GBMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory Storage Compatibility : 5x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices8x SATA 6G*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.* SATA_1 & SATA_2will be unavailable when installing M.2 SATA SSD in the M2_3 slot. Expansion Slot : 2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) Back Panel I/O Ports : Display PortUSB 5 Gbps (Type-A)USB 10Gbps (Type-A)2.5G LANAudio ConnectorsHDMI™Clear CMOSFlash BIOSUSB 10Gbps (Type-C)USB 20Gbps (Type-C)Wi-Fi / BluetoothOptical S/PDIF Out Audio : Realtek® ALC4080 Codec7.1-Channel USB High Performance AudioSupports up to 32-Bit/384 kHz playback on front panel Internal I/O Connectors : 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)5x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)1x USB4 card connector (JTBT_U4_1, supports RTD3)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports USB : 4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)4x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear) LED Features : 4x EZ Debug LED1x EZ LED Control switch RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices* SATA_A1~A2 do not support RAID function. Warranty : 1 Year ( As per Manufacturer Policy )
