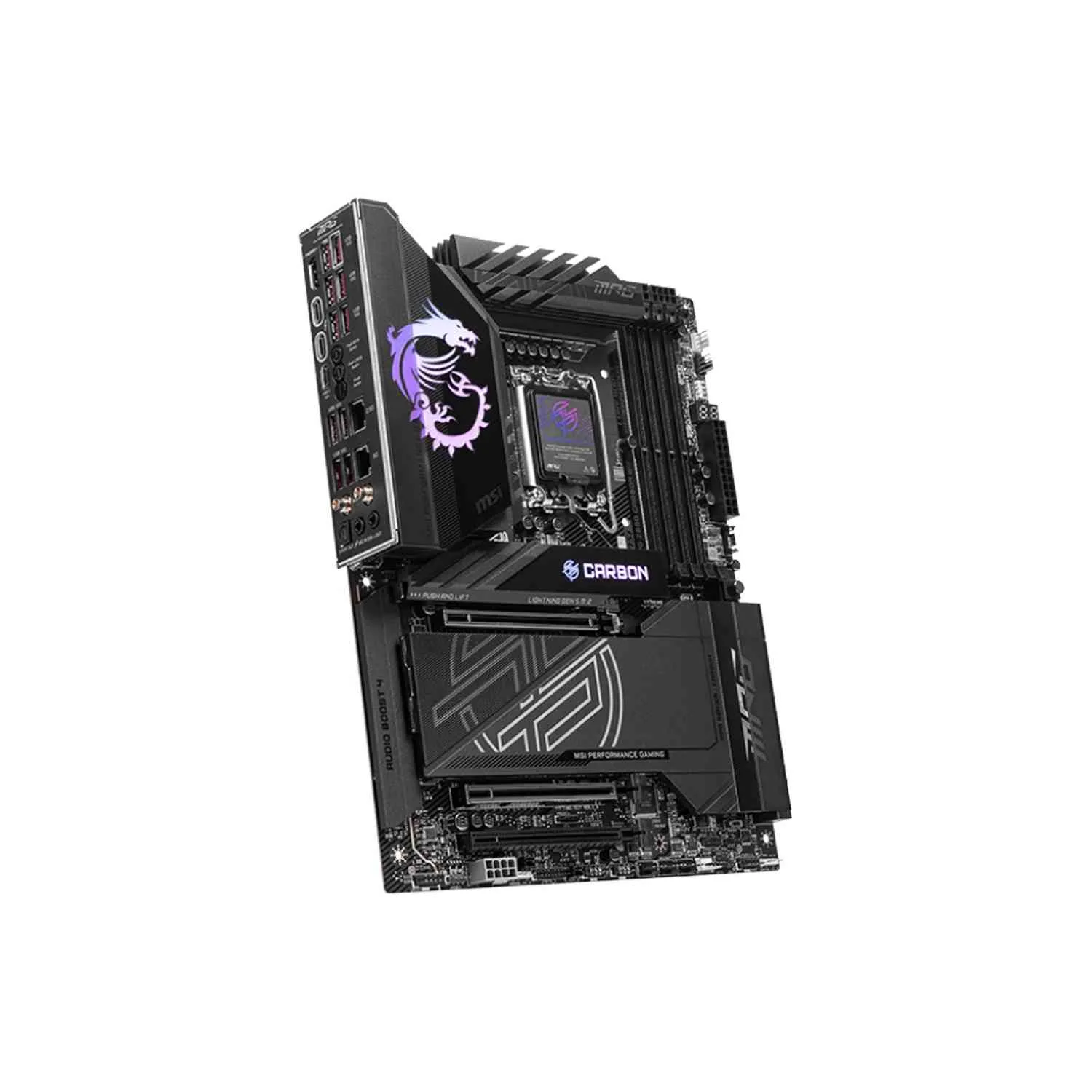

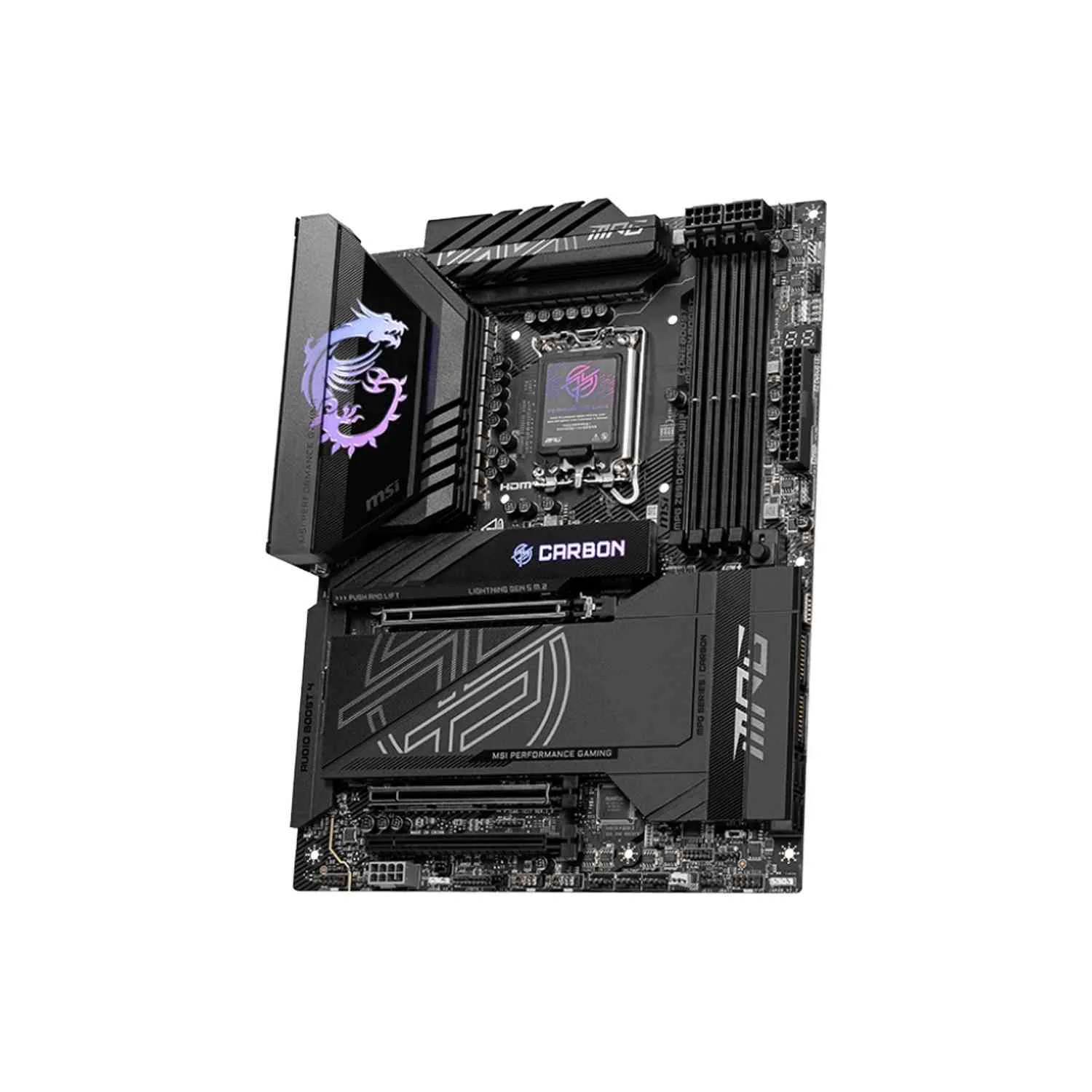

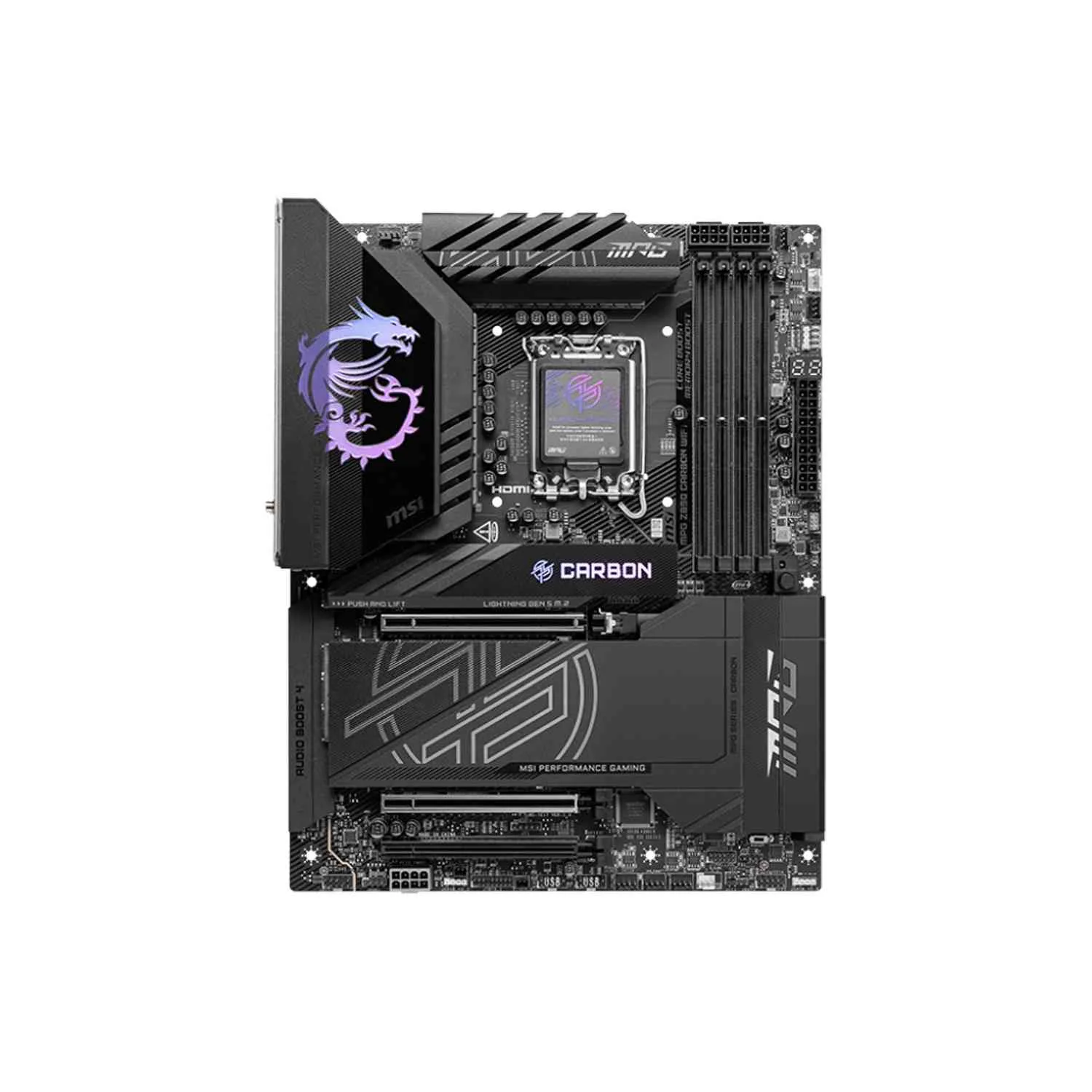

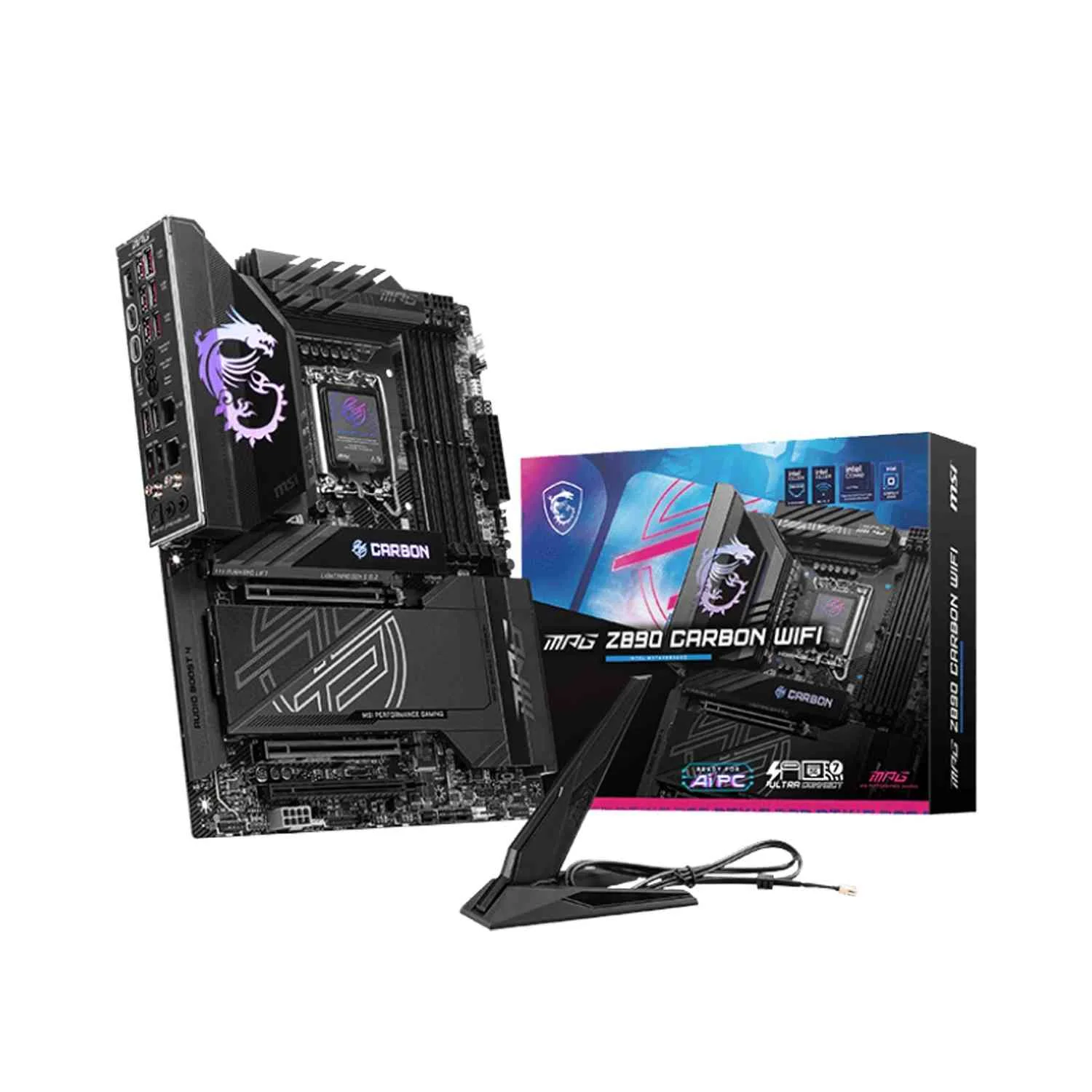

MSI MPG Z890 Carbon Wi-Fi 7 ATX Gaming Motherboard, LGA 1851 Socket, DDR5 Memory Supports | 911-7E17-001

Key Specifications

• Model NoMSI MPG Z890 Carbon Wi-Fi 7 ATX Gaming Motherboard
• Part No911-7E17-001ChipsetINTEL Z890Form FactorATXSocket
• CompatibilitySupports Intel® Core™ Ultra
• Processors (Series 2)LGA 1851Wireless & BluetoothIntel® Killer™ BE1750x Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAMLAN1x Intel® Killer™ E5000B 5G LAN1x Intel® I226V 2.5G LANMemroy4x DDR5 UDIMM, Maximum
• Memory Capacity 256GB
• Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 9200+ MT/s• 1DPC 2R Max speed up to 7200+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 5600+ MT/sSupports Intel POR Speed and JEDEC SpeedSupports
• Memory Overclocking and Intel XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM

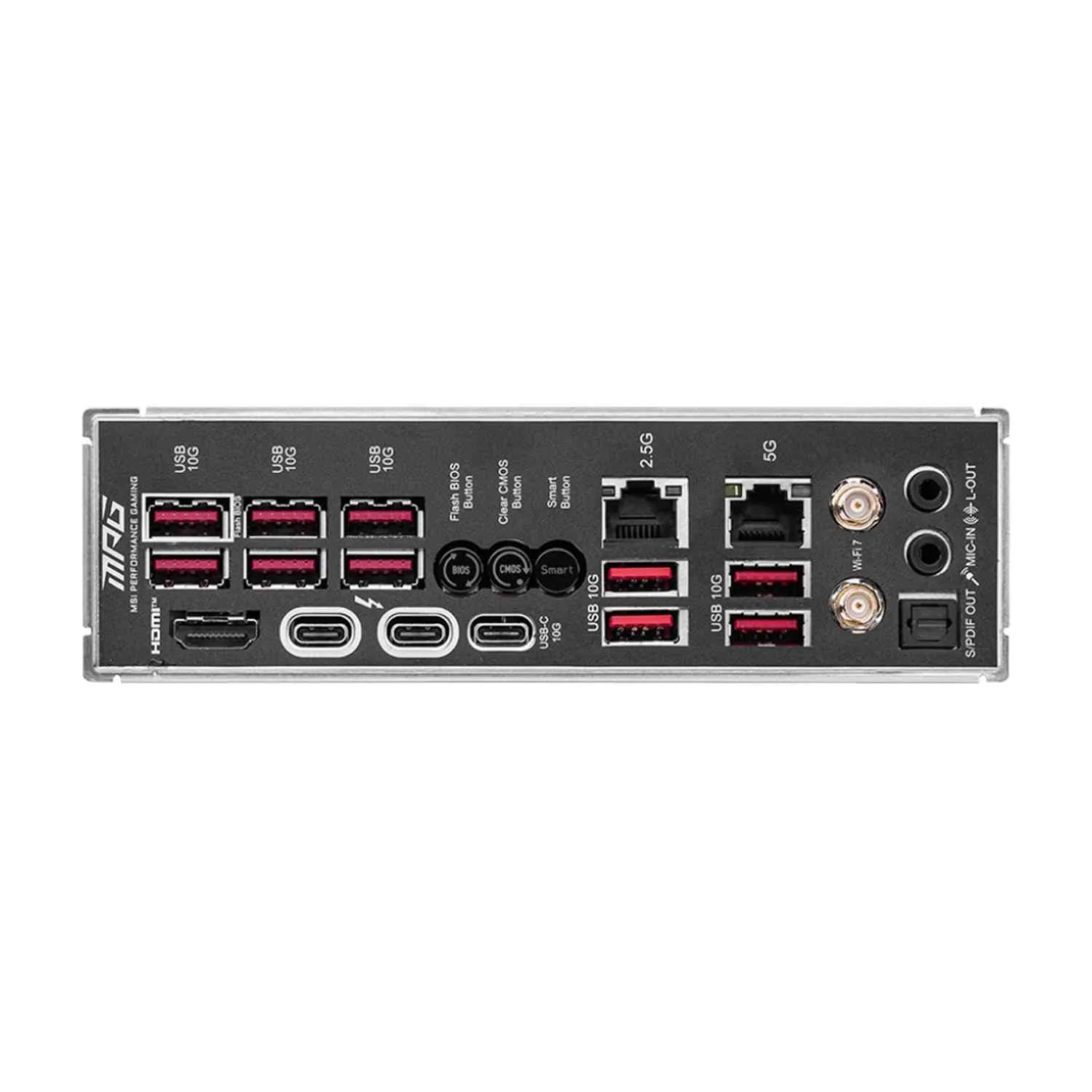

• Compatibility5x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devicesM.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices4x SATA 6G*Please refer to the manual for M.2 SSD heatsink restrictions.Back Panel I/O PortsUSB 10Gbps Type-AFlash BIOS ButtonClear CMOS ButtonSmart Button2.5G LAN5G LANAudio ConnectorsHDMI™Thunderbolt 4USB 10Gbps Type-CUSB 10Gbps Type-AWi-Fi / BluetoothOptical S/PDIF OutUSB Ports Front (Support )4x USB 2.0 (Front)4x USB 5Gbps Type A (Front)10x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1Expansion Slots3x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)• PCI_E1 supports BIOS adjustment to x8+x4+x4*• PCI_E2 supports BIOS adjustment to x4+x4*AudioRealtek® ALC1220P Codec7.1-Channel USB High Defination AudioSupports S/PDIF outputInternal I/O Connectors1x
• Power Connector(ATX_PWR)2x
• Power Connector(CPU_PWR)1x
• Power Connector(PCIE_PWR 8pin)1x Front Type-C Quick Charge Connector(PD_PWR1)1x CPU Fan1x Combo Fan (Pump_Sys Fan)5x System Fan1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Water Flow connector1x Front Audio (JAUD)1x Thermal Sensor connectors(T_SEN)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 20Gbps Type C portsSpecial FeaturesSupport Intel® Core™ Ultra
• Processors (Series 2) for LGA 1851 socketSupports DDR5
• Memory, up to 9200+ MT/s (OC)Ultra Performance: Direct 20+1+1+1 phases power, dual 8-pin CPU power connectors, Core Boost,
• Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level materialFrozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experienceEZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ AntennaLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN + 2.5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmissionAudio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
