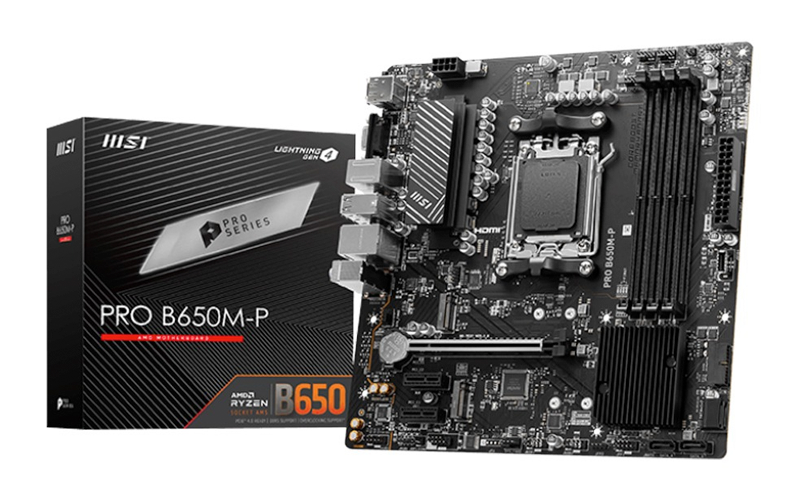

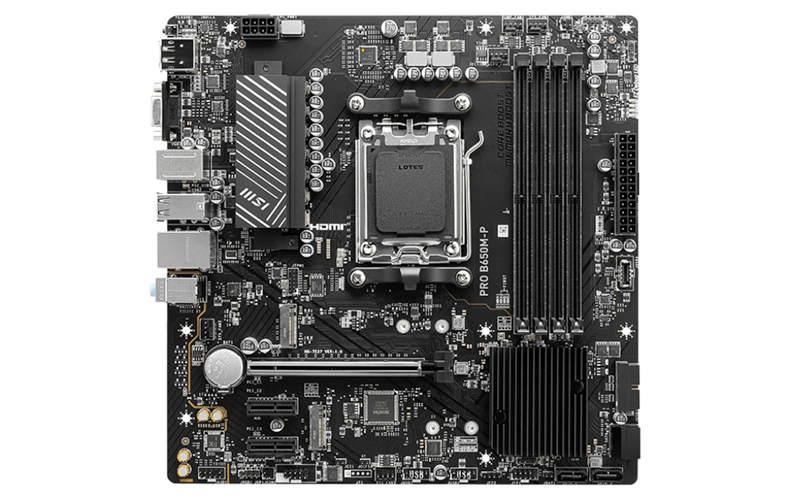

Msi Pro B650M-P PCIe 4.0 Ready AMD DDR5 Gaming Motherboard

Model No : Msi Pro B650M-P PCIe 4.0 Ready AMD DDR5 Gaming Motherboard Part No : 911-7E27-007 Chipset : AMD B650 Form Factor : mATX Socket Compatibility : Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 Wireless & Bluetooth : None LAN : Realtek® 8125BG 2.5G LAN Memroy Type : 4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6000+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO Onboard Graphics : 1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupports DP 1.4, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 1920x1200 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Storage Compatibility : 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G Back Panel I/O Ports : DisplayPortVGAKeyboard / MouseUSB 2.02.5G LANAudio connectorsFlash BIOS ButtonHDMI™USB 2.0USB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-A) USB Ports Front (Support ) : 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)2x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front) Expansion Slots : 1x PCI-E x16 slot• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)2x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) Audio : Realtek® ALC897 Codec7.1-Channel High Definition Audio Internal I/O Connectors : 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports Special Features : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop ProcessorsSupports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)Core Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityHigh Quality PCB: 6-layer PCB made by 2oz thickened copperLightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.22.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionAUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceSteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength Product Size ( Dimension ) : 243.84mmx243.84mm Warranty : 1 Year ( As per Manufacturer Policy )
