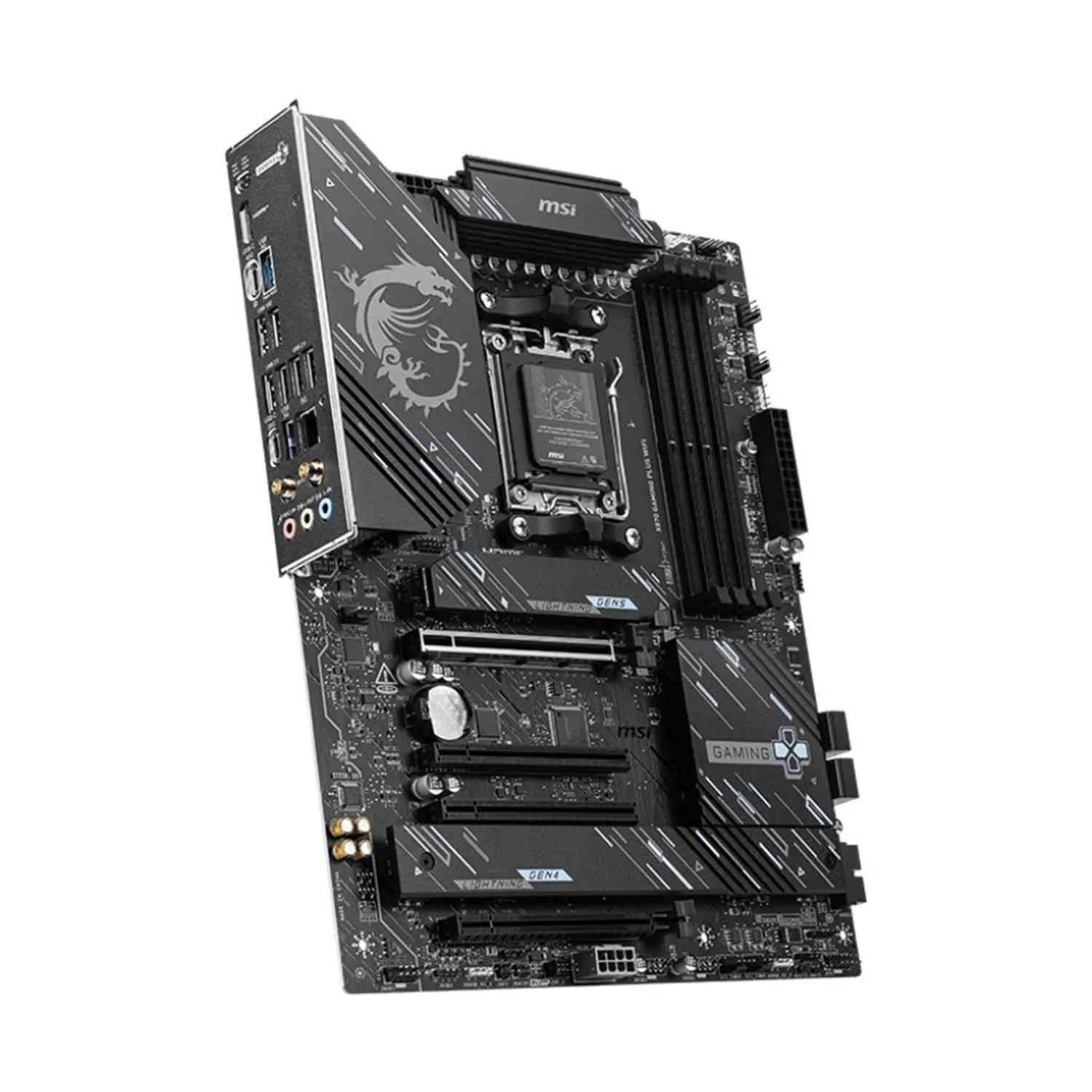

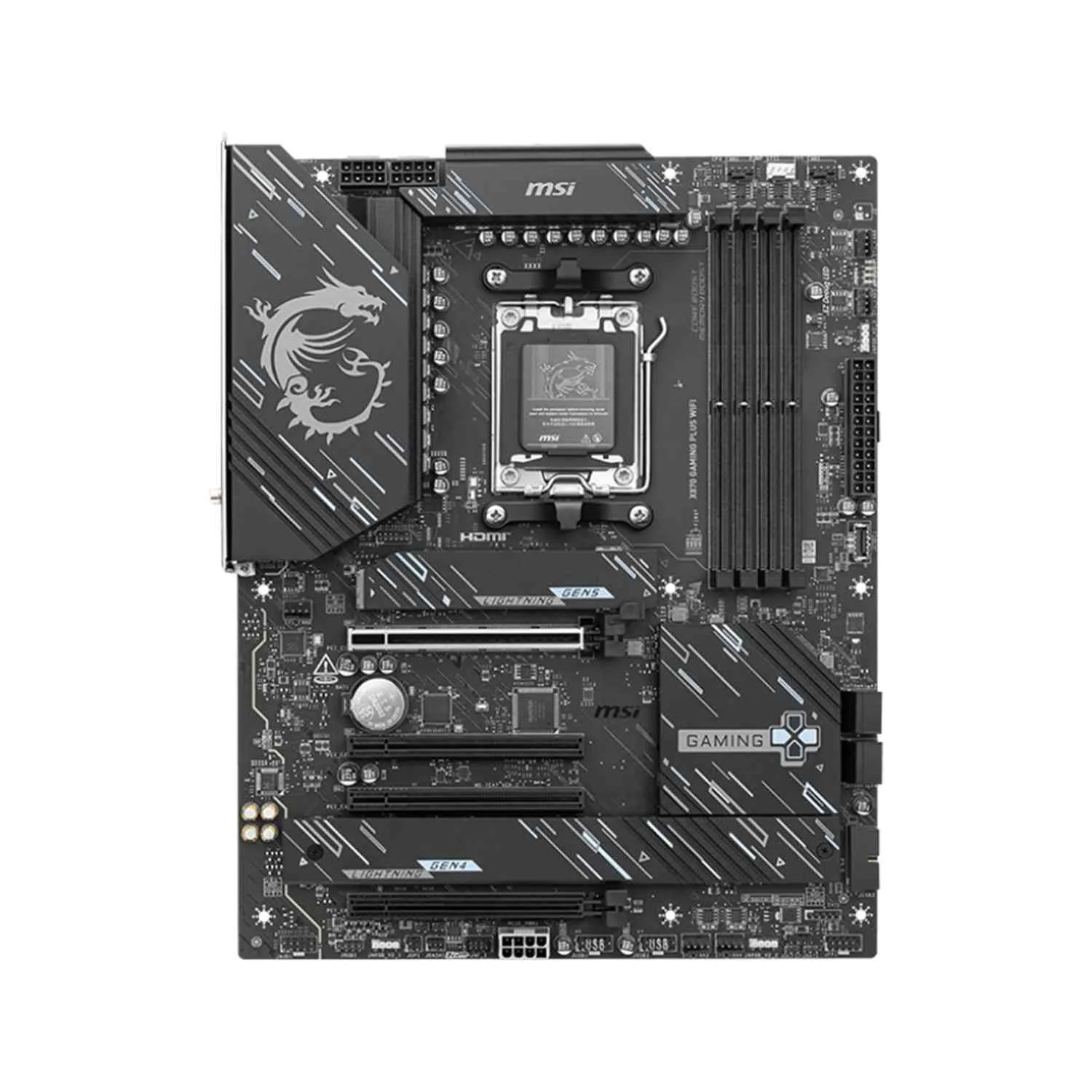

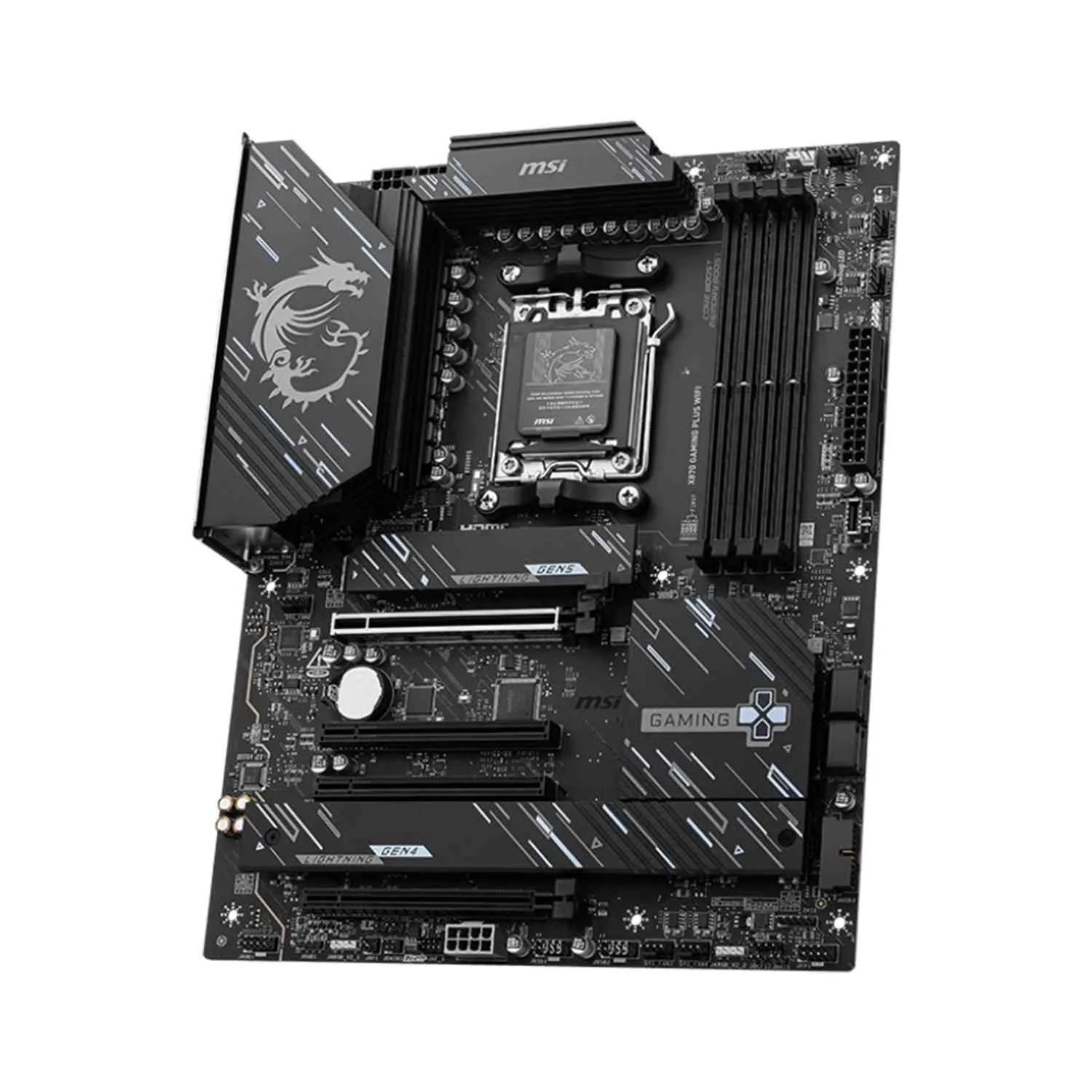

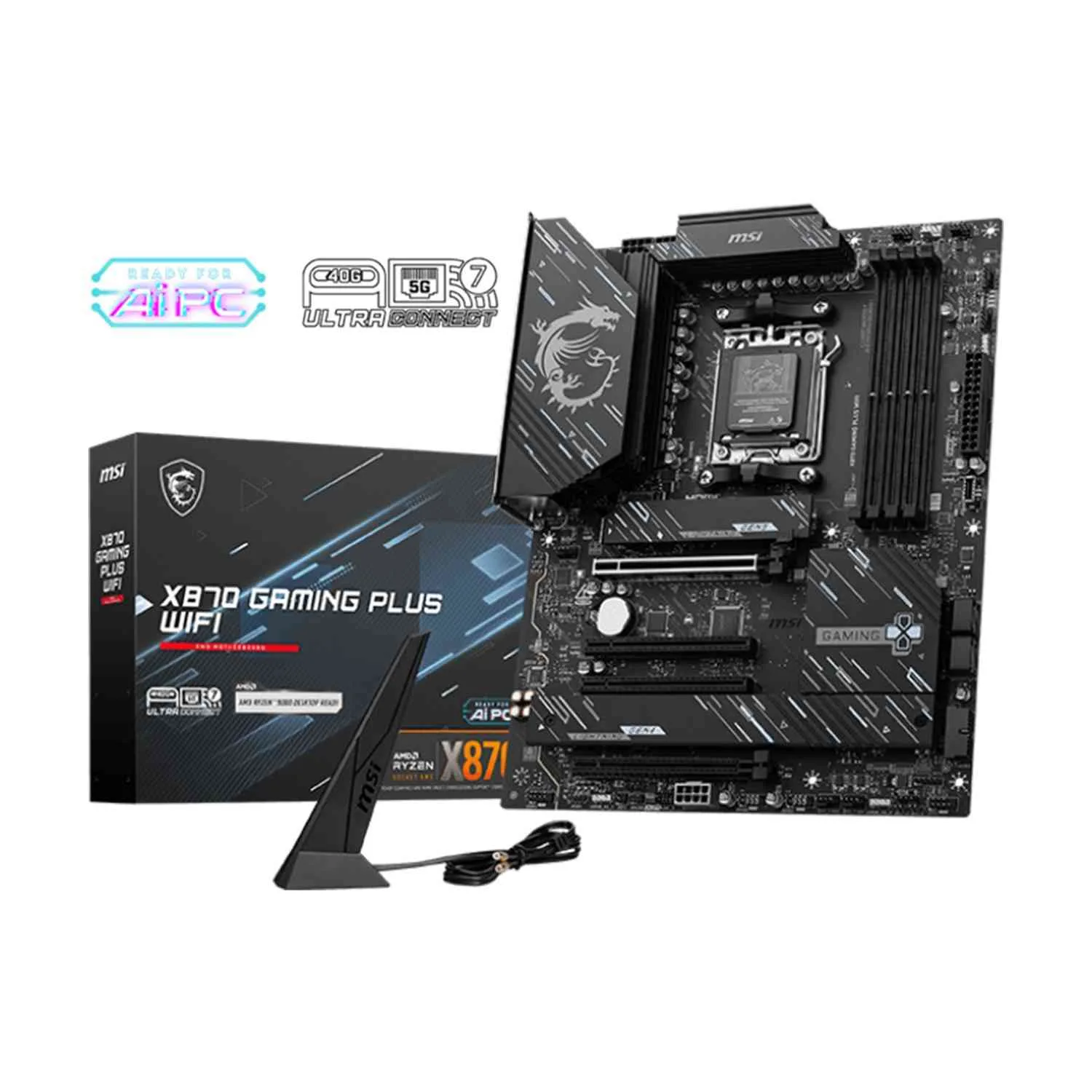

MSI X870 Gaming Plus Wifi7/Bluetooth 5.4, Ready For Ai PC, AM5 for AMD Ryzen Gaming MotherBoard

Model No : MSI X870 Gaming Plus Wifi7/Bluetooth 5.4, Ready For Ai PC, AM5 for AMD Ryzen Gaming MotherBoard Part No : 911-7E47-011 Chipset : AMD X870 Form Factor : ATX243.84mmx304.8mm Socket Compatibility : Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 LAN : Realtek® 8126VB 5G LAN Wireless Communication module : Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. Graphics : 1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x Type-C DisplayPortUSB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Memroy : 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8200+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only* Storage Compatibility : 3x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices4x SATA 6GM2_1 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) Back Panel I/O Ports : Clear CMOS ButtonUSB 5Gbps Type-AUSB 10Gbps Type-AUSB 2.05G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMI™USB 40Gbps Type-CUSB 2.0USB 20Gbps Type-CUSB 5Gbps Type-A USB Ports : 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)2x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)1x USB 40Gbps Type C (Rear) Expansion Slots : 4x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot. Audio : Realtek® ALC8977.1-Channel High Definition Audio Internal I/O Connectors : 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports RAID : ••Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*SATA_A1~A4 do not support RAID function.*RAID 5 configuration is only supported by Ryzen™ 9000 series processors. LED Feature : 4x EZ Debug LED Warranty : 1 Year ( As per Manufacturer Policy )
