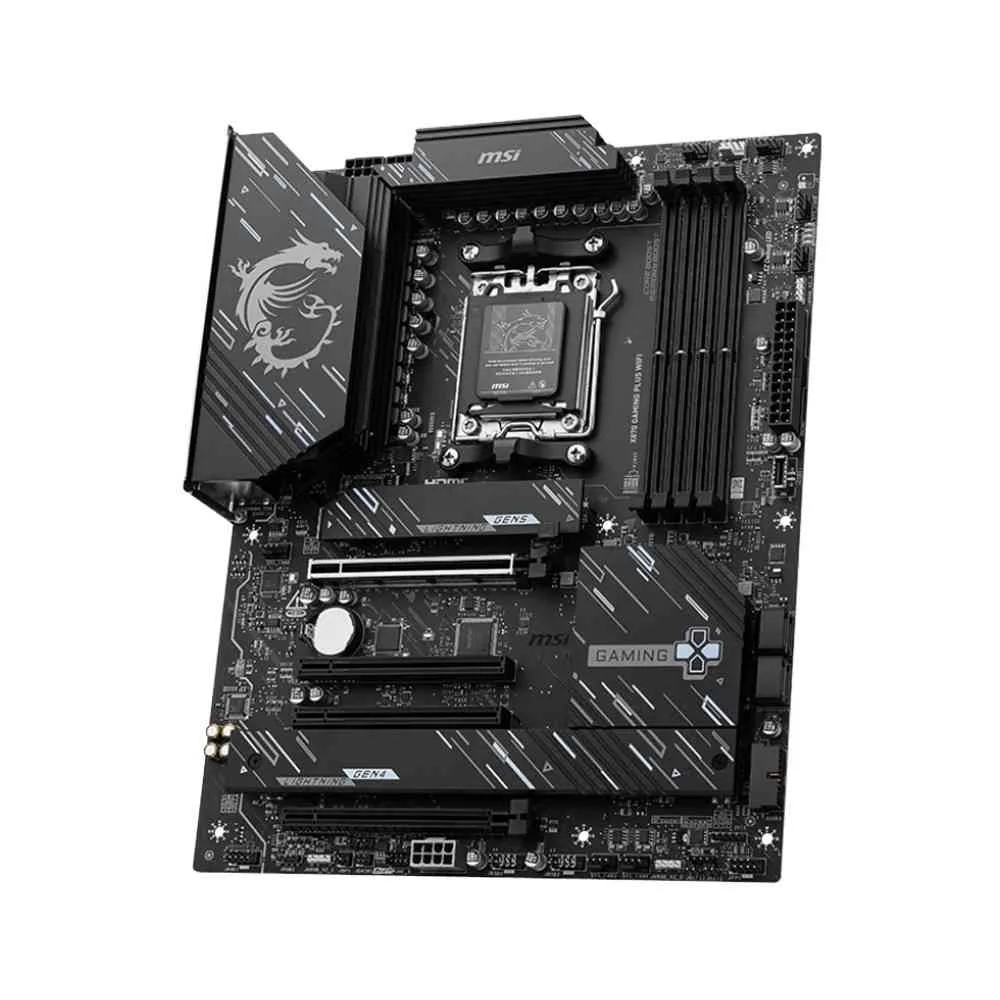

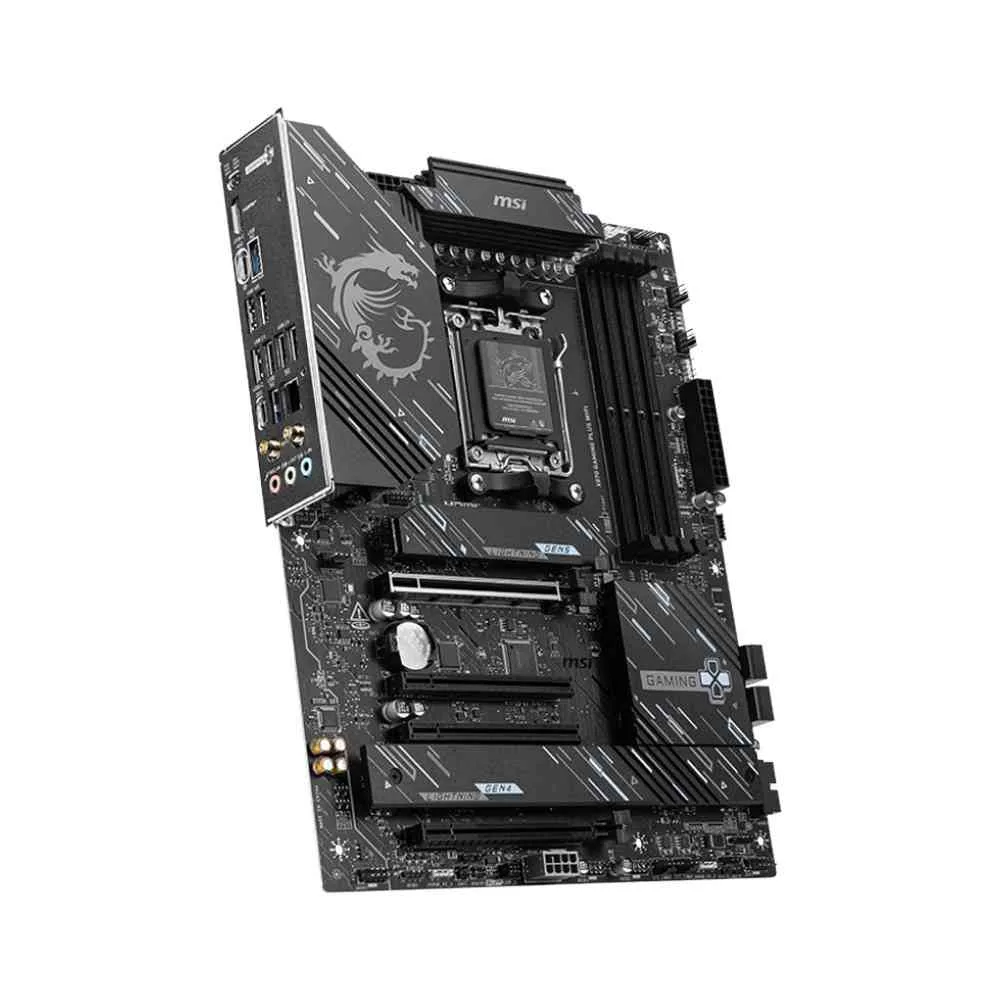

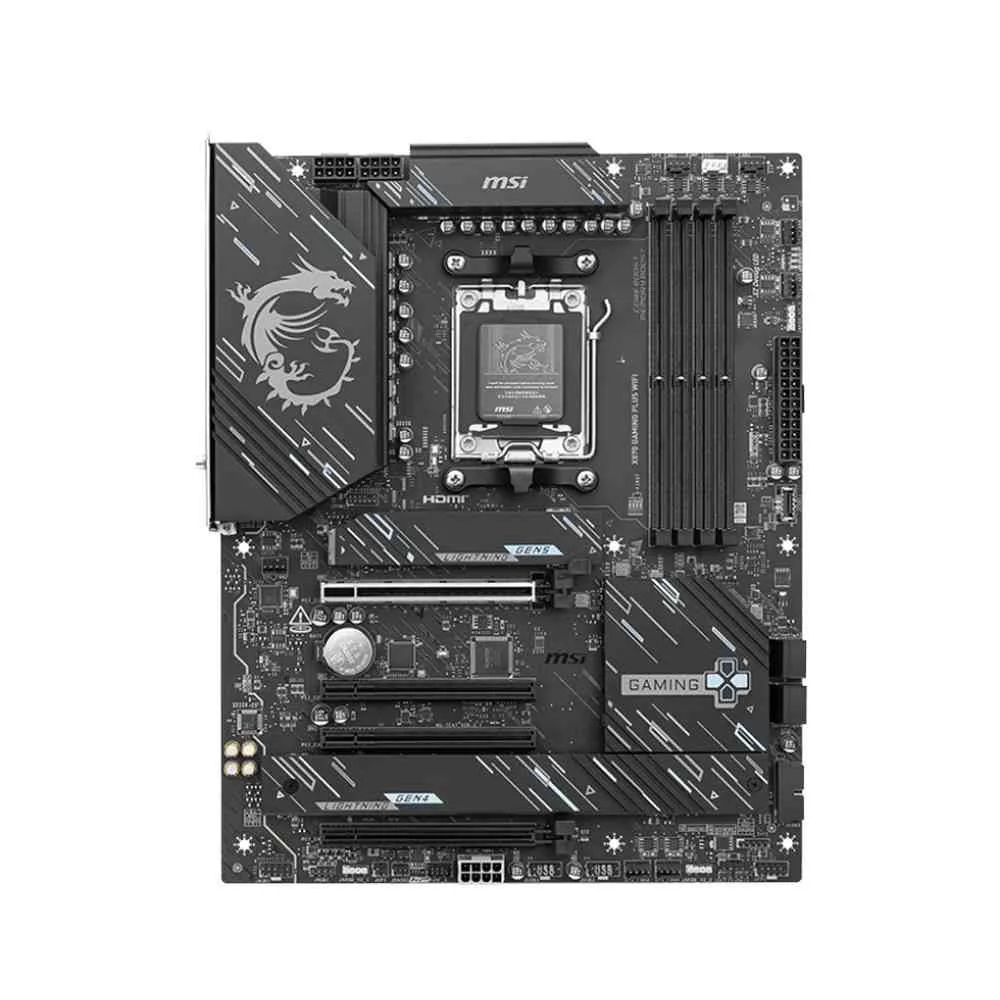

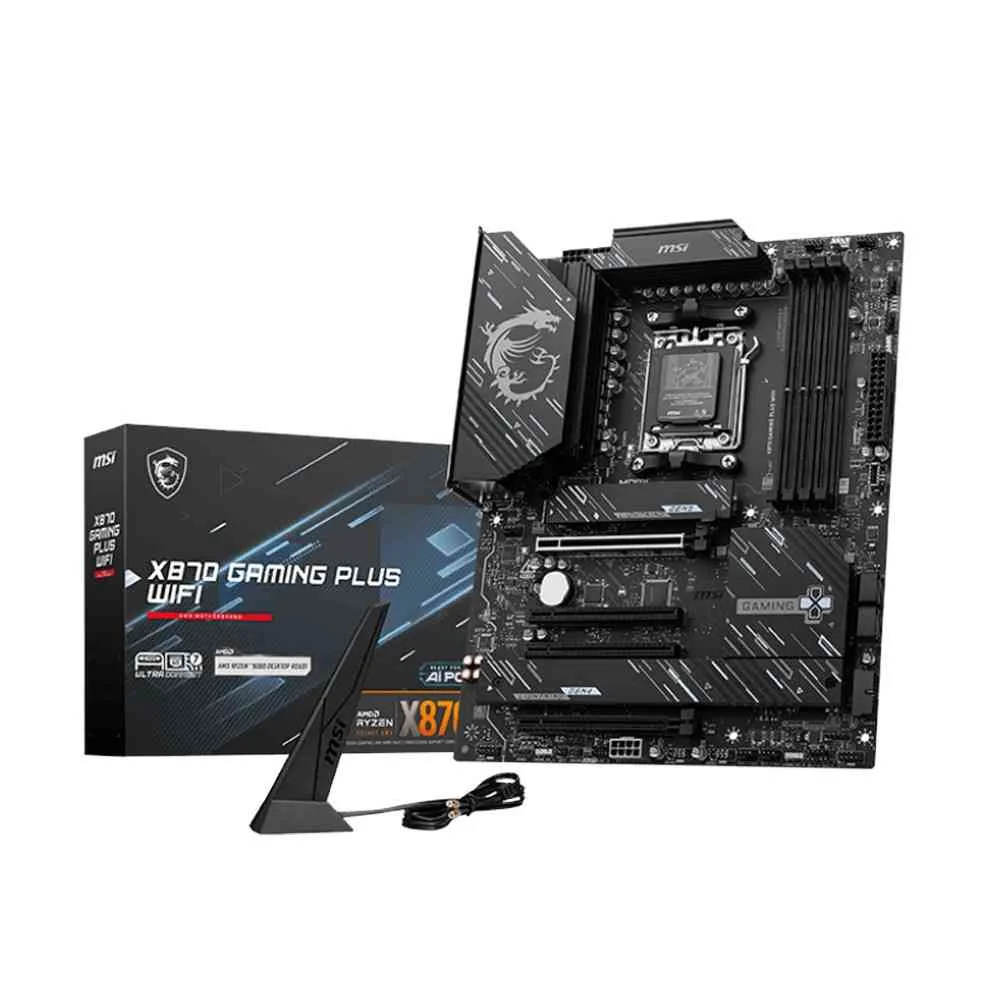

MSI X870E Gaming Plus Wifi, Ai PC, PCIe 5.0 Ready DDR5 AMD Ryzen Gaming MotherBoard

Model No : MSI X870E Gaming Plus Wifi, Ai PC, PCIe 5.0 Ready DDR5 AMD Ryzen Gaming MotherBoard Part No : 911-7E47-005 Chipset : AMD X870 Form Factor : ATX Socket Compatibility : Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 Wireless & Bluetooth : Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM Lighting : 4x EZ Debug LED Memroy Type : 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8200+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 4800+ MT/s Memory Compatibility : Supports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only* Lan : Realtek® 8126VB 5G LAN Storage Compatibility : 3x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices4x SATA 6GM2_1 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) Back Panel I/O Ports : Clear CMOS ButtonUSB 5Gbps Type-AUSB 10Gbps Type-AUSB 2.05G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMI™USB 40Gbps Type-CUSB 2.0USB 20Gbps Type-CUSB 5Gbps Type-A USB Ports Front (Support ) : 4x USB 2.0 2x USB 5Gbps Type A, 1x USB 10Gbps Type C Expansion Slots : 4x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) Audio : Realtek® ALC8977.1-Channel High Definition Audio Internal I/O Connectors : 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports Package Content : European Union Ragulaloty Notice, Quick Installation Guide, EZ M.2 Clip II Remover, EZ M.2 Clip II, EZ Wi-Fi Antina, 2x Sata cable, 1 to 2 EZ Conn-Cable (V1), Shout. Uot Flyer, Cable Sticker Product Size ( Dimension ) : 243.84mmx304.8mm Product Weight : 2.0 Kg Warranty : 1 Year ( As per Manufacturer Policy )
