MSI X870E GAMING PLUS WIFI – ATX AM5 DDR5 Motherboard with WiFi 7, 5G LAN & PCIe 5.0 | 911-7E70-001

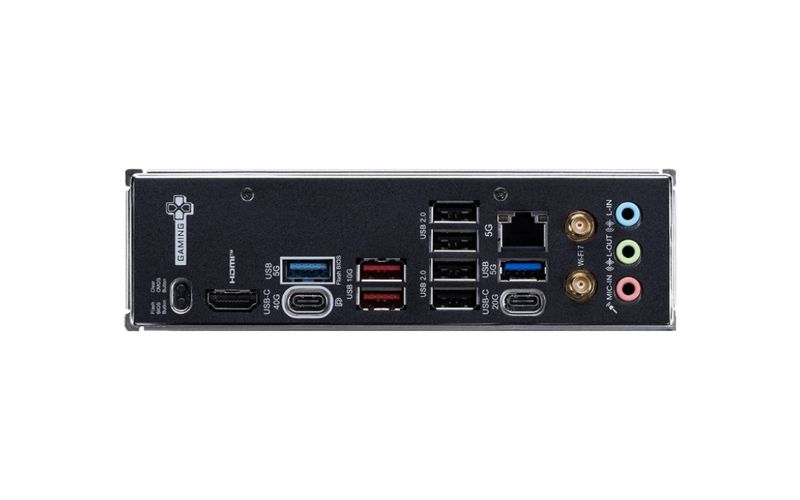

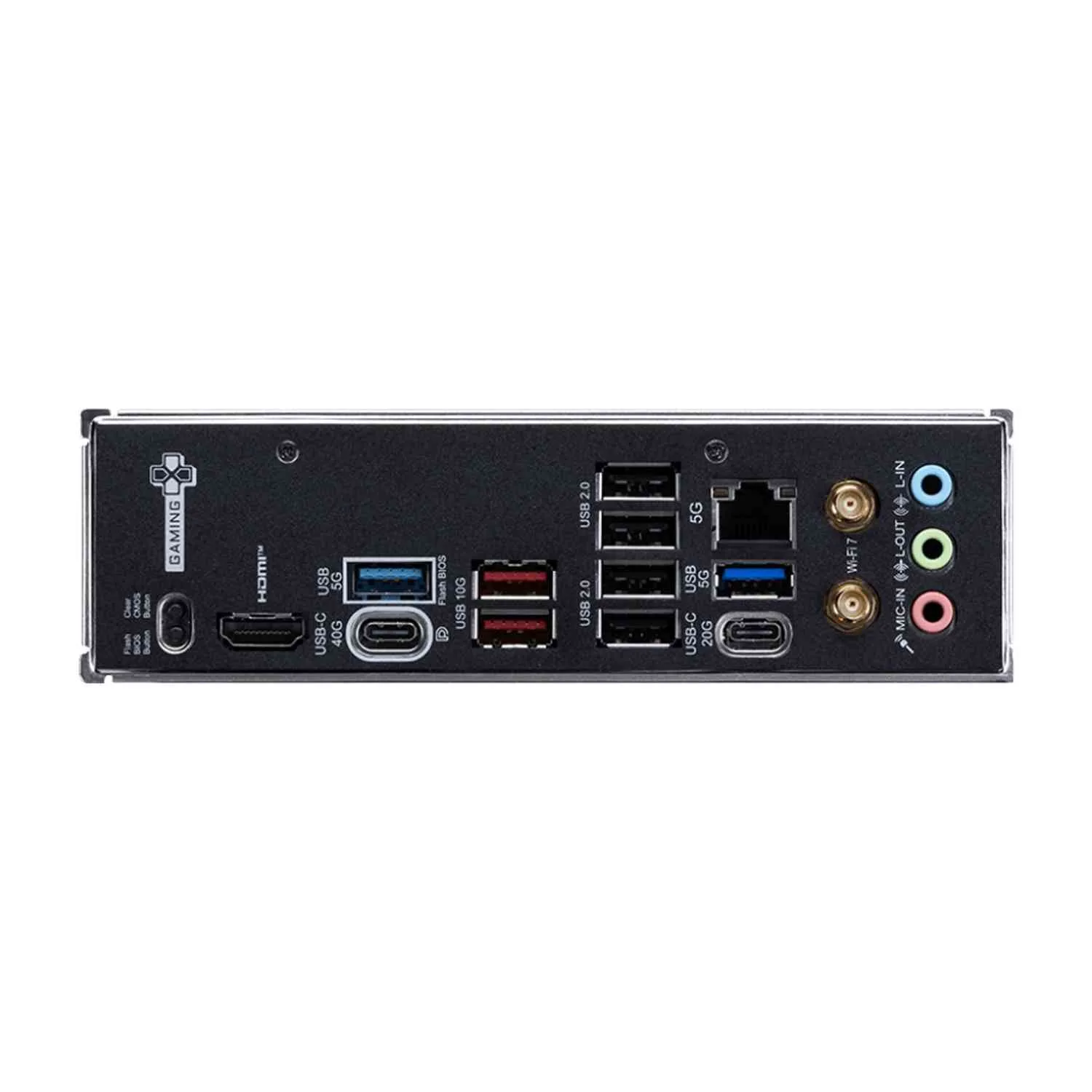

Model No : MSI AMD X870E Gaming Plus WIFI Motherboard Part No : 911-7E70-001 Chipset : AMD X870E Form Factor : ATX Socket Compatibility : AMD AM5 (Supports Ryzen 7000 / 8000 / 9000 Series) Wireless & Bluetooth : Wi-Fi 7 + Bluetooth 5.4 Lighting : RGB / ARGB headers, EZ Debug LEDs Memory Type : DDR5 Memory Compatibility : 4 × DDR5 UDIMM slots, up to 256 GB; supports memory overclocking (e.g. DDR5-8200+ OC) Storage Compatibility : 3 × M.2 slots (various PCIe generations) 4 × SATA 6 Gb/s ports Back Panel I/O Ports : • HDMI 2.1 • USB4 Type-C (40 Gb/s) • USB 3.2 Gen2x2 Type-C (20 Gb/s) • USB 3.2 Gen2 Type-A ports • USB 3.2 Gen1 ports • USB 2.0 ports • 5G LAN RJ-45 • Audio jacks (7.1) • Wi-Fi antenna connectors • BIOS Flash / Clear CMOS buttons USB Ports Front / Internal Support : Internal headers for USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, USB-C header for internal device Expansion Slots : • 1 × PCIe 5.0 ×16 • 1 × PCIe 4.0 ×16 / ×4 (varies) • Additional PCIe 3.0 ×1 slots Audio : Realtek ALC897 codec, 7.1-channel HD audio Internal I/O Connectors : 24-pin ATX power, dual 8-pin CPU power, fan & pump headers, RGB / ARGB headers, front panel, TPM header, USB headers, front audio, etc. Special Features : 14 Duet Rail power design, extended heatsinks, M.2 Shield Frozr, Steel Armor PCIe slot, Core Boost, Memory Boost, USB4, PCIe 5.0, “EZ DIY” features (Clip, Shield, Antenna) Package Content : Motherboard, Wi-Fi antennas, SATA cables, M.2 screws / clips, manual, installation guide, warranty card Product Size (Dimension) : 304.8 mm × 243.8 mm Product Weight : (Not publicly disclosed) Warranty : 1 Year ( As per Manufacturer Policy )
