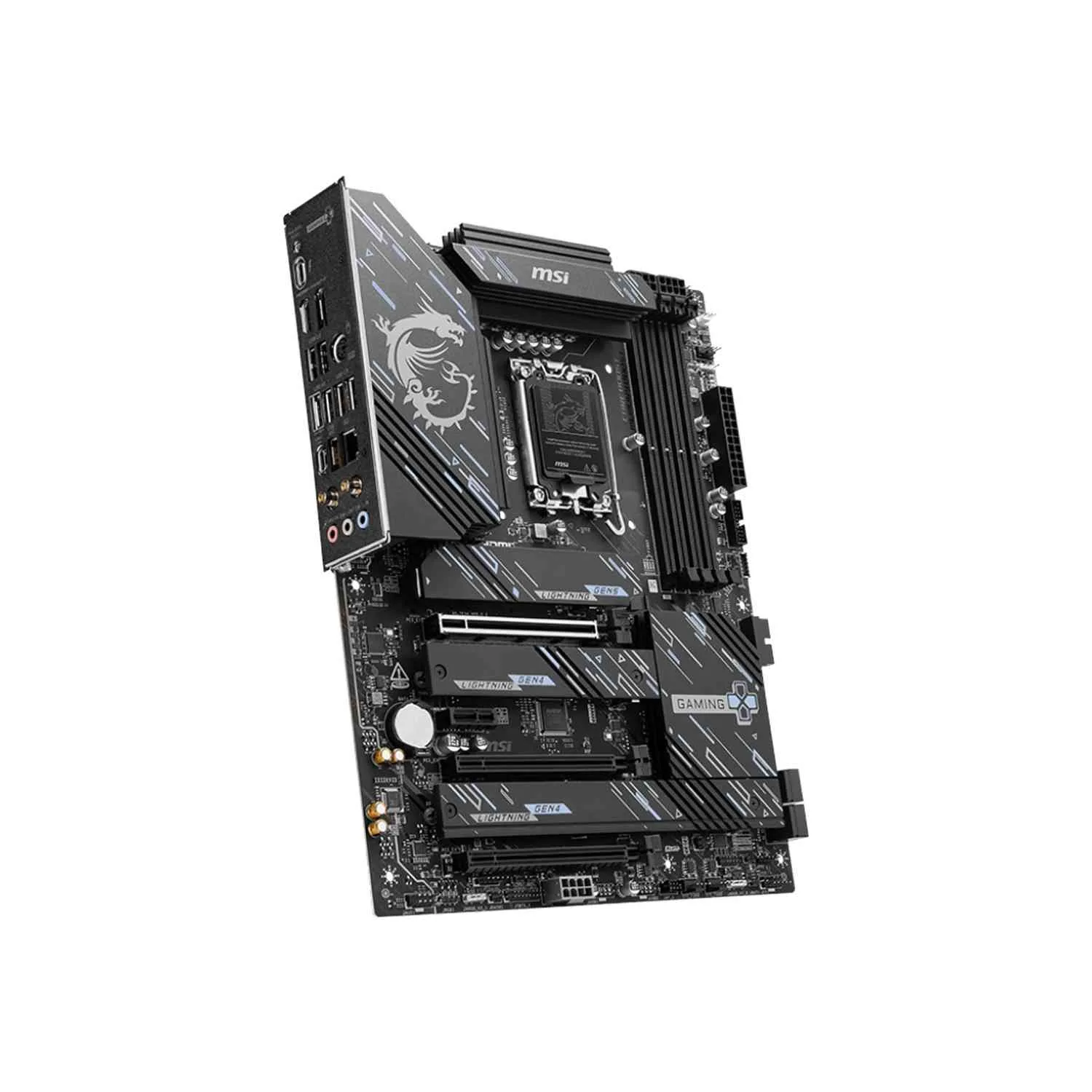

MSI Z890 Gaming Plus Wi-Fi 7 ATX Gaming Motherboard, LGA 1851 Socket, DDR5 Memory Supports

Model No : MSI Z890 Gaming Plus Wi-Fi 7 ATX Gaming Motherboard Part No : 911-7E34-002 Chipset : INTEL Z890 Form Factor : ATX Socket Compatibility : Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851 Wireless & Bluetooth : Intel® Killer™ BE1750x Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM LAN : Intel® Killer™ E5000 5Gbps LAN Memroy : 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 9200+ MT/s• 1DPC 2R Max speed up to 7200+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 5600+ MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM Storage Compatibility : 4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G Back Panel I/O Ports : DisplayPortKeyboard / MouseUSB 2.05G LANWi-Fi / BluetoothAudio ConnectorsFlash BIOS ButtonThunderbolt™ 4 40Gbps (Type-C)HDMI™USB 2.0USB 5Gbps Type A portsUSB 10 Gbps Type C portsUSB 10 Gbps Type A ports USB Ports Front (Support ) : 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)4x USB 5Gbps Type A (Front)1x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front) Expansion Slots : 3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) Audio : Realtek® ALC897 Codec7.1-Channel High Definition Audio Internal I/O Connectors : 1x Thunderbolt5 card connector(JTBT5, support RTD3)1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 20Gbps Type C ports Special Features : Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socketSupports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level materialFrozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experienceEZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ AntennaLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmissionAudio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience Product Size ( Dimension ) : 243.84mmx304.8mm Warranty : 1 Year ( As per Manufacturer Policy )
